Description

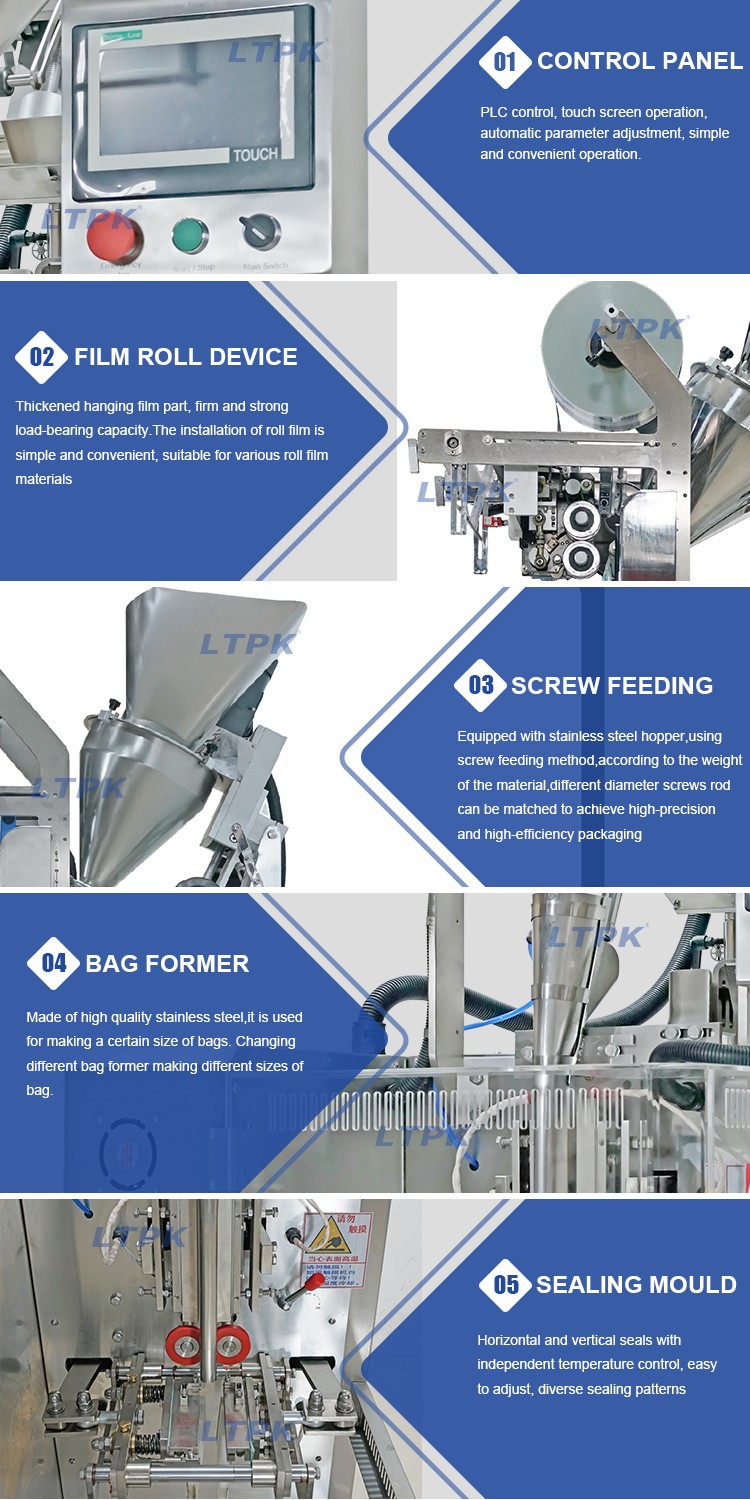

This machine adopts the touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

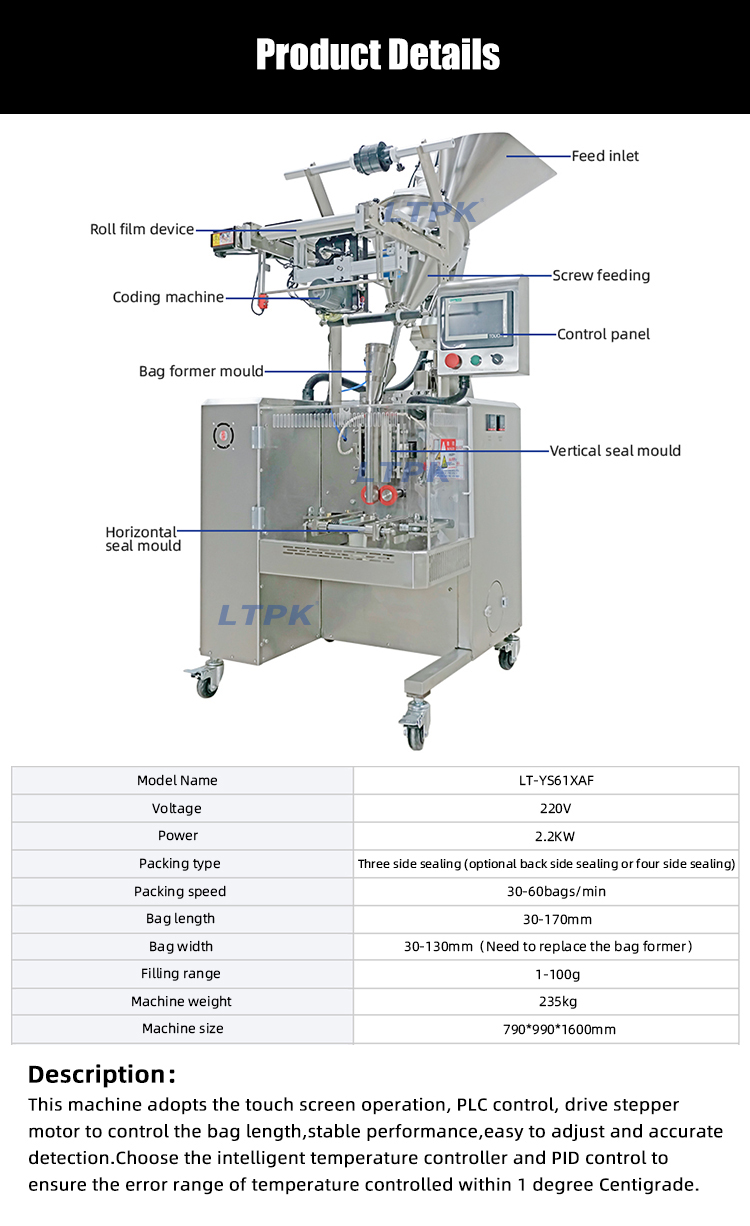

Technical parameters

Model：LT-YS61XAF

Voltage：220V

Power：2.2KW

Packing type：Three side sealing (optional back side sealing or four side sealing)

Packing speed：30-60bags/min

Bag length：30-170mm

Bag width：30-130mm(Need to replace the bag former

Filling range：1-100g(3-100ml)

Machine weight：235kg

Machine size：790 *1000 * 1760mm

Application

The machine is suitable for measuring packaging of powder products in the food,chemical, and cosmetics industries.Such as milk powder,soy milk powder,lotus root powder, dyeing powder, seasoning powder, etc.

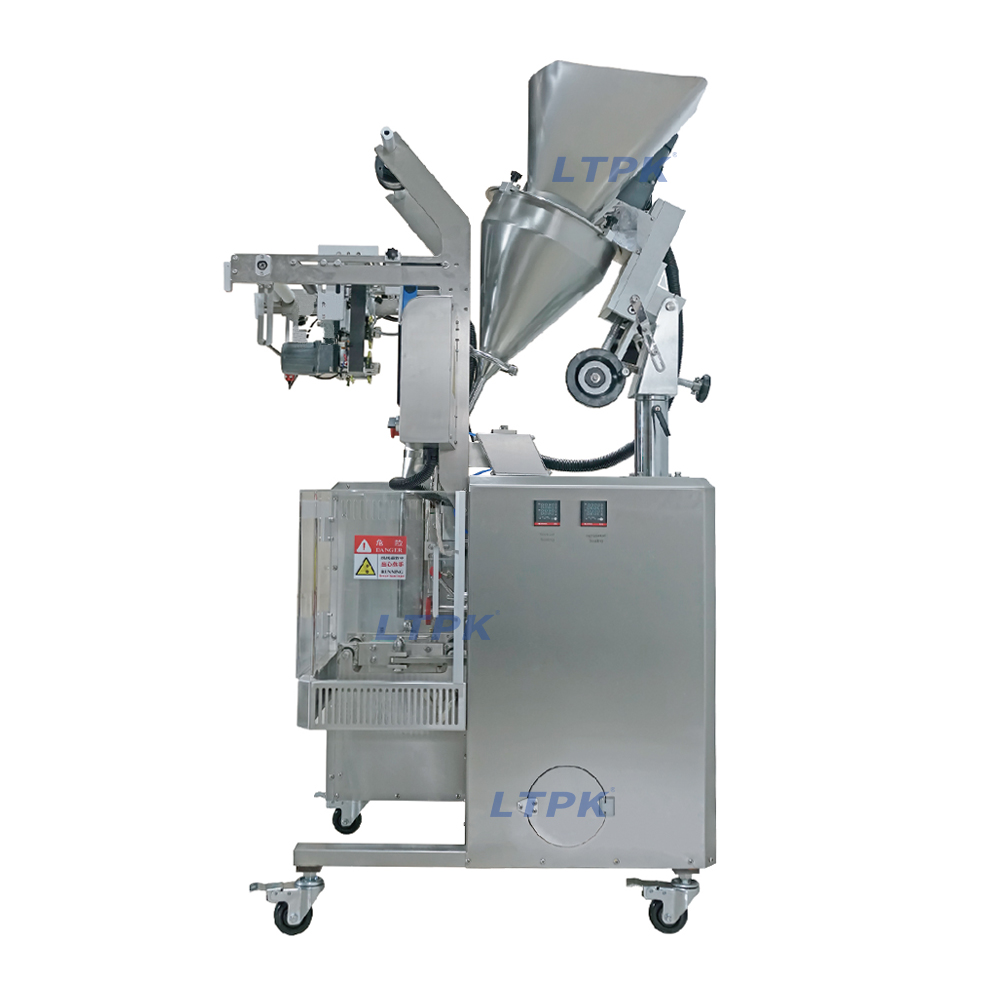

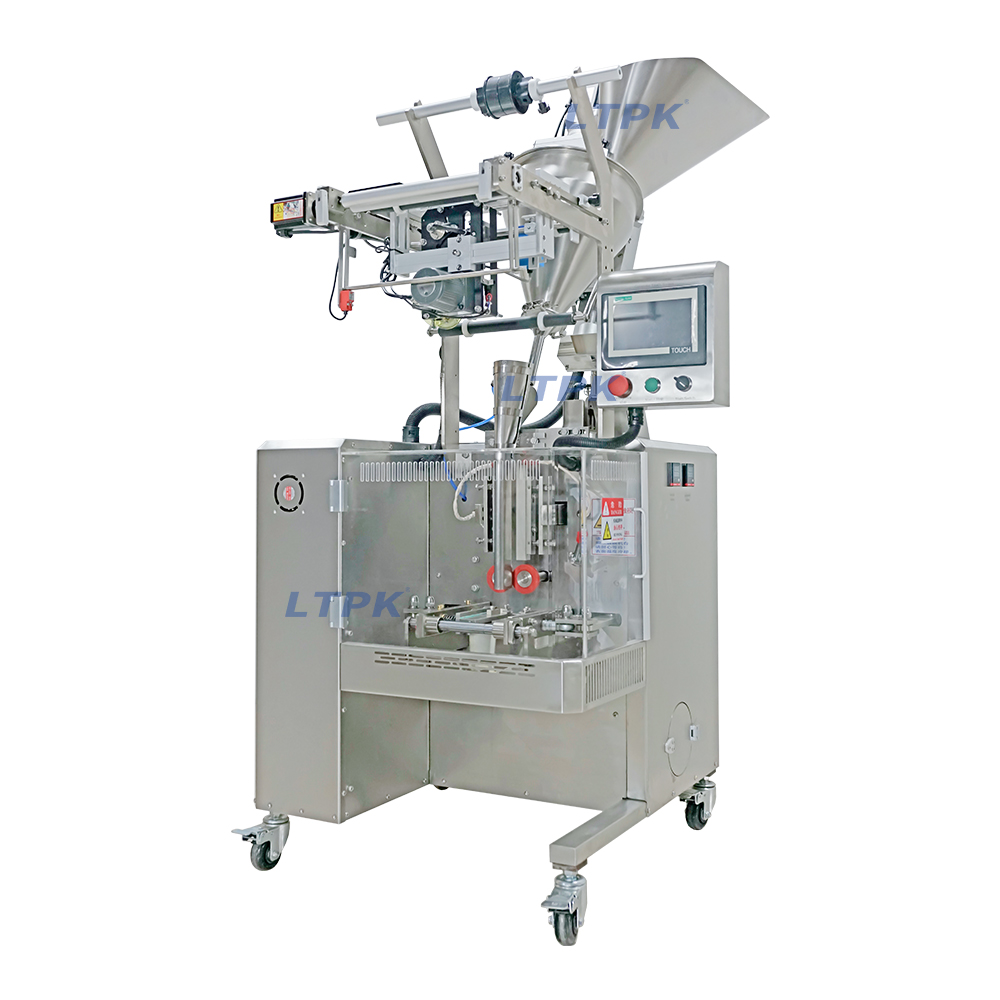

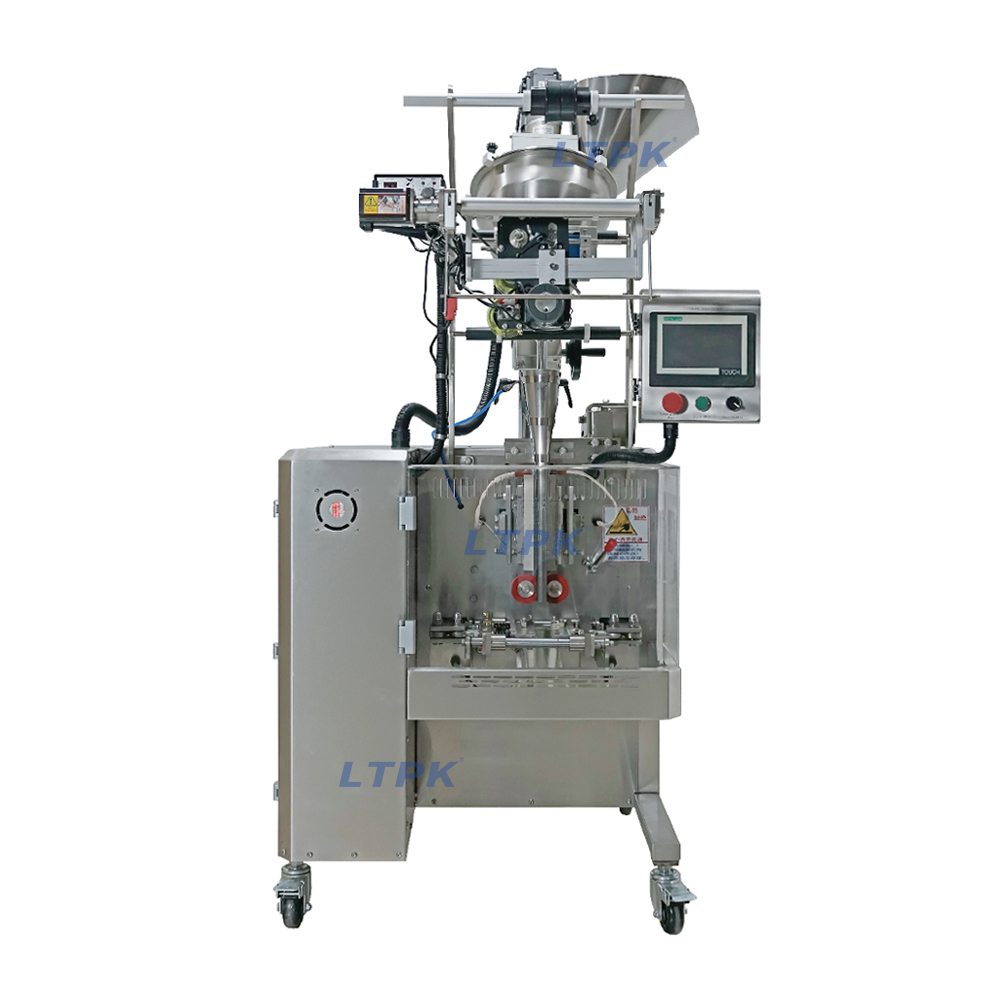

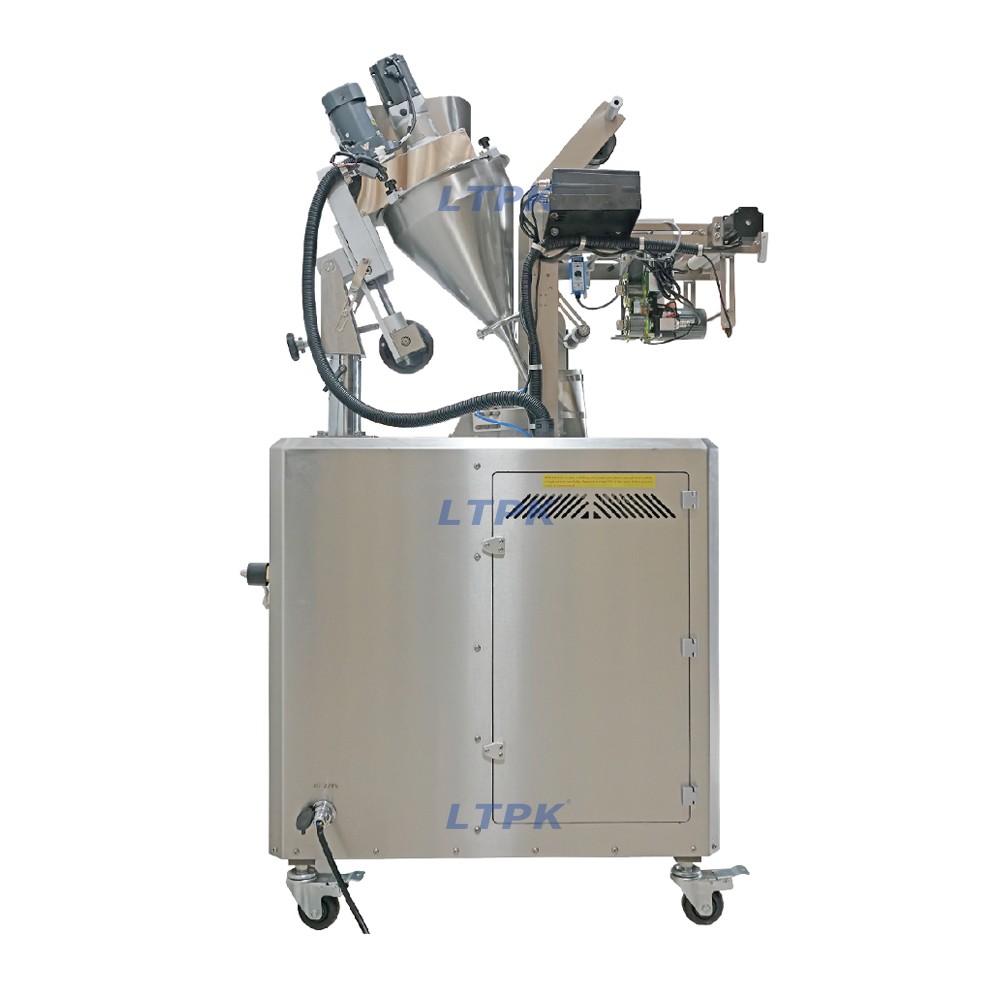

Detail Images
