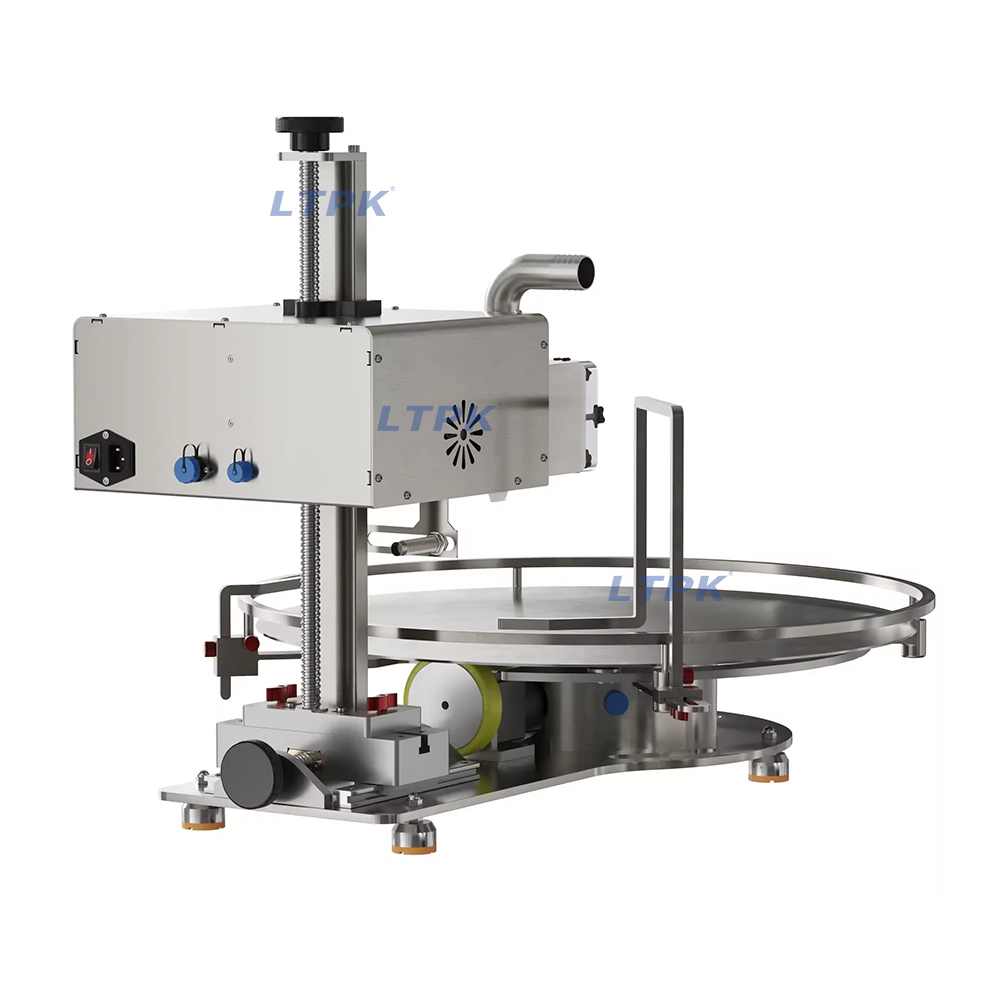

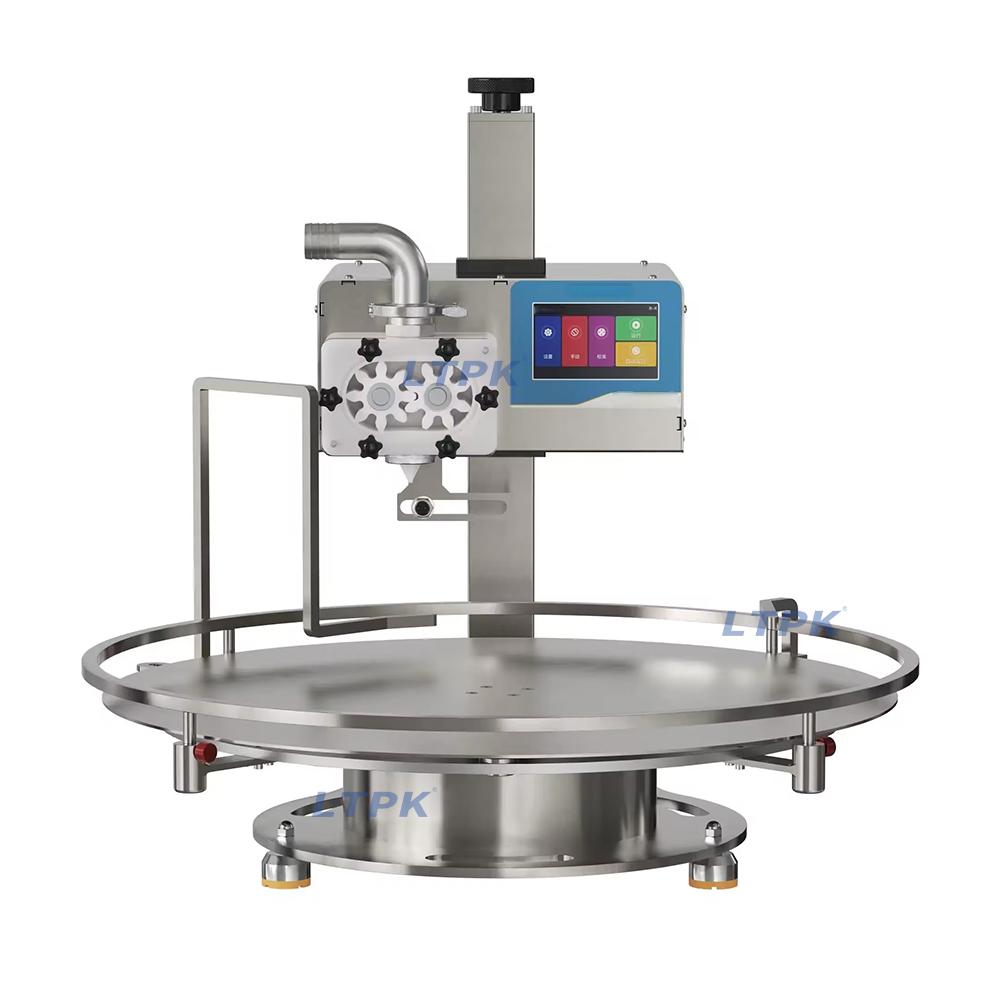

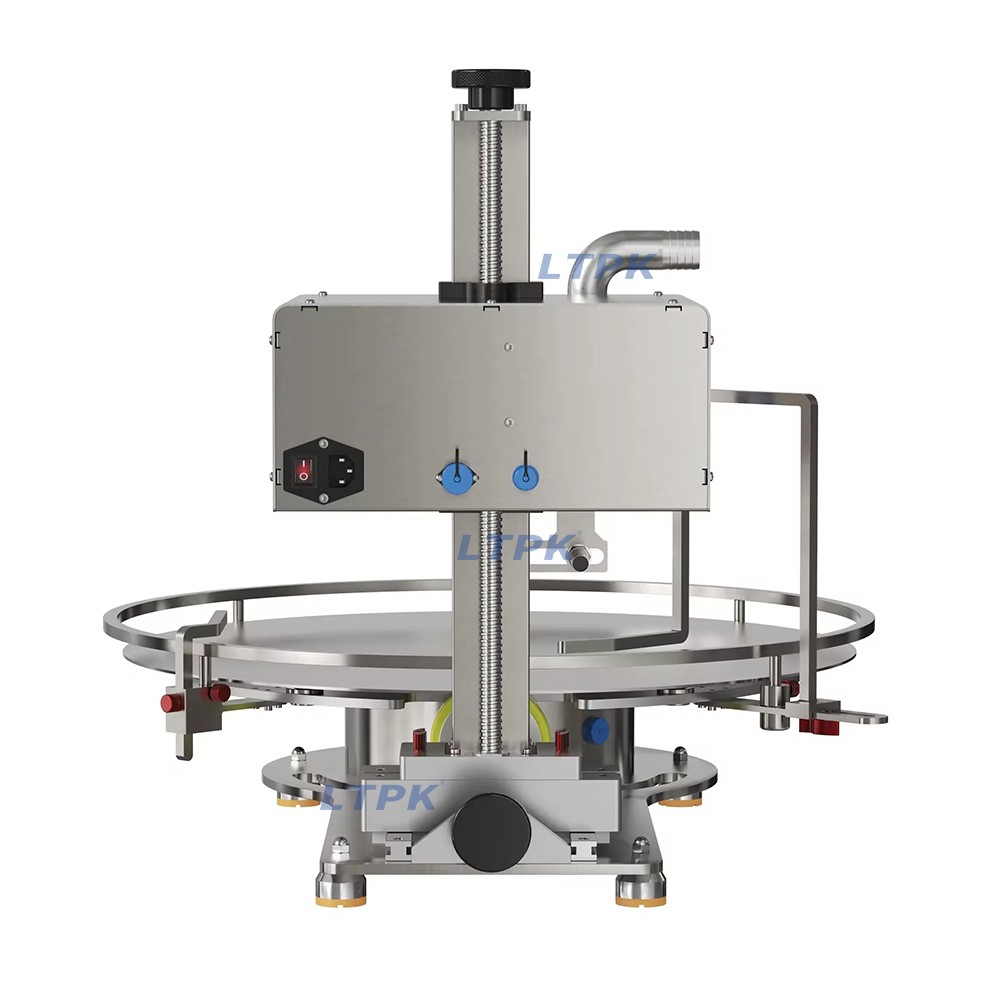

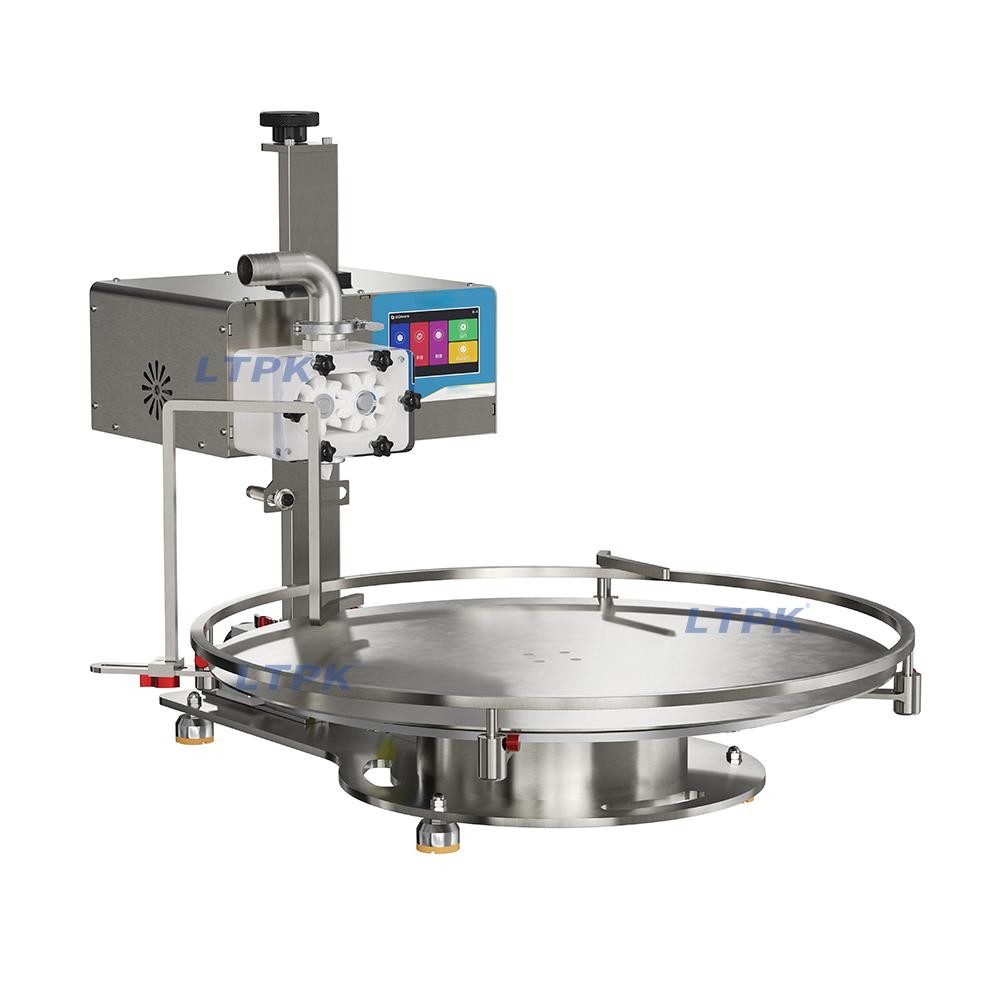

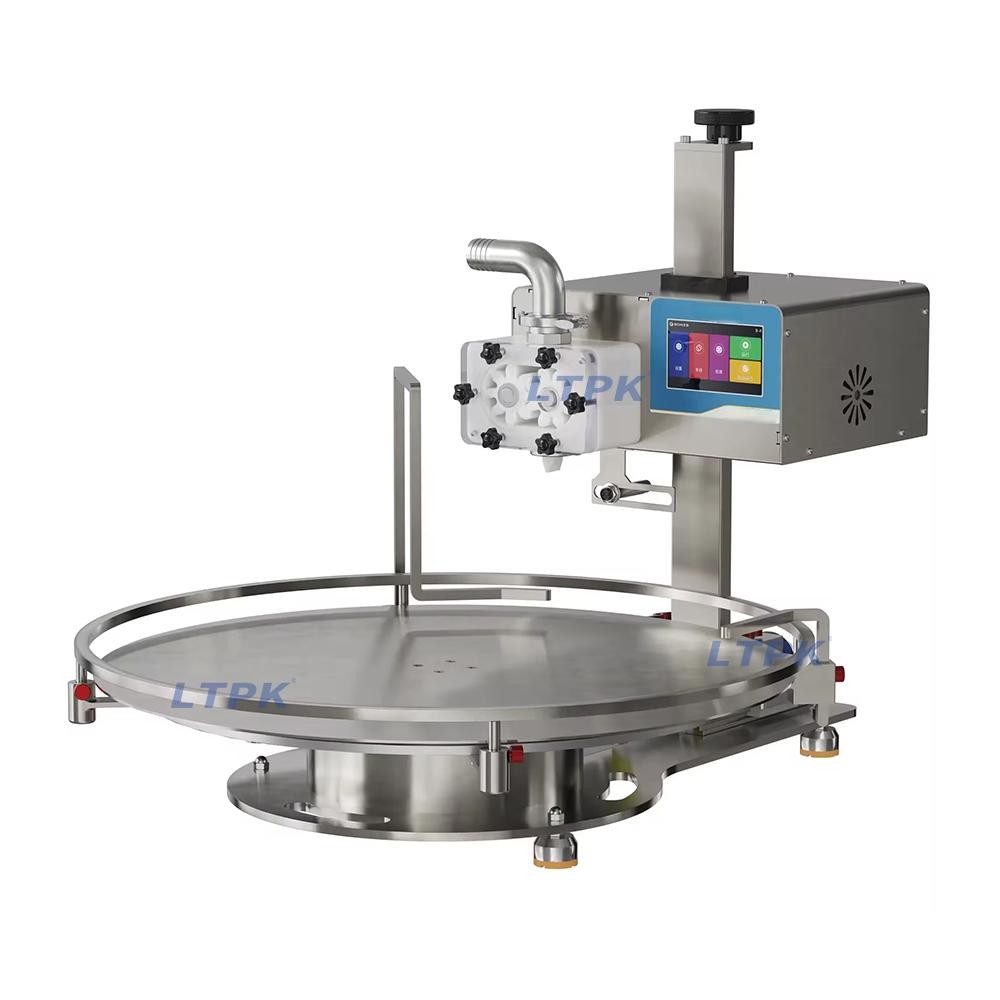

LTPK 8-X-3 Accuracy Honey Peanut Butter Filler Rotary Filling Machine Table Collection and Unscrambler Herbal Paste Filler Equipment

LTPK 8-X-3 Accuracy Honey Peanut Butter Filler Rotary Filling Machine Table Collection and Unscrambler Herbal Paste Filler Equipment

Model：8-X-3
Voltage：220/110V
Power：400W
Pump：gear pump
Control method：PLC
Flow：10L/min
Filing range：5-2000g
Filling accuracy：±1g
Suitable bottle height：≤240mm
Turntable diameter：650mm
Turntable speed：0-3rpm adjustable
Turntable load capacity：50kg
Suitable viscosity ：1000-180000cp
Material temperature：≤70℃
Machine size：855*670*635mm
Machine weight：60kg

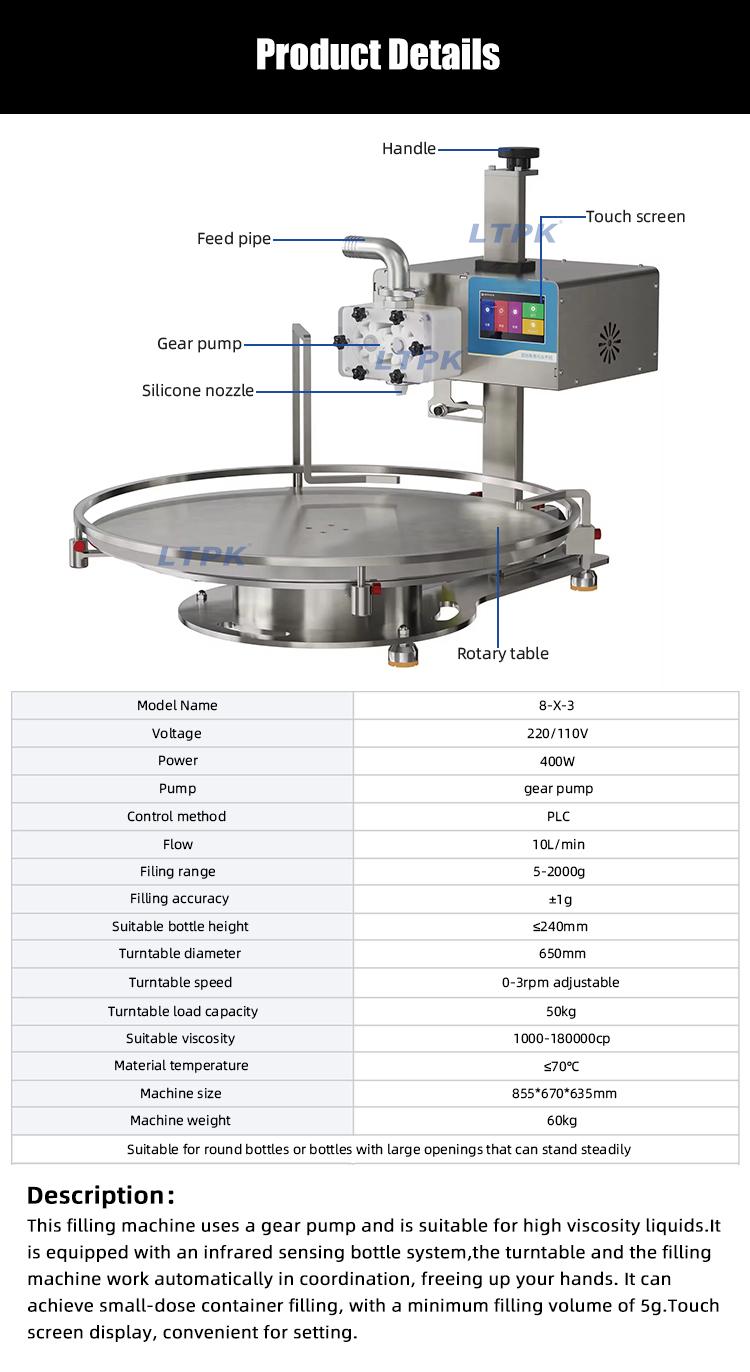

Description

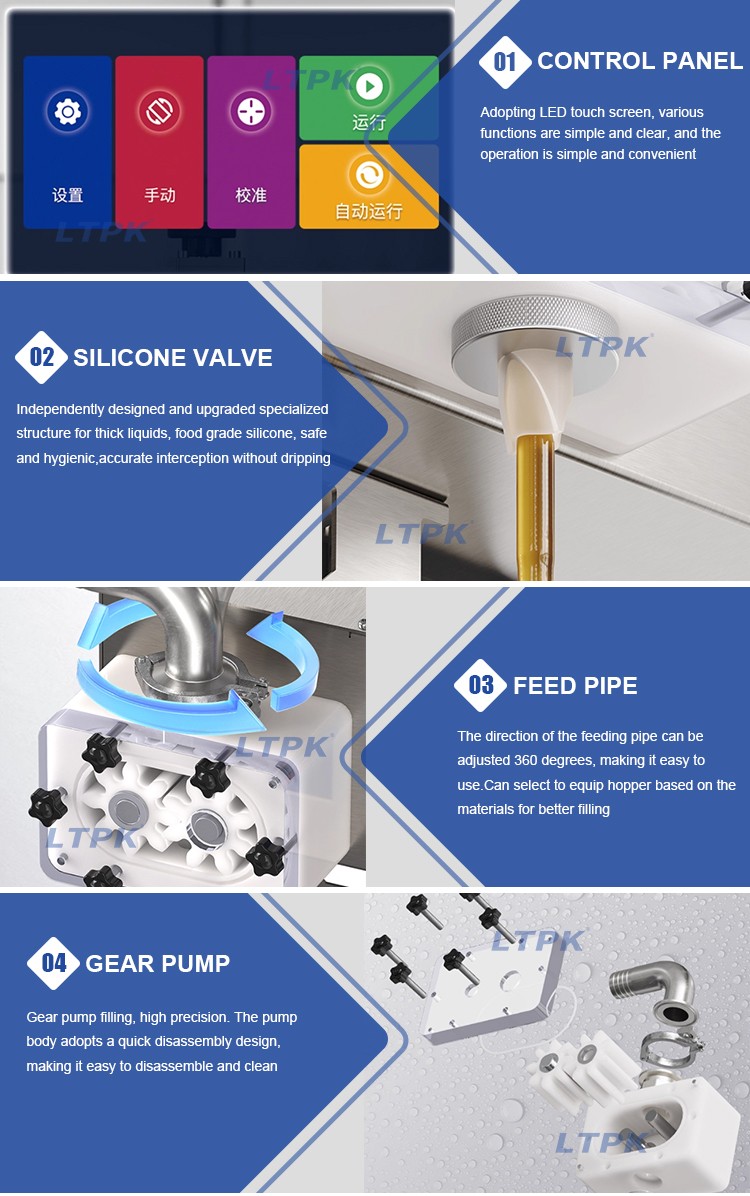

This filling machine uses a gear pump and is suitable for high viscosity liquids.It is equipped with an infrared sensing bottle system,the turntable and the filling machine work automatically in coordination, freeing up your hands. It can achieve small-dose container filling, with a minimum filling volume of 5g.Touch screen display, convenient for setting.

Technical Parameters

Model：8-X-3

Voltage：220/110V

Power：400W

Pump：gear pump

Control method：PLC

Flow：10L/min

Filing range：5-2000g

Filling accuracy：±1g

Suitable bottle height：≤240mm

Turntable diameter：650mm

Turntable speed：0-3rpm adjustable

Turntable load capacity：50kg

Suitable viscosity ：1000-180000cp

Material temperature：≤70℃

Machine size：855*670*635mm

Machine weight：60kg

Application

Suitable for honey,yogurt,salad,soy sauce, pear paste,peanut butter, tomato sauce,edible butter and other food products.Shampoo, dishwashing liquid,resin, and other products across various industries.
