Description

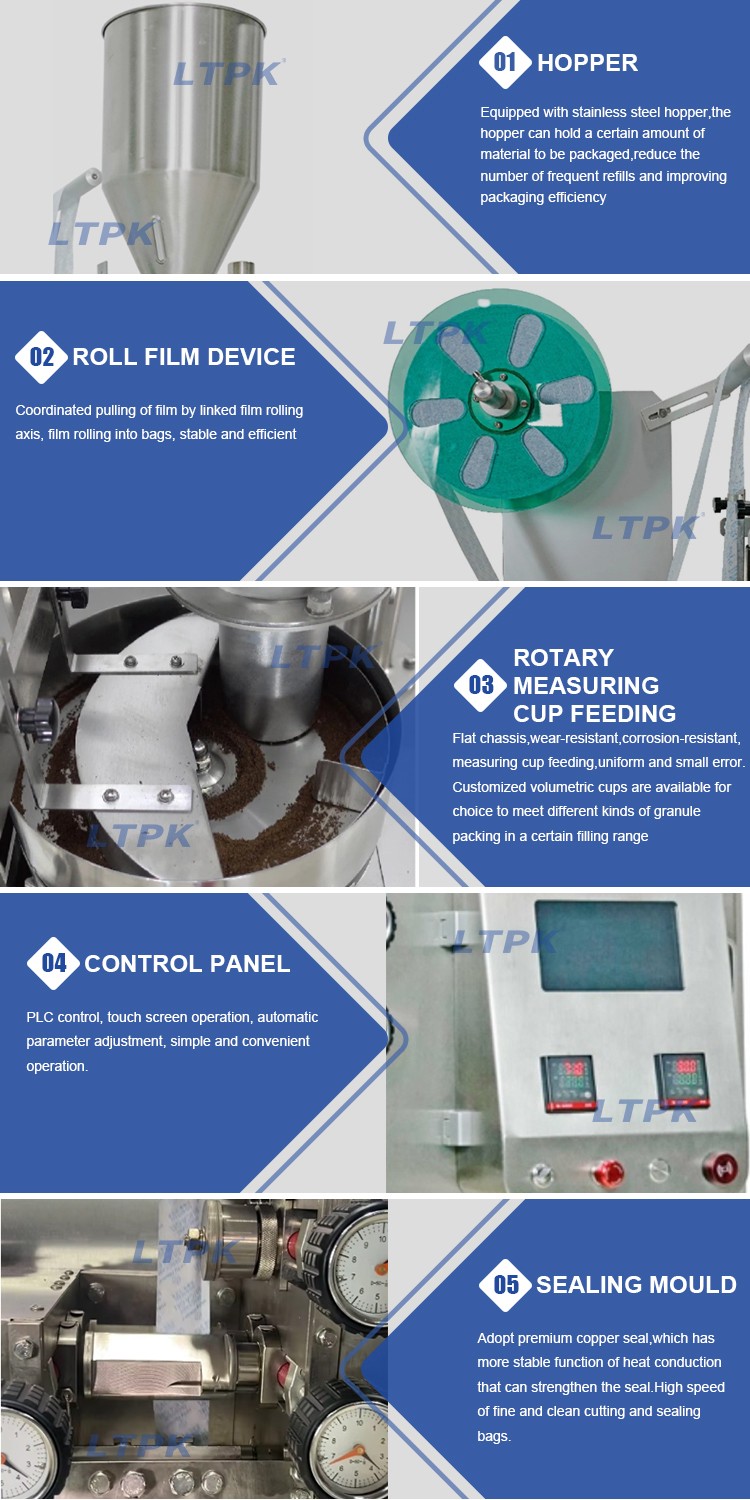

This machine adopts the touch screen operation, PLC control, servo motor to control the bag length,fast speed,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

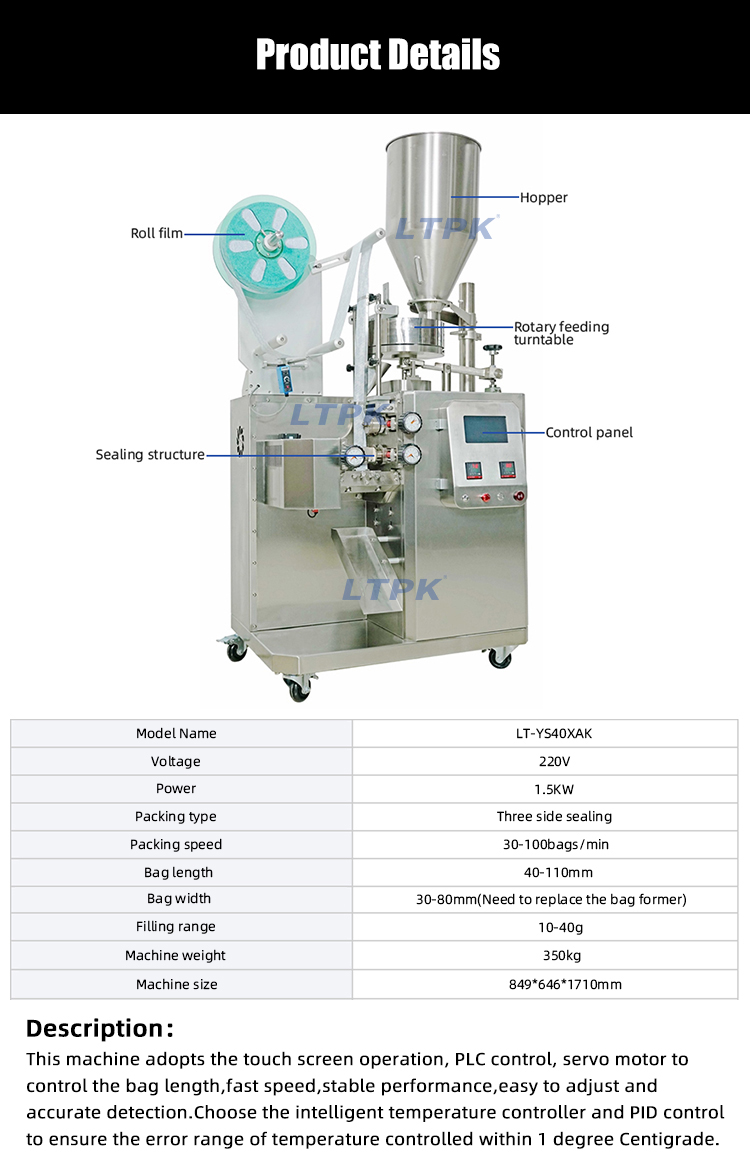

Technical parameters

Model:LT-YS40XAK

Voltage:220V

Power:1.5KW

Packing type:Three side sealing

Packing speed:30-100bags/min

Bag length:40-110mm

Bag width:30-80mm(Need to replace the bag former)

Filling range:10-40g

Machine weight:350kg

Machine size:849*646*1710mm

Application

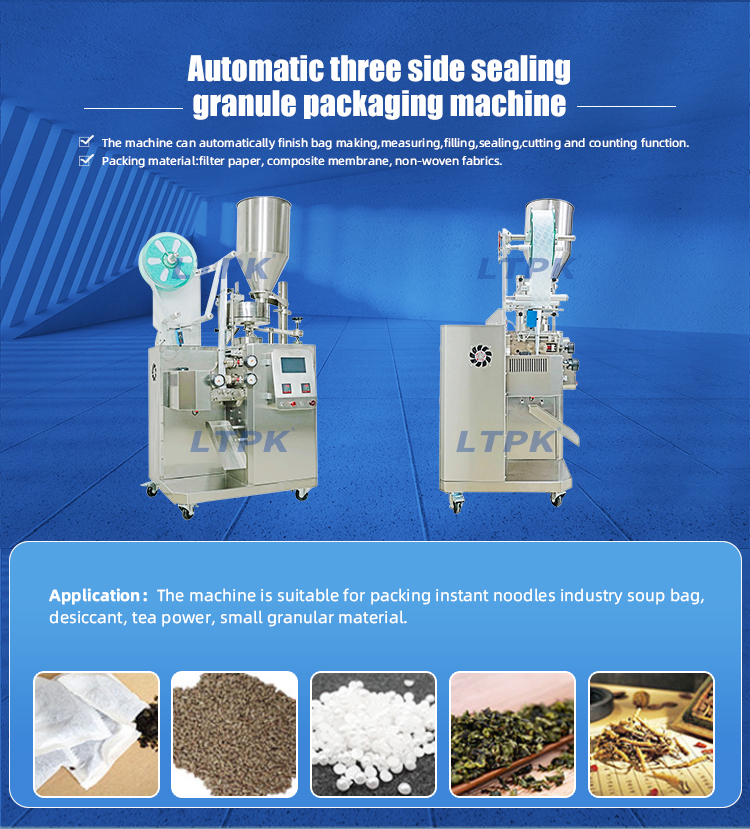

The machine is suitable for packing instant noodles industry soup bag, desiccant, tea power, small granular material.

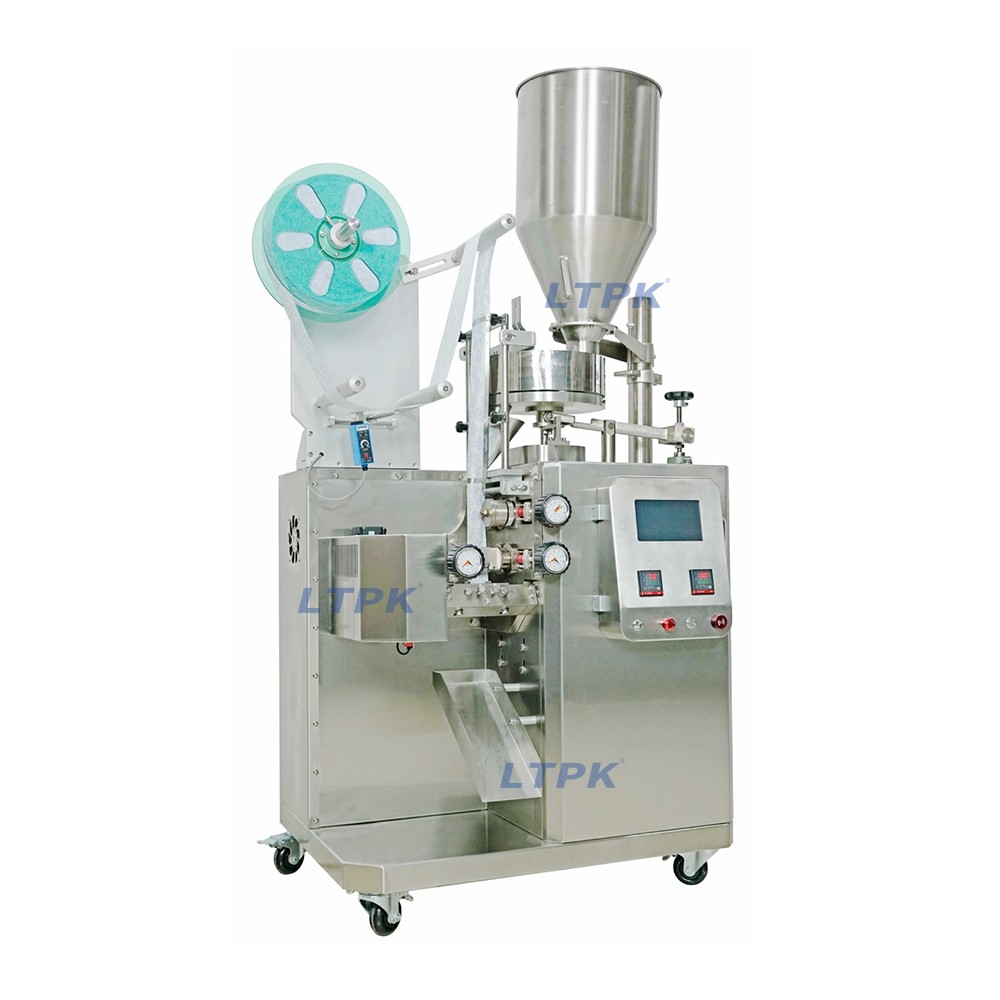

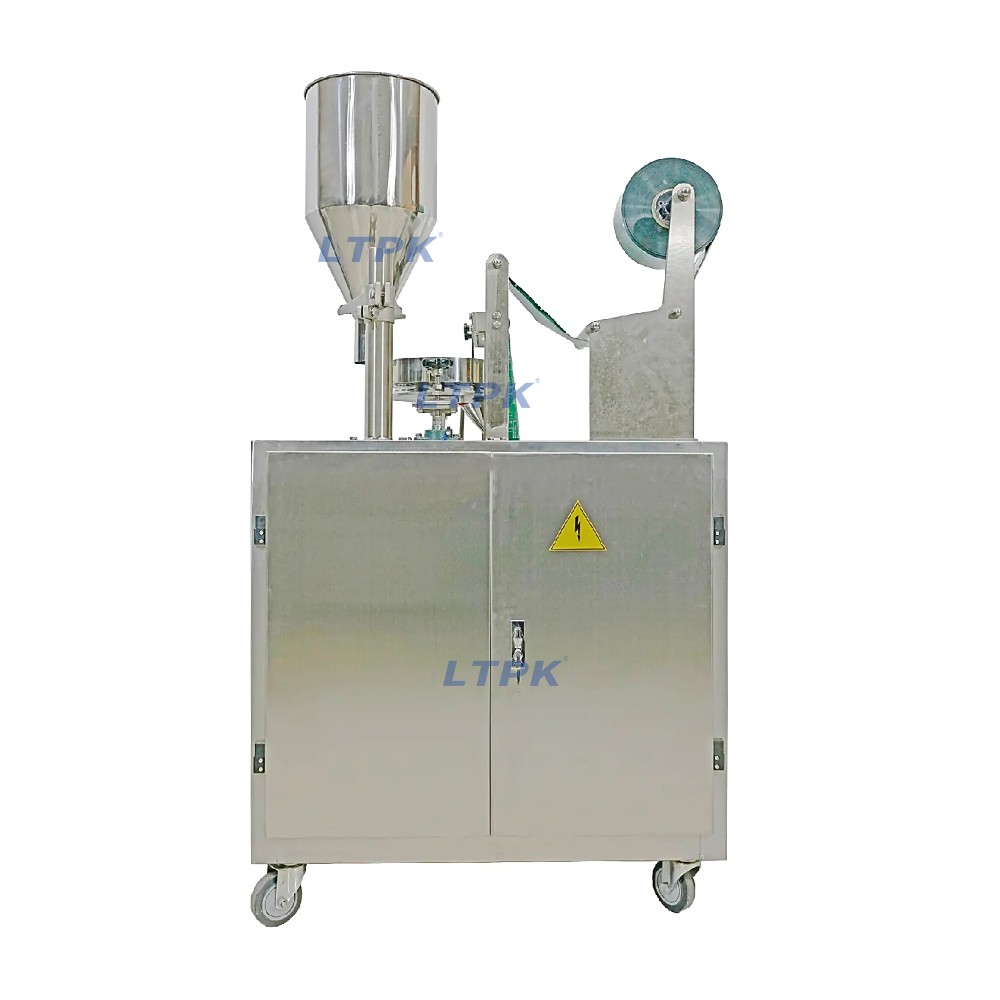

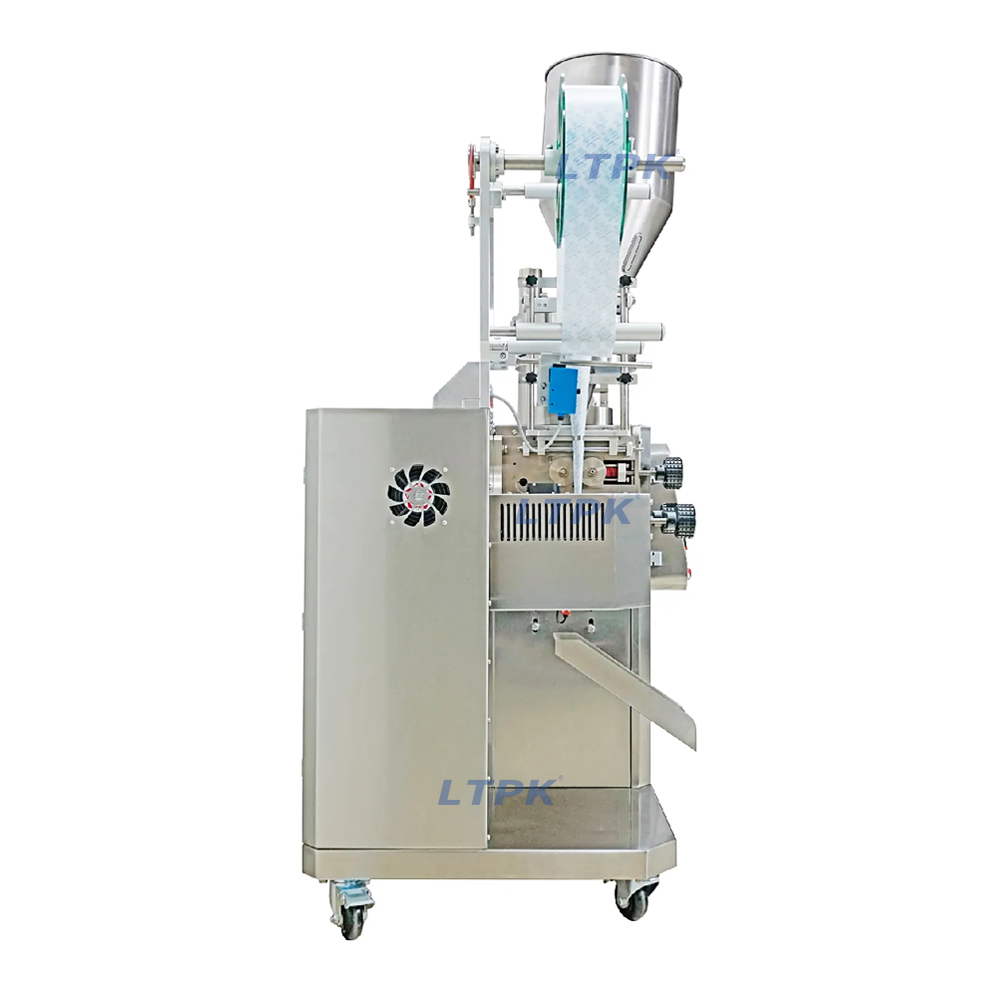

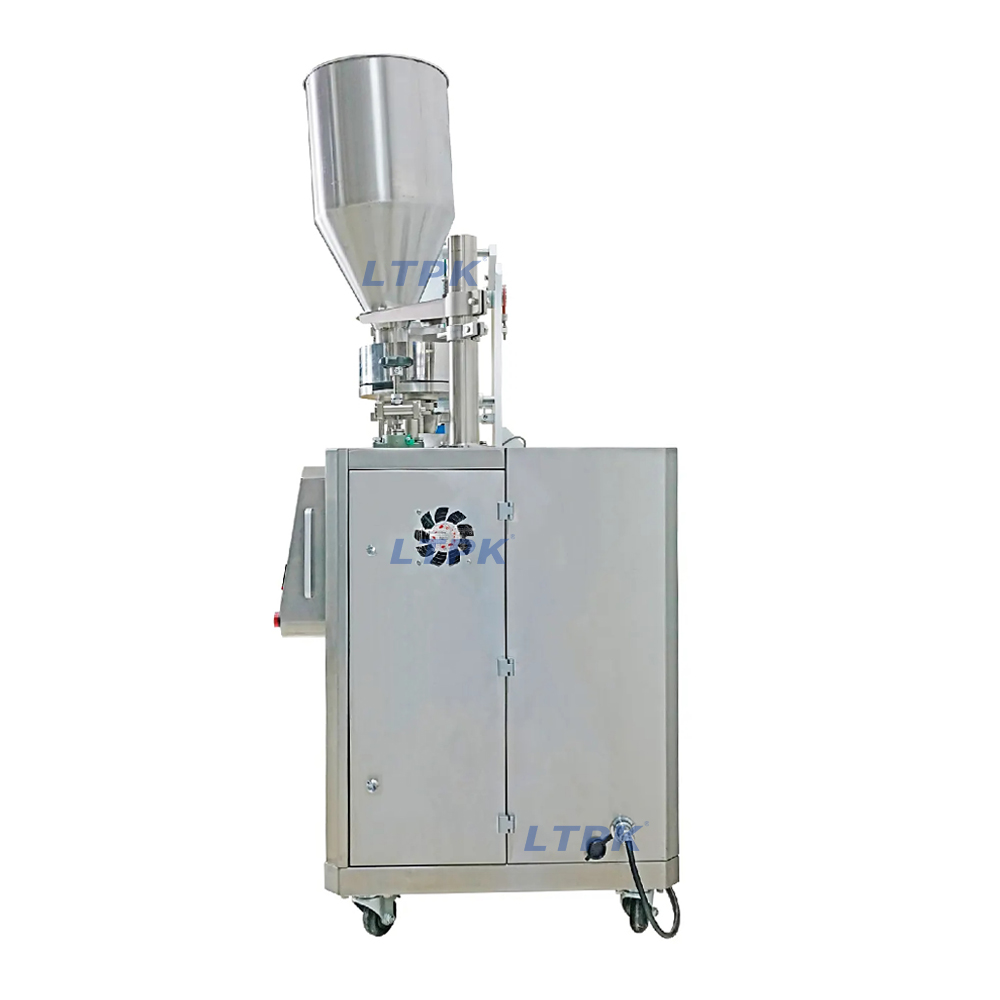

Detail Images
