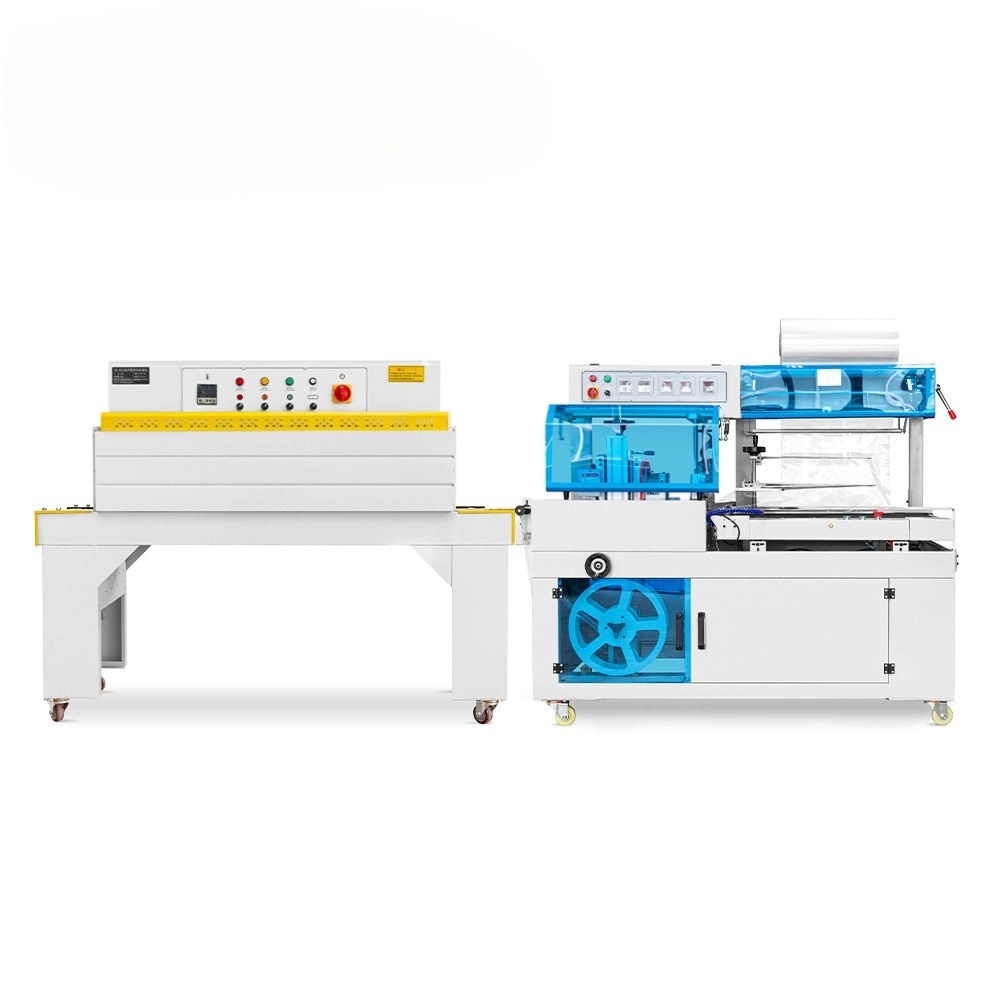

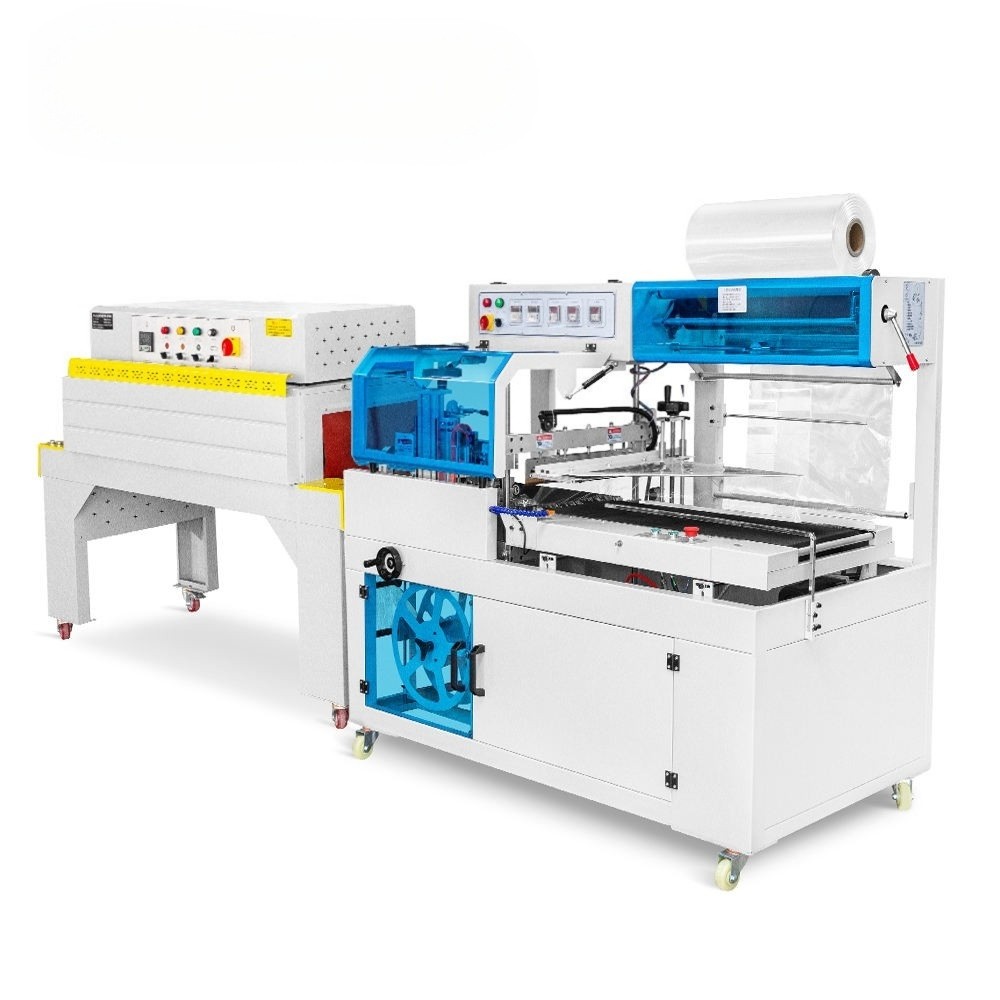

BF550 Full Automatic Heat Shrink Packing Machine with Side Sealing Side Cutting Shrink Wrapping Machine

Description

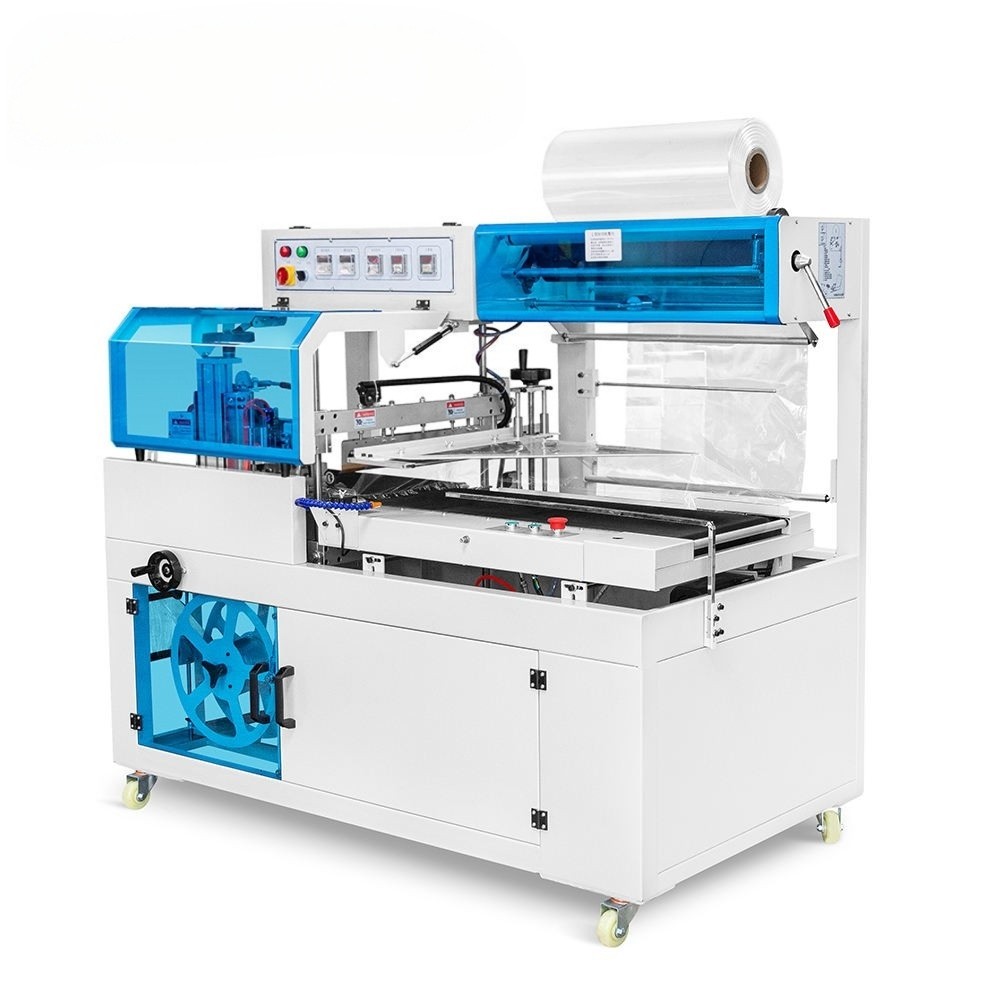

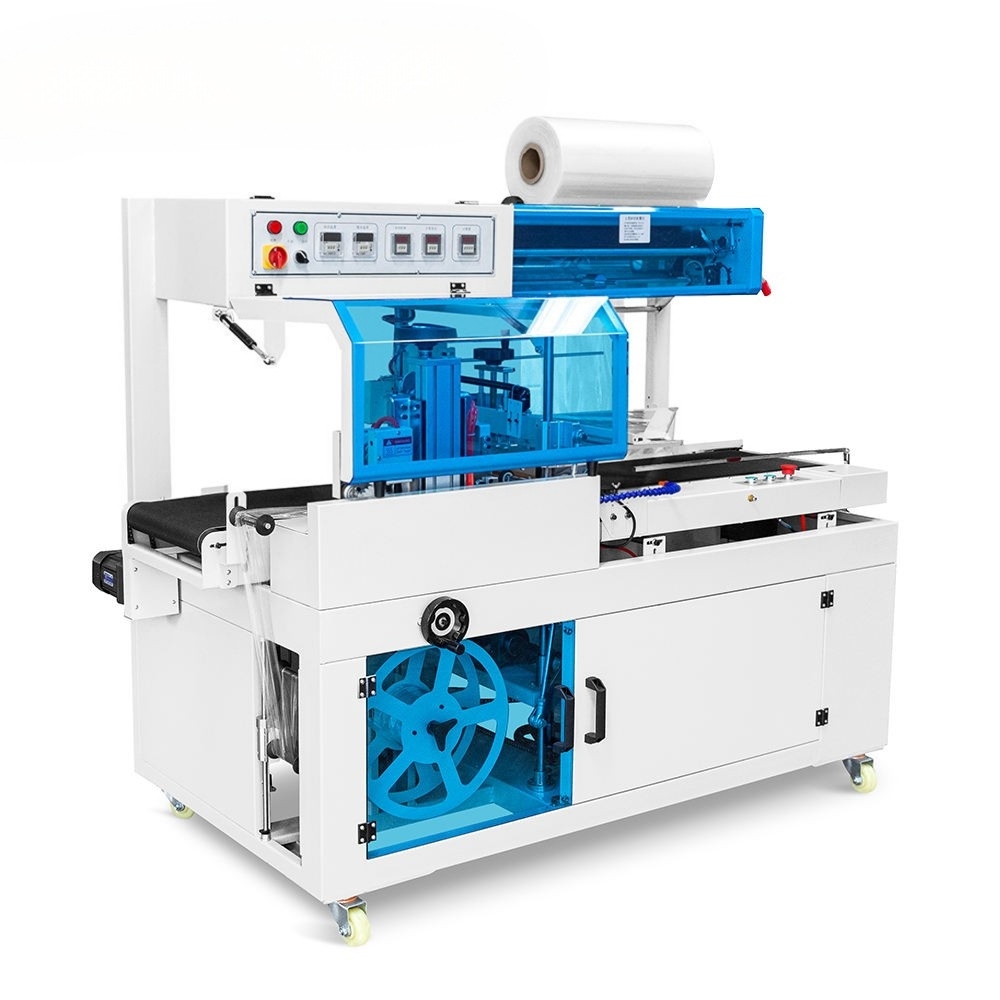

The Automatic L Bar Sealer with Heat Shrink Tunnel is designed for high-speed

shrink wrapping of various products using POF, PVC and PE shrink films. The machine

 integrates automatic feeding, film sealing, cutting and heat shrinking to provide

efficient and stable packaging performance.

Technical Parameters

Model：BF-550

Supply voltage：110V/220V 50/60Hz

Applicable film：POF

Max packing size：W＜430，W+H＜450，H＜250mm

Maximum film width：650mm

Conveying width:430mm

Packaging speed:20m/min

Air pressure:0.5MPa

Max Load capacity；15-20kg

Cutter size;550mm

Packing size;215*125*177cm

Packing weight:415kg

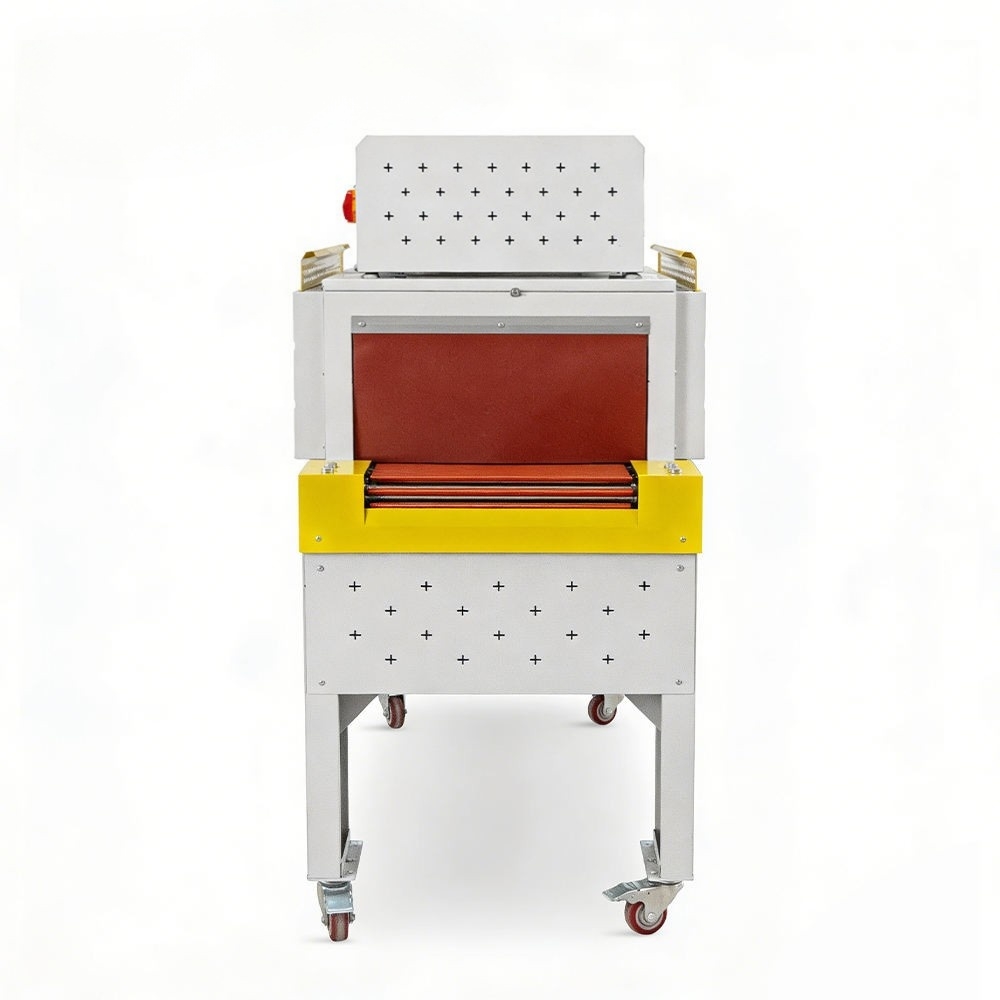

Model:BSN5530 Heat shrink machine

Supply voltage:380V 50Hz

Heating power:11KW

Drive method;Chain type/Net type

Conveyor load；≤15kg

Sealing speed：0~10m/min

Tunnel size：L1500*W550*H300(mm)

Applicable size：≤W400×H200(mm)

Applicable flim：PVC/PP/POF

Packing size：176*77*143cm

Packing weight:280kg

Application

It is widely used for packaging boxes, cosmetics, food products, pharmaceuticals, stationery,

electronic products, daily necessities, toys and hardware. The automatic conveyor system ensures

continuous production while reducing labor costs and improving packaging efficiency.

Detail Images
