Description

KZ-32B is a handheld pneumatic steel strapping tool for heavy-duty industrial packaging.

The tool combines steel strap tensioning, buckling and cutting operations in one unit,

 providing a fast and convenient solution for steel banding.

It is suitable for 19-32mm steel straps with 0.8-1.2mm thickness and is widely used

for bundling steel pipes, steel coils, metal profiles, construction materials and other heavy

 or irregular products.

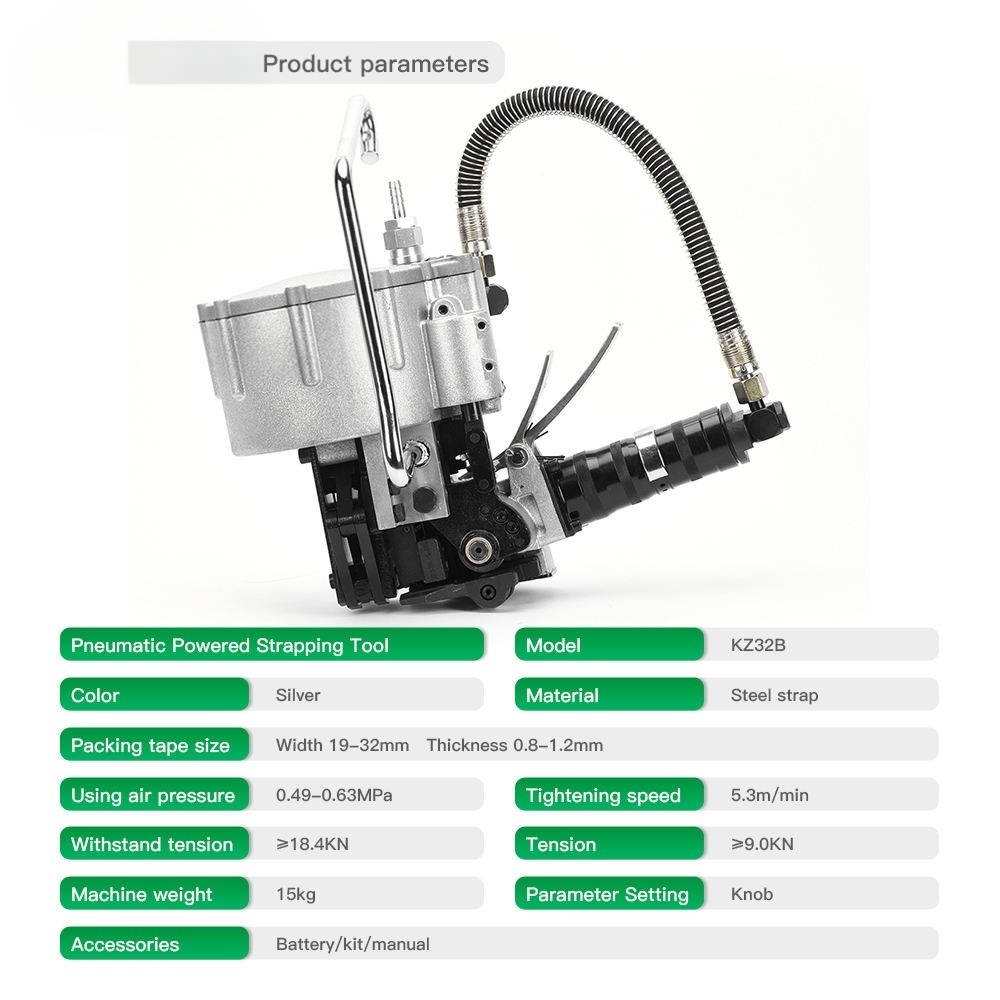

Technical Parameters

Model No：KZ-32B

Product Name：Pneumatic Strapping Machine

Color：Silver

Packing belt Material：Steel Strap

Packing Belt width (mm)：(19-32mm)*(0.8-1.2mm)

Buckle Withstand tension：≥18.4

Tightening speed(m/min)：5.3

Tension (KN)：≥9.0

Machine Weight (kg)：15

Machine size:49.5*34.5*32.5cm

Using air pressure (Mpa)：0.49-0.63

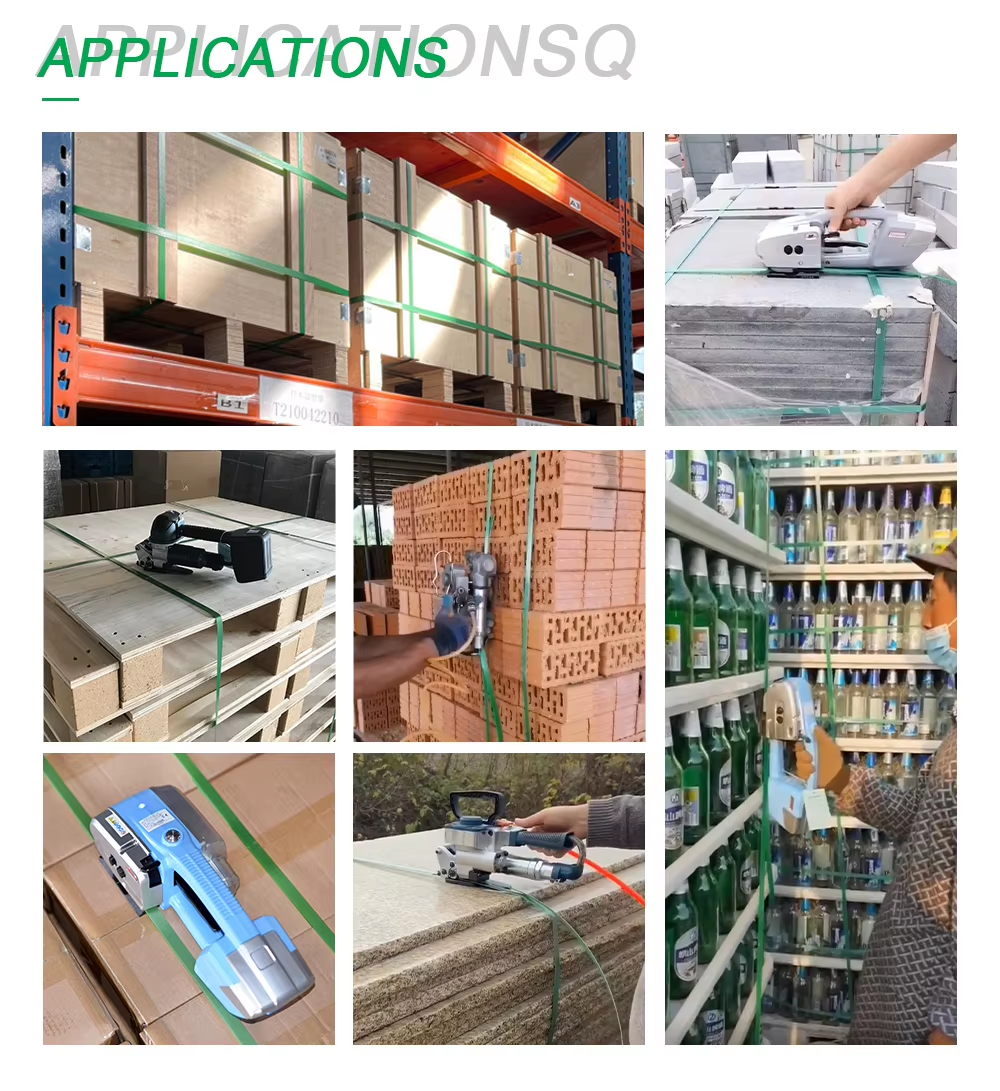

Application

The KZ-32B pneumatic steel strapping tool is widely used for heavy-duty packaging and bundling in:

• Steel pipe and tube industry

• Steel coil and metal processing industry

• Construction material industry

• Aluminum and non-ferrous metal industry

• Metal profile packaging

• Waste paper and recycling industry

• Industrial logistics and warehousing

• Heavy machinery and oversized package handling

The handheld pneumatic design is suitable for products that are difficult to

package with conventional automatic strapping machines, especially large,

heavy and irregular-shaped packages.

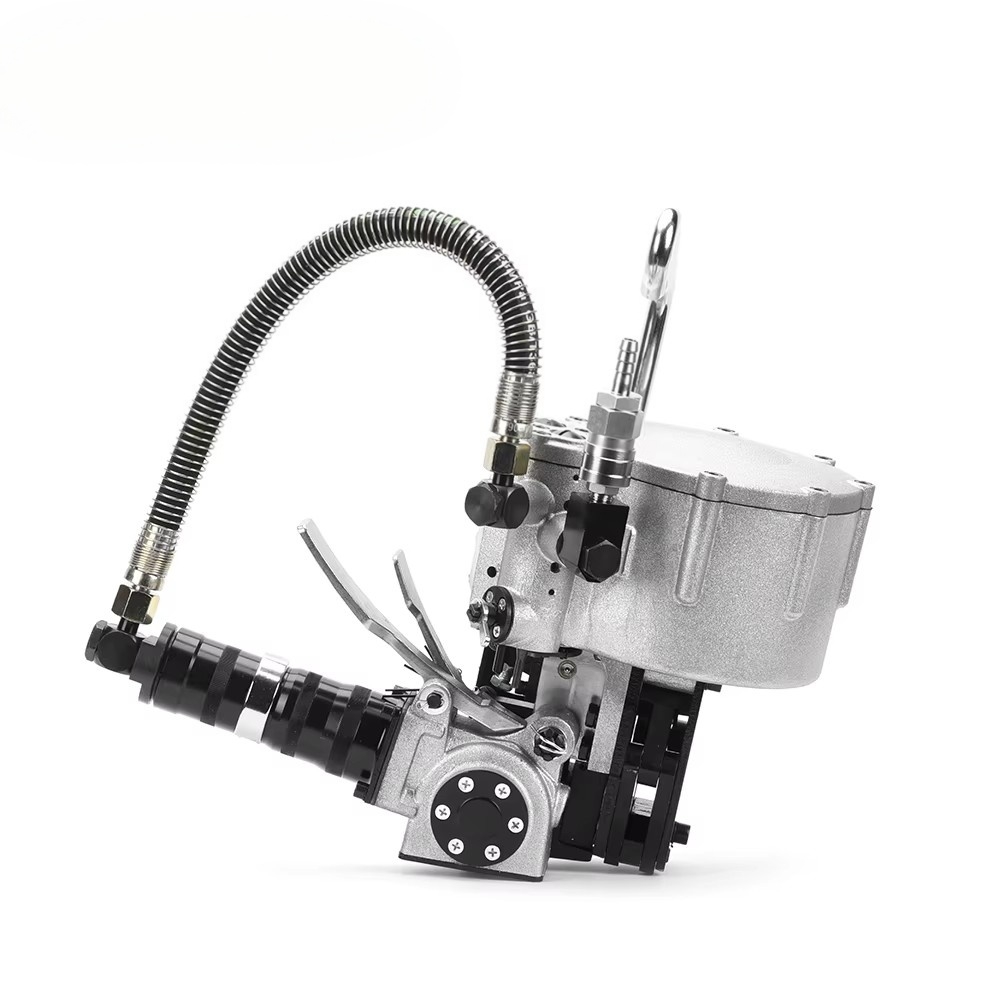

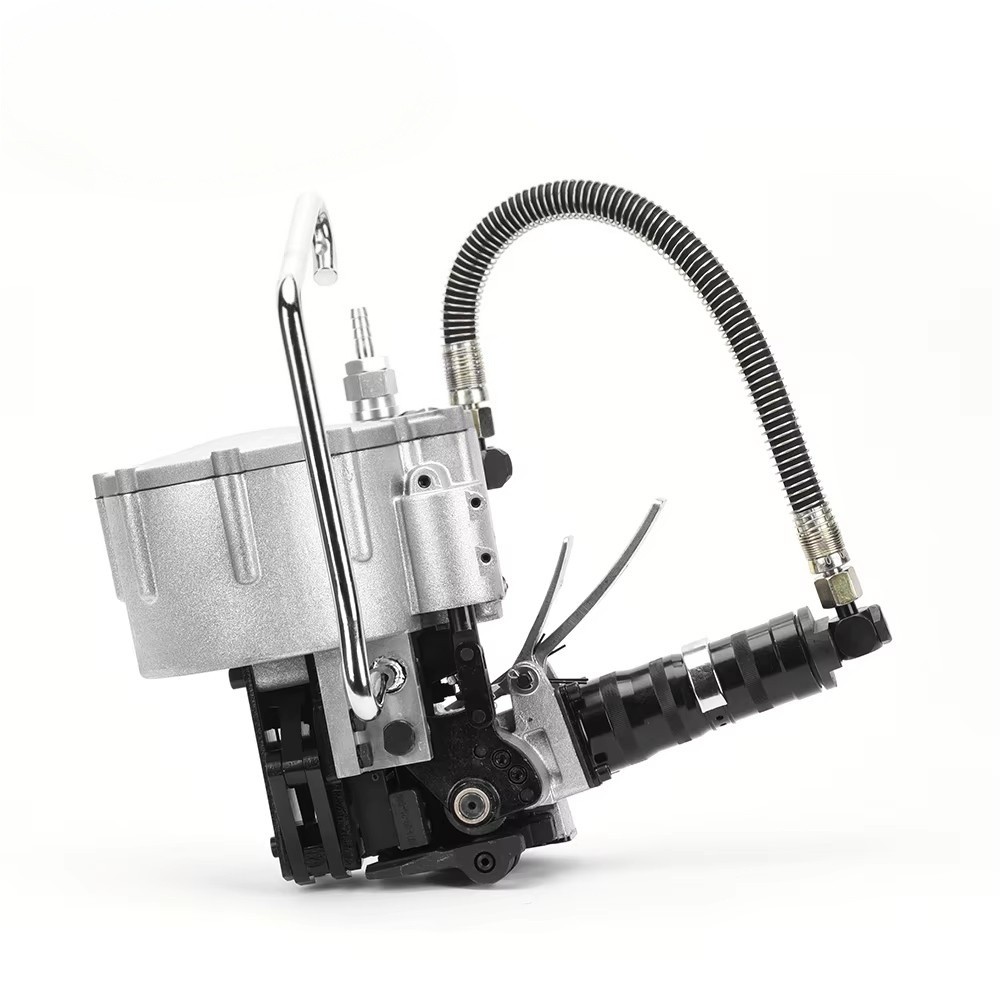

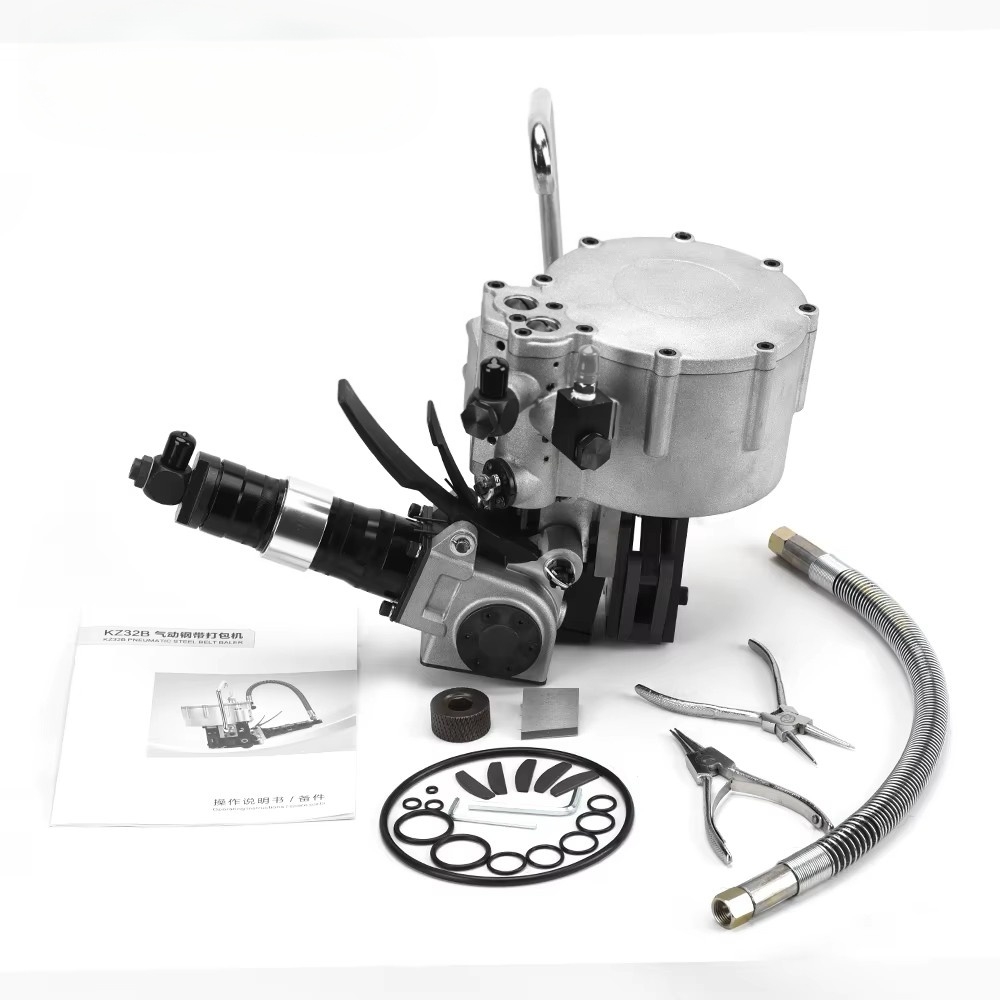

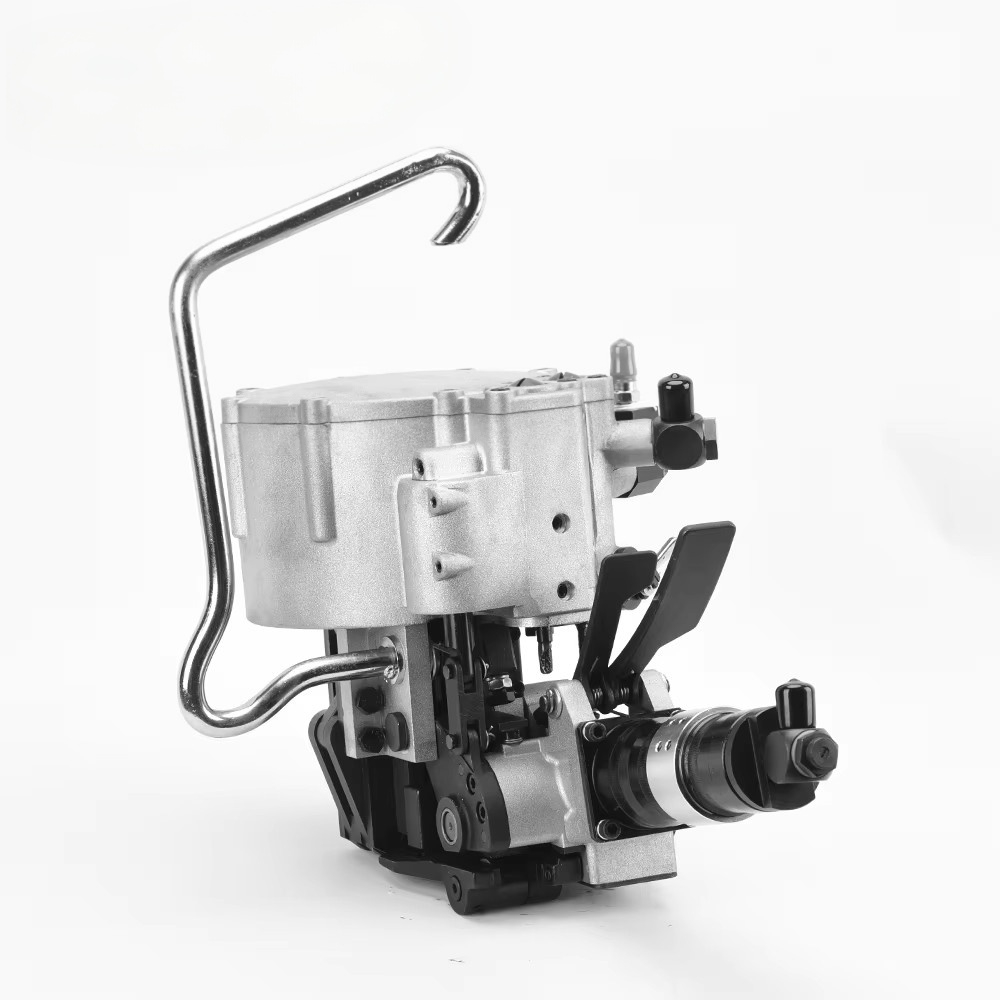

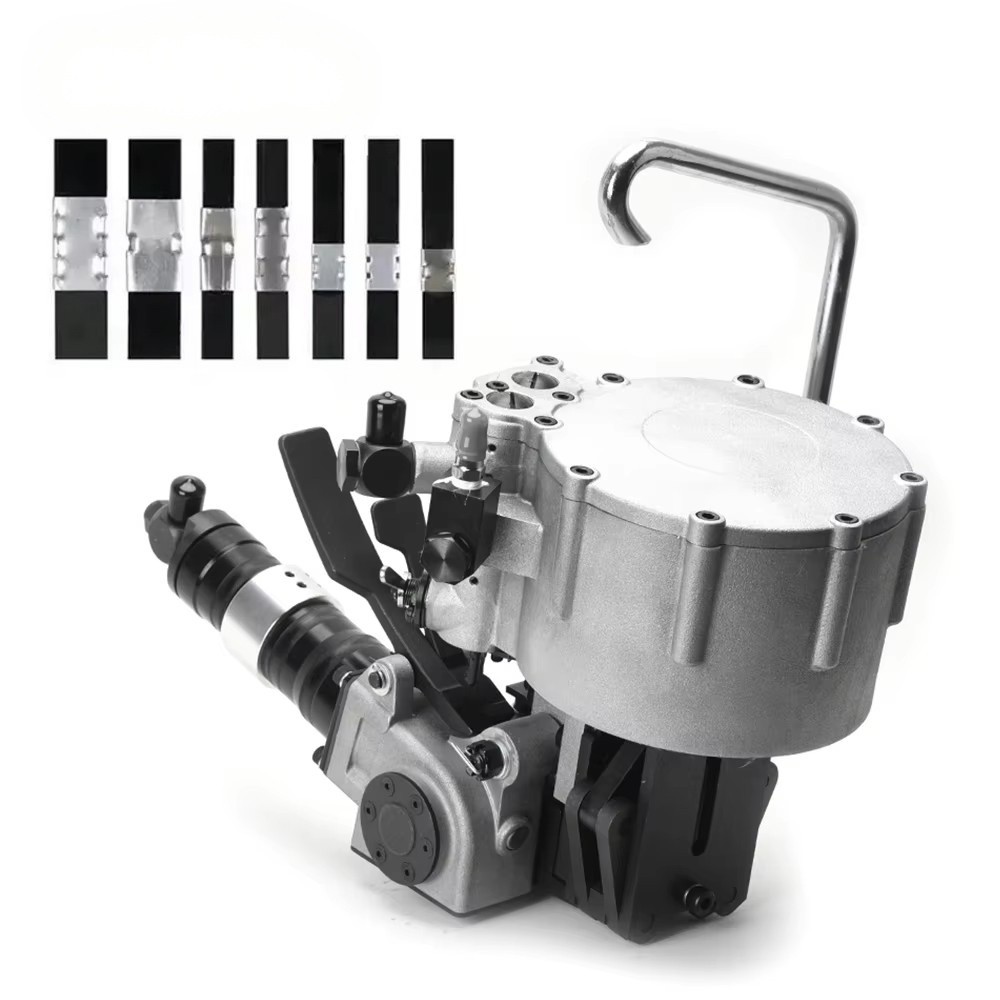

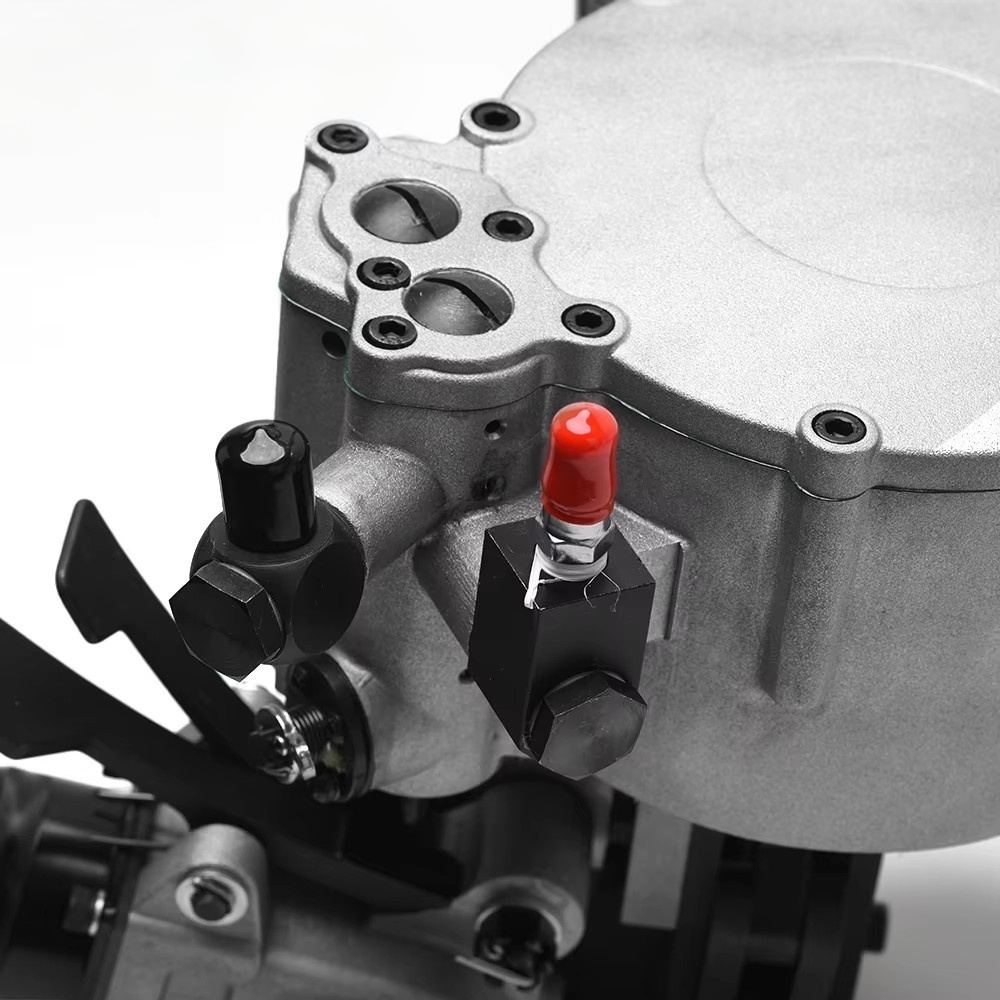

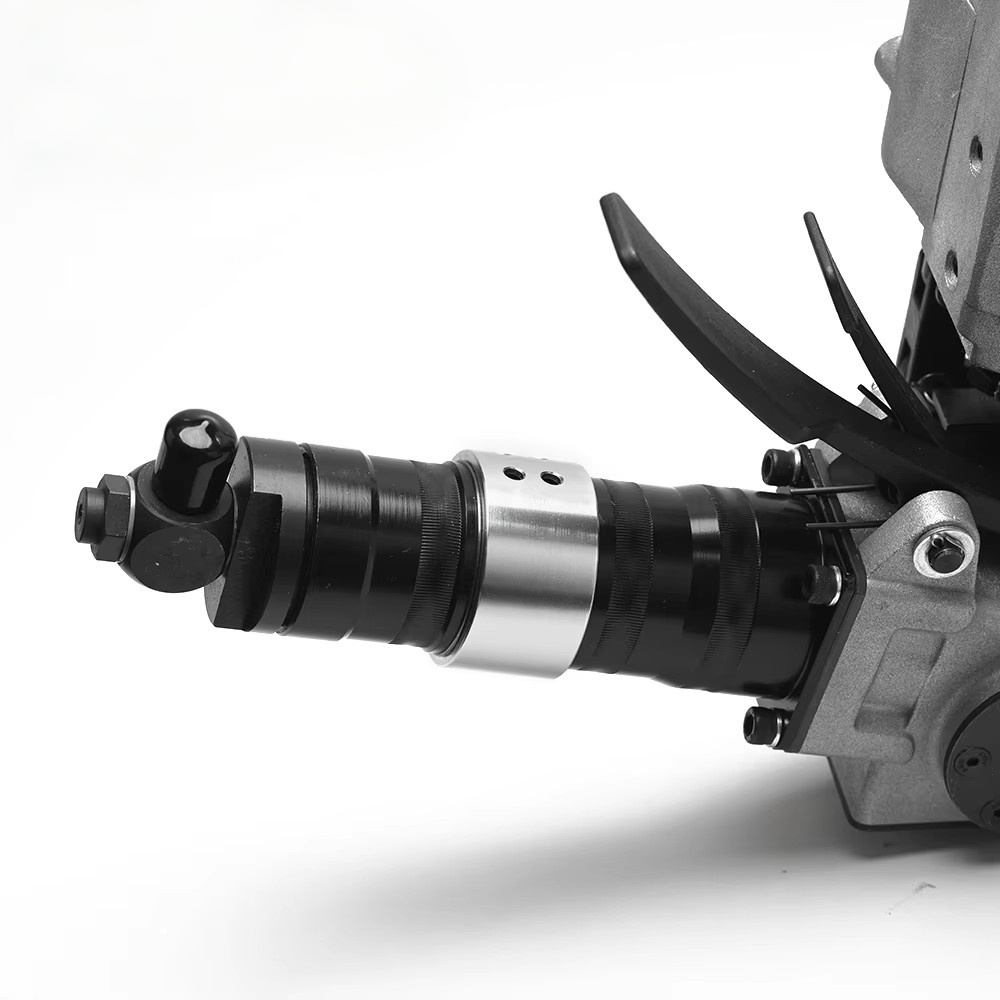

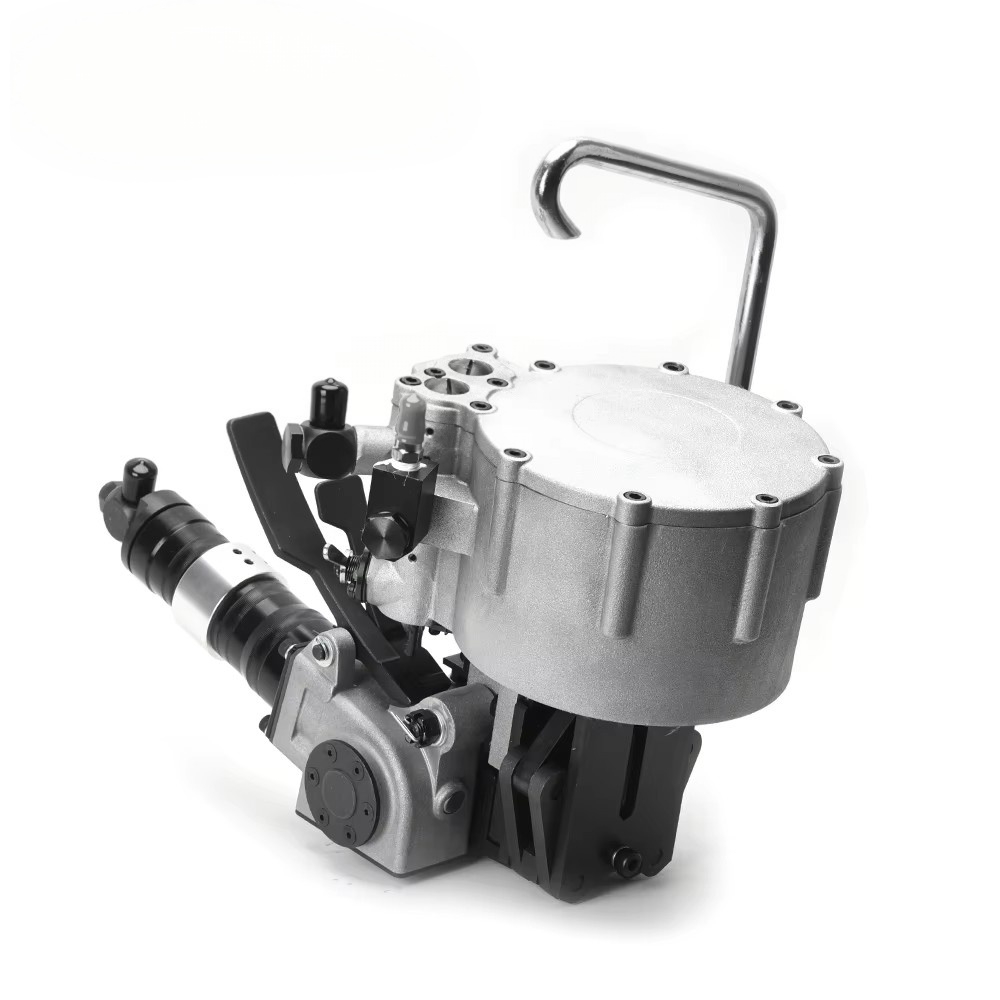

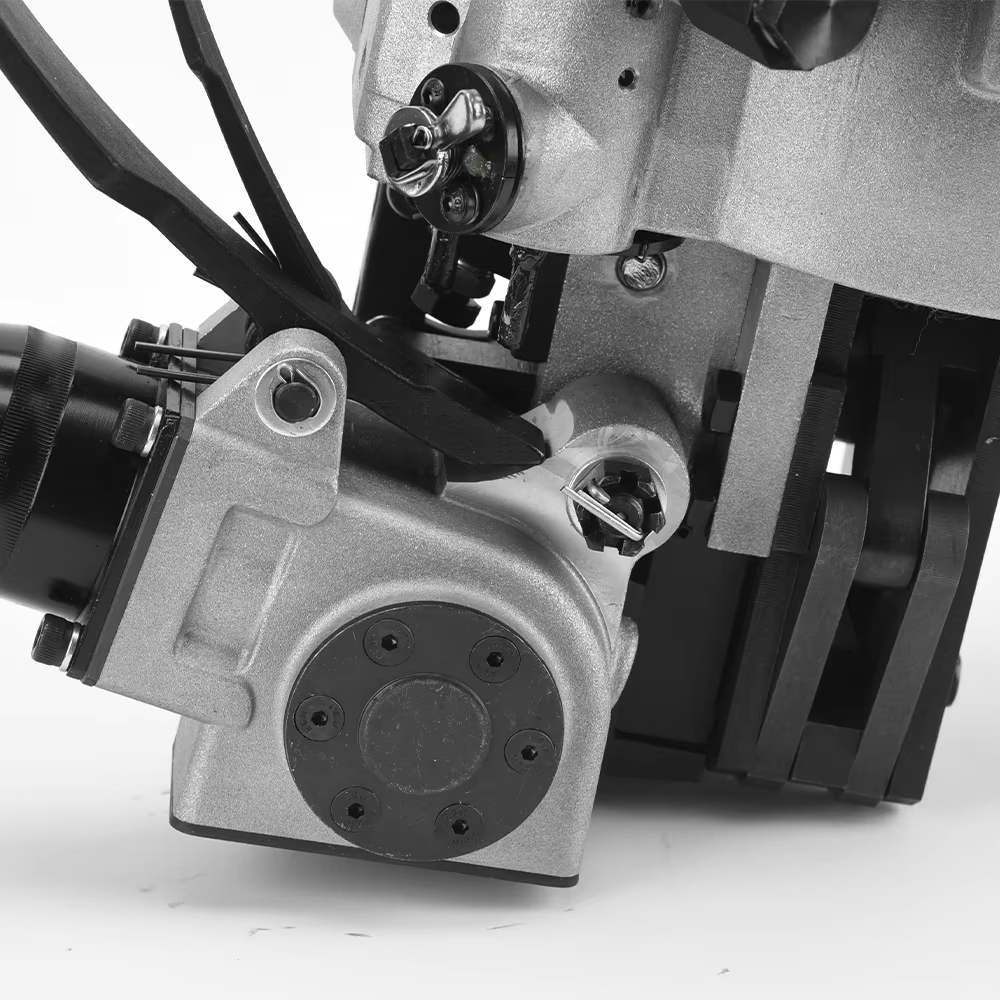

Detail Images
