Description

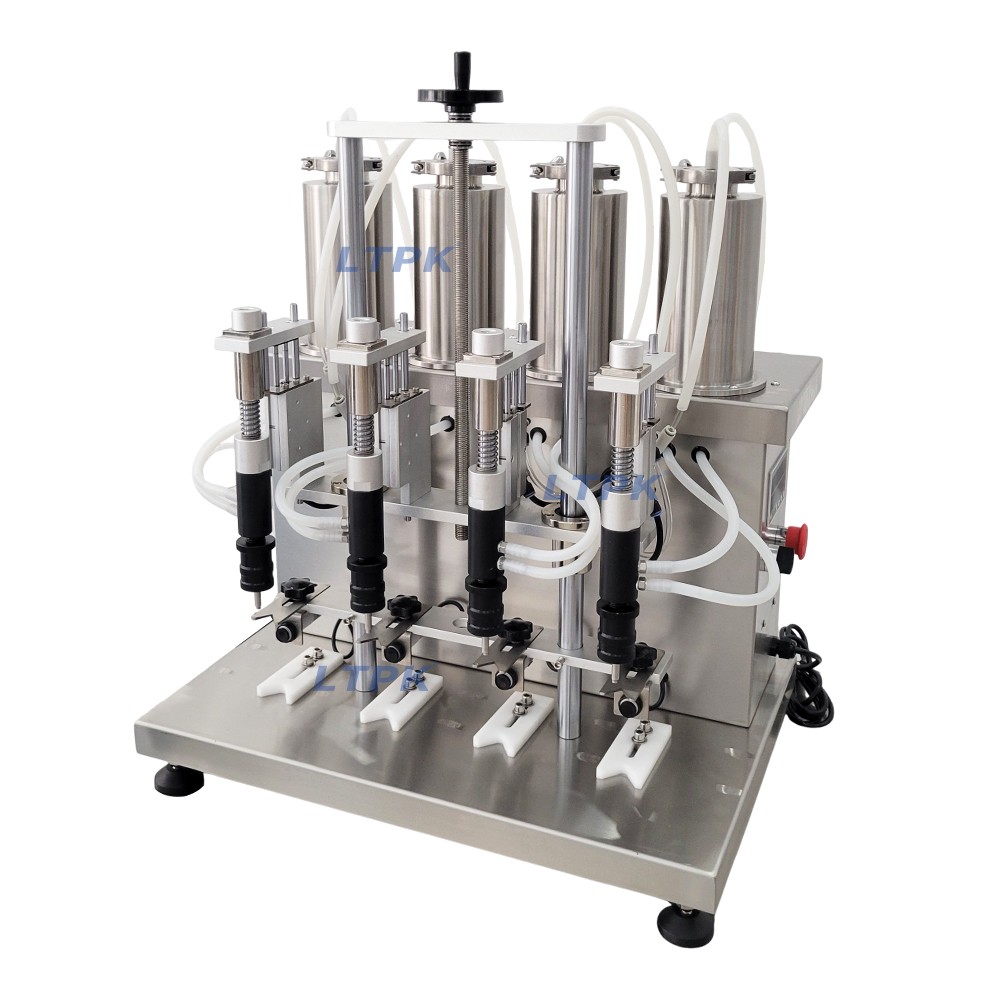

Semi-automatic four-head negative pressure vacuum filling machine,constructed of stainless steel.

It performs equal-level filling based on the vacuum negative pressure principle, specially designed

 for glass bottles and narrow-mouth bottles,serving as the primary filling equipment for small and

 medium-batch production of daily chemicals, liquor,essences and spices.

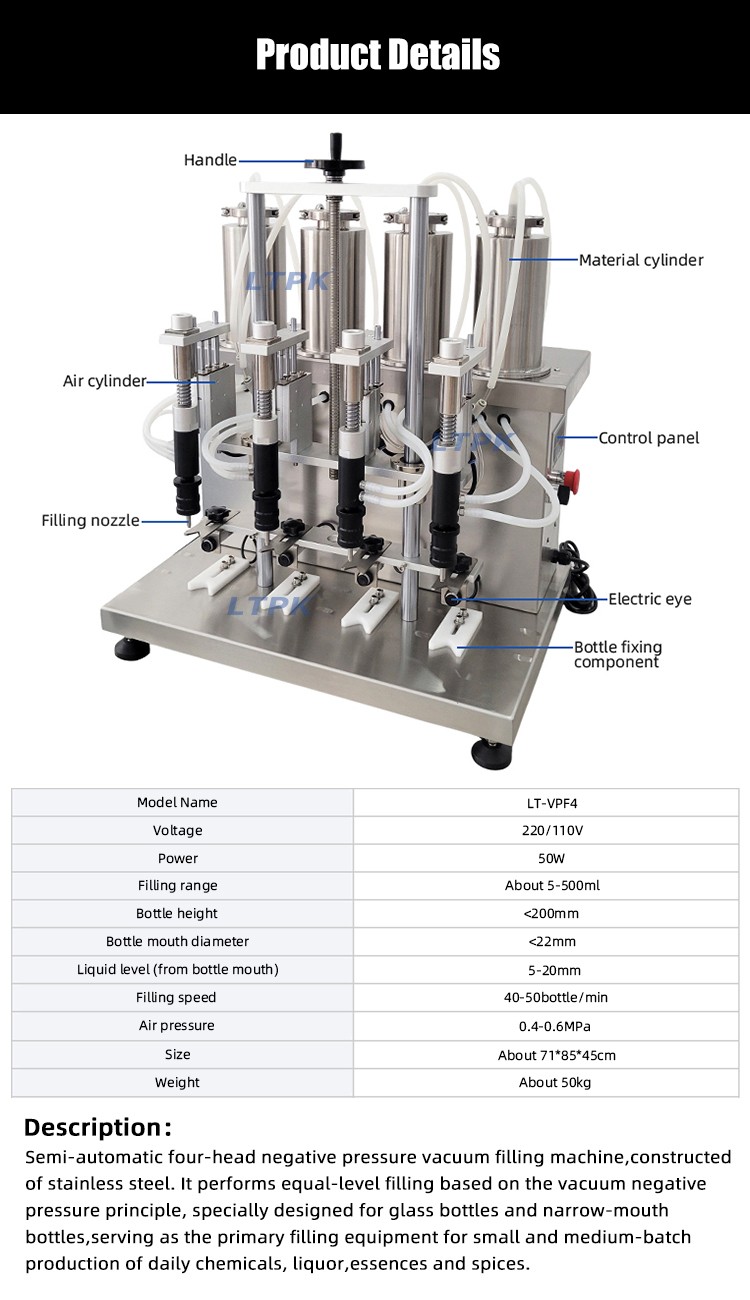

Technical Parameters

Model:LT-VPF4

Voltage:220/110V

Power:50W

Filling range:About 5-500ml

Bottle height:<200mm

Bottle mouth diameter:<22mm

Liquid level (from bottle mouth):5-20mm

Filling speed:40-50bottle/min

Air pressure:0.4-0.6MPa

Size:About 71*85*45cm

Weight:About 50kg

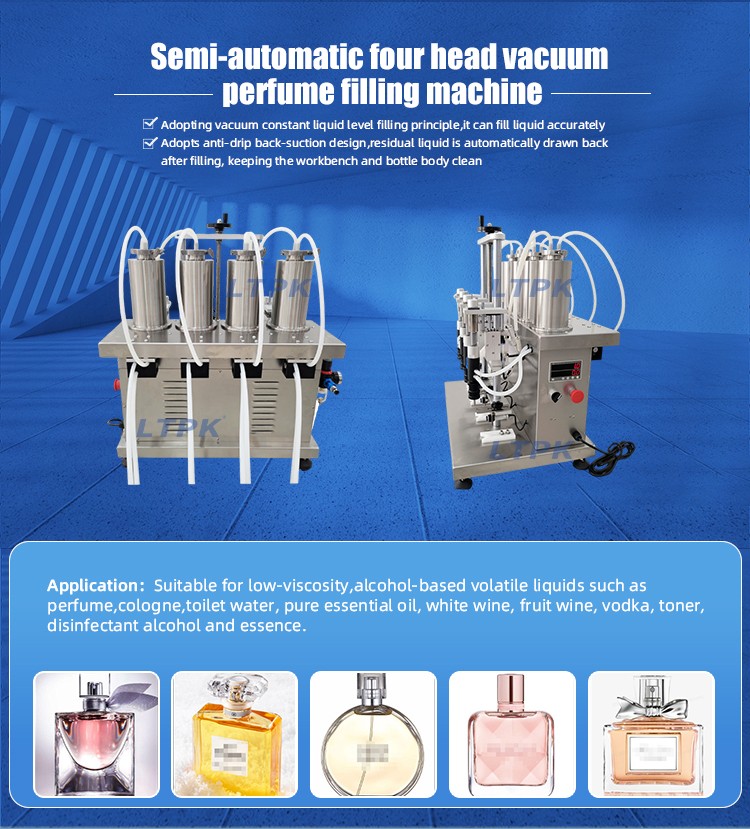

Application

Suitable for low-viscosity,alcohol-based volatile liquids such as perfume,cologne,toilet water,

pure essential oil, white wine, fruit wine, vodka, toner, disinfectant alcohol and essence.

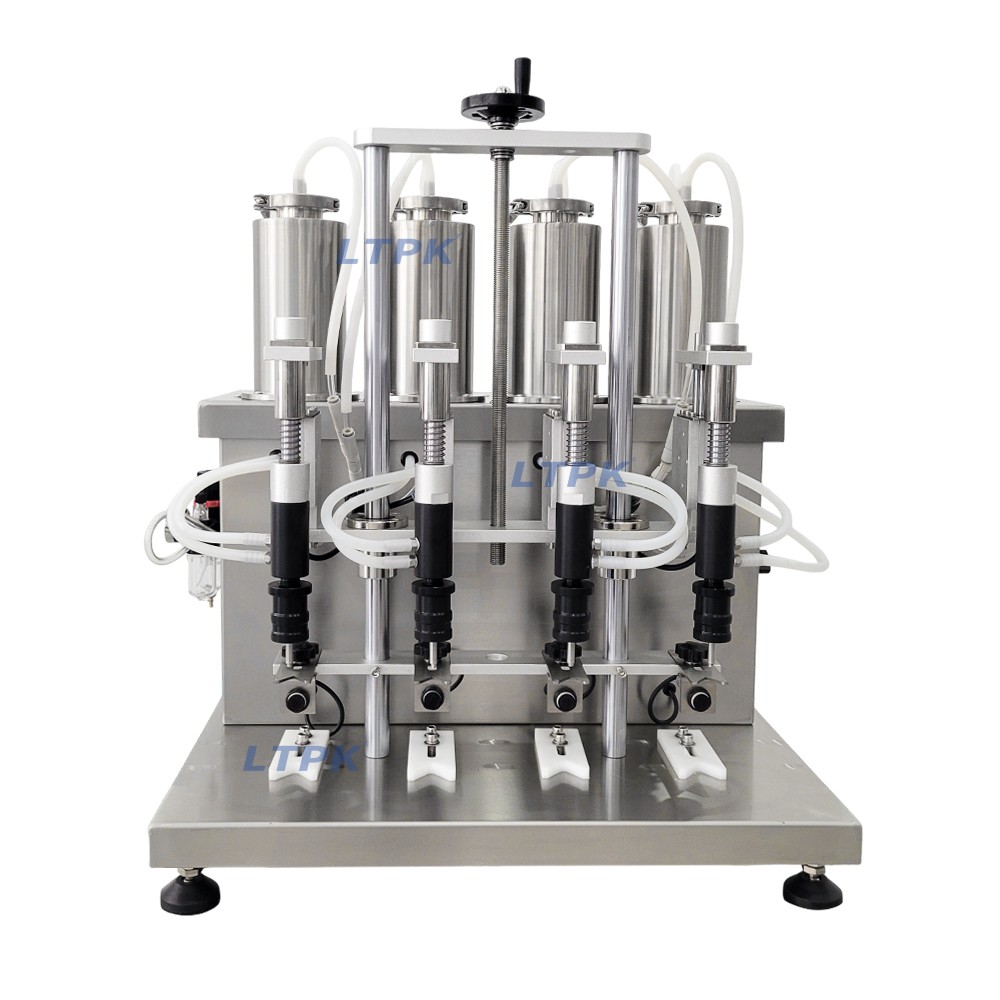

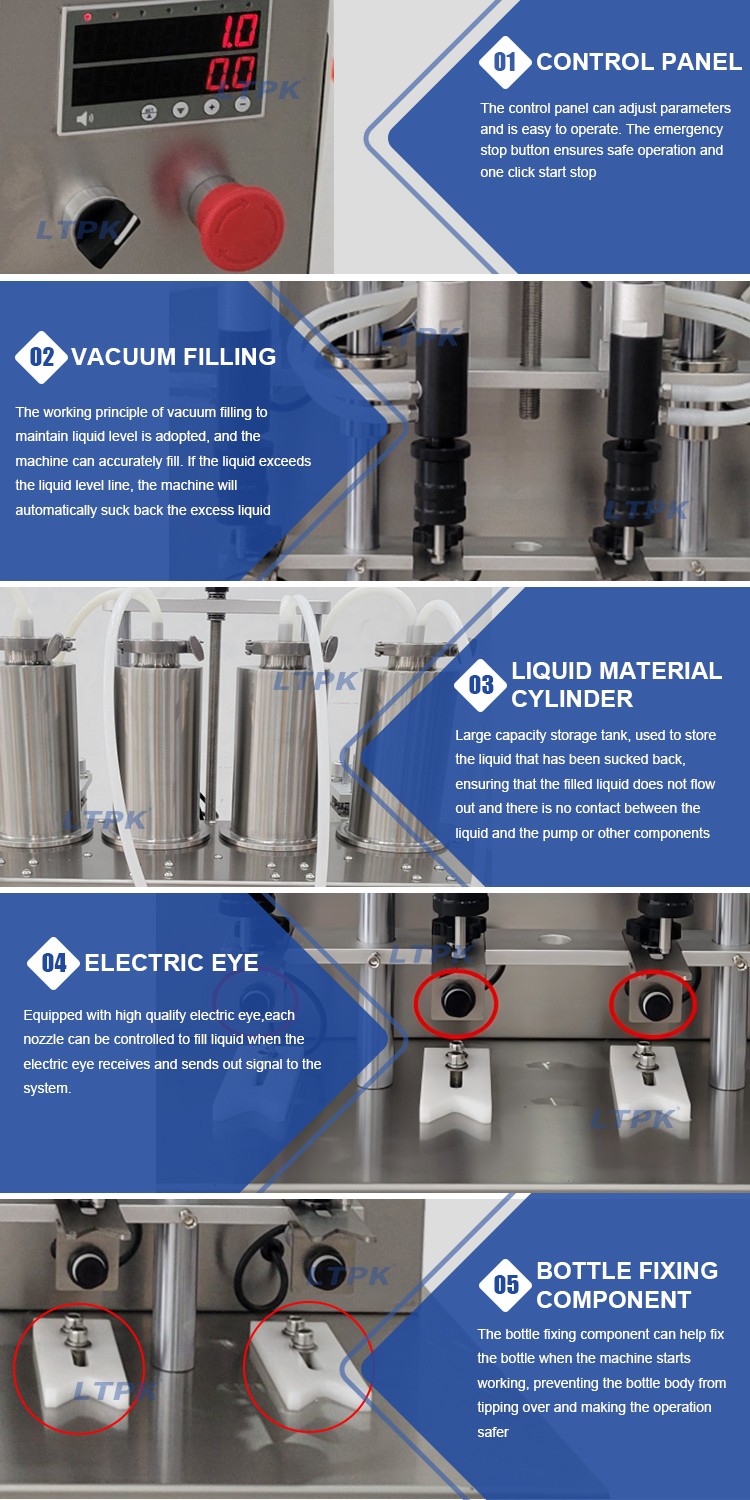

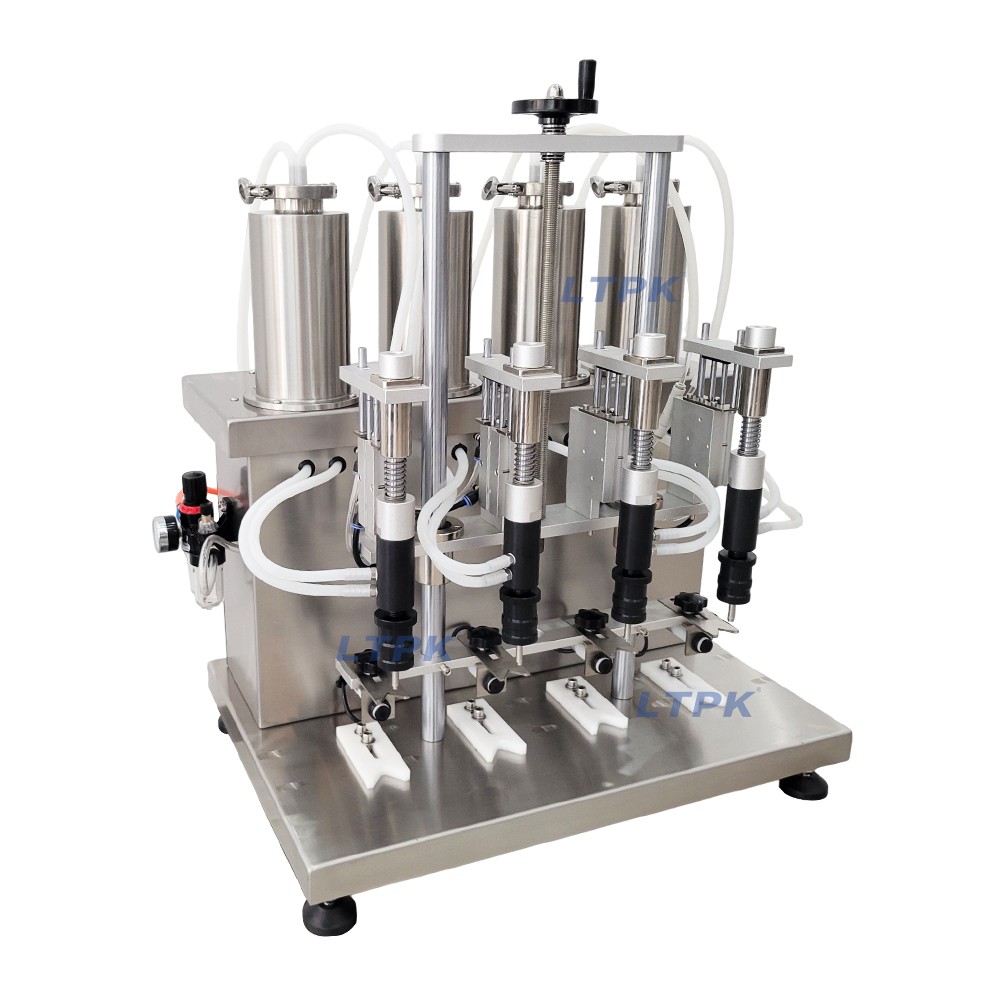

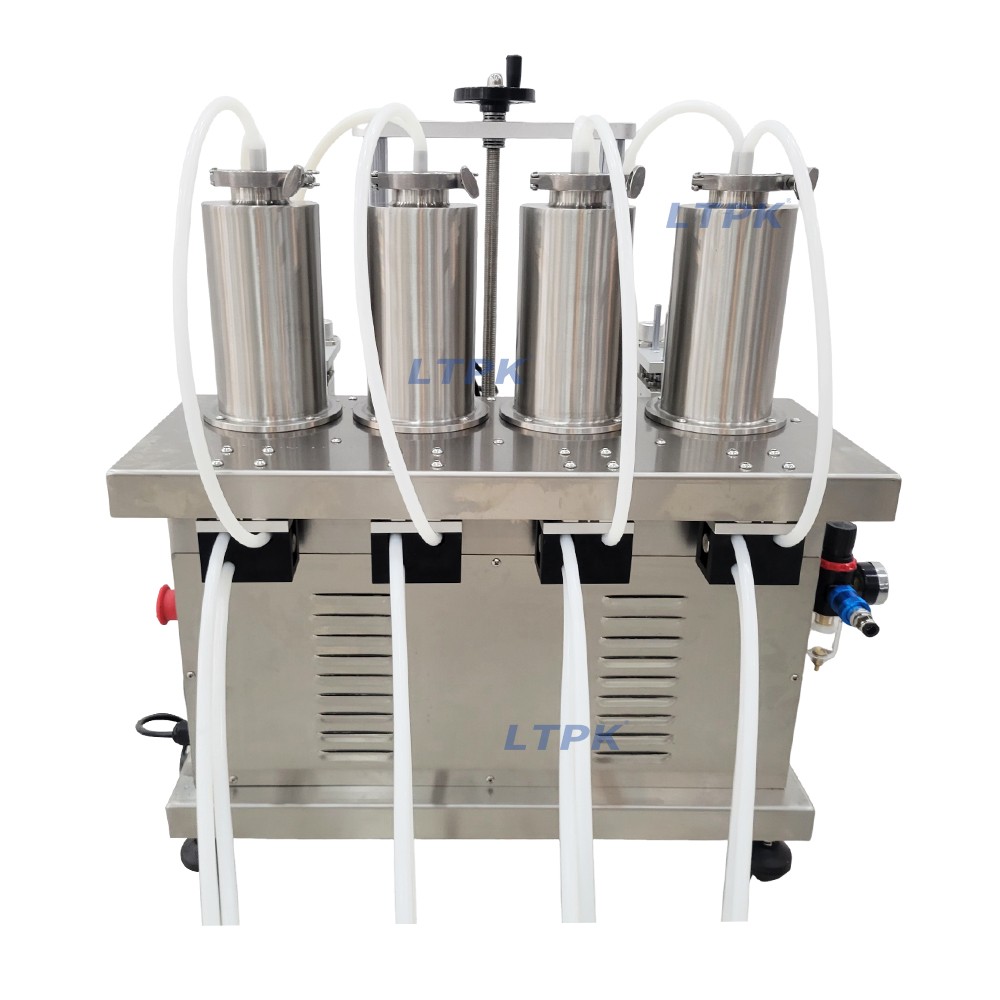

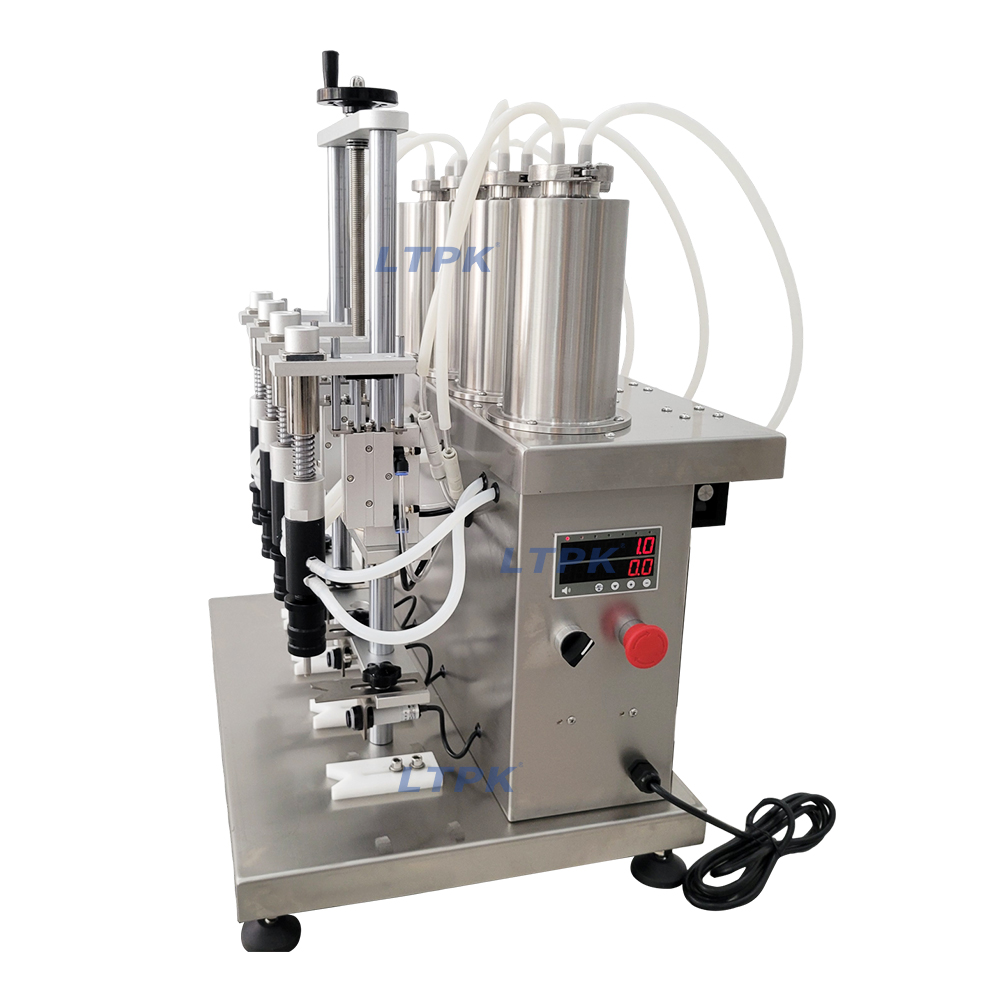

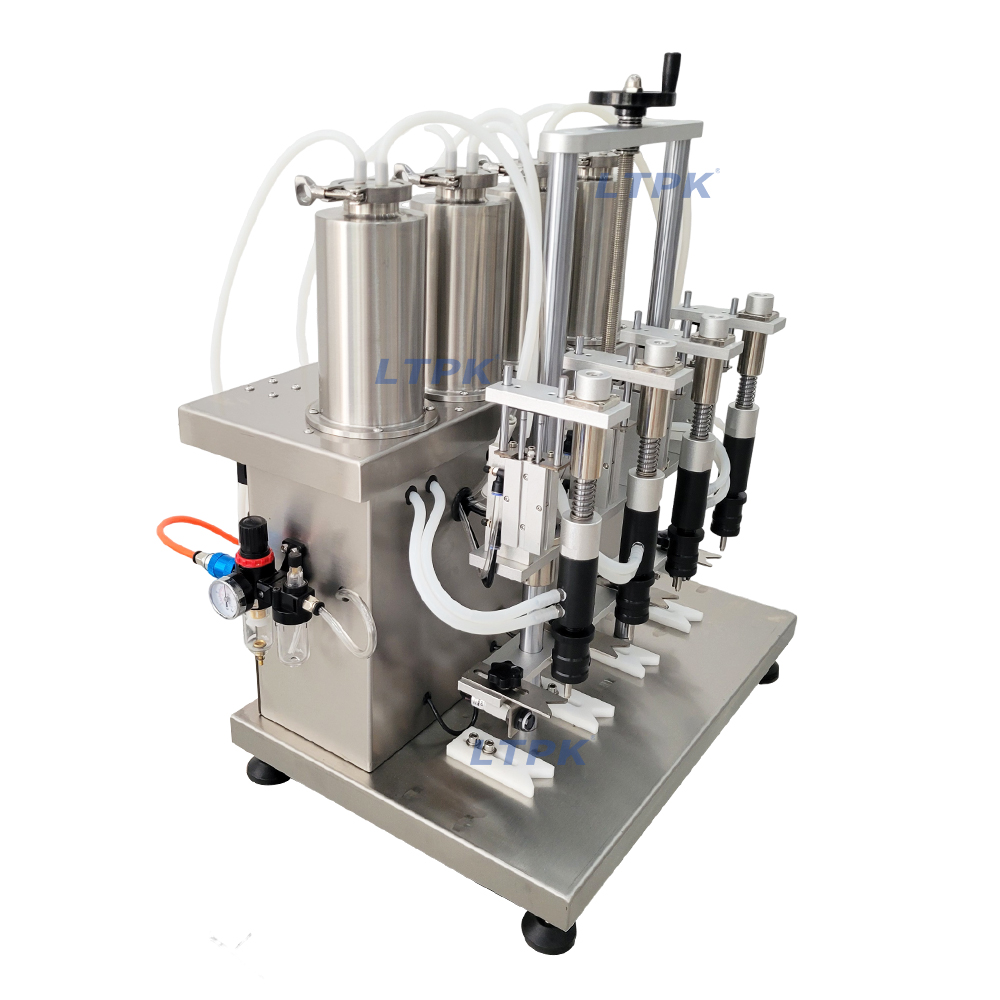

Detail Images
