Description

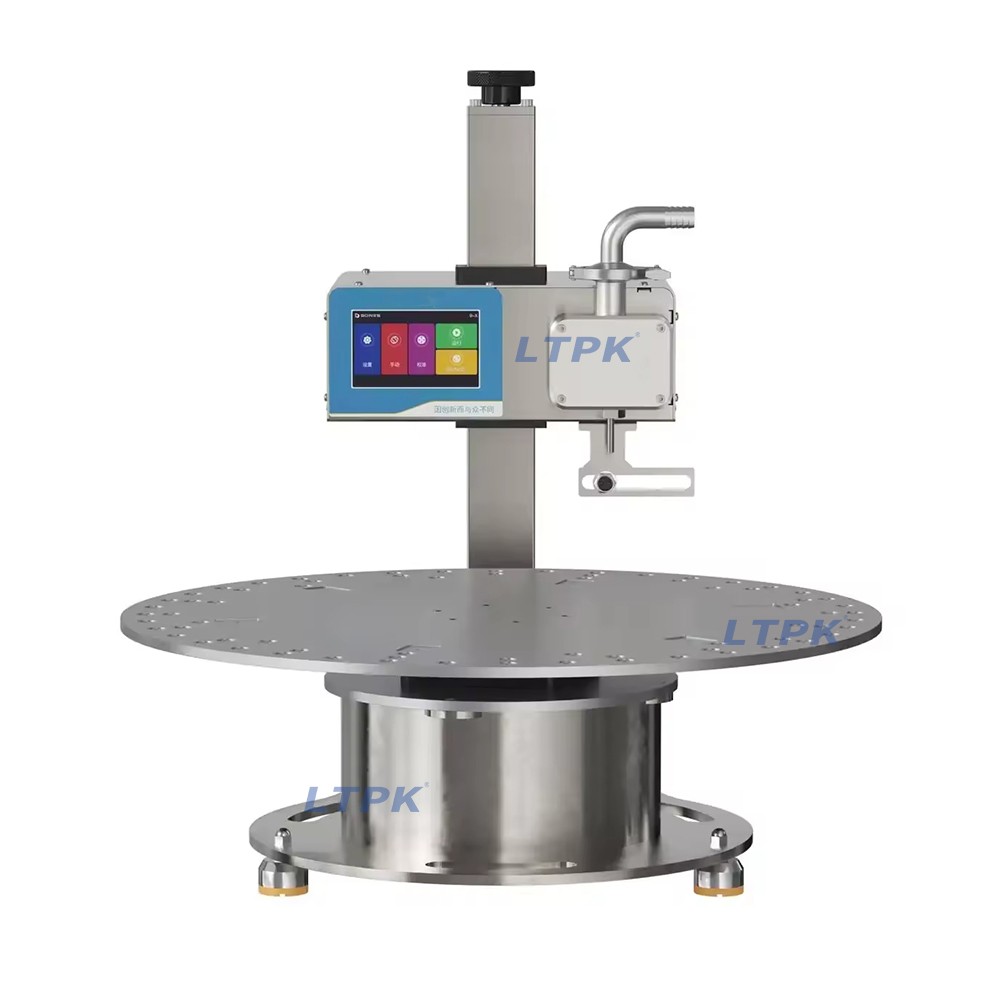

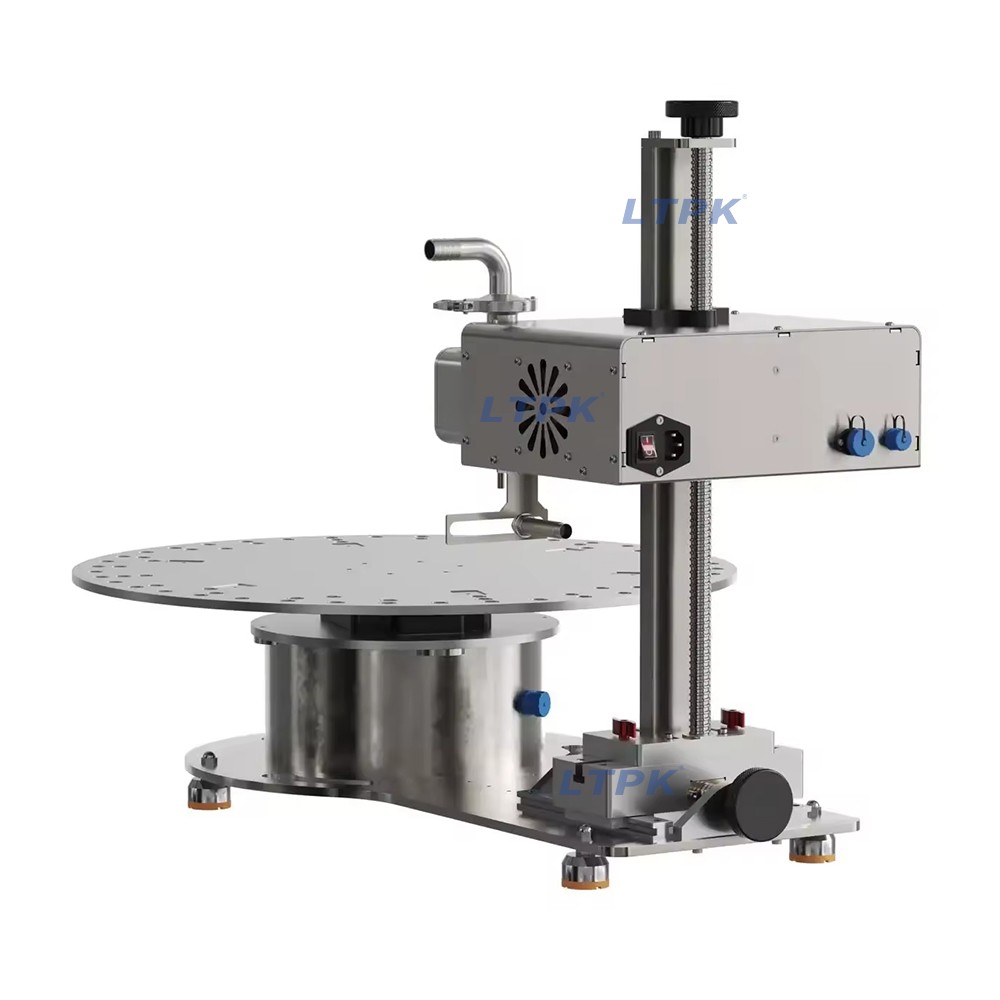

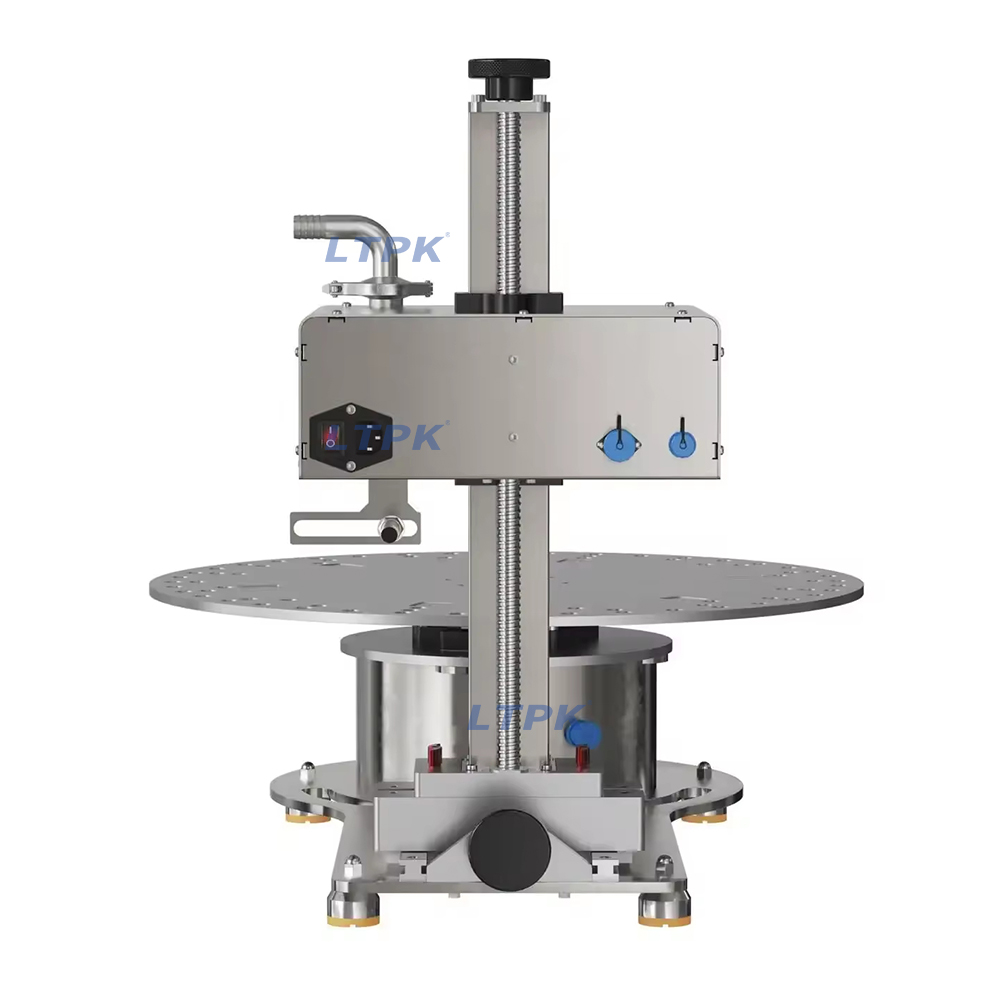

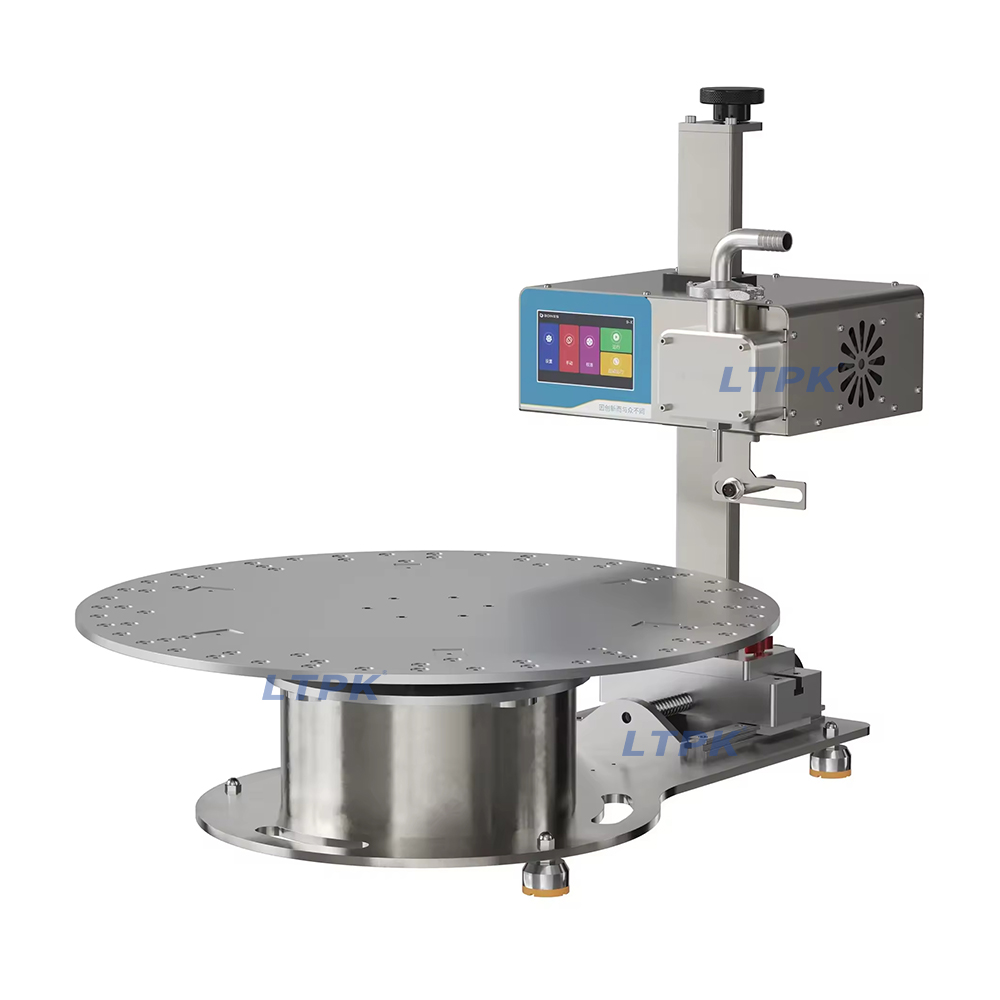

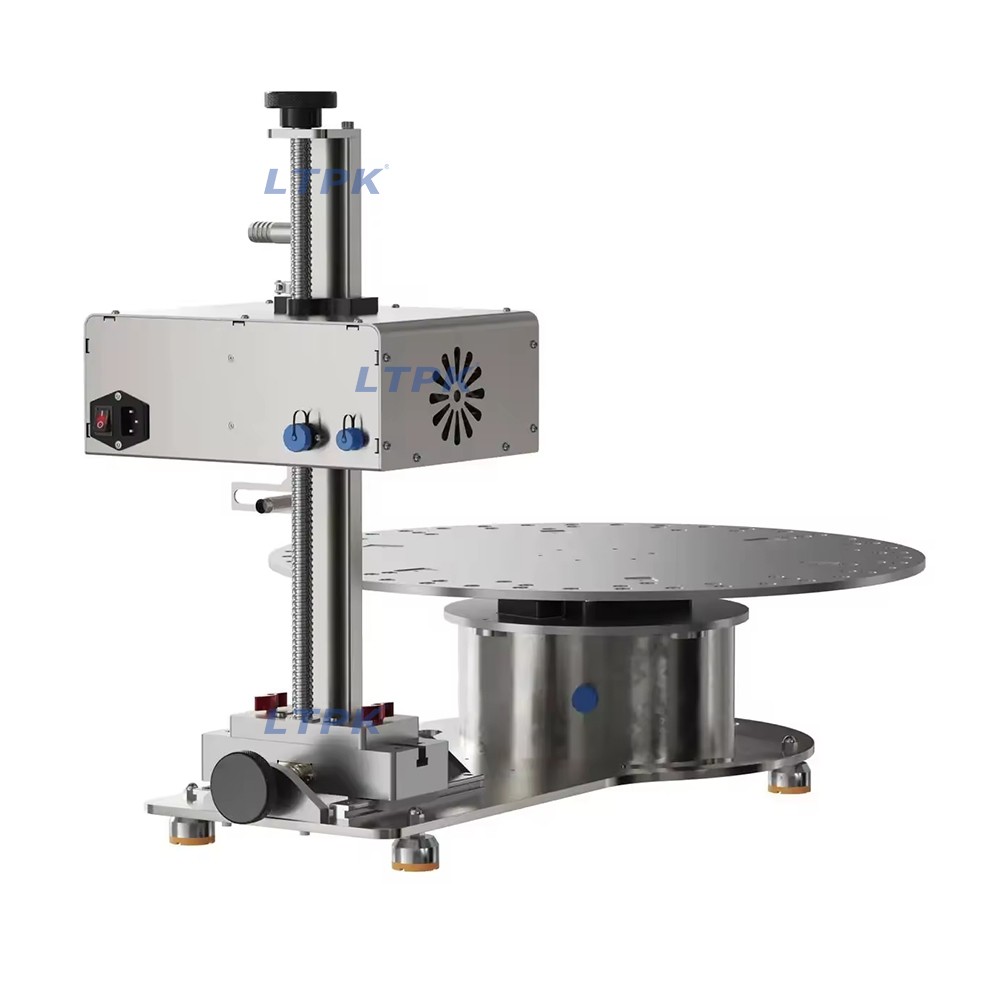

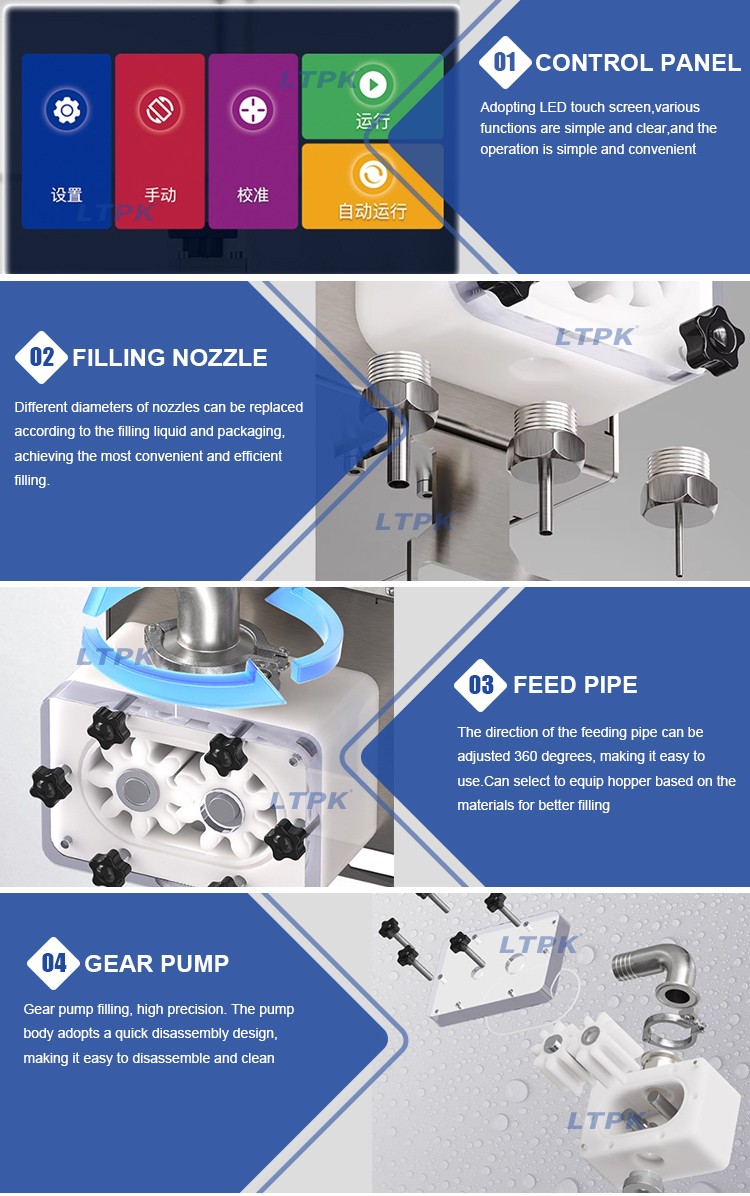

This filling machine uses a gear pump and is suitable for high viscosity liquids.It is equipped with an infrared sensing bottle system,the turntable and the filling machine work automatically in coordination, freeing up your hands. It can achieve small-dose container filling,with a minimum filling volume of 5g.Touch screen display,convenient for setting.

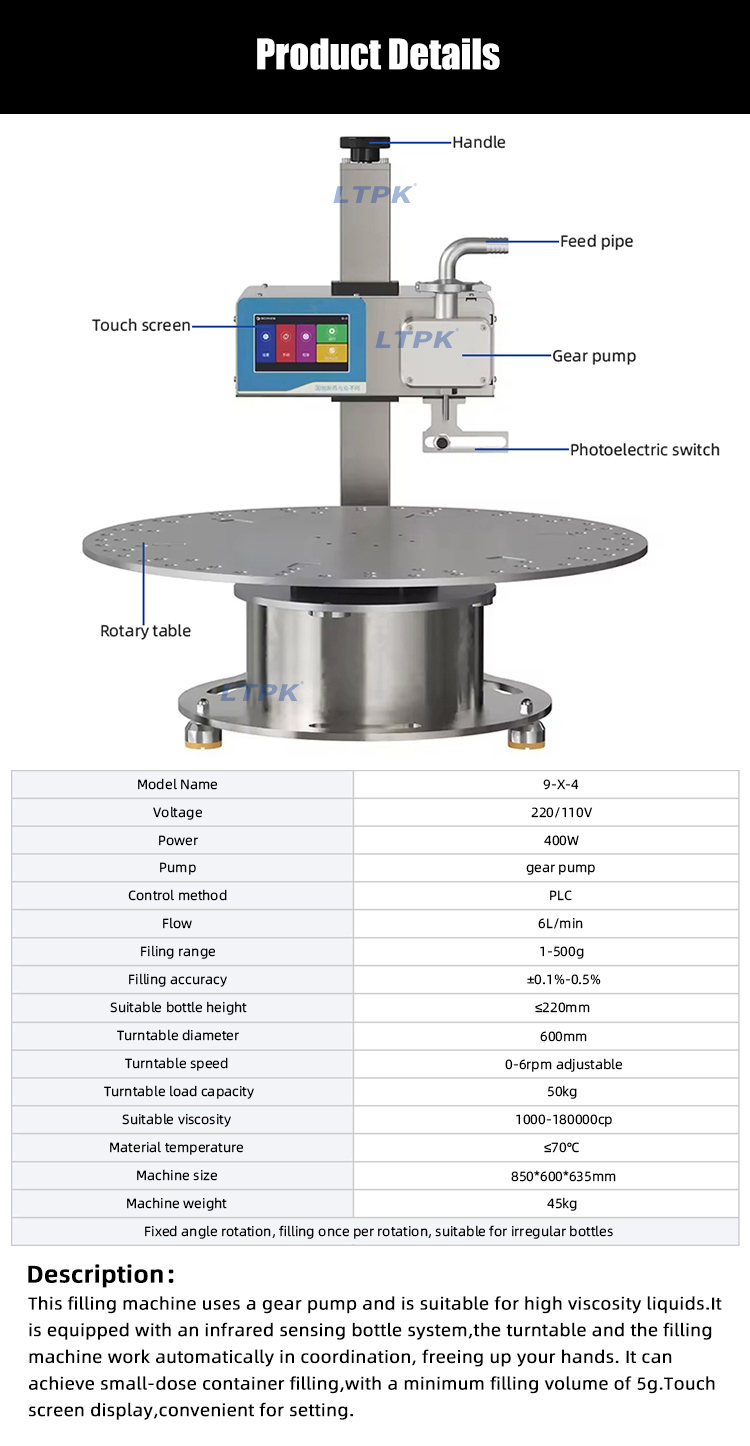

Technical Parameters

Model：9-X-4

Voltage： 220/110V

Power ：400W

Pump：gear pump

Control method：PLC

Flow：6L/min

Filing range：1-500g

Filling accuracy：±0.1%-0.5%

Suitable bottle height：≤220mm

Turntable diameter：600mm

Turntable speed：0-6rpm adjustable

Turntable load capacity：50kg

Suitable viscosity：1000-180000cp

Material temperature：≤70℃

Machine size：850*600*635mm

Machine weight：45kg

Fixed angle rotation, filling once per rotation, suitable for irregular bottles

Application

Suitable for honey,yogurt,salad,soy sauce, pear paste,peanut butter, tomato sauce,edible butter and other food products.Shampoo,dishwashing liquid,resin, and other products across various industries.

Detail Images
