Description

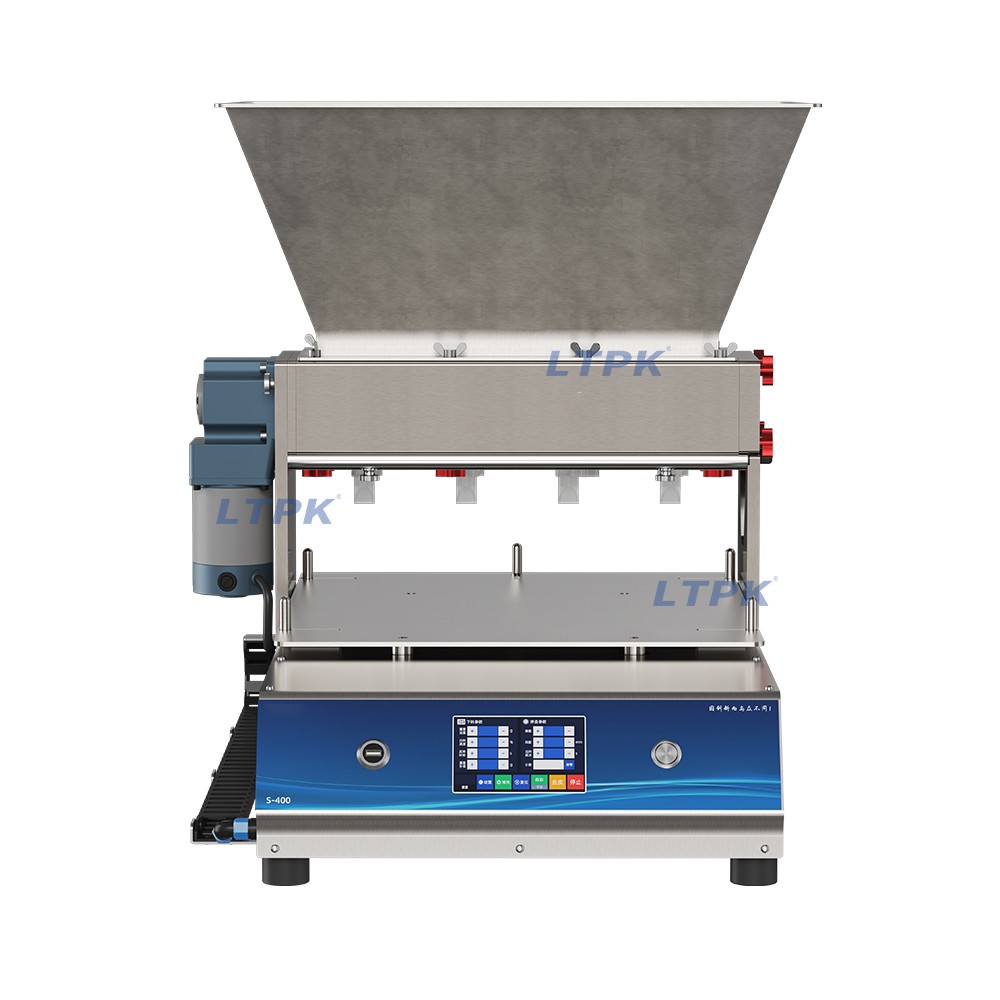

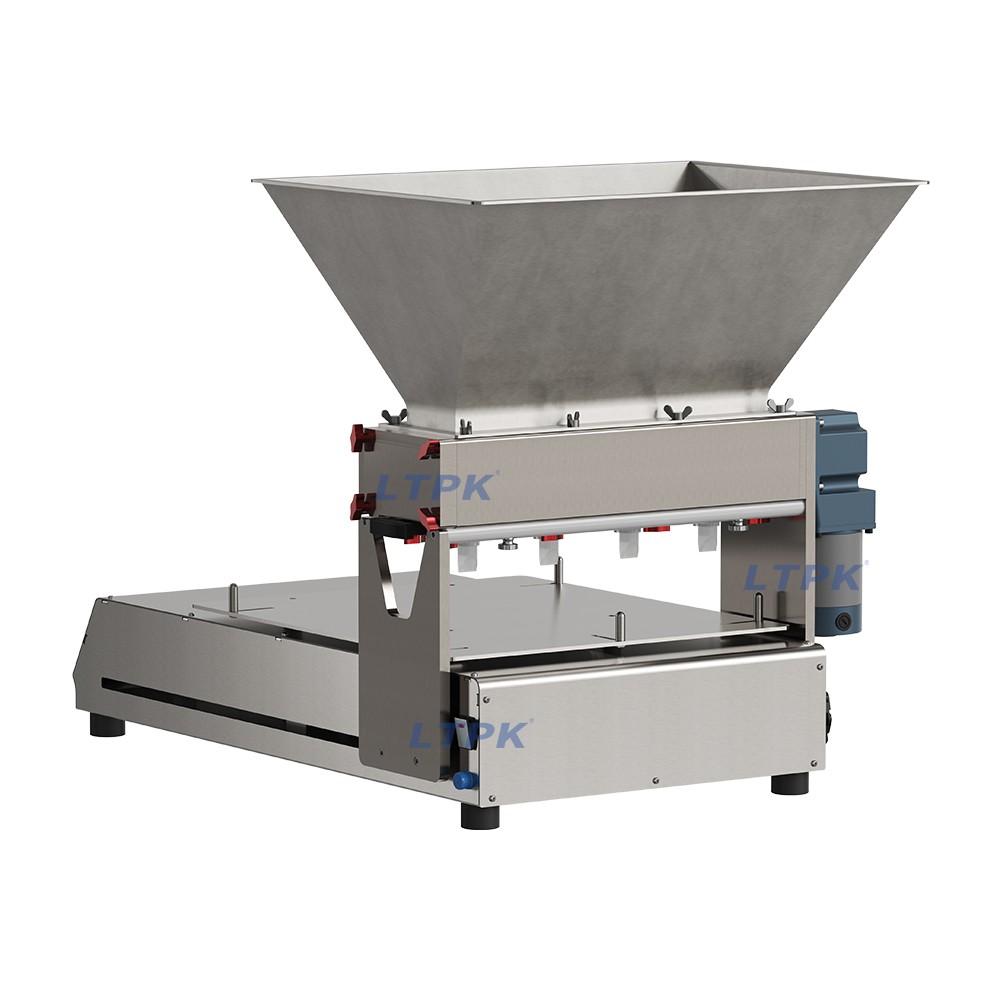

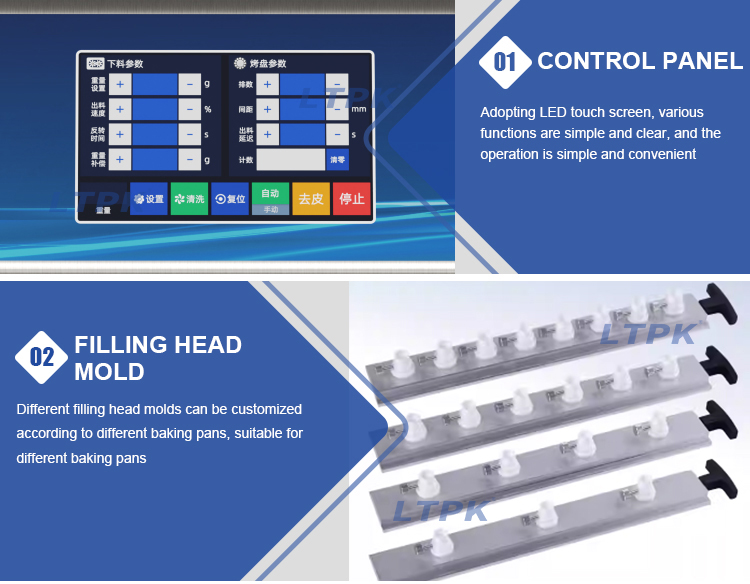

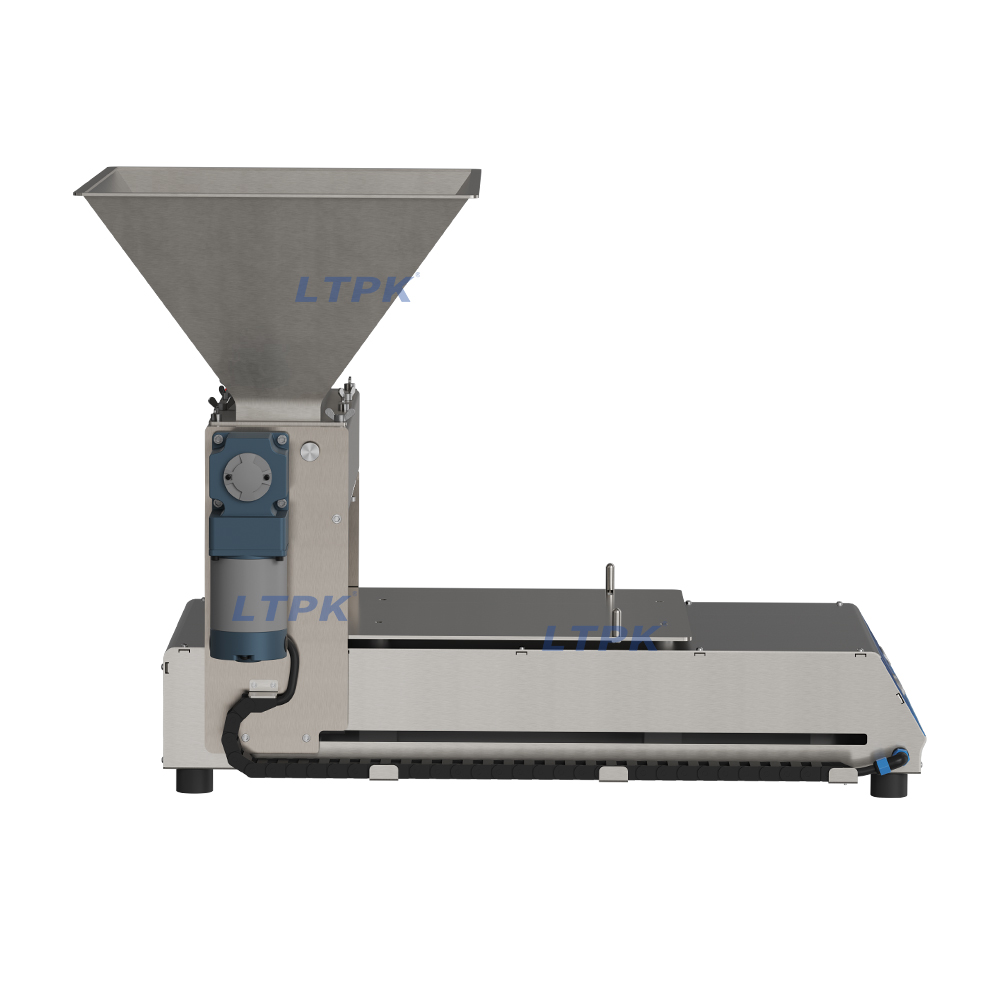

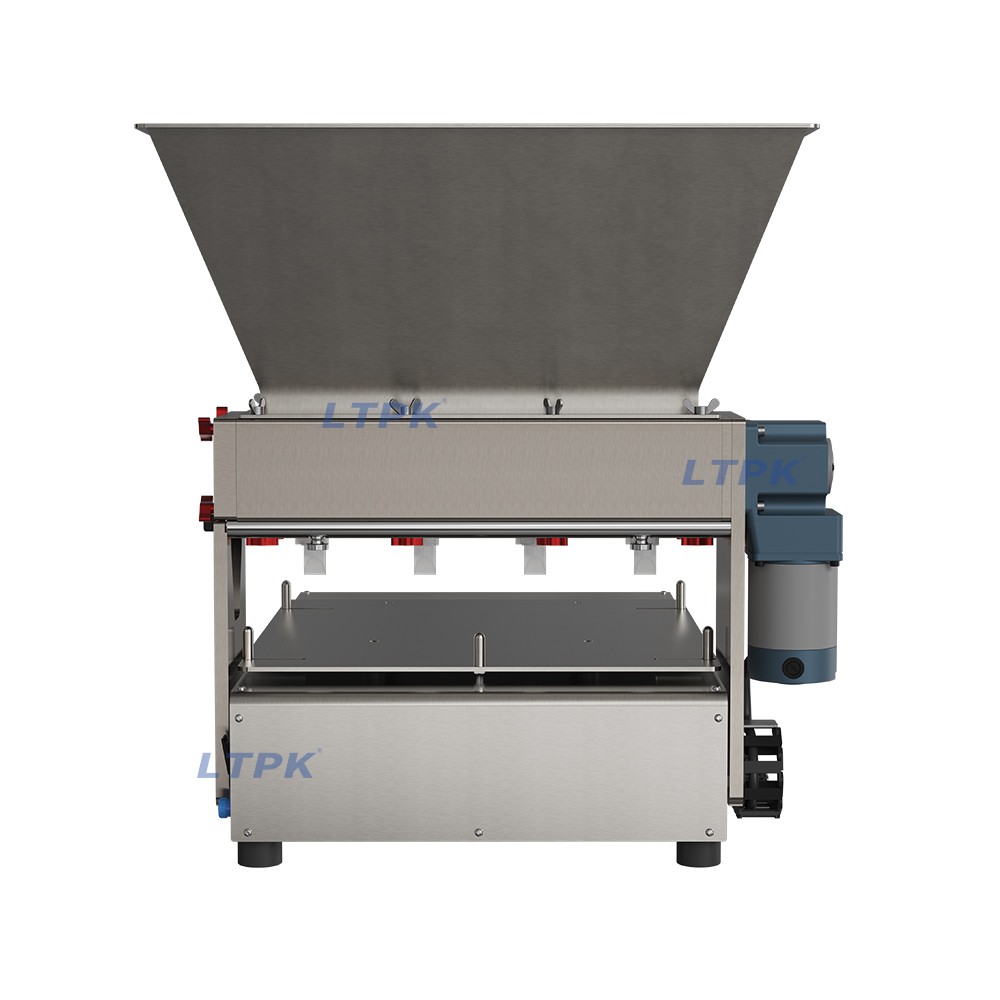

Cupcake filling machines are a widely used piece of professional food processing equipment in bakeries and food processing plants. Their core function is to dispense cake batter into paper cups or molds in fixed doses.The filling machine is equipped with an integrated industrial control touch screen that integrates touch sensing and intelligent control systems. It can accurately identify touch positions and operating instructions, enabling convenient and accurate equipment control.

Technical Parameters

Model：9-X-3

Voltage：220/110V

Power ：400W

Pump：gear pump

Control method：PLC

Flow：6L/min

Filing range：1-500g

Filling accuracy：±0.1%-0.5%

Suitable bottle height：≤290mm

Turntable diameter：600mm

Turntable speed：0-3rpm adjustable

Turntable load capacity：50kg

Suitable viscosity：1000-180000cp

Material temperature：≤70℃

Machine size ：855*670*635mm

Machine weight：49kg

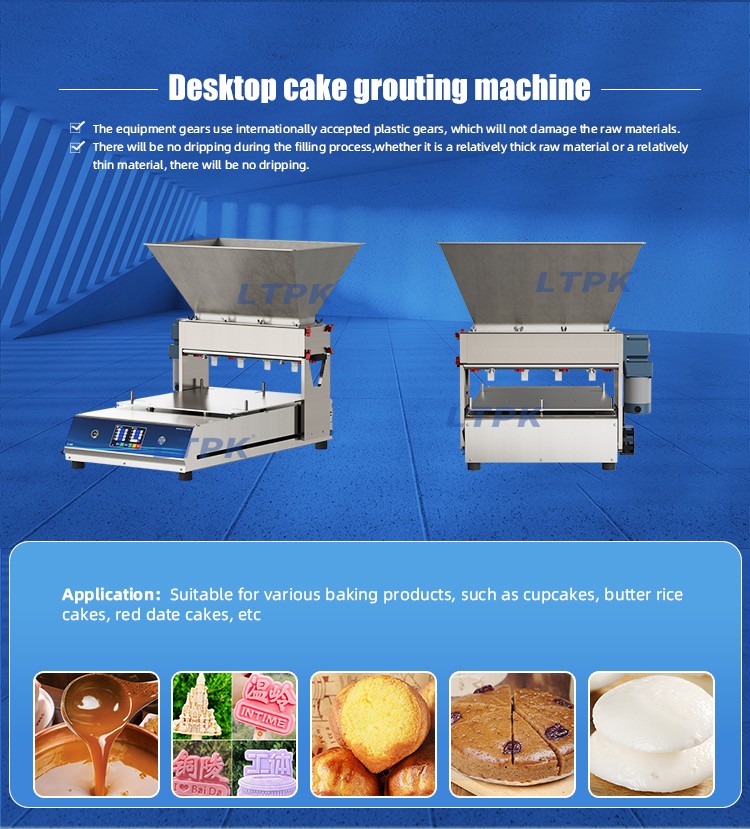

Application

Suitable for various baking products, such as cupcakes, butter rice cakes, red date cakes, etc

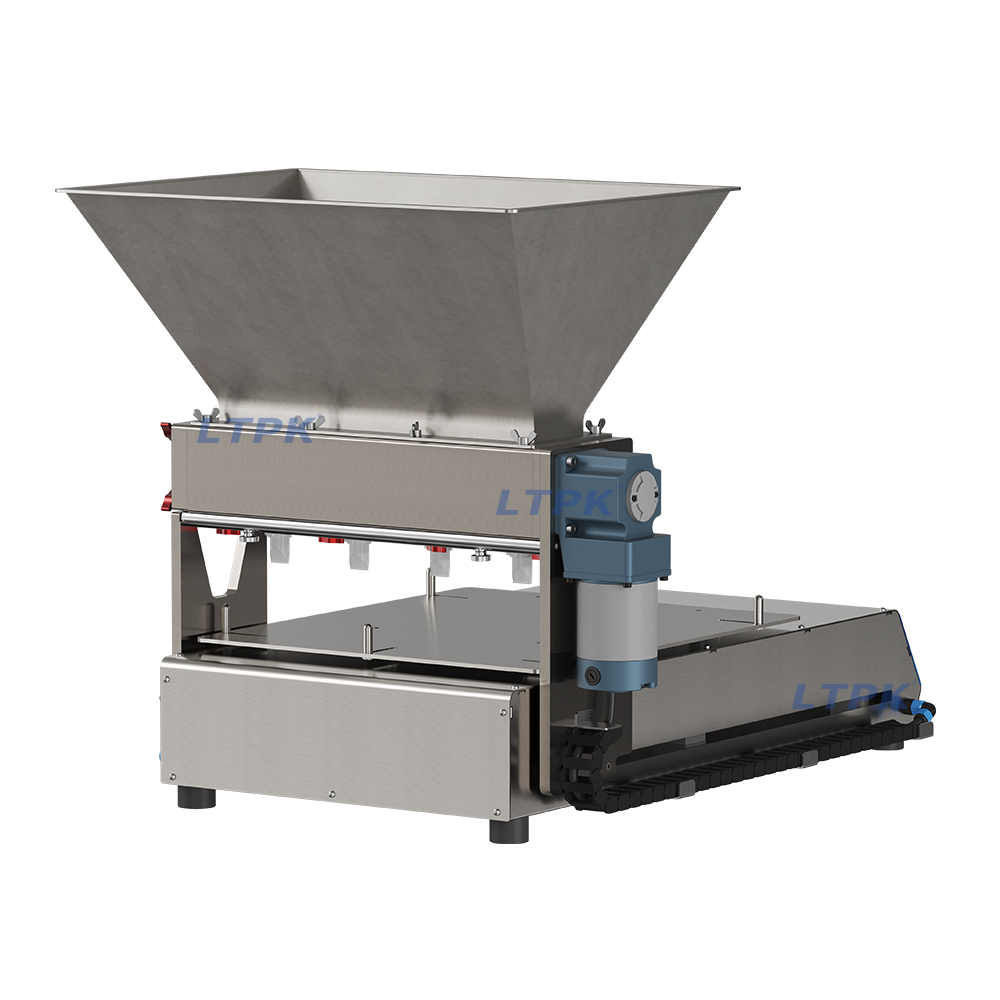

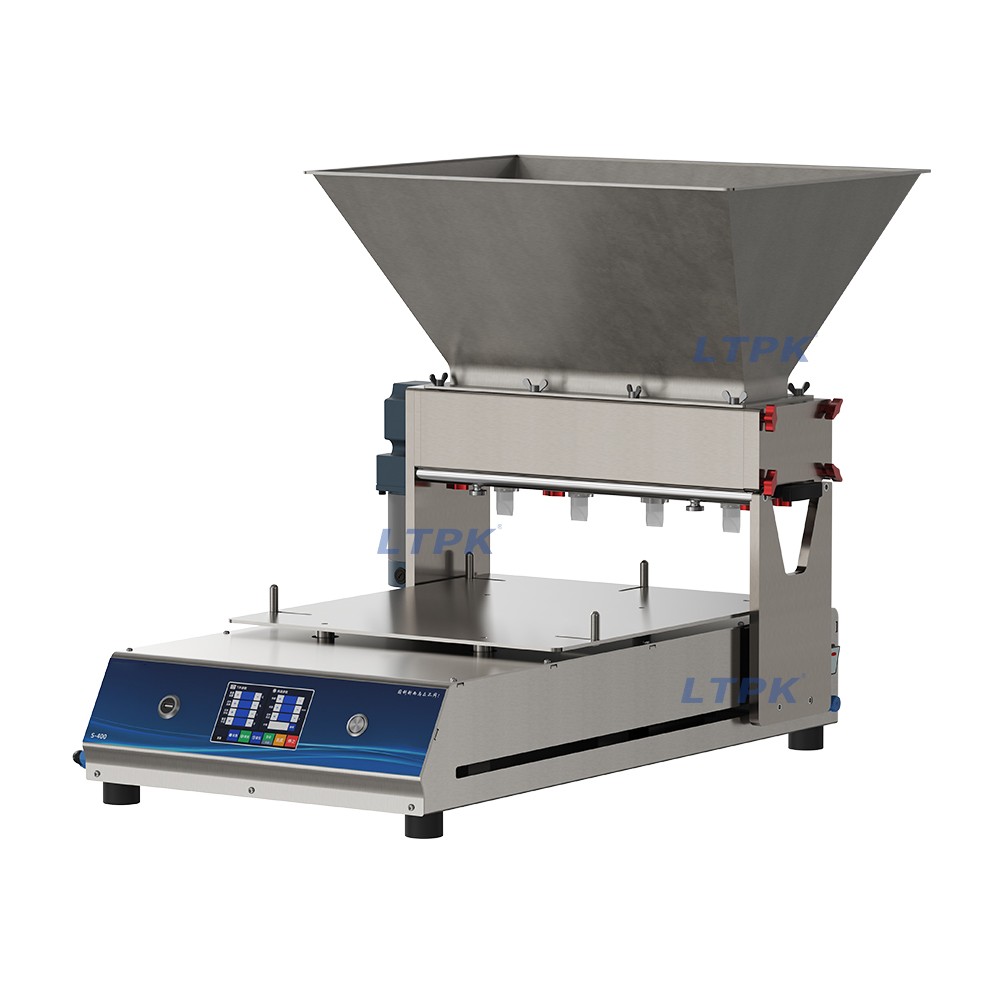

Detail Images
