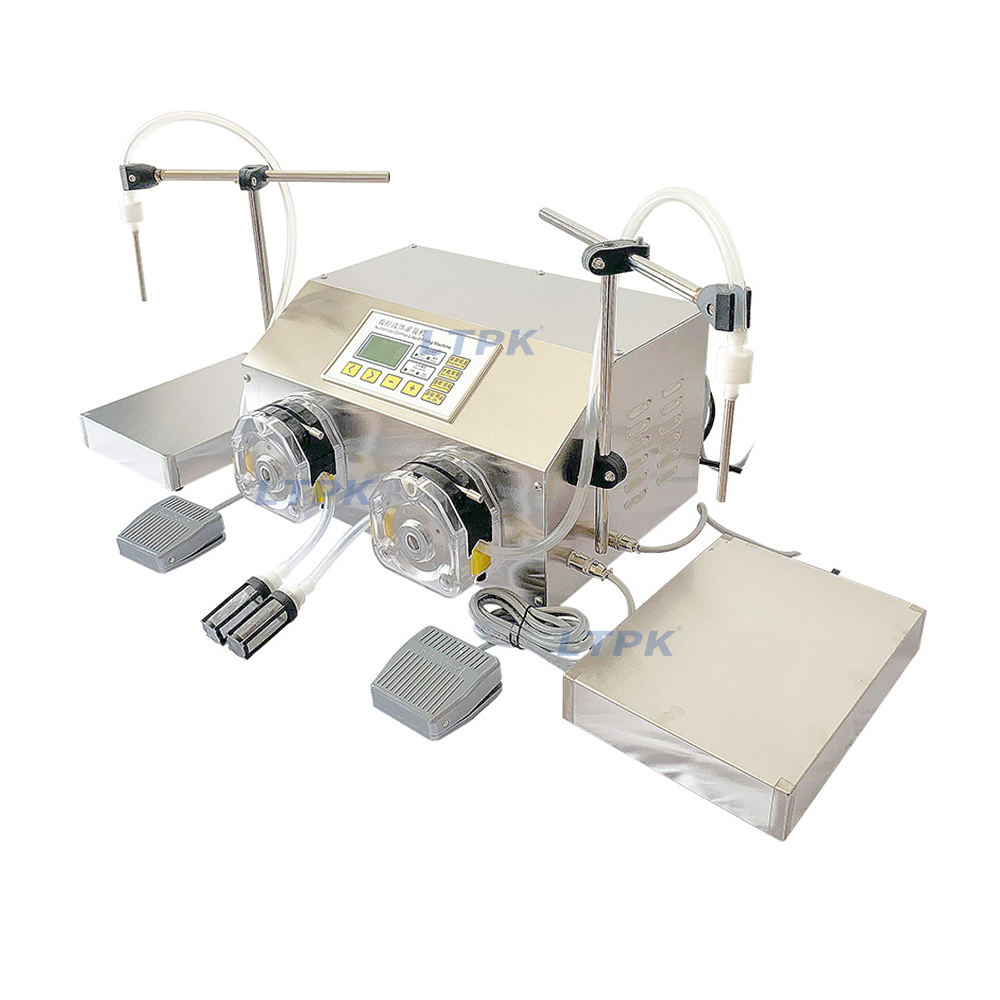

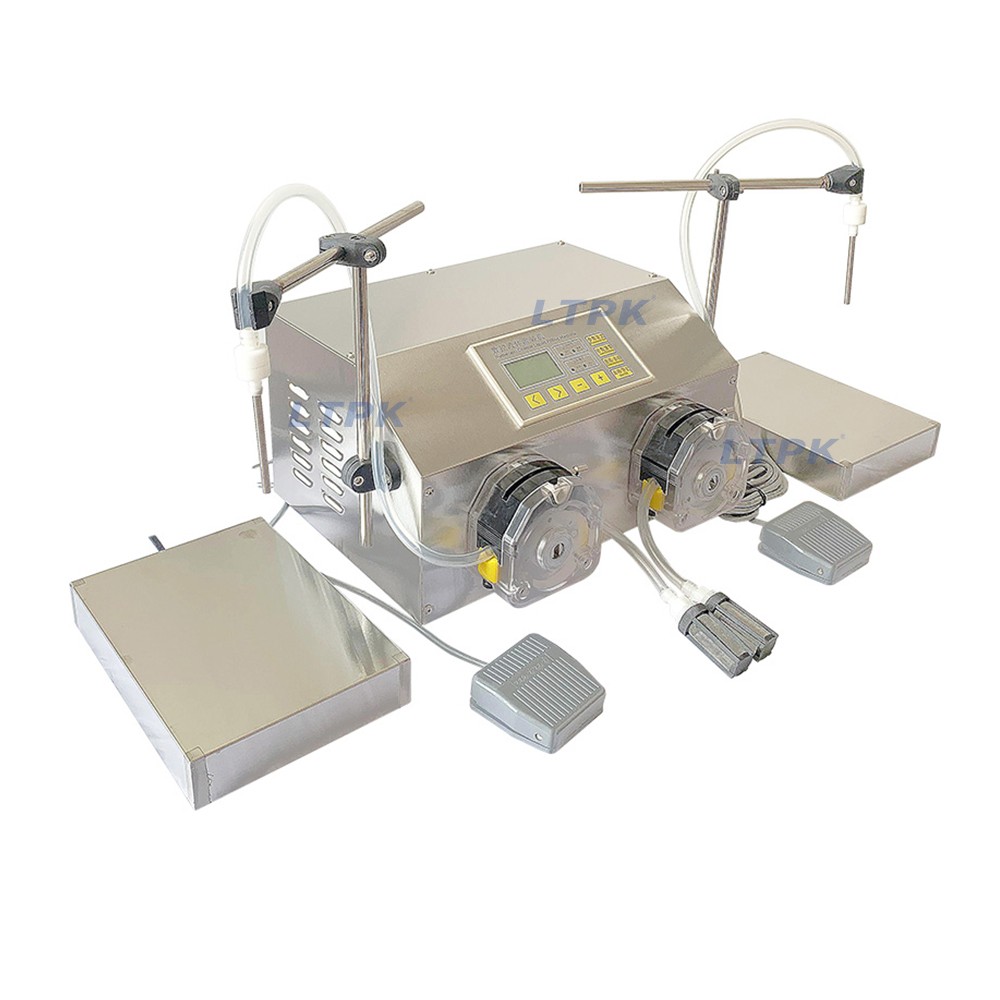

Description

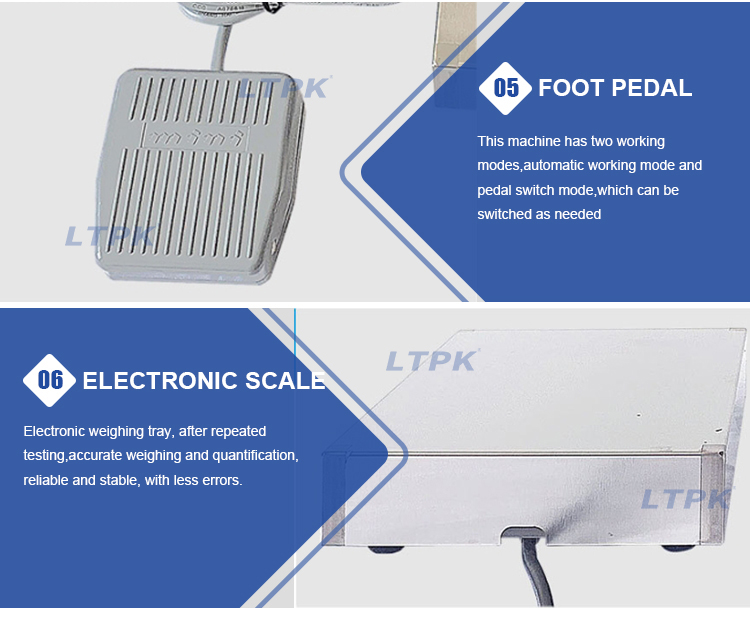

This machine control the micro computer to fill liquid and once the filling volume reach the set amount,the machine will stop to fill liquid.It is designed with the peristaltic pump,the liquid will not pass through the pump during filling,ensure the cleanliness.The weighing function can make it fills liquid more accurately.

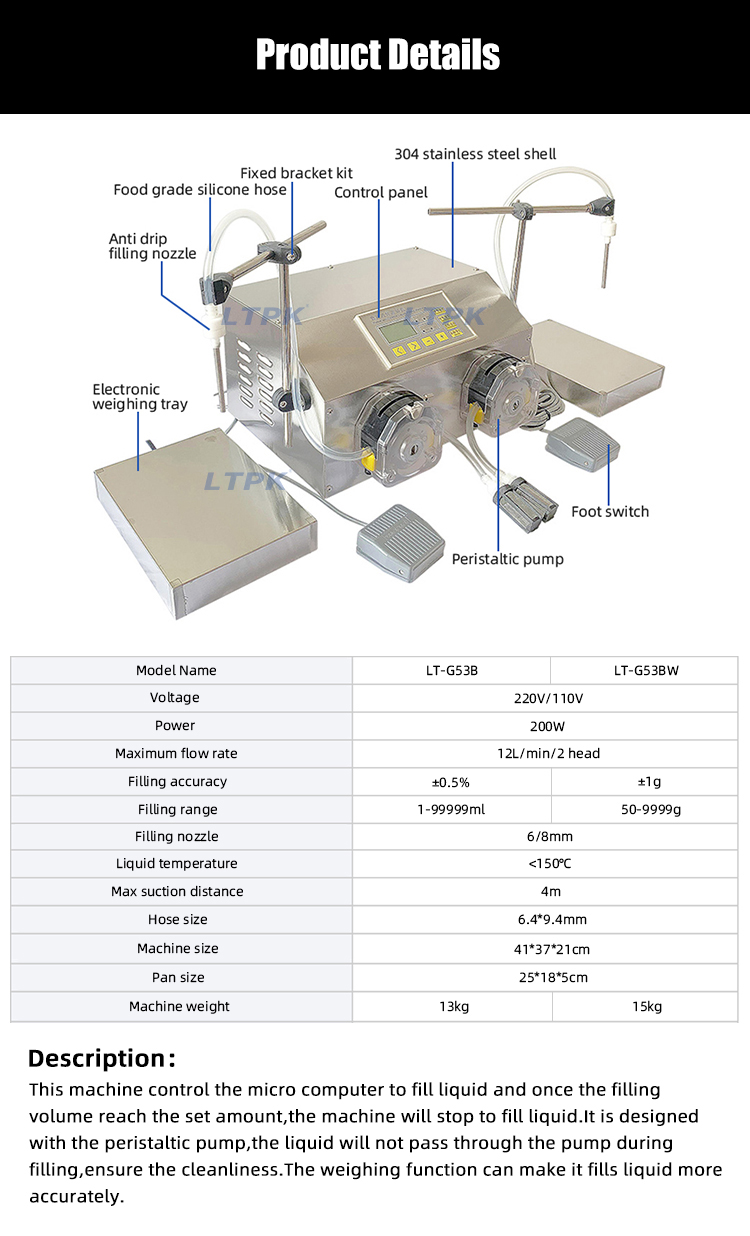

Technical Parameters

Model: LT-G53B

Voltage:220/110V

Power:200W

Maximum flow rate:12L/min/2 head

Filling accuracy:±0.5%

Filling range:1-99999ml

Filling nozzle:6/8mm

Liquid temperature:<150℃

Max suction distance:4m

Hose size:6.4*9.4mm

Machine size:41*37*21cm

Pan size:25*18*5cm

Machine weight:13kg

Application

Suitable for low viscous liquid,such as perfume,essential oil, aromatherapy, electronic cigarette oil, color paste, ink,juice,toner, beverages, etc. Widely used in industries such as food, chemical, beauty, etc.

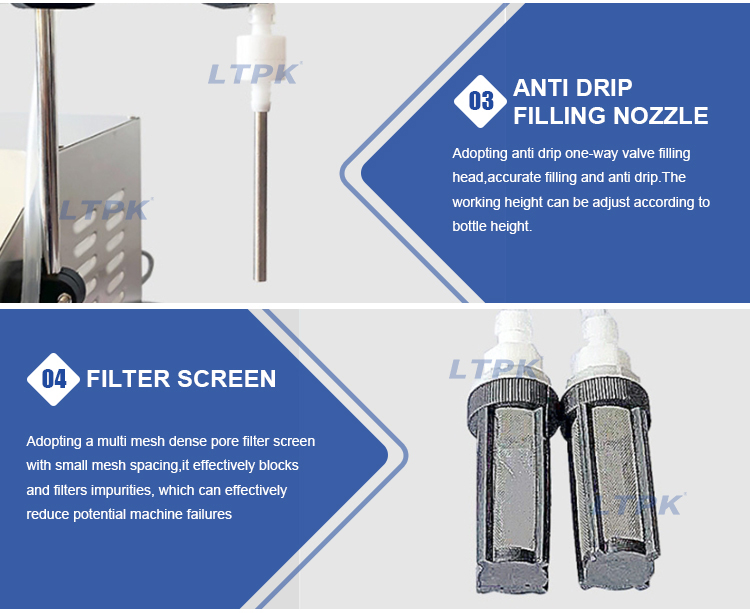

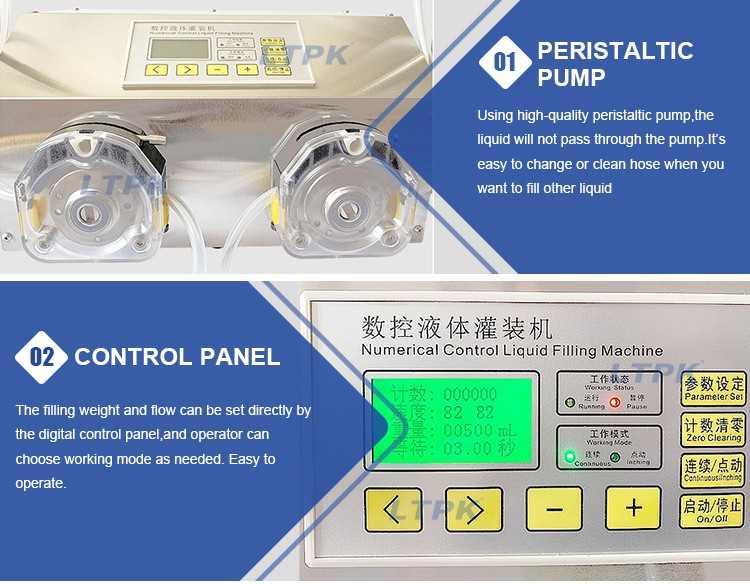

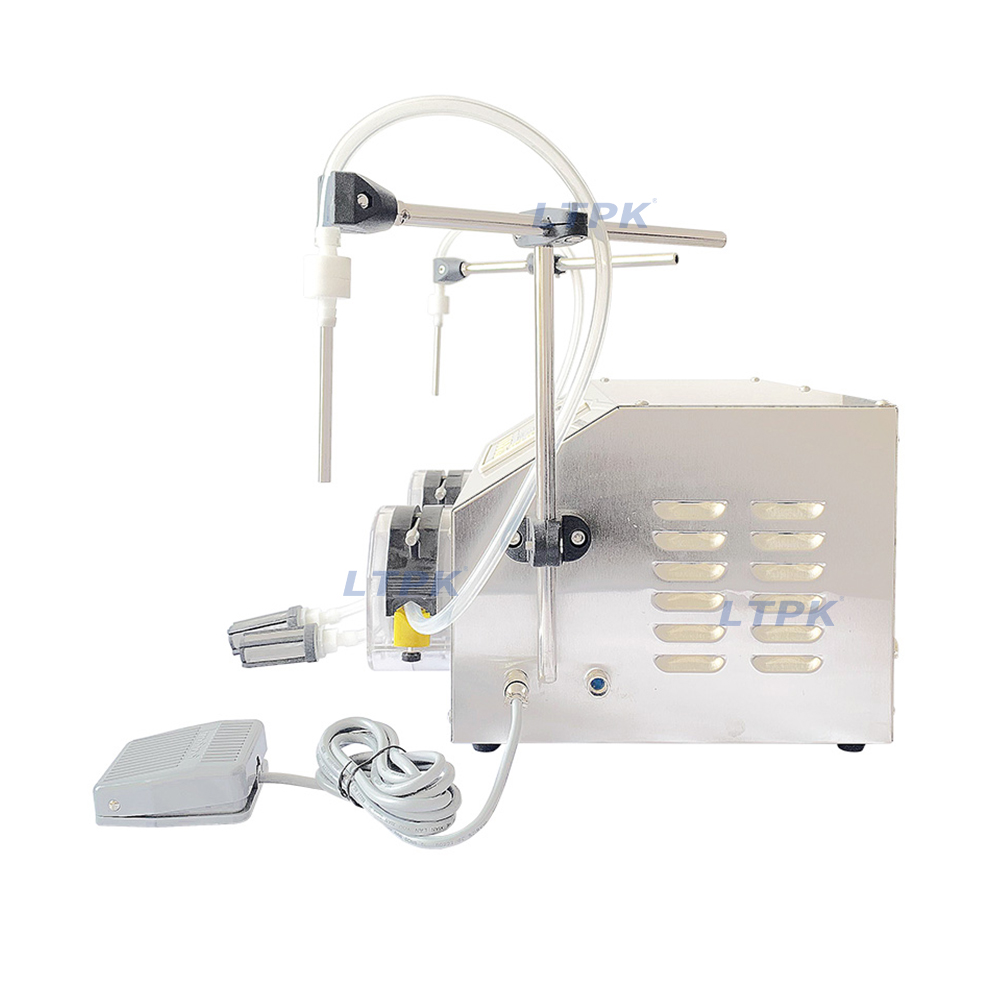

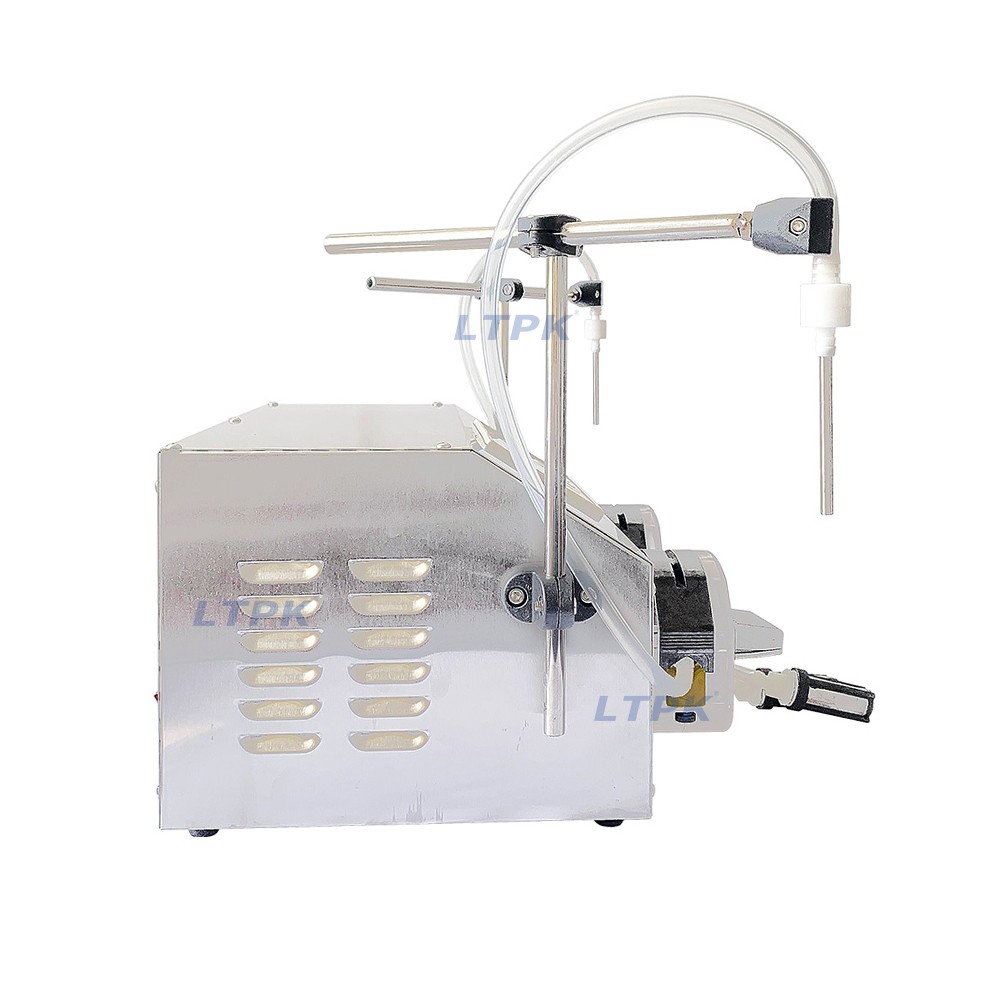

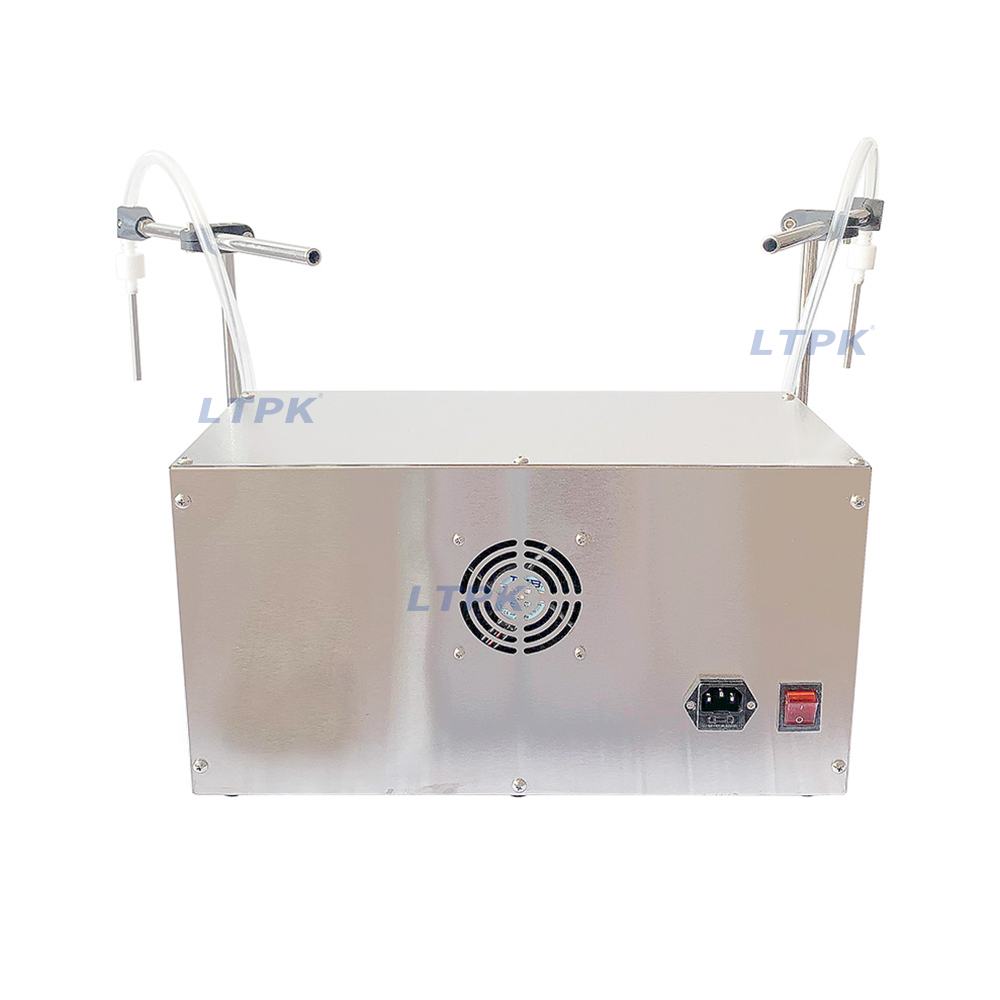

Detail Images
