Description

his machine integrates mechanics and electronics, with a dual CPU microcomputer control system and full Chinese display. It adopts a microcomputer controlled photoelectric tracking correction system and is equipped with a high-precision stepper motor to accurately locate the same position of each packaging bag pattern. The control system completes the synchronization, fixed length, positioning, and speed of the whole machine. The CNC cutter 2-99 bags can be adjusted for automatic counting and cutting, and can automatically diagnose faults. Optional installation of coding machine and inflation device.

Technical Parameters

Model：LT-320FD

Voltage： 220V

Power：1.2KW

Packing type：Back sided sealing (optional three side sealing or four sided sealing)

Packing speed ：20-60bags/min

Bag length：50-180mm

Bag width：40-140mm(Need to replace the bag former)

Measuring range：Manual feeding

Machine weight：300kg

Machine size：650*1600*1600mm

Application

Suitable for hardware,toys,candy,biscuits, jelly, nuts potato chips,shrimp strips, noodles,scented tea, mixed packaging, etc

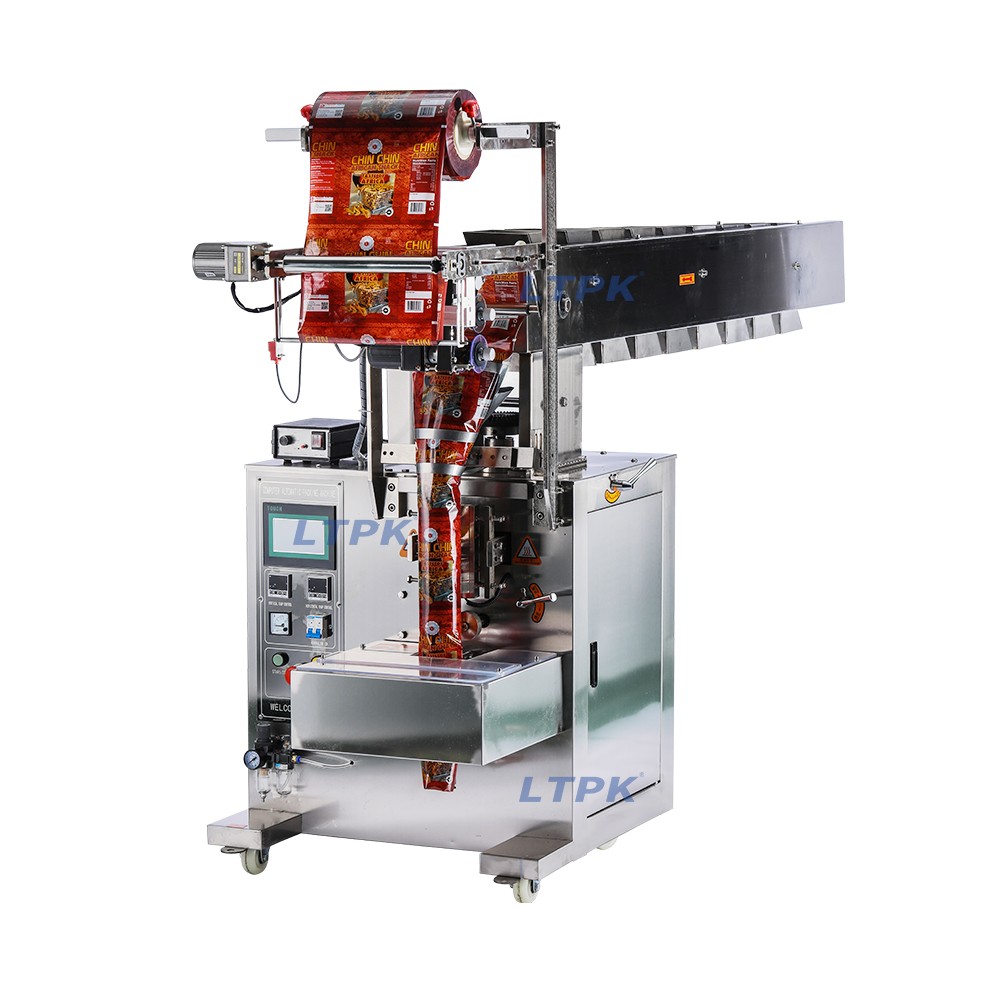

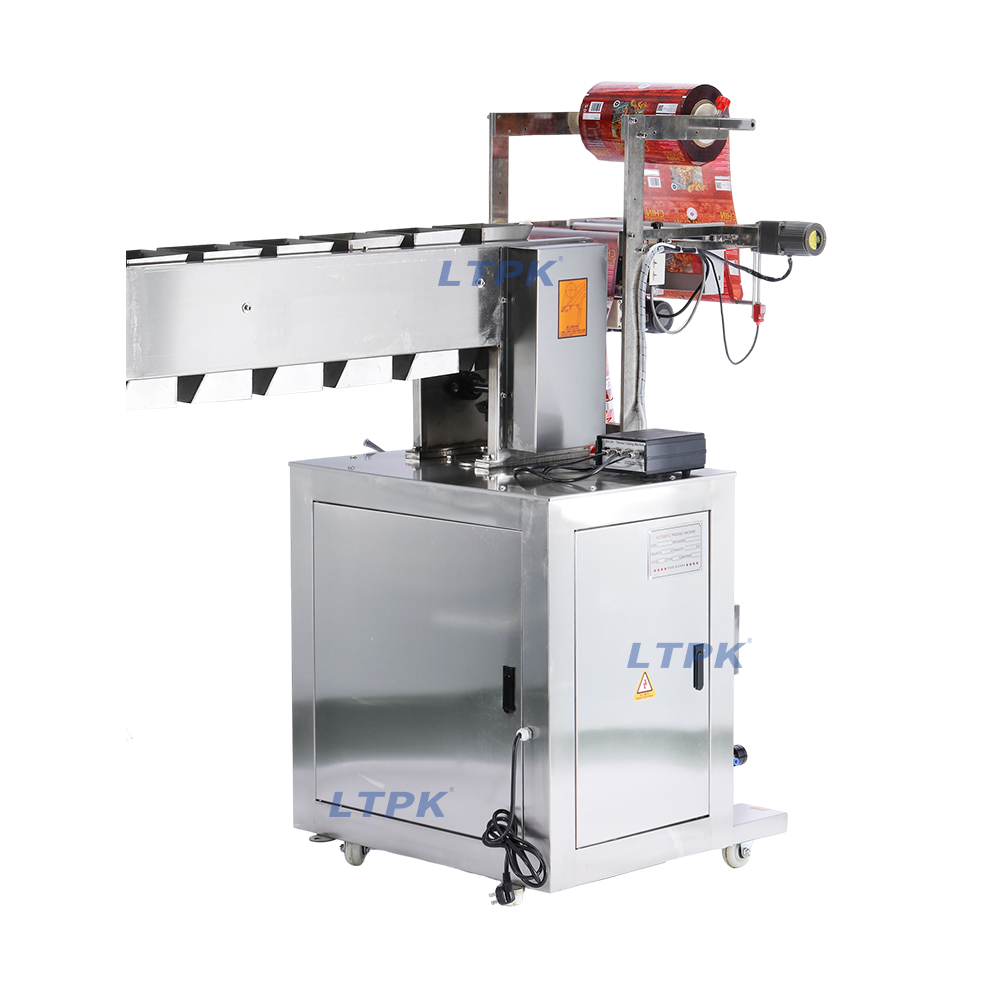

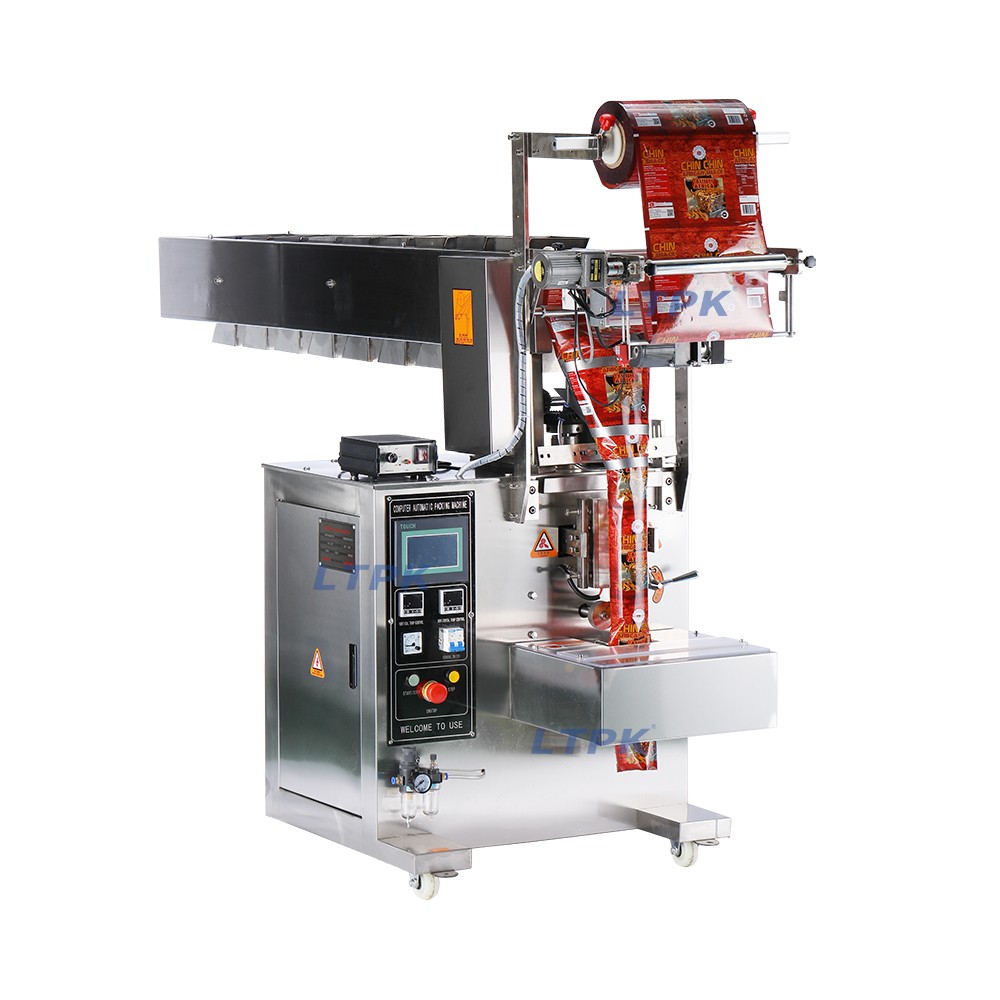

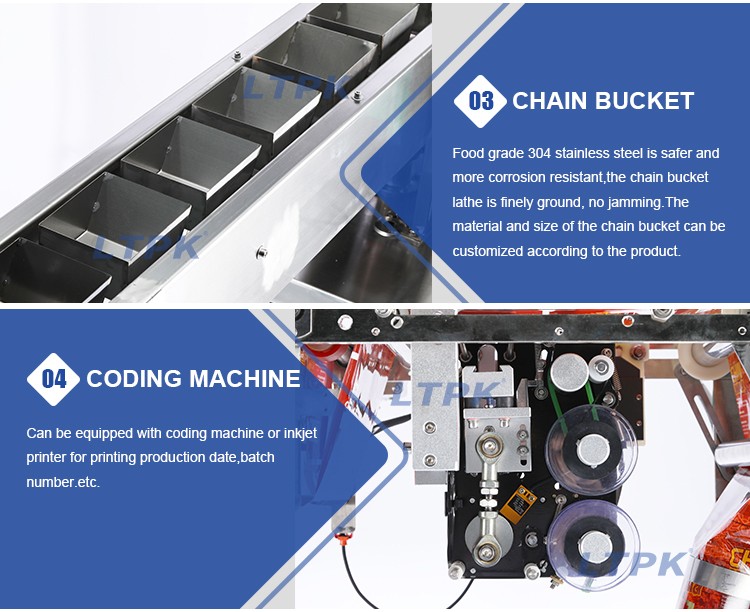

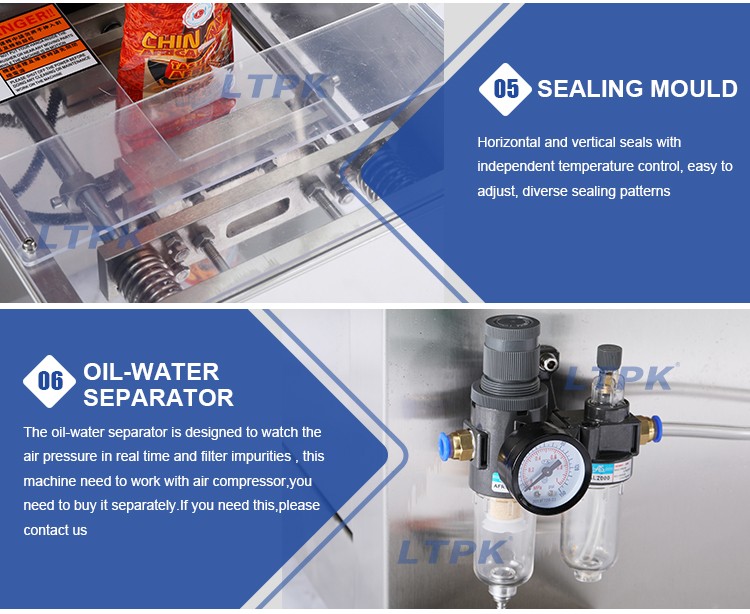

Detail Images
