Description

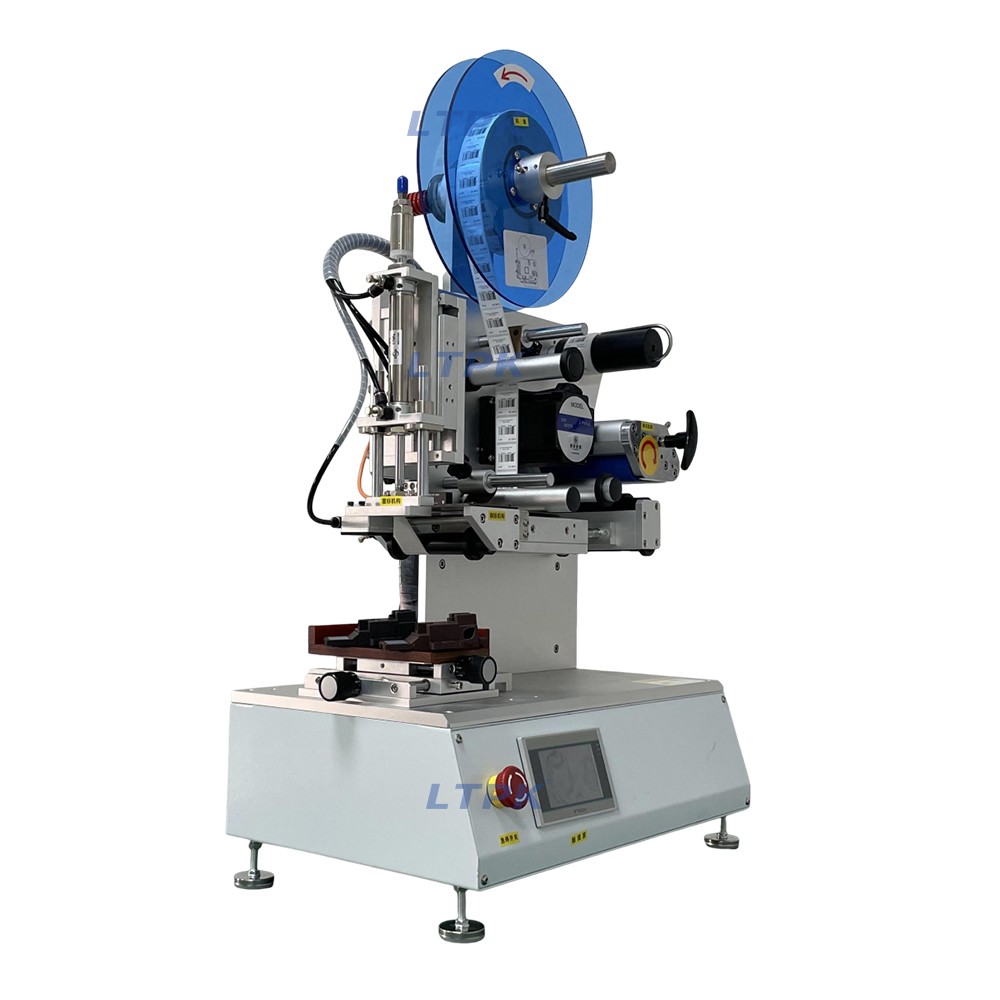

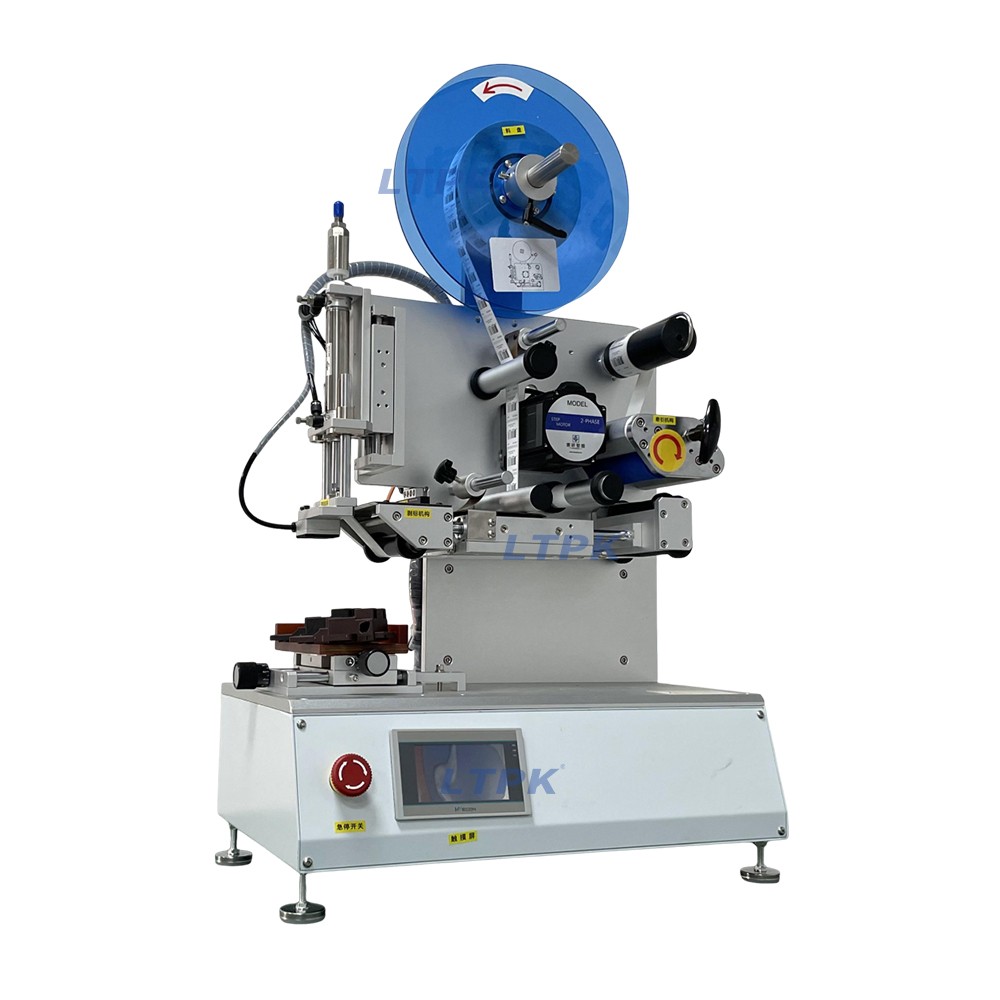

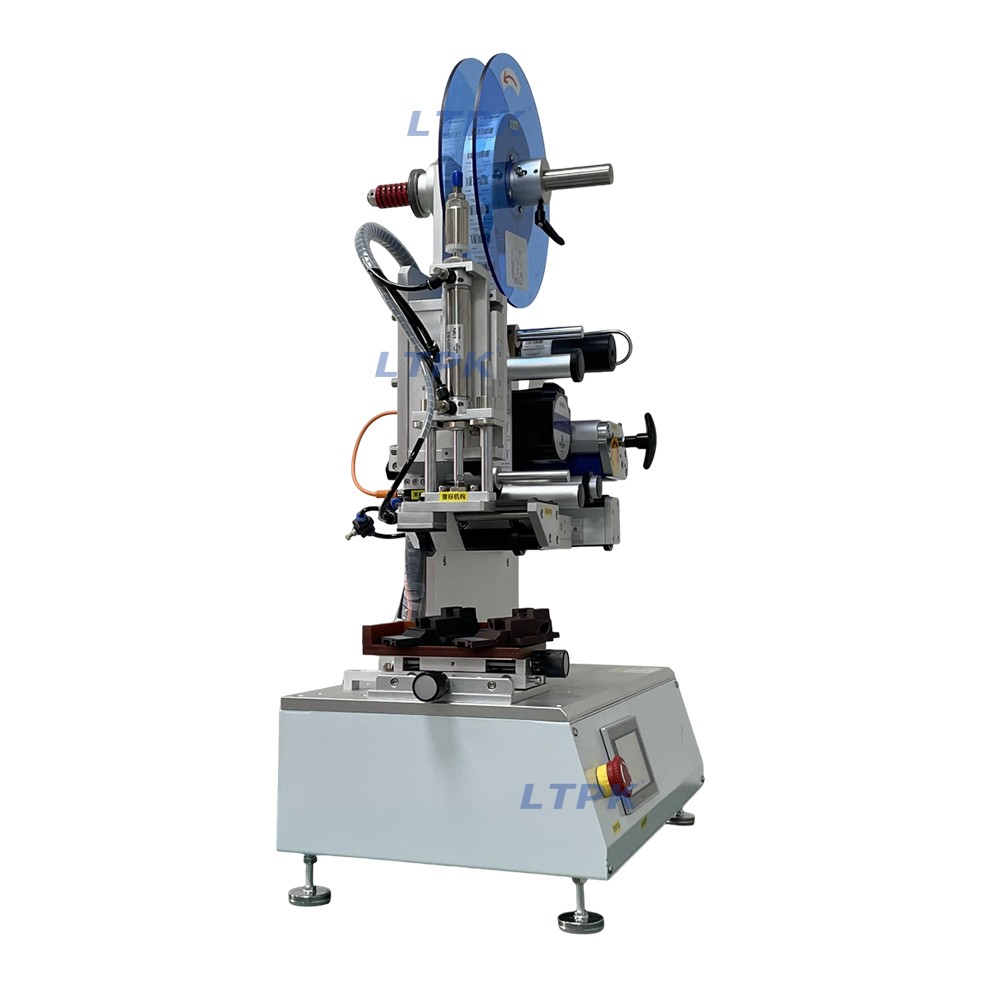

The semi-automatic high-precision flat labeling machine applies the suction method for labeling, achieving labeling on various surfaces of workpieces. By changing the labeling mechanism, it can be applied to label uneven surfaces such as concave and curved surfaces. Change the fixture to be suitable for labeling various irregular workpieces.

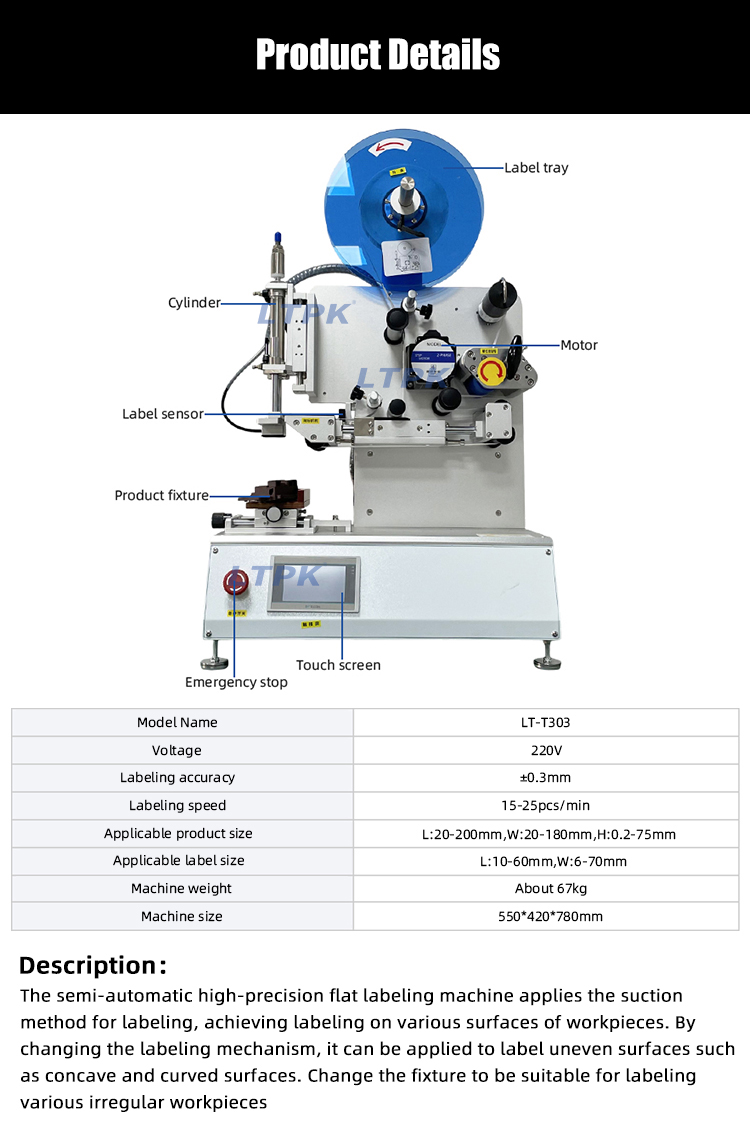

Technical parameters

Model：LT-T303

Voltage：220V

Labeling accuracy：±0.3mm

Labeling speed：15-25pcs/min

Applicable product size：:20-200mm,W:20-180mm,H:0.2-75mm

Applicable label size：L:10-60mm,W:6-70mm

Machine weight ：About 67kg

Machine size：550*420*780mm

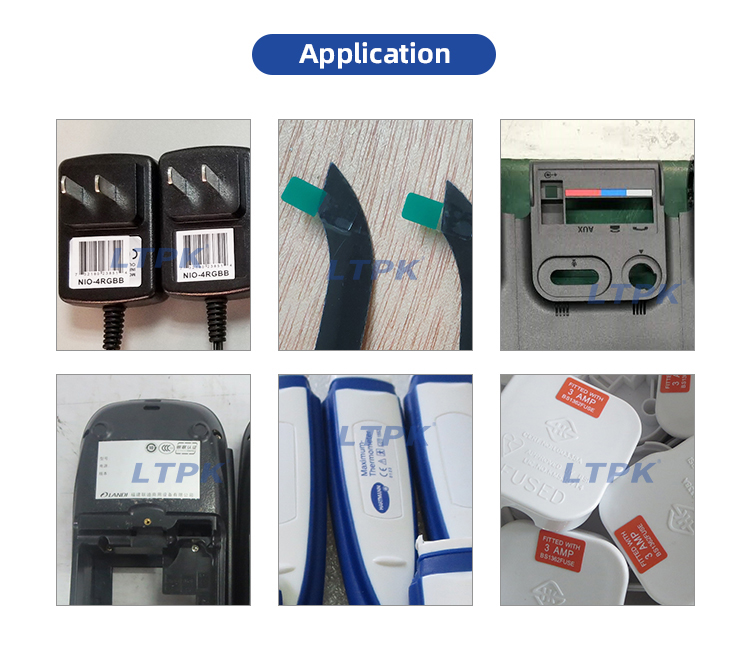

Application

Suitable for precise labeling of electronic components and digital products, such as SD card, mobile phone battery, FPC (flexible circuit board), mobile phone charger, etc

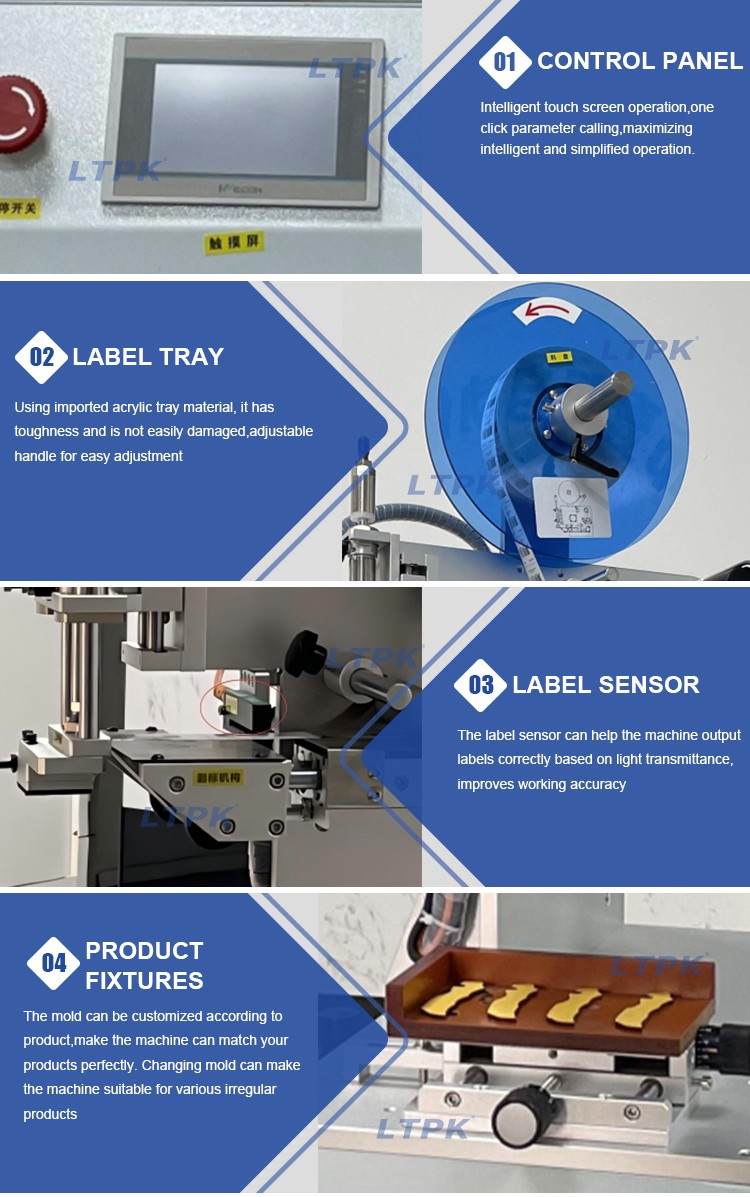

Detail Images
