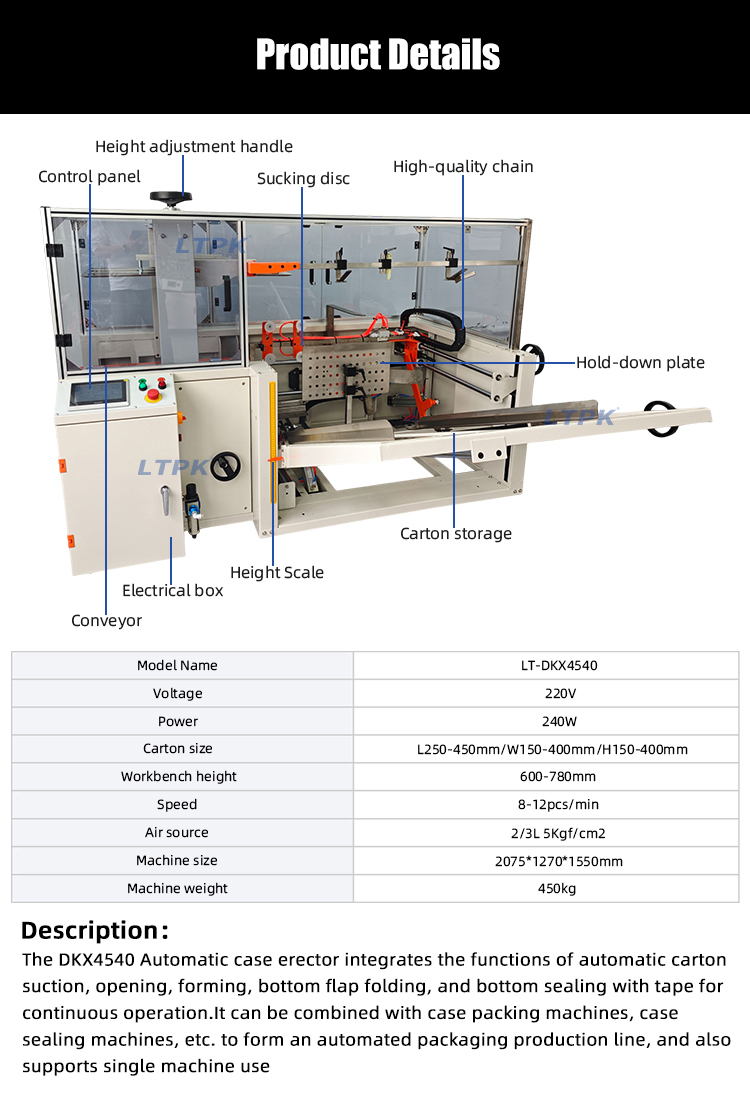

Description

The DKX4540 Automatic case erector integrates the functions of automatic carton suction, opening, forming, bottom flap folding, and bottom sealing with tape for continuous operation.It can be combined with case packing machines, case sealing machines, etc. to form an automated packaging production line, and also supports single machine use

Technical Parameters

Model:LT-DKX4540

Voltage:220V

Power:240W

Carton size:L250-450mm/W150-400mm/H150-400mm

Workbench height:600-780mm

 Speed:8-12pcs/min

Air source:2/3L 5Kgf/cm2

Machine size:2075*1270*1550mm

Machine weight:450kg

Application

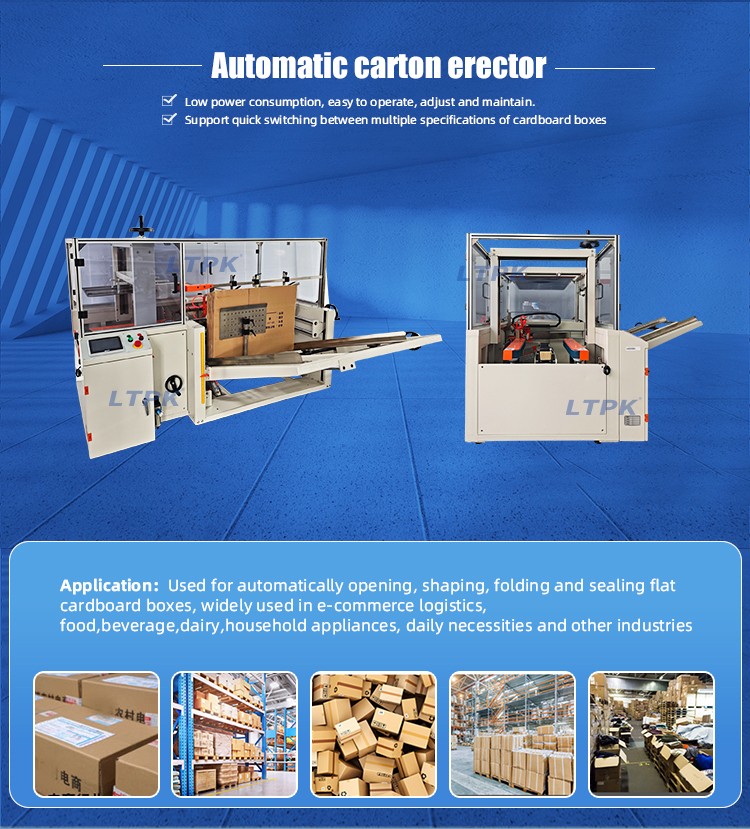

Used for automatically opening, shaping, folding and sealing flat cardboard boxes, widely used in e-commerce logistics, food,beverage,dairy,household appliances, daily necessities and other industries

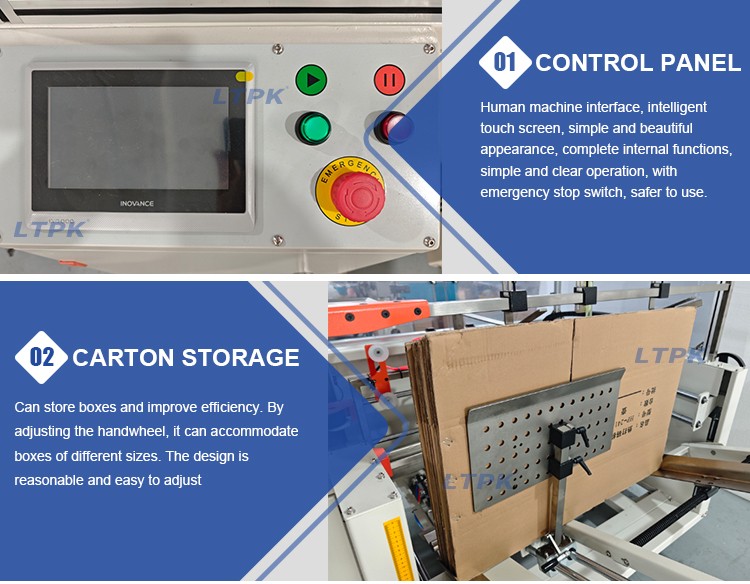

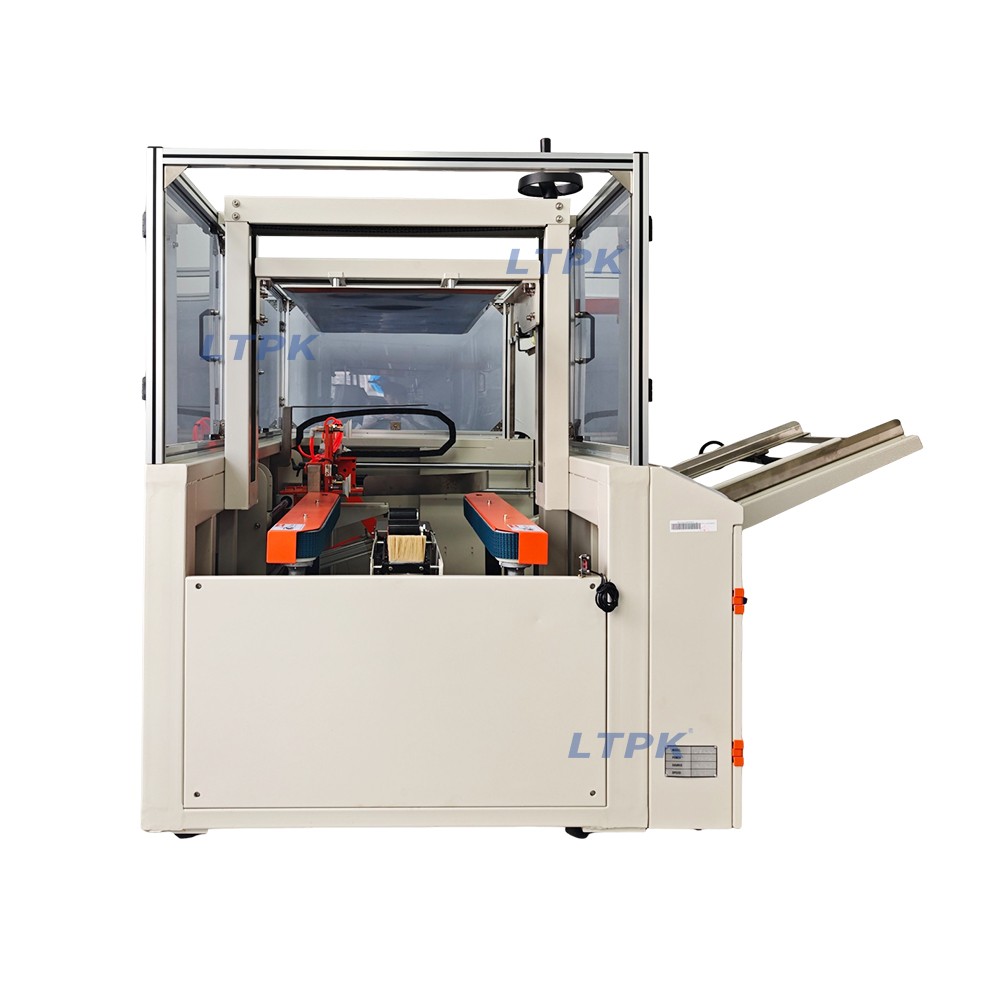

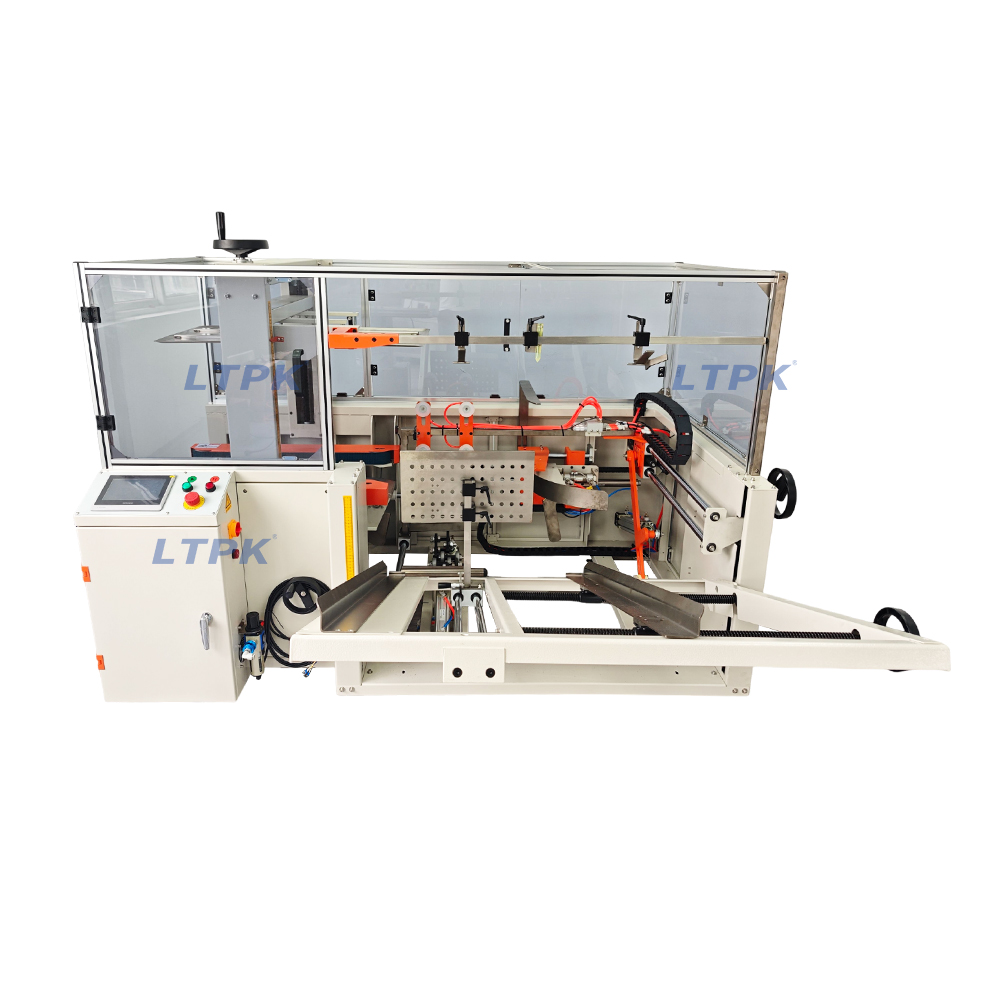

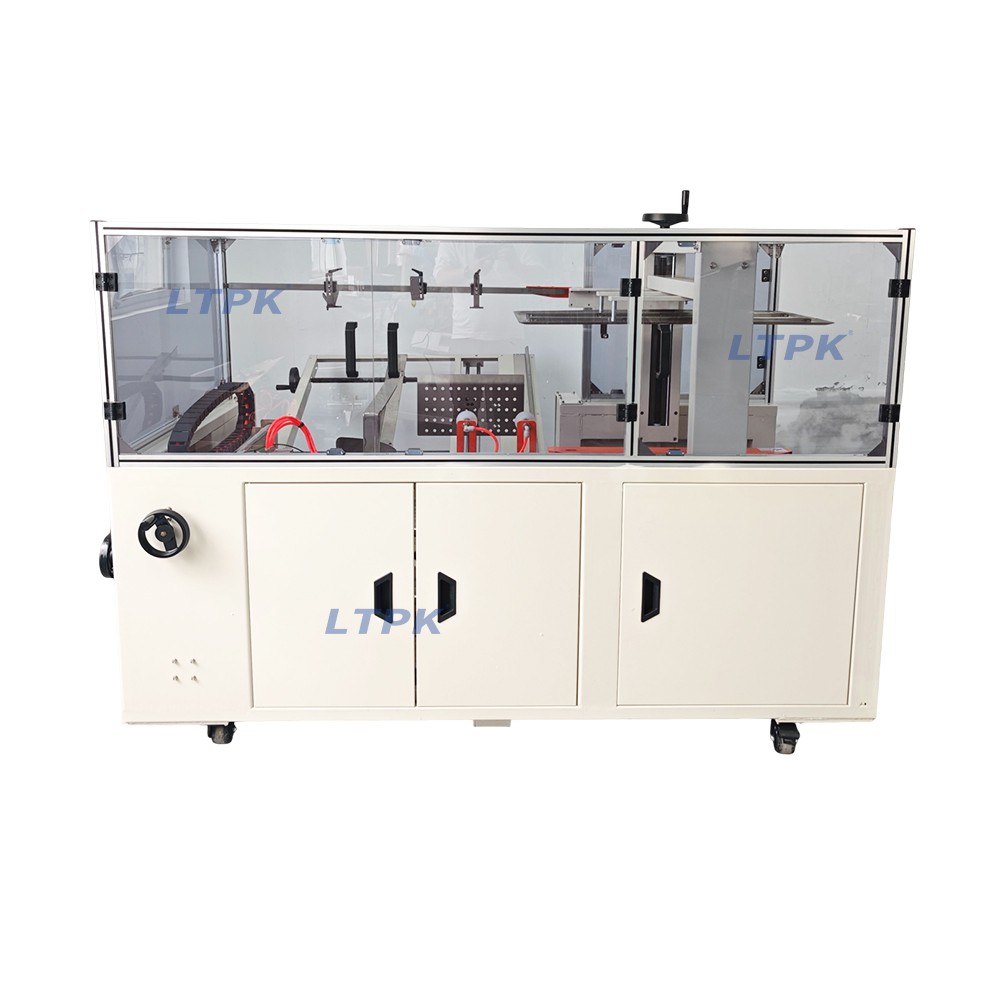

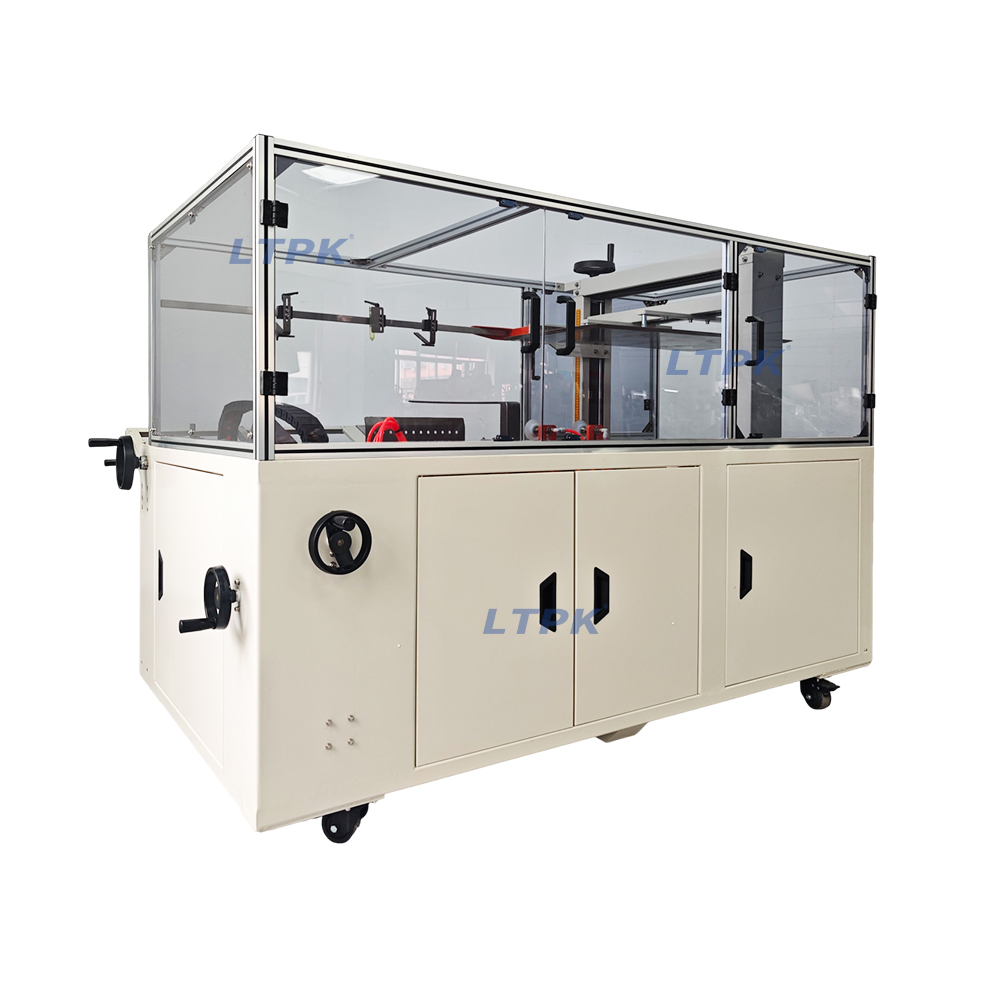

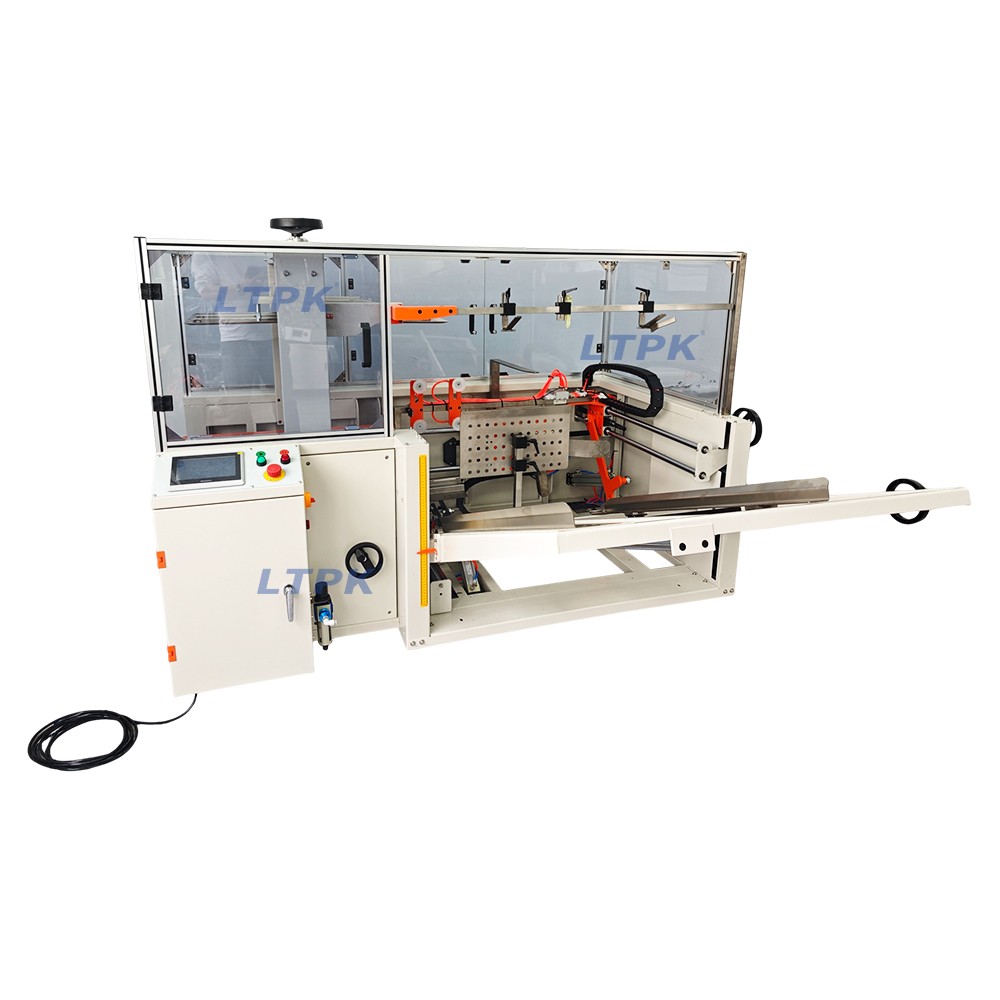

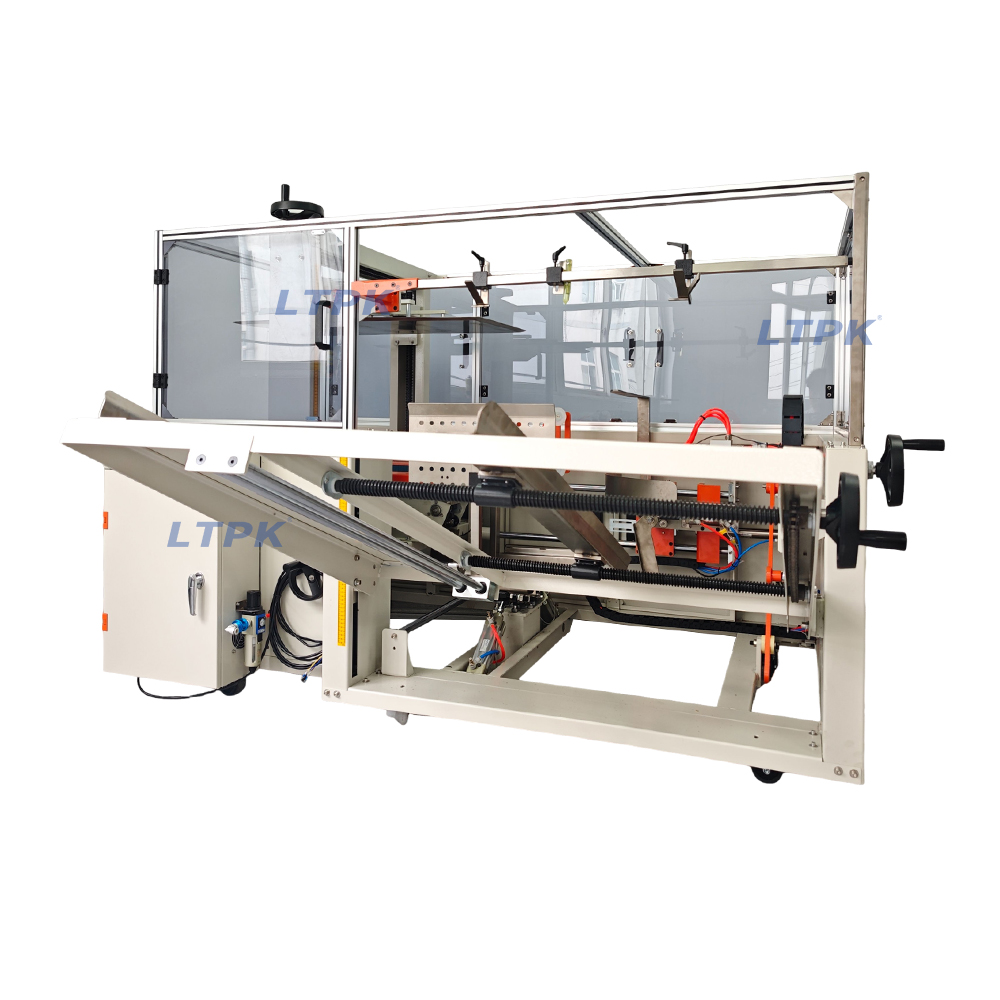

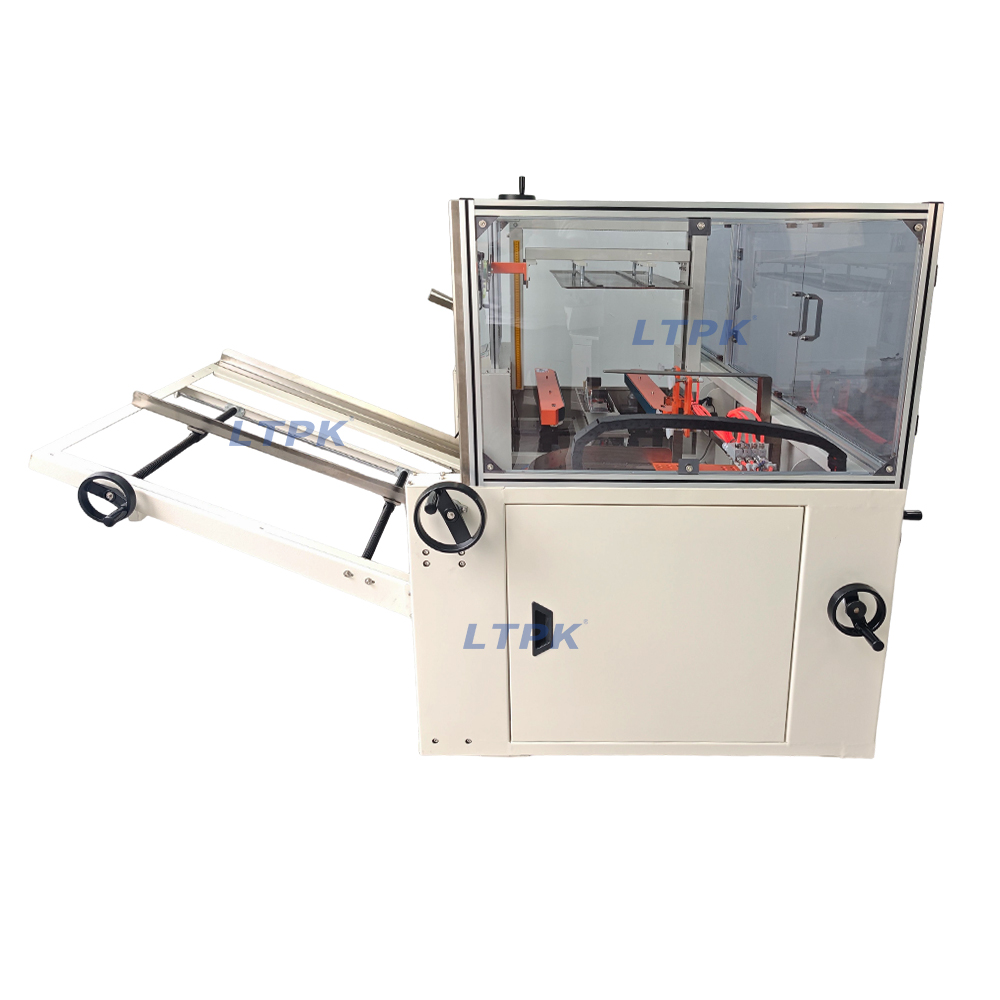

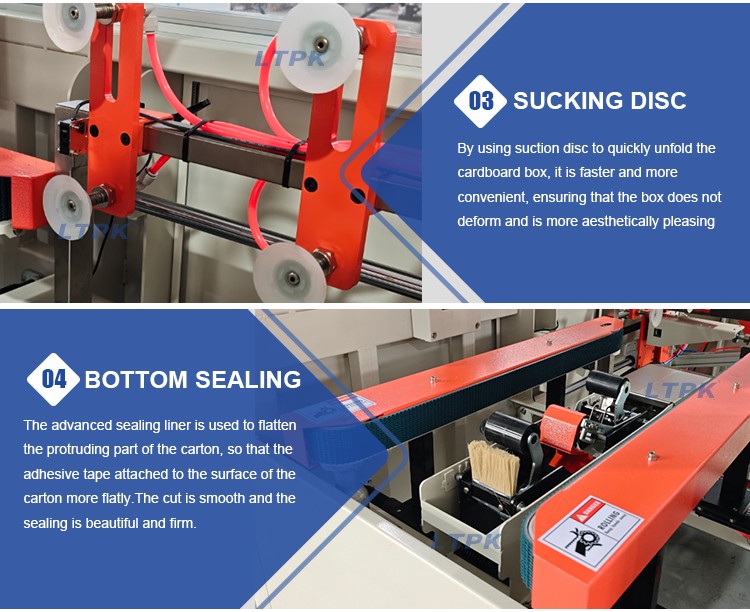

Detail Images
