Description

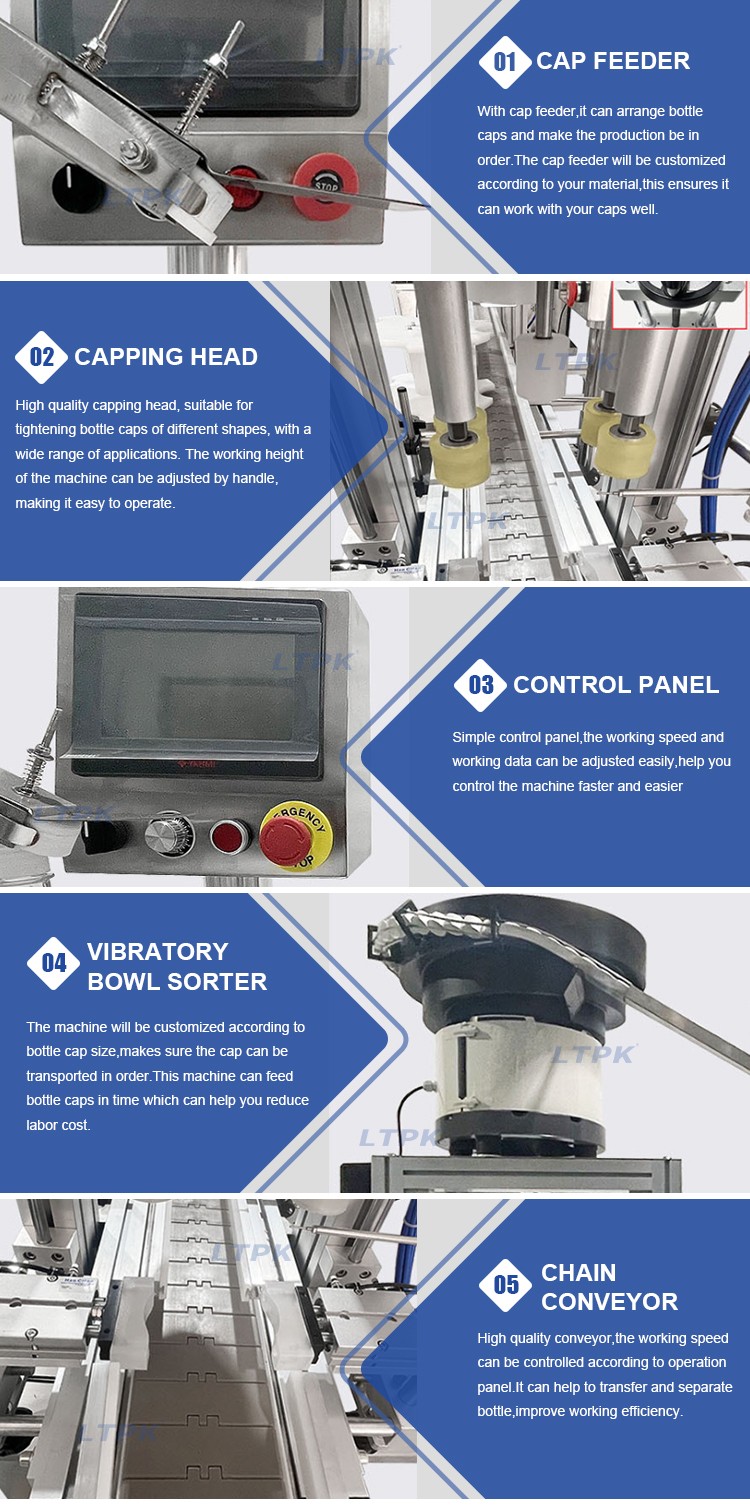

This full automatic Capping machine is equipped with a cap feeder,which can orient bottle caps. Typically the cap feeder can be customized by making adjustments to the bowl for different sizes of caps.Larger caps and higher speeds may require larger bowls.These two machine can achieve automatically feeding caps and cap bottles,save labor and reduce production error.

Technical Parameters

Vibratory Bowl

Machine Power:110/220V 50-60HZ

Material:Stainless Steel

Suitable Caps Diameter :Customized

Working Speed:Customized

Machine Size:Customized

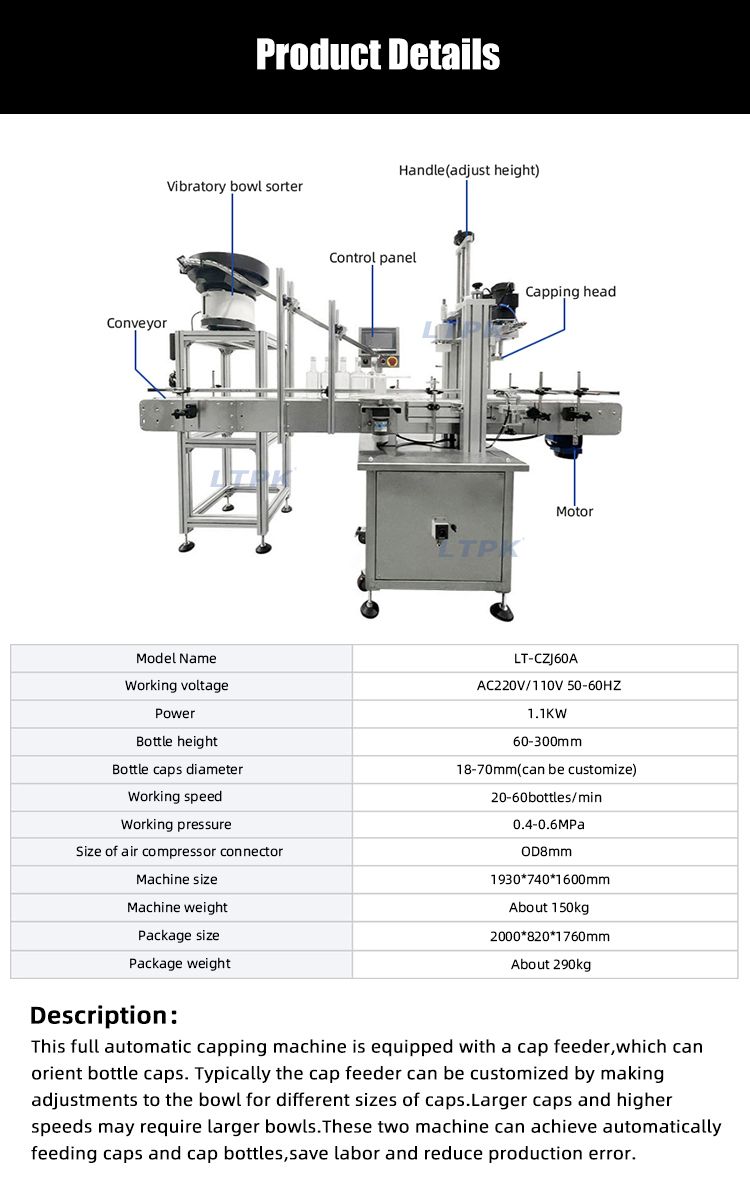

Capping Machine

Model:LT-CZJ60A

Working voltage:AC220V/110V 50-60HZ

Power :1.1KW

Bottle height:60-300mm

Bottle caps diameter:18-70mm(can be customize)

Working speed:20-60bottles/min

Working pressure:0.4-0.6MPa

Size of air compressor connector:OD8mm

Machine size:1930*740*1600mm

Machine weight :About 150kg

Package size:2000*820*1760mm

Package weight :About 290kg

Application

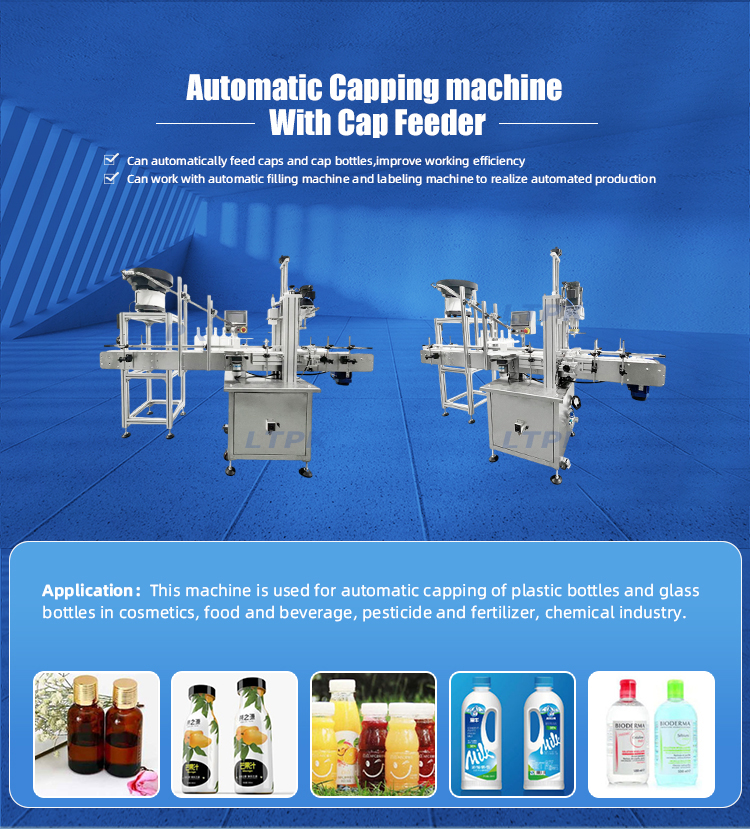

This machine is used for automatic capping of plastic bottles and glass bottles in cosmetics, food and beverage, pesticide and fertilizer, chemical industry.

Detail Images
