Description

This desktop semi-automatic pneumatic flat labeling machine is an economical labeling solution specifically designed for flat and slightly curved workpieces. Powered by a pneumatic drive and featuring semi-automatic control, it replaces manual labeling while balancing precision, efficiency, and cost-effectiveness. It is the ideal choice for small to medium-batch production, prototyping, and serving as a backup on production lines.

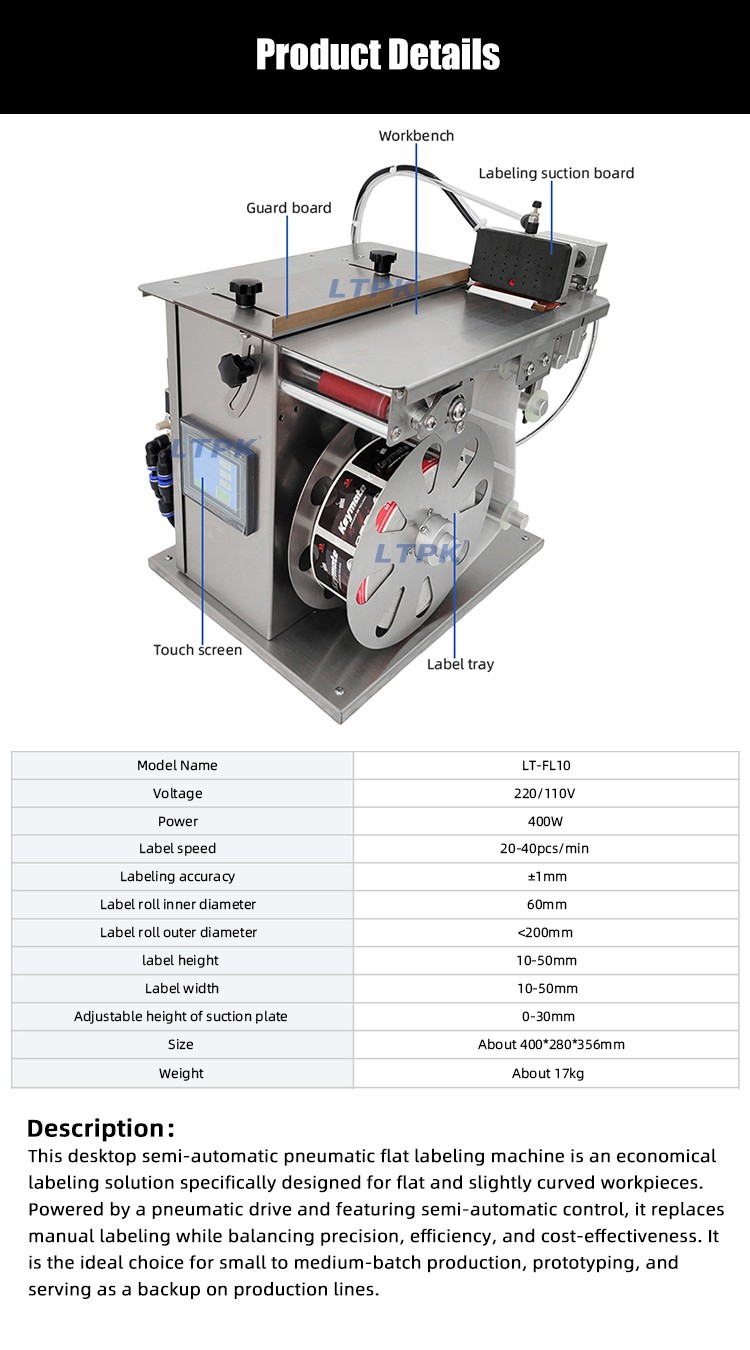

Technical Parameters

Model:LT-FL10

Voltage:220/110V

Power:400W

Label speed:20-40pcs/min

Labeling accuracy:±1mm

Label roll inner diameter:60mm

Label roll outer diameter:<200mm

label height:10-50mm

Label width:10-50mm

Adjustable height of suction plate:0-30mm

Size:About 400*280*356mm

Weight:About 17kg

Application

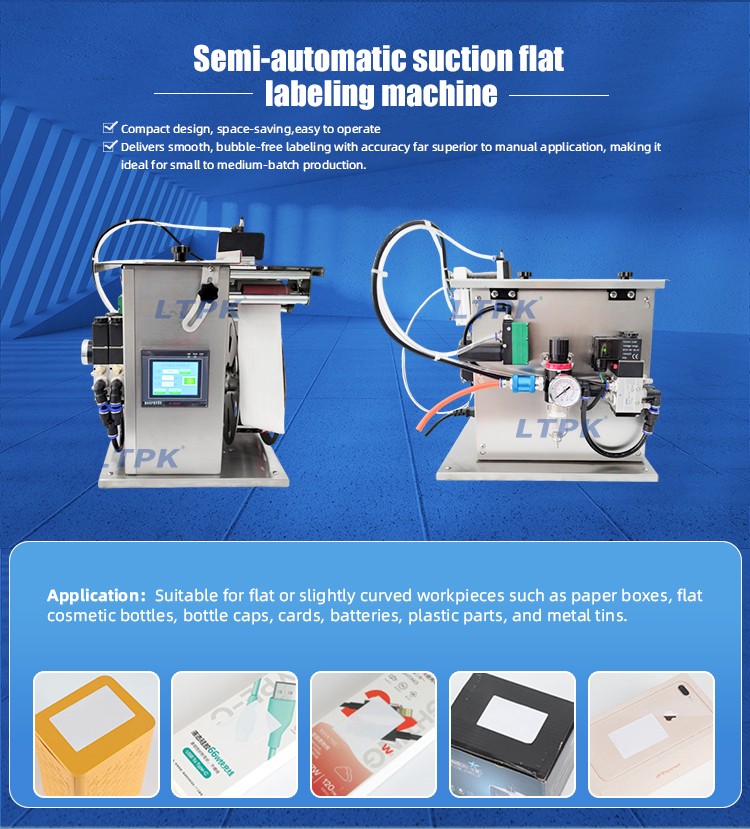

suitable for flat or slightly curved workpieces such as paper boxes, flat cosmetic bottles, bottle caps, cards, batteries, plastic parts, and metal tins.

Detail Images
