Description

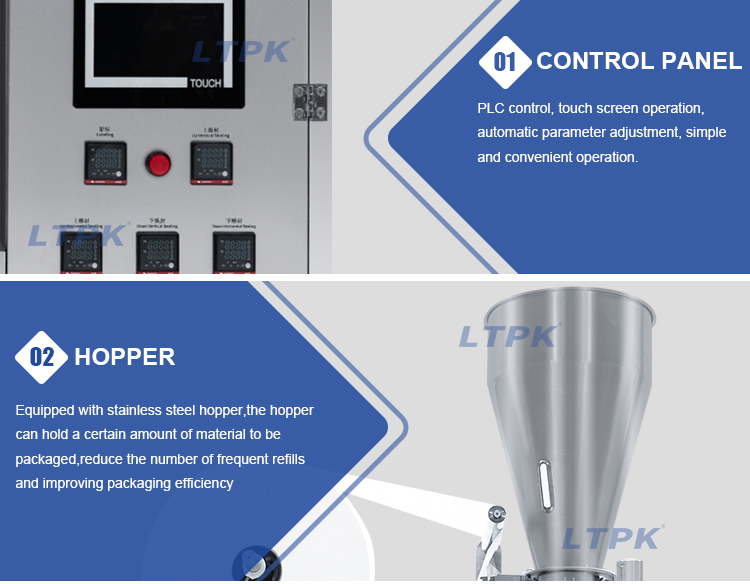

This machine is a new type of heat sealed, multi-functional fully automatic tea bag packaging equipment. The main feature of this machine is that the inner and outer bags are formed in one go, avoiding direct contact between hands and materials and improving efficiency.Adopting PLC control, touch screen operation, automatic parameter adjustment, simple and convenient operation.

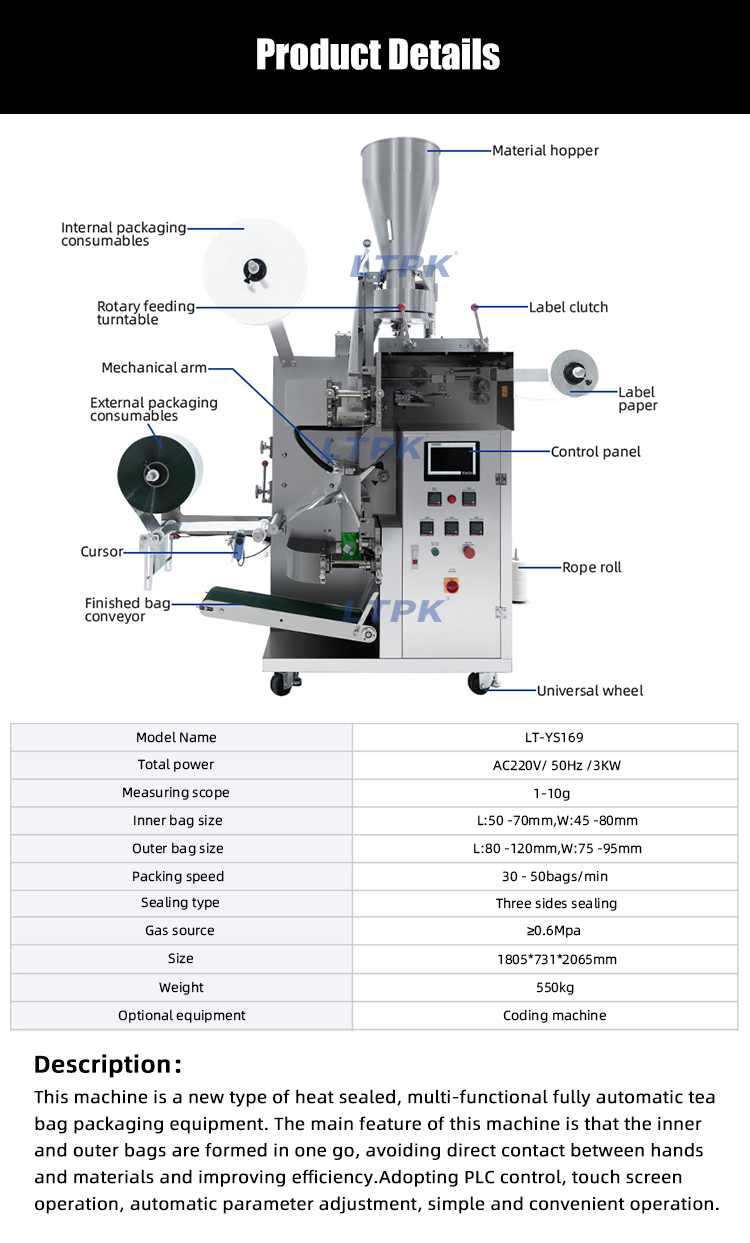

Technical Parameters

Model：LT-YS169

Total power：AC220V/ 50Hz /3KW

Measuring scope：1-10 g

Inner bag size：L:50 -70mm,W:45 -80mm

Outer bag size：L:80 -120mm,W:75 -95mm

Packing speed：30 - 50bags/min

Sealing type：Three sides sealing

Gas source：≥0.6Mpa

Size：1805*731*2065mm

Weight：550kg

Optional equipment：Coding machine

Application

The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as: tea, herbal tea, health tea grass-root type and so on.

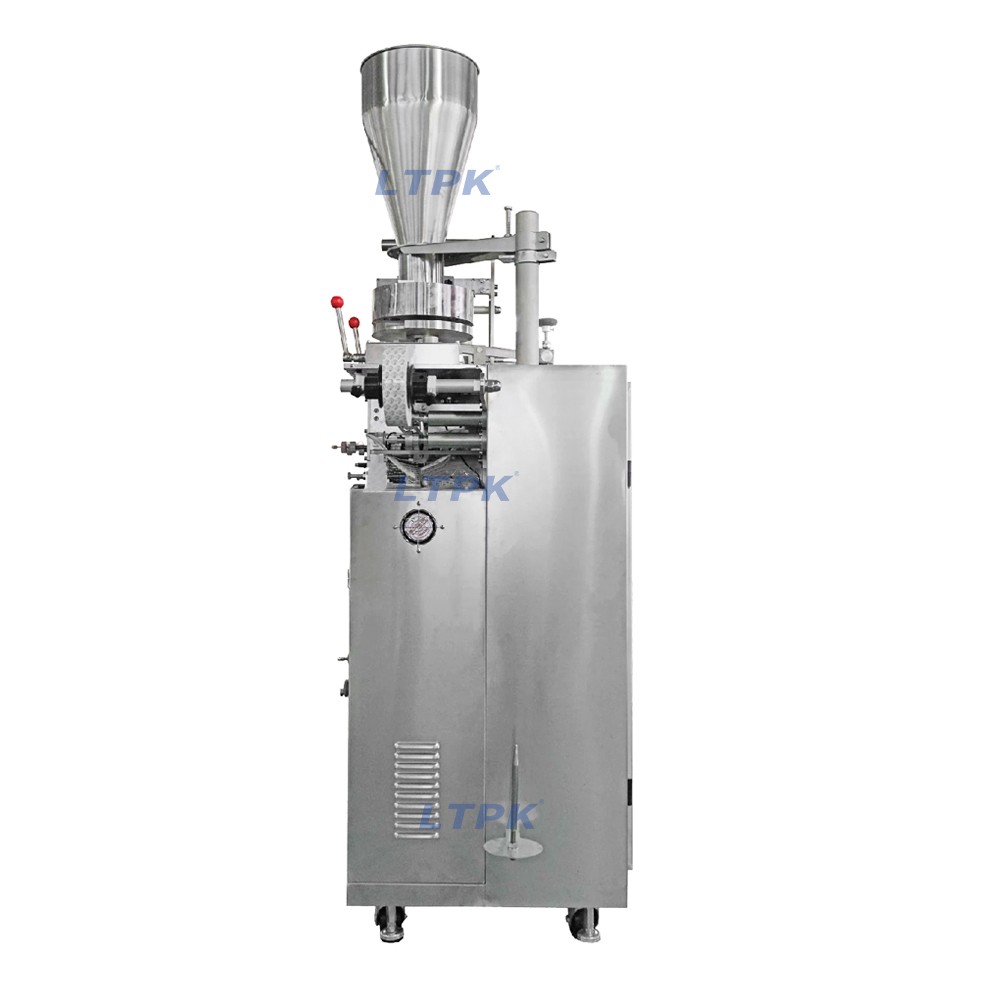

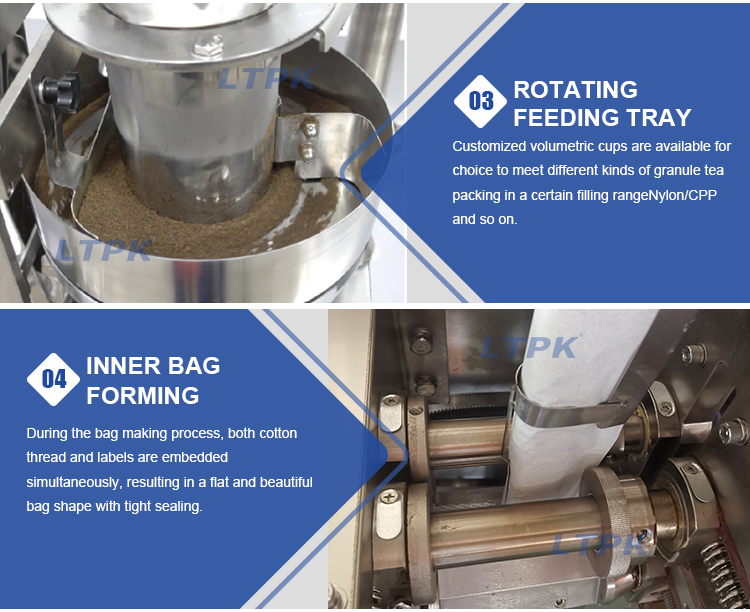

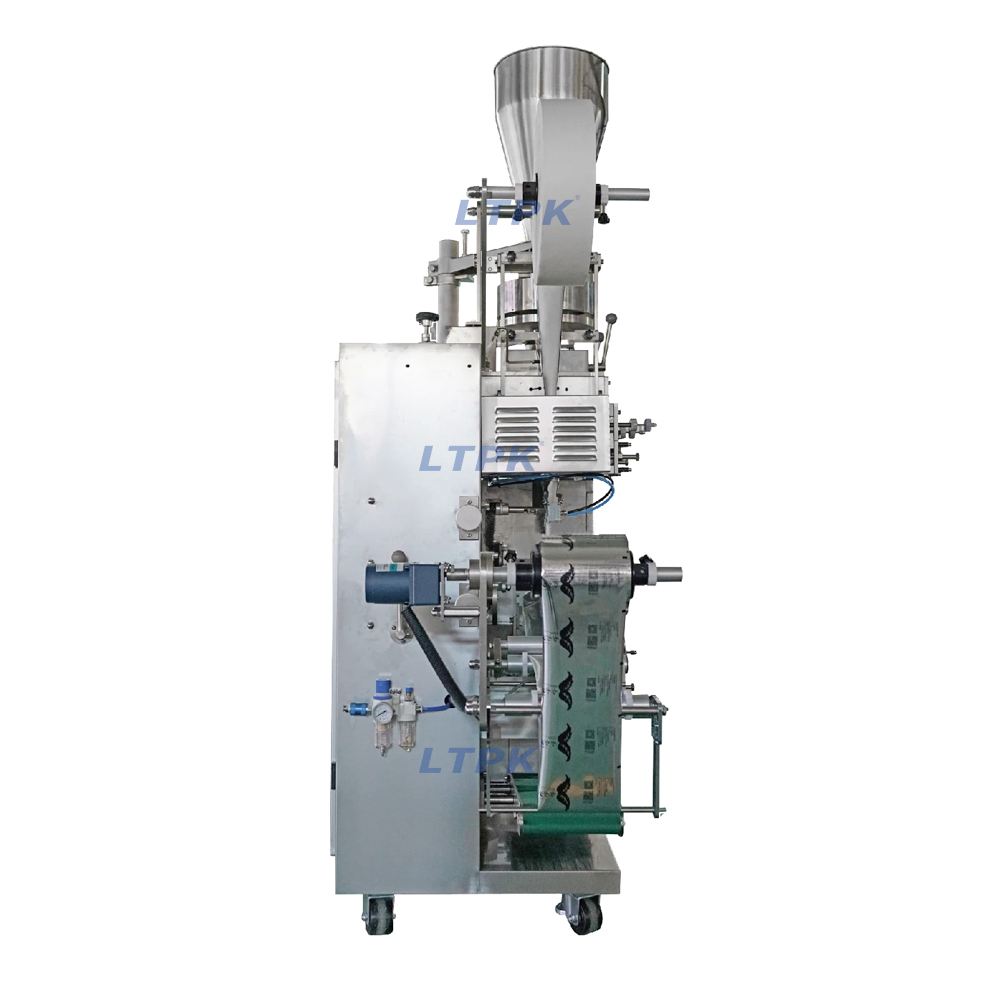

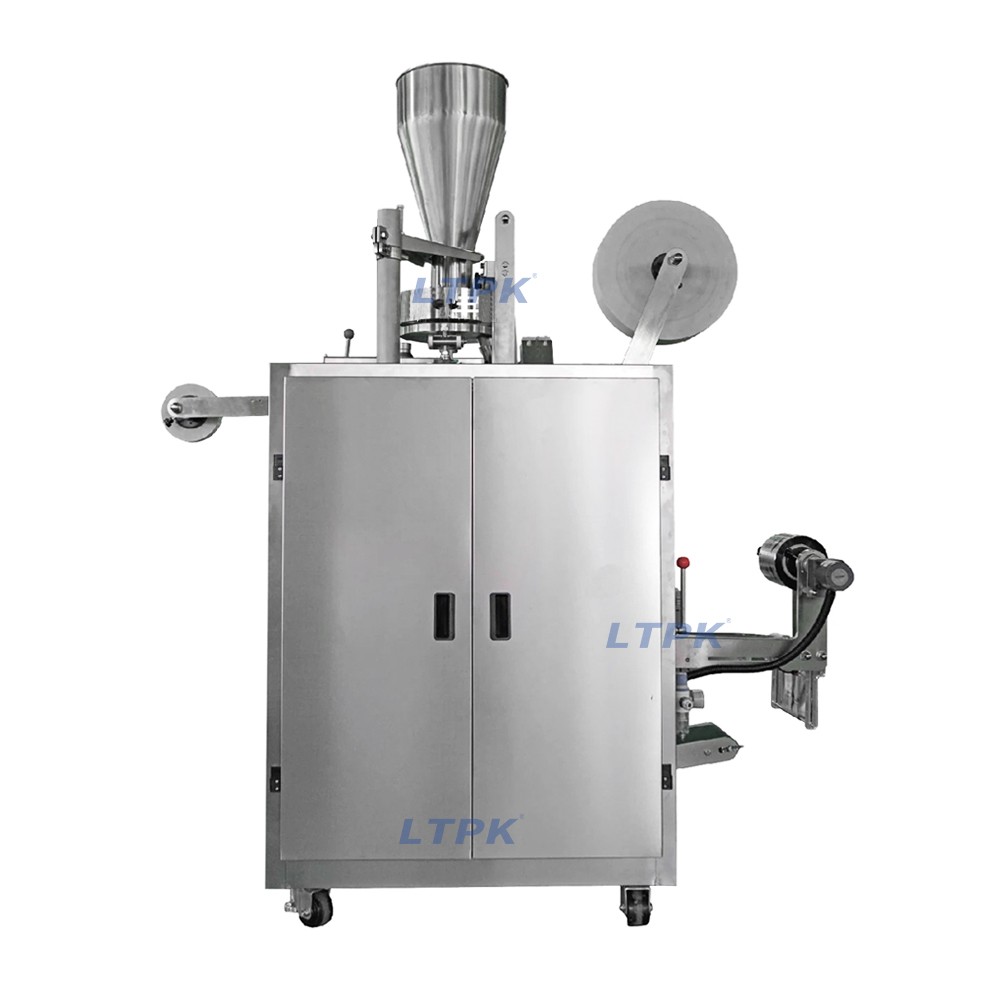

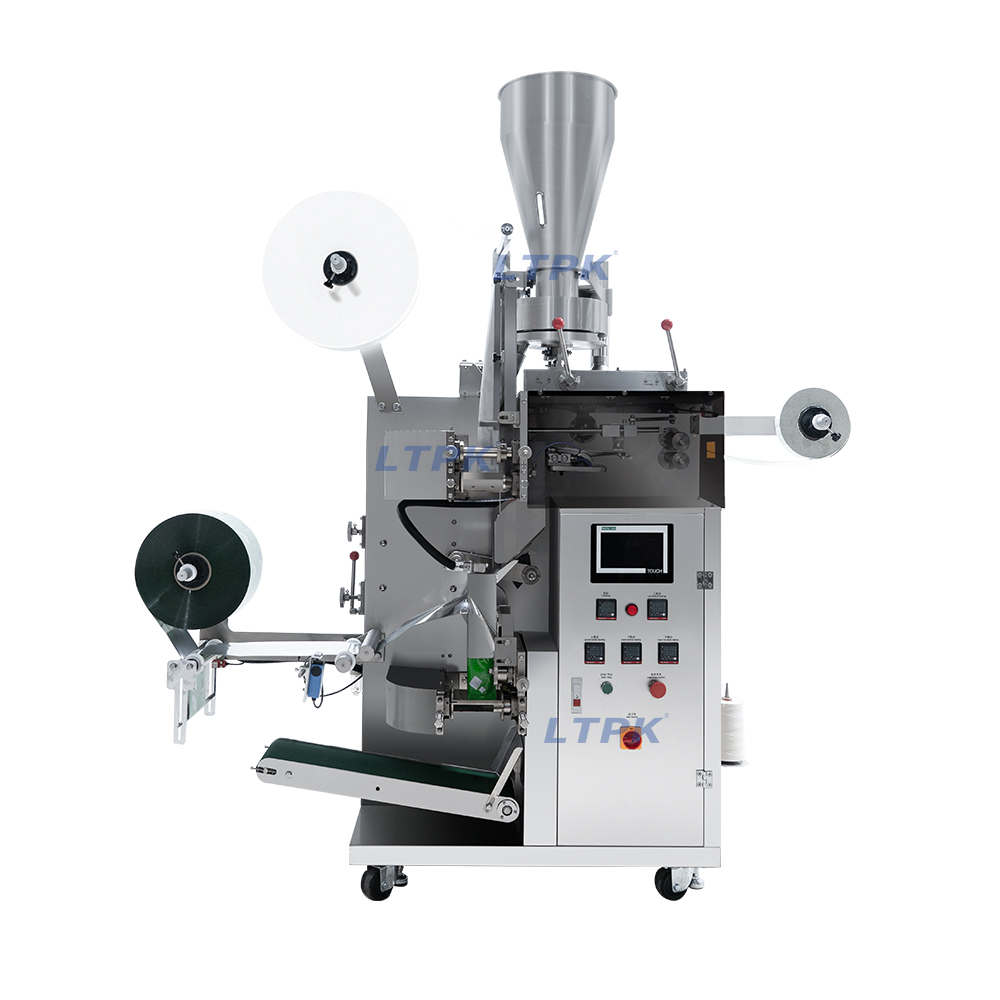

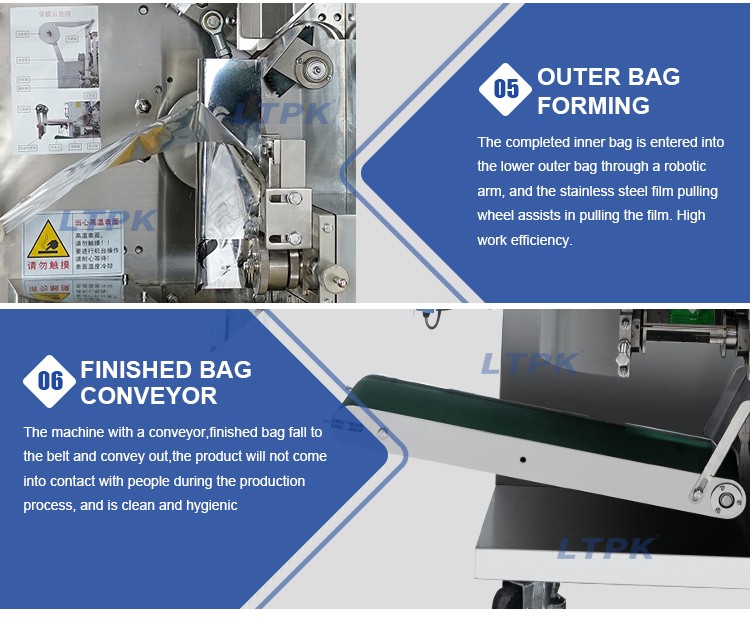

Detail Images
