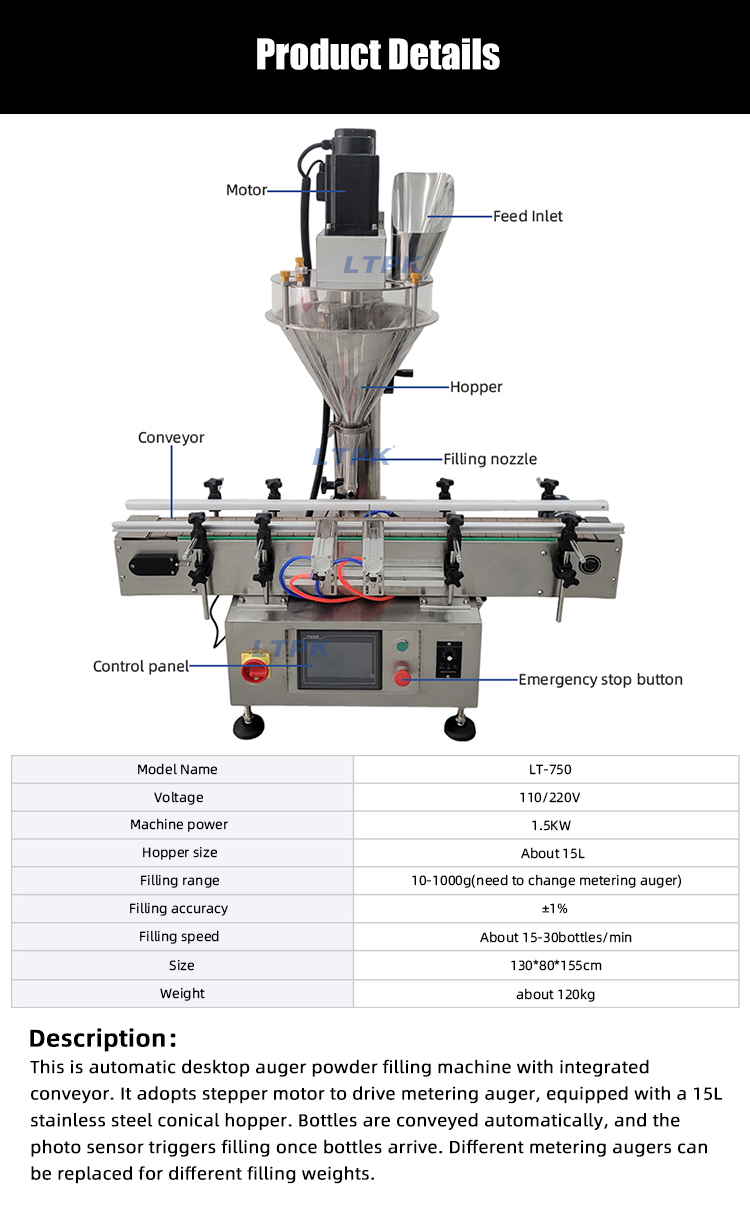

Description

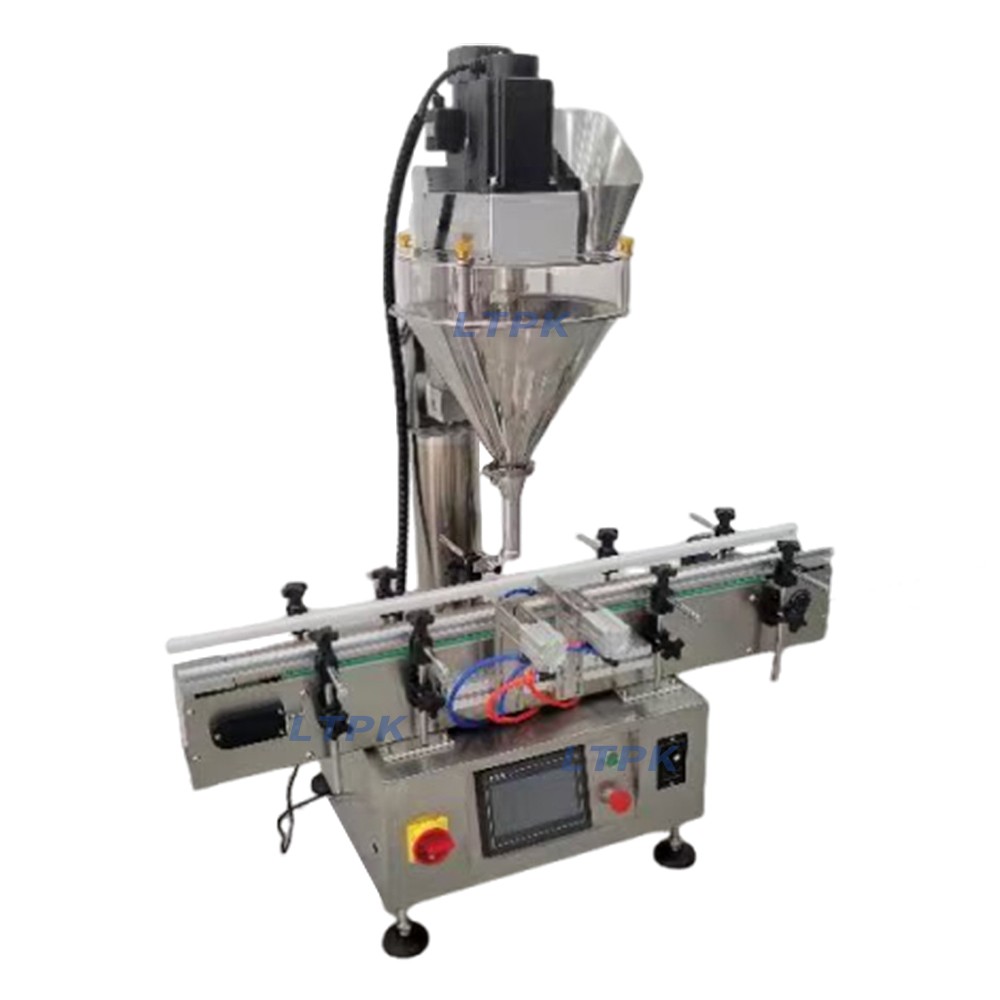

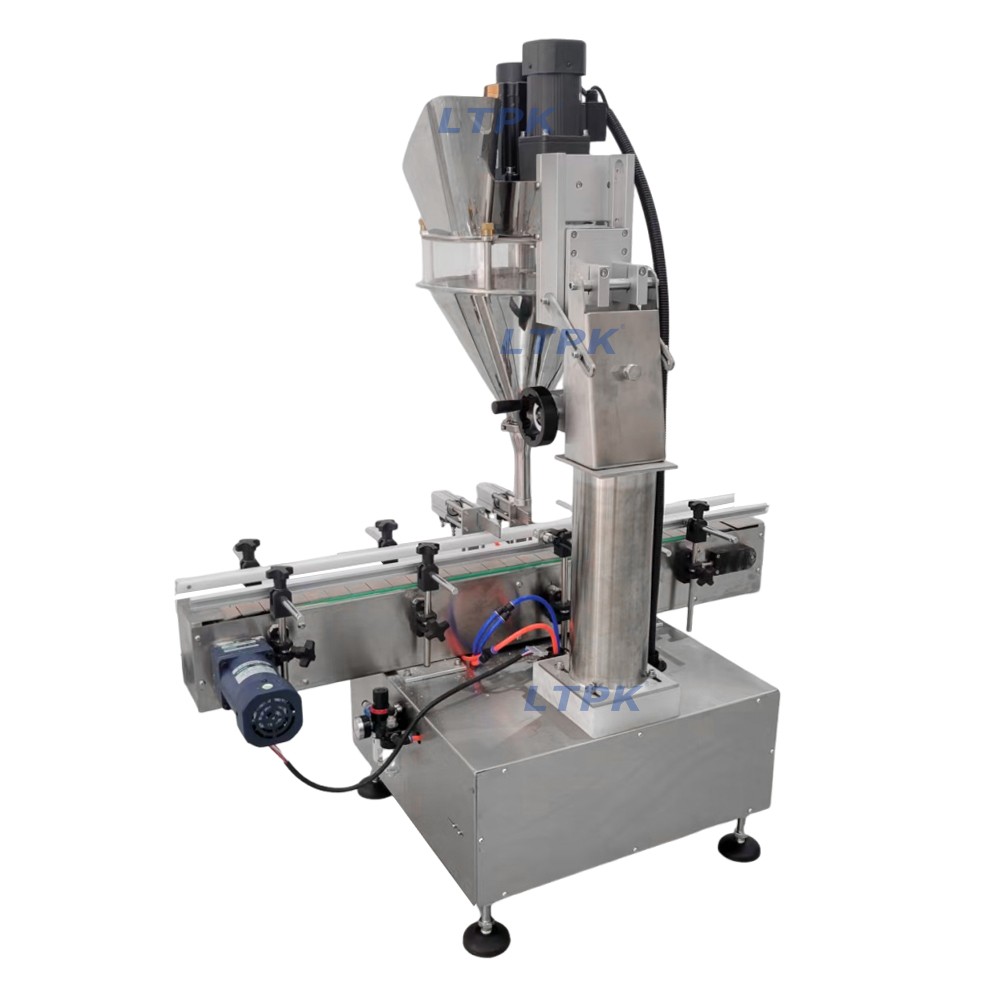

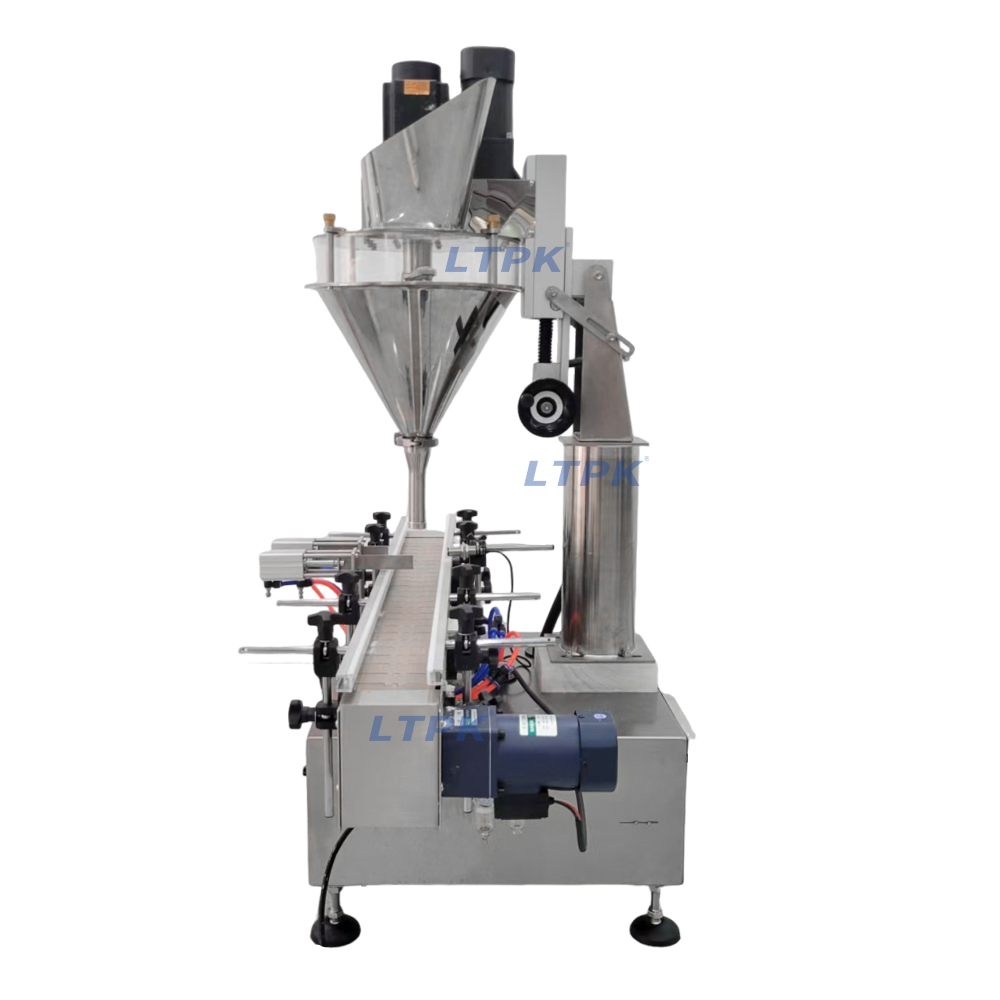

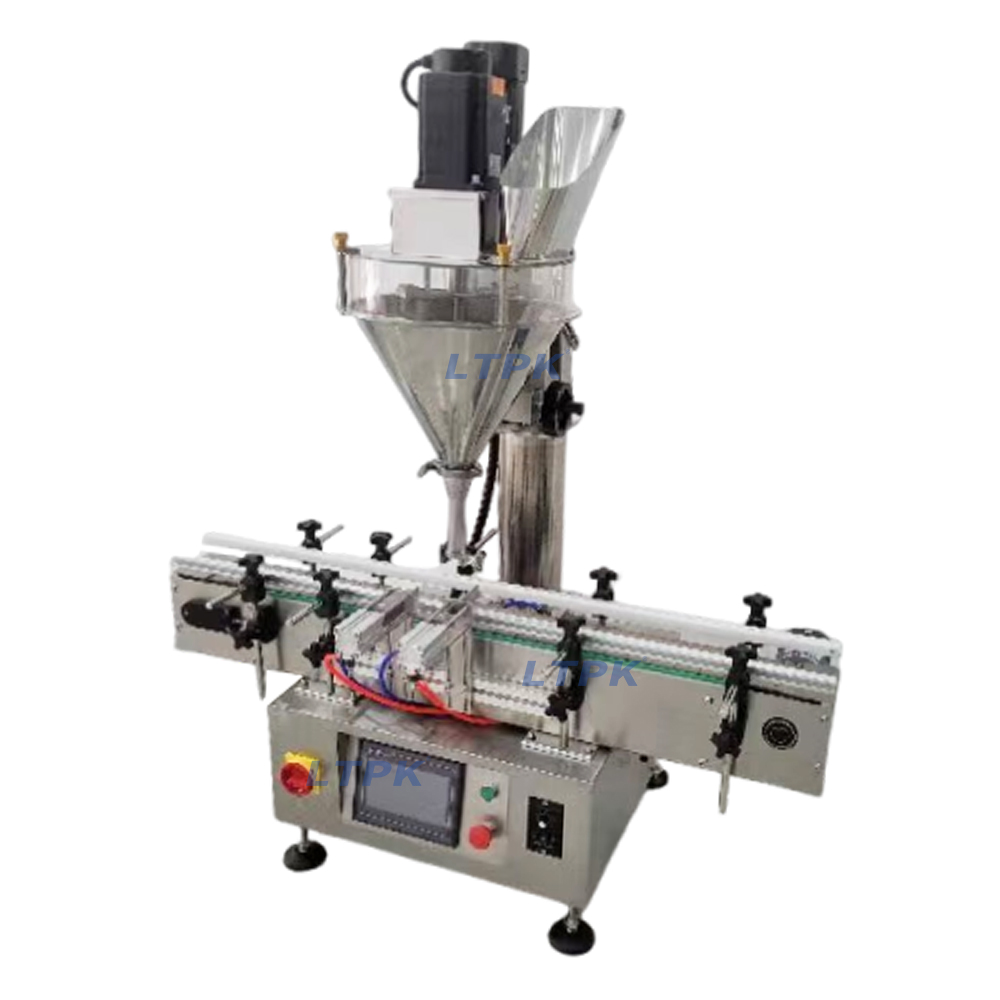

This is automatic desktop auger powder filling machine with integrated conveyor.

It adopts stepper motor to drive metering auger, equipped with a 15L stainless

steel conical hopper. Bottles are conveyed automatically, and the photo sensor

triggers filling once bottles arrive. Different metering augers can be replaced

for different filling weights.

Technical Parameters

Machine model：LT-750

Voltage：110/220V

Machine power：1.5KW

Hopper size：About 15L

Filling range：10-1000g(need to change metering auger)

Filling accuracy：±1%

Filling speed：About 15-30bottles/min

Size：130*80*155cm

 Weight：about 120kg

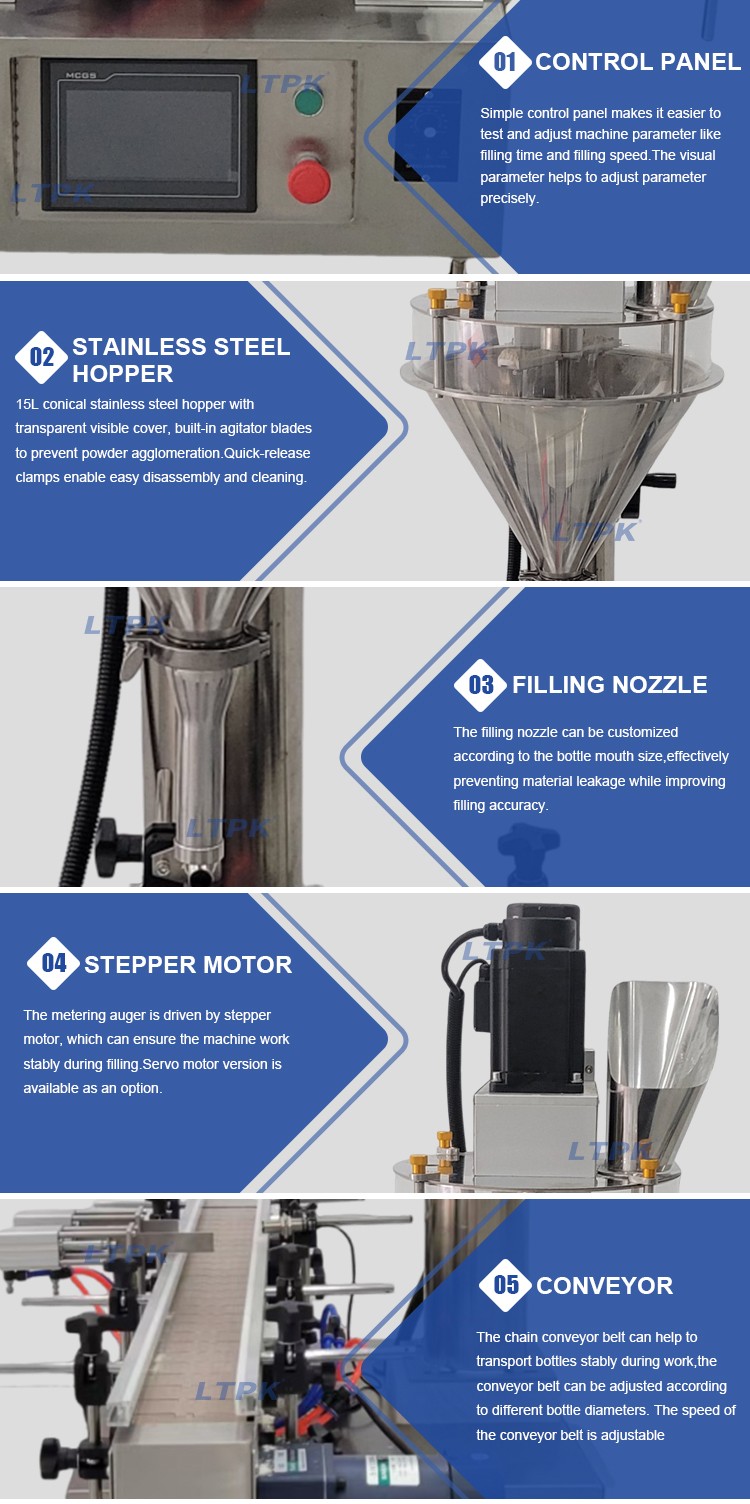

Key Features

Automatic Auger Dosing

The auger screw controls the powder dosing process and allows

different filling ranges to be achieved by changing the metering auger.

Integrated Conveyor

The built-in conveyor automatically moves bottles or jars into the

filling position, reducing manual handling.

10-1000g Filling Range

The machine can handle filling quantities from 10g to 1000g,

depending on the selected metering auger and powder characteristics.

Compact Design

The compact machine structure helps save production space while

providing an automatic bottle filling process.

Application

Suitable for various dry powders such as milk powder, seasoning powder,

coffee powder,chili powder,health product powder,cosmetic powder, etc.

Widely used in industries such as food, seasoning, health products, chemical

 industry, etc.

Detail Images
