Description

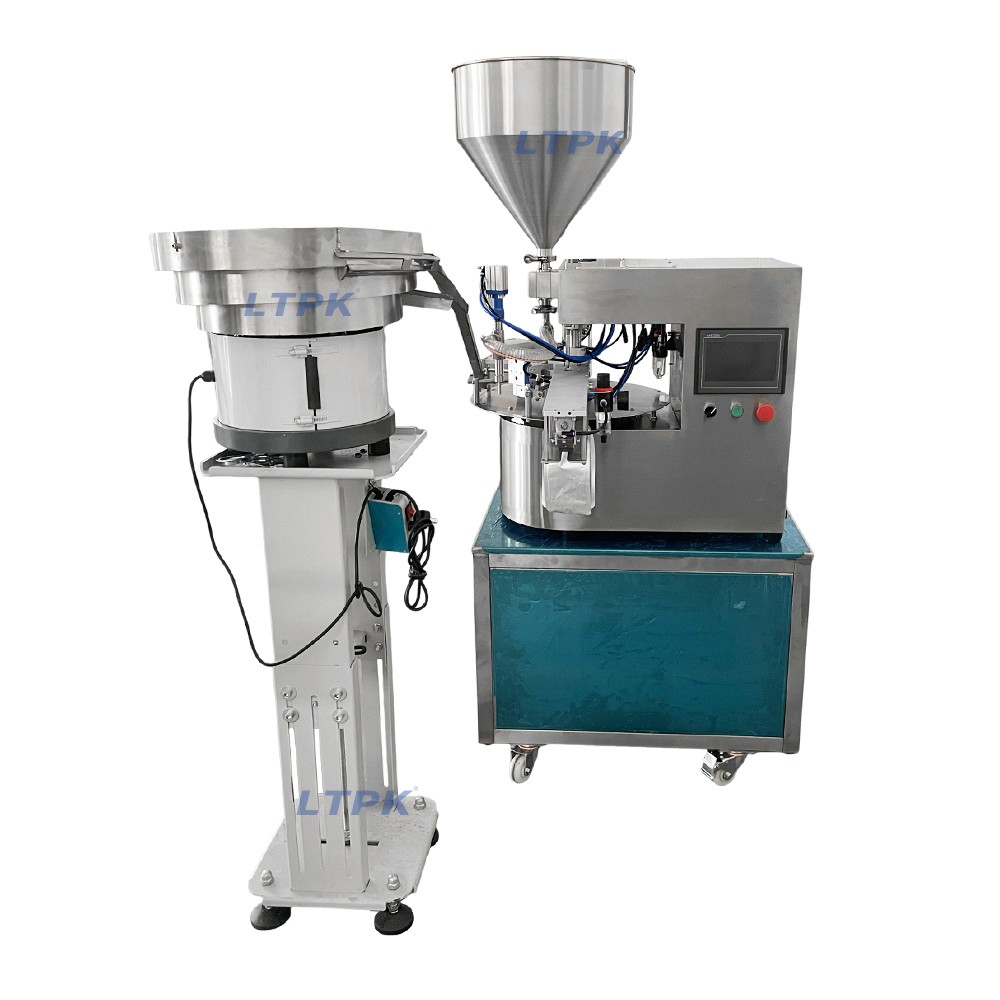

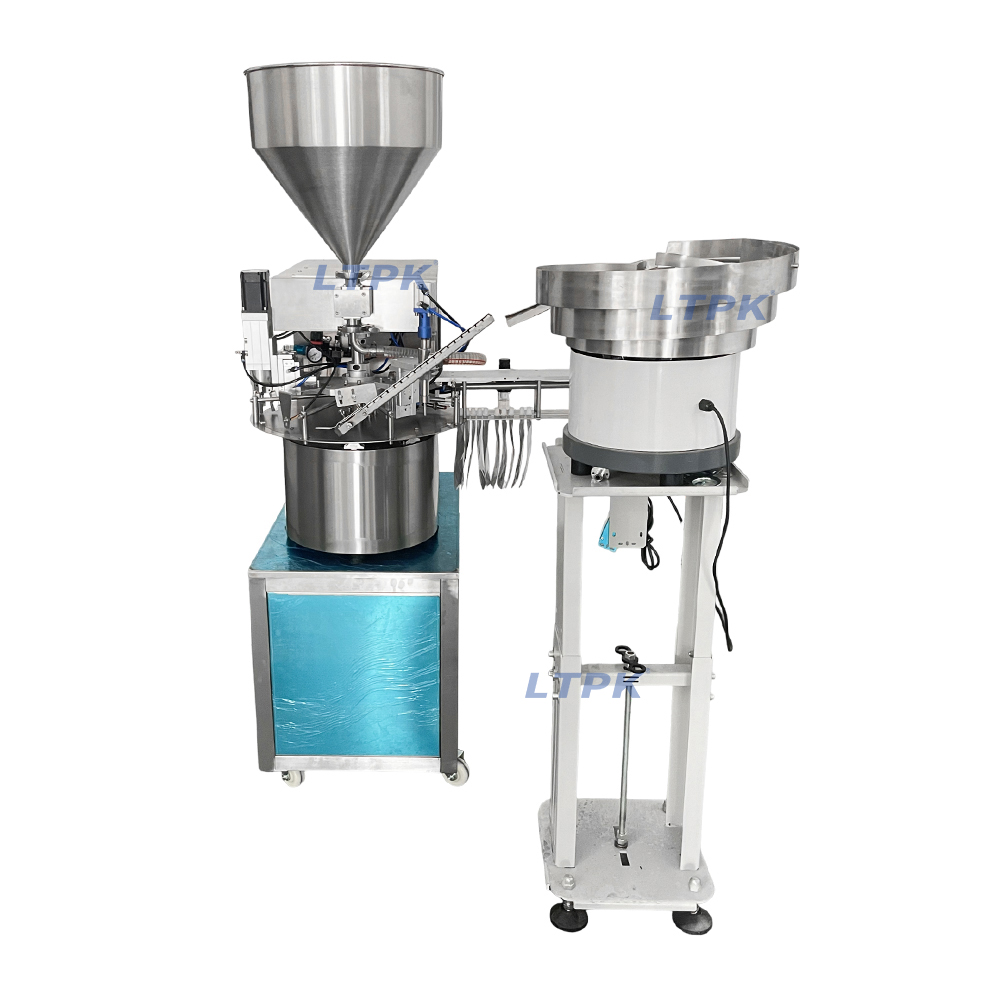

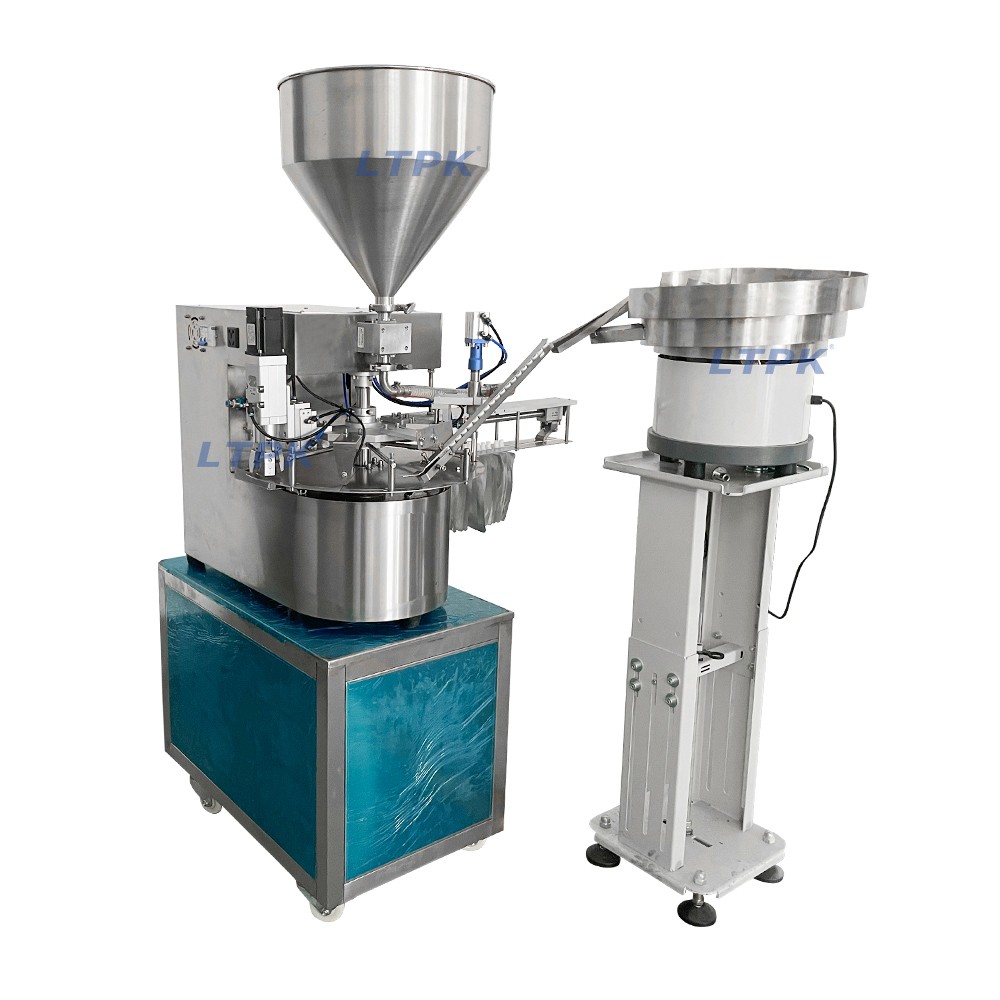

The self-supporting bag filling and Capping machine consists of a bag pushing mechanism, a bag blowing mechanism, a filling mechanism, a cap hanging mechanism, a cap twisting mechanism, etc. It is mainly used as an automated equipment for filling and capping soft bags.The machine adopts a PLC control system, human-machine interface, and more intuitive operation. Production, installation, and debugging are very simple,and the work is stable and reliable.

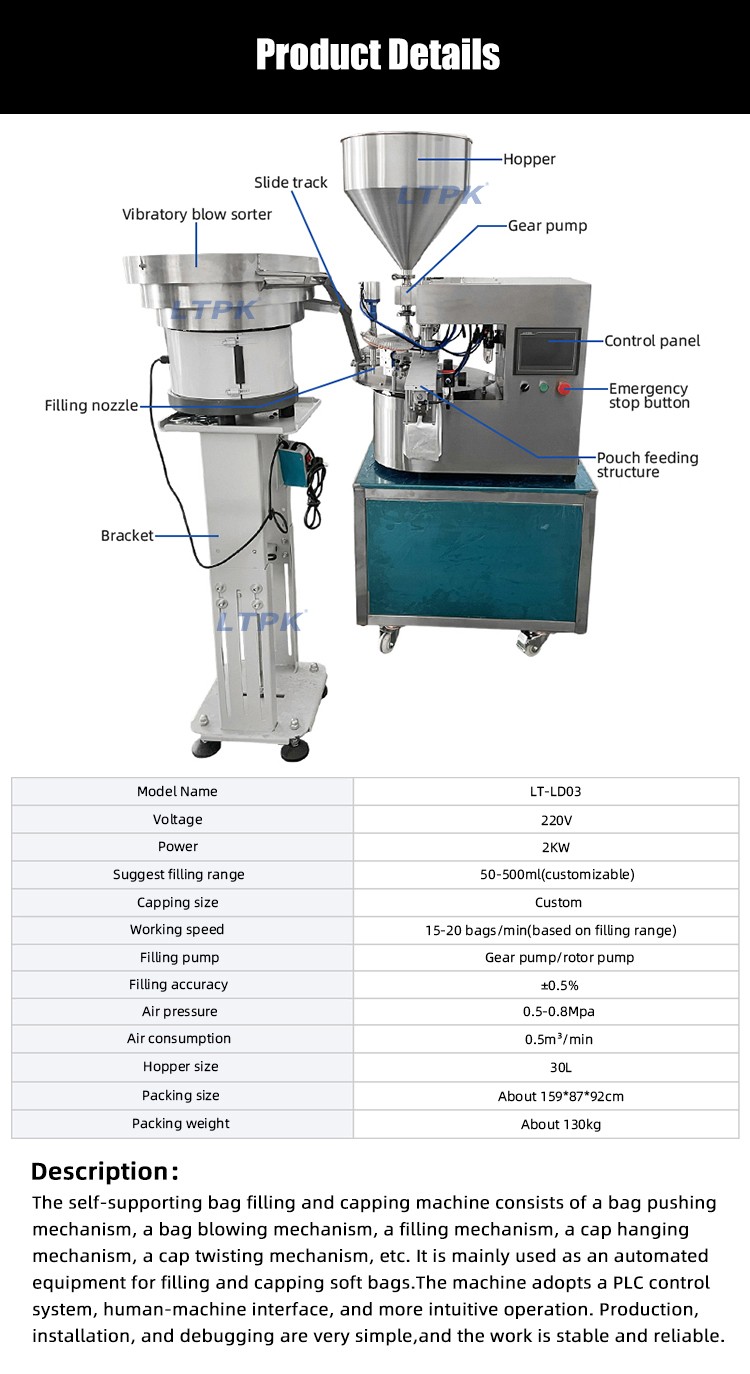

Technical parameters

Model：LT-LD03

Voltage：220V

Power：2KW

Suggest filling range：50-500ml(customizable)

Capping size：custom

Working speed：15-20 bags/min(based on filling range)

Filling pump：Gear pump/rotor pump

Filling accuracy：±0.5%

Air pressure：0.5-0.8Mpa

Air consumption：0.5 m³/min

Hopper size：30L

Packing size：About 159*87*92cm

Packing weight：About 130kg

Application

Suitable for filling liquids, pastes, sauces and other materials;Such as honey, jelly, milk,soybean milk, drinks, etc.

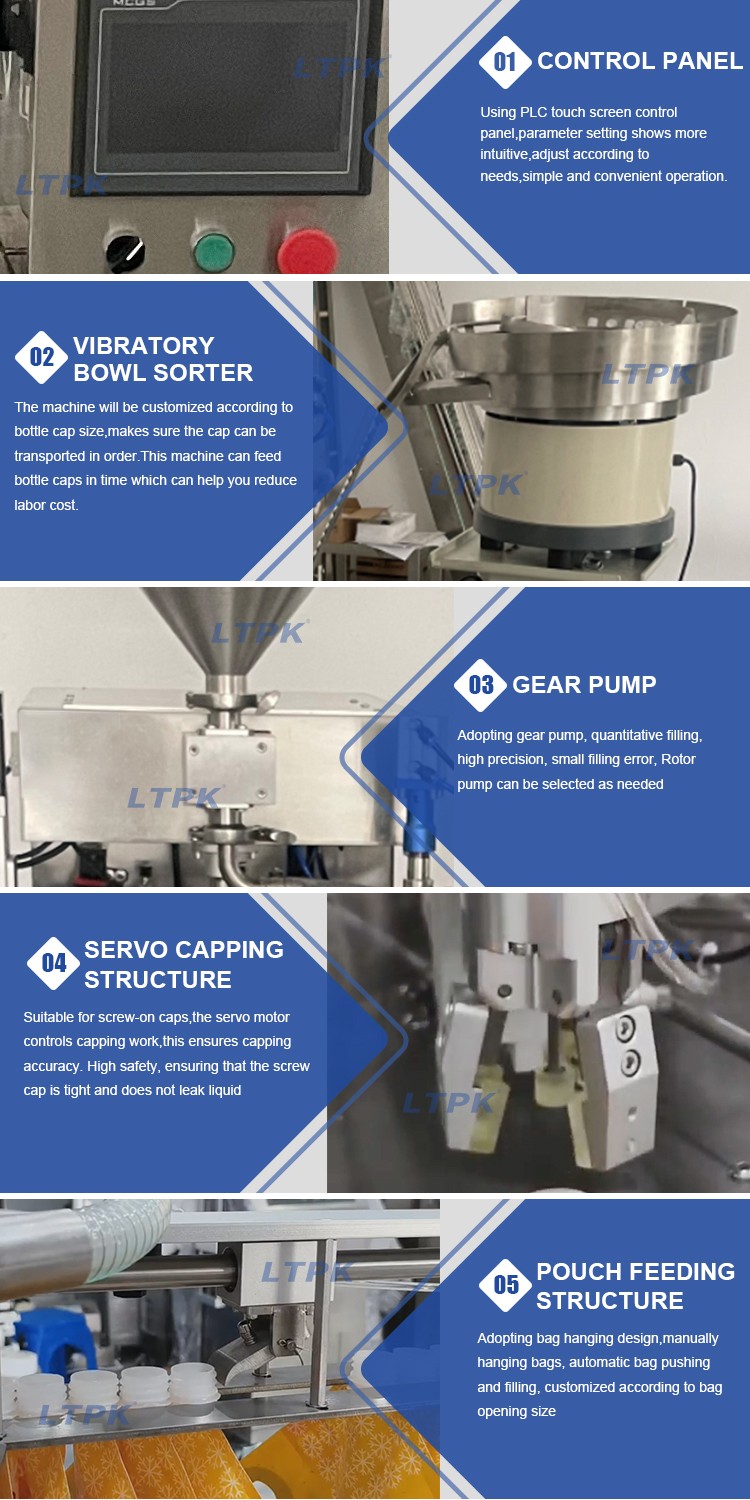

Detail Images
