Description

This Automatic L-Type Sealing & Shrink Wrapping Machine integrates film feeding, sealing/cutting, and heat shrinking in one continuous operation.
Sturdy Structure: Heavy-duty steel frame with mobile casters for flexible placement.
Precise Control: Digital panel for adjustable temperature, speed, and sealing length, ensuring stable packaging quality.
Wide Film Compatibility: Works with POF, PE, PVC shrink films to meet different product needs.
Efficient & Reliable: Ideal for medium-to-large production lines, reducing labor costs and improving packaging consistency.

Technical Parameters

Model:FL-6540

Power：220-380V 3 phrase1.5kw

Conveyor speed:5-8piece/min

Air souce:5-7kg/㎡

Max package size:400*400*380mm

Max sealing length:650mm

Machine size:300kg

Machine size:925*940*1920mm

Model:BSE-6040A

Power:220-380V 3 phrase 24kw

Conveyor speed:0-15m/min

Tunnel size:1800*600*400mm

Product size:550*450mm

Conveyor loading:Max.35kg

Machine size:340kg

Machine size:2800*850*1750mm

Shrink film:PE POF PVC PP

Application

The sleeve-type film shrink wrapping machine is suitable for heat shrink packaging of cans, mineral water, beer, glass bottles, beverages and other bottles without or with a bottom tray; it can also be used in conjunction with a constant temperature PE heat shrink machine to shrink and package refractory materials, foam concrete, fireproof materials, and fireproof bricks, so that the items can achieve a perfect packaging effect.

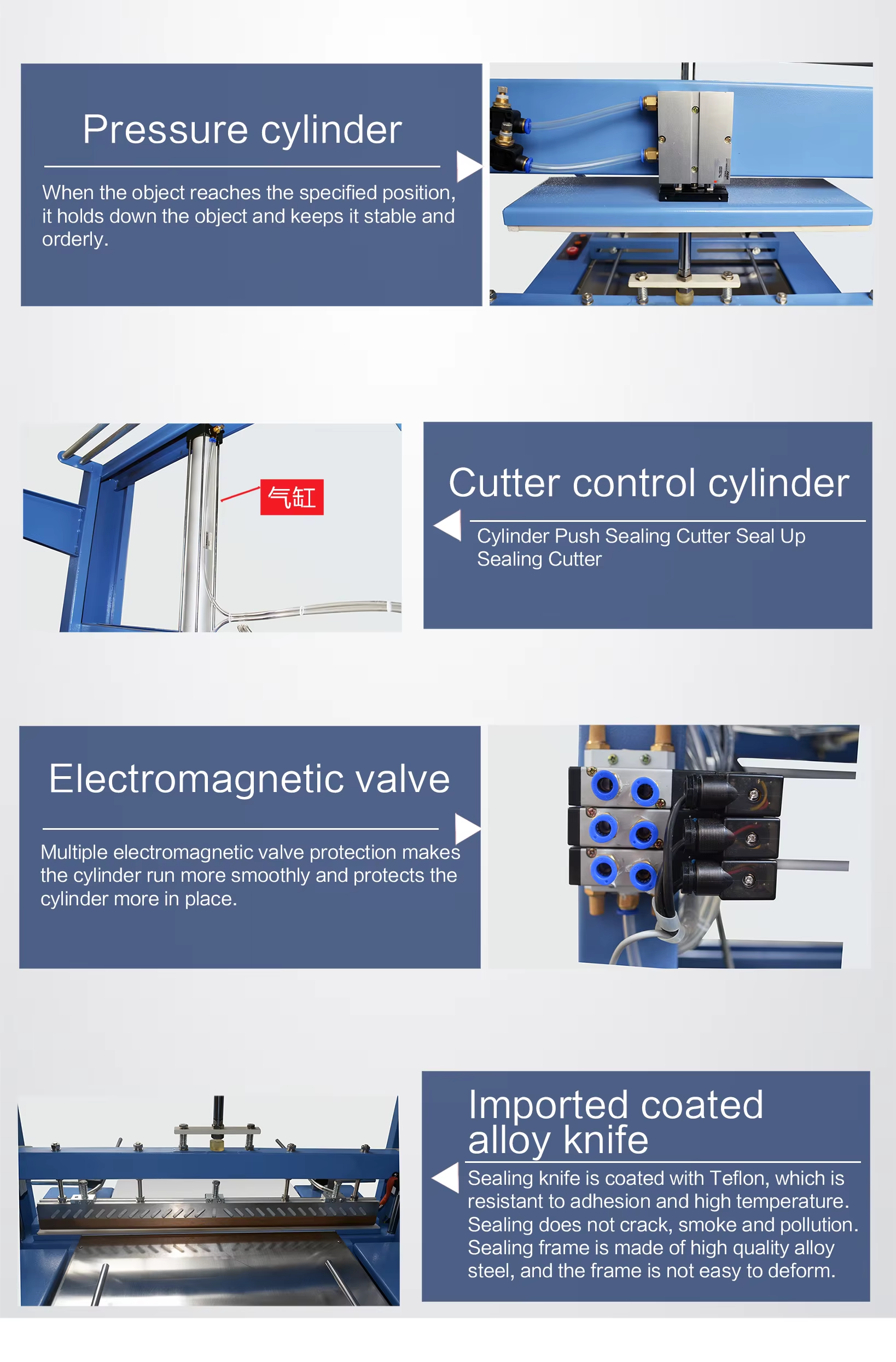

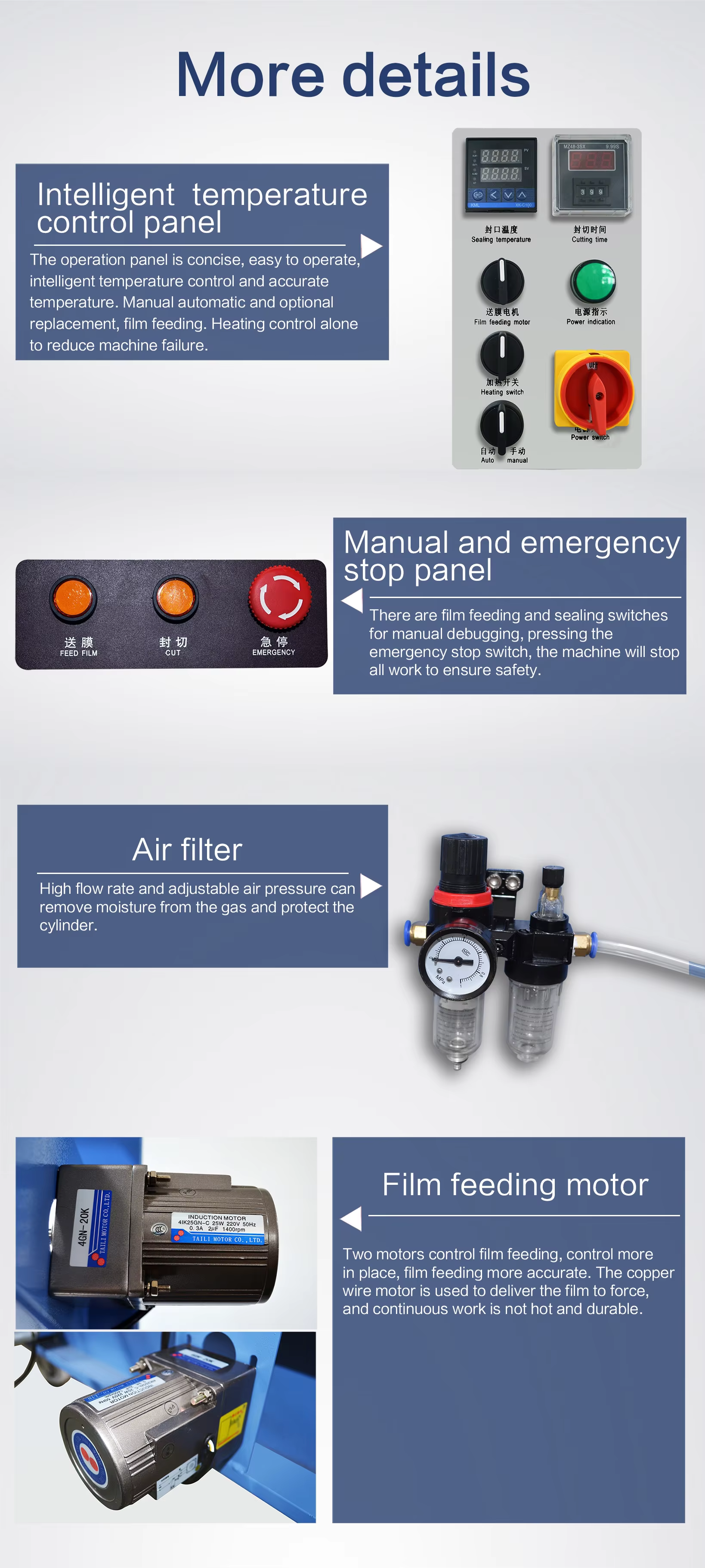

Detail Images
