Description

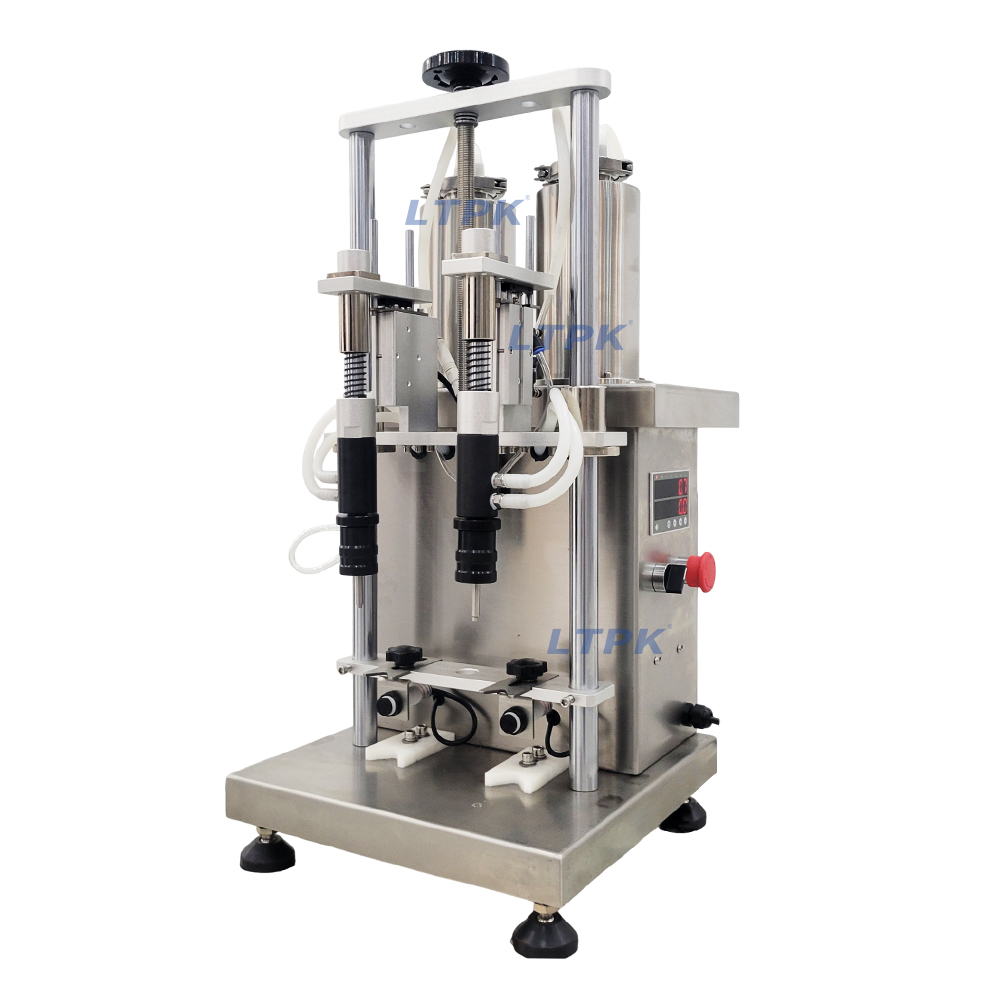

Semi-automatic double-head negative pressure vacuum filling machine,

constructed of stainless steel. It performs equal-level filling based on the

vacuum negative pressure principle, specially designed for glass bottles

and narrow-mouth bottles,serving as the primary filling equipment for

small and medium-batch production of daily chemicals, liquor,essences

 and spices.

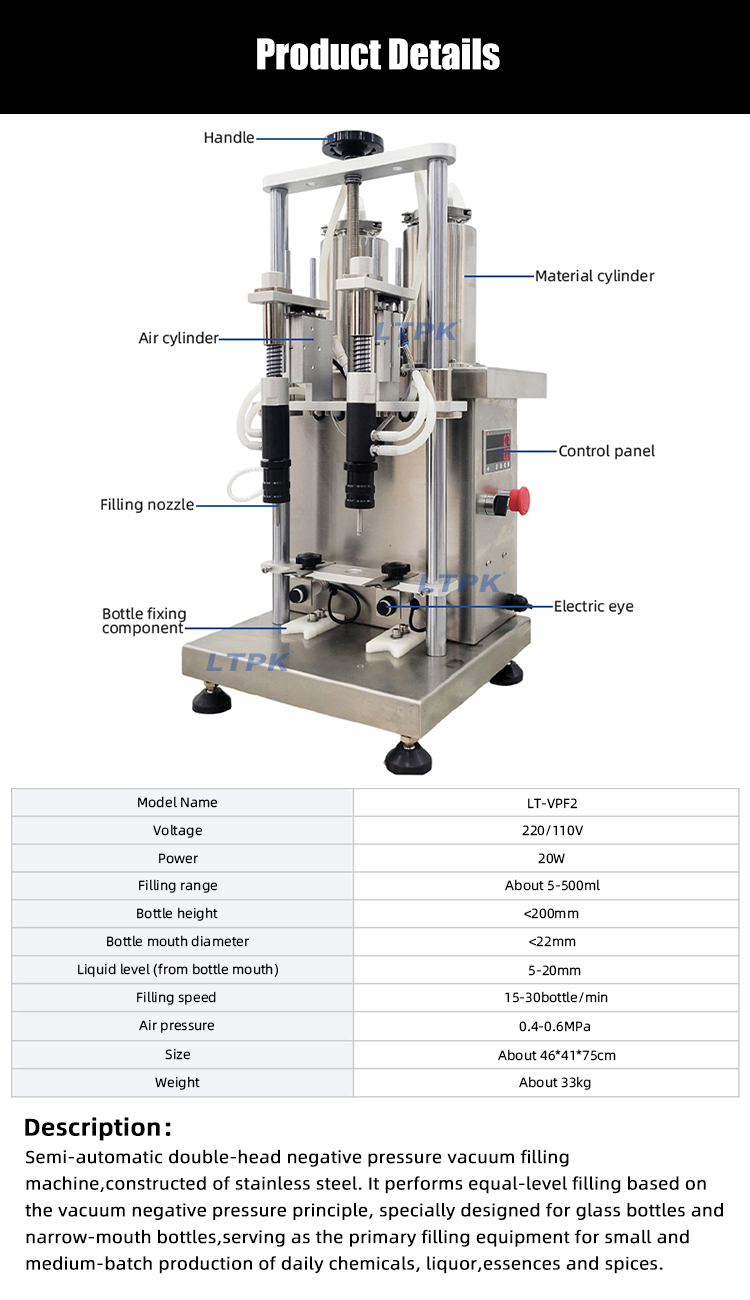

Technical Parameters

Model:LT-VPF2

Voltage:220/110V

Power:20W

Filling range:About 5-500ml

Bottle height:<200mm

Bottle mouth diameter:<22mm

Liquid level (from bottle mouth):5-20mm

Filling speed:15-30bottle/min

Air pressure:0.4-0.6MPa

Size:About 46*41*75cm

Weight:About 33kg

Application

Suitable for low-viscosity,alcohol-based volatile liquids such as perfume,

cologne,toilet water, pure essential oil, white wine, fruit wine, vodka, toner,

disinfectant alcohol and essence.

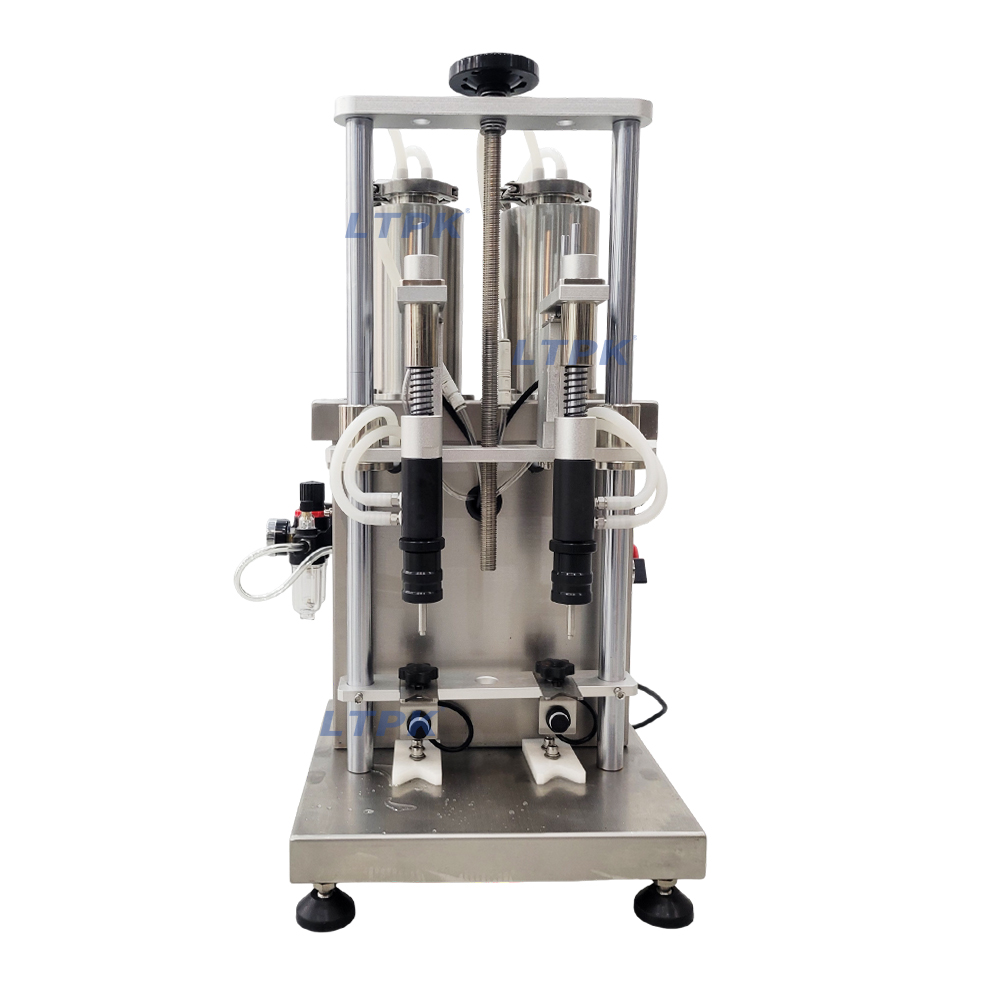

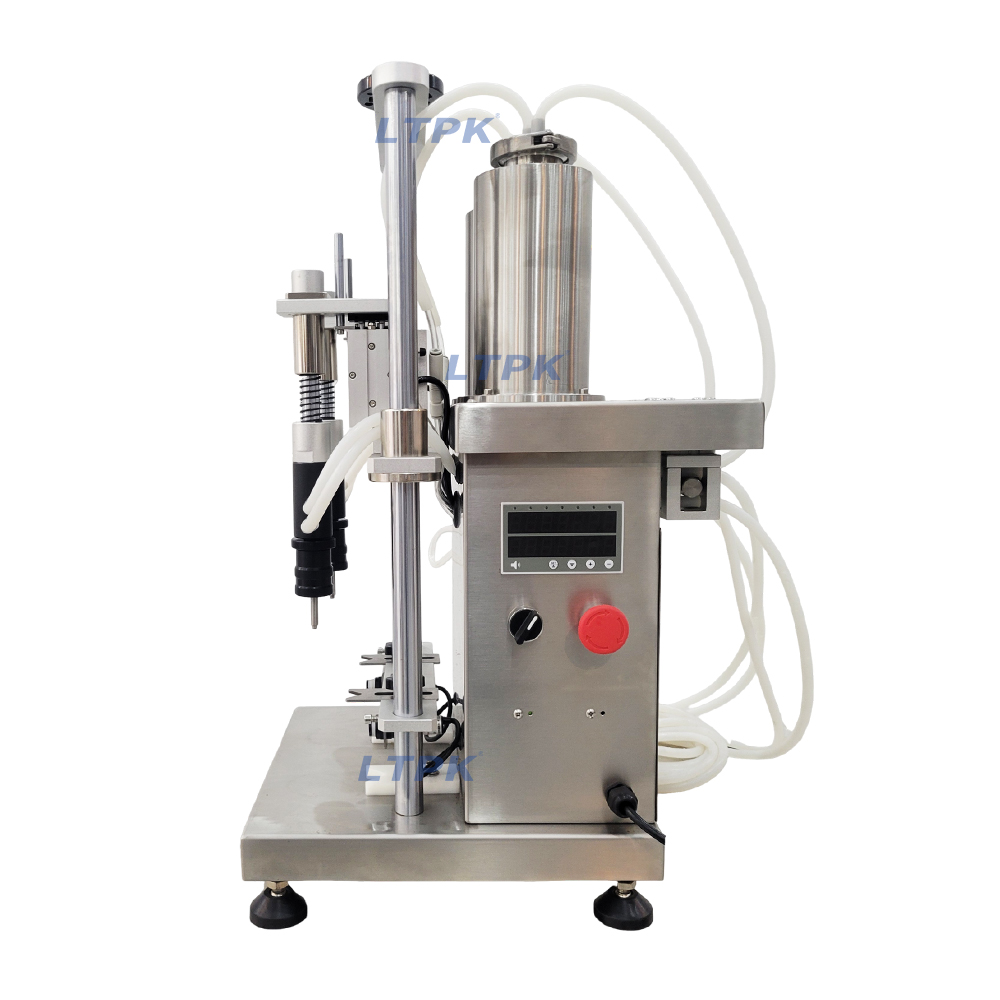

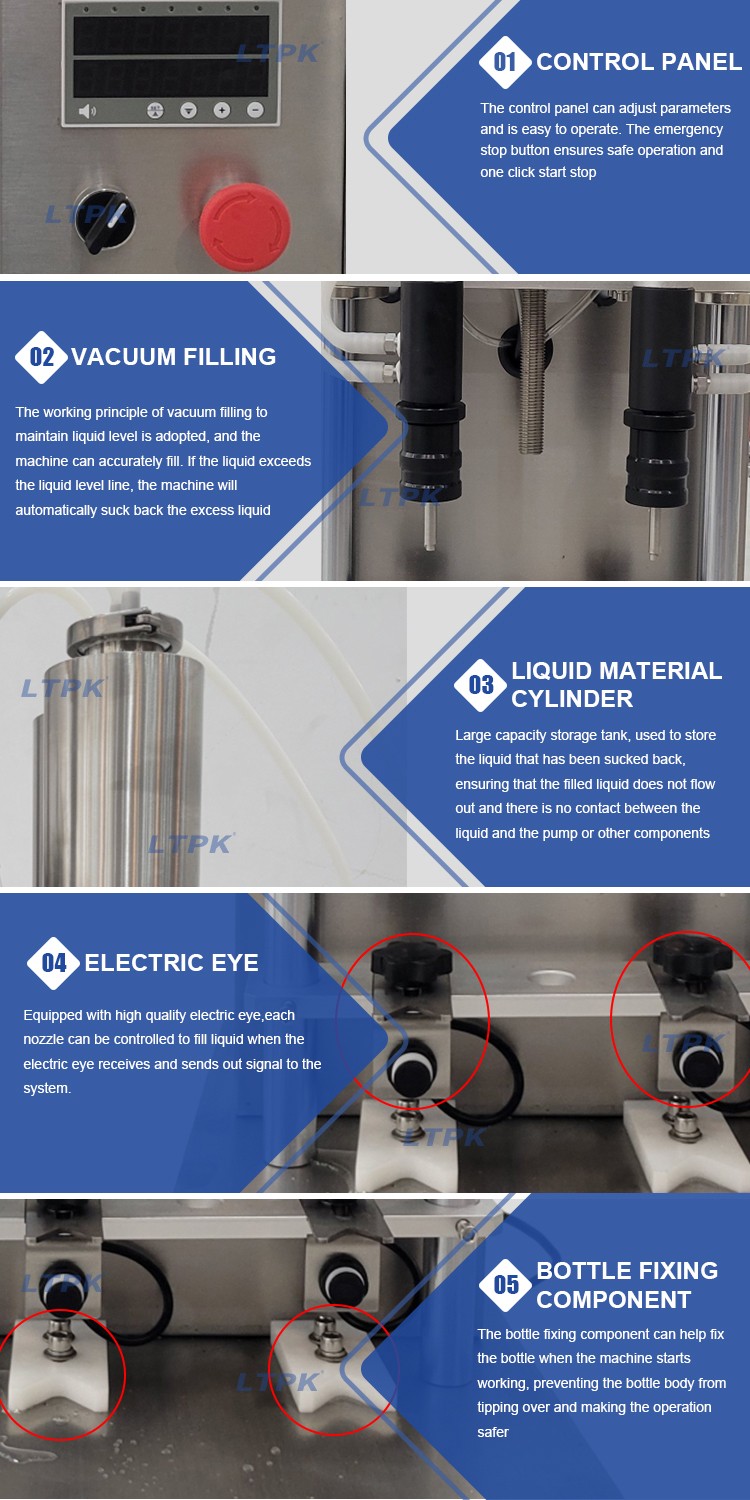

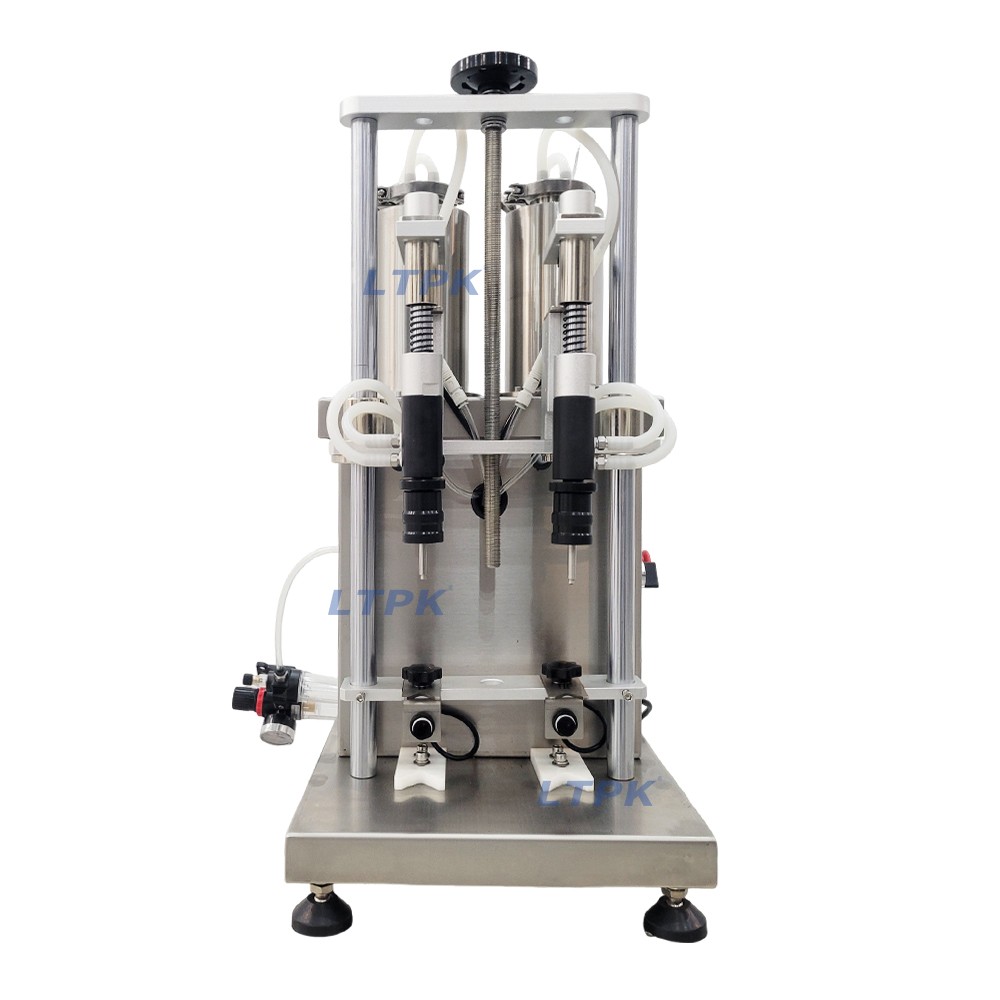

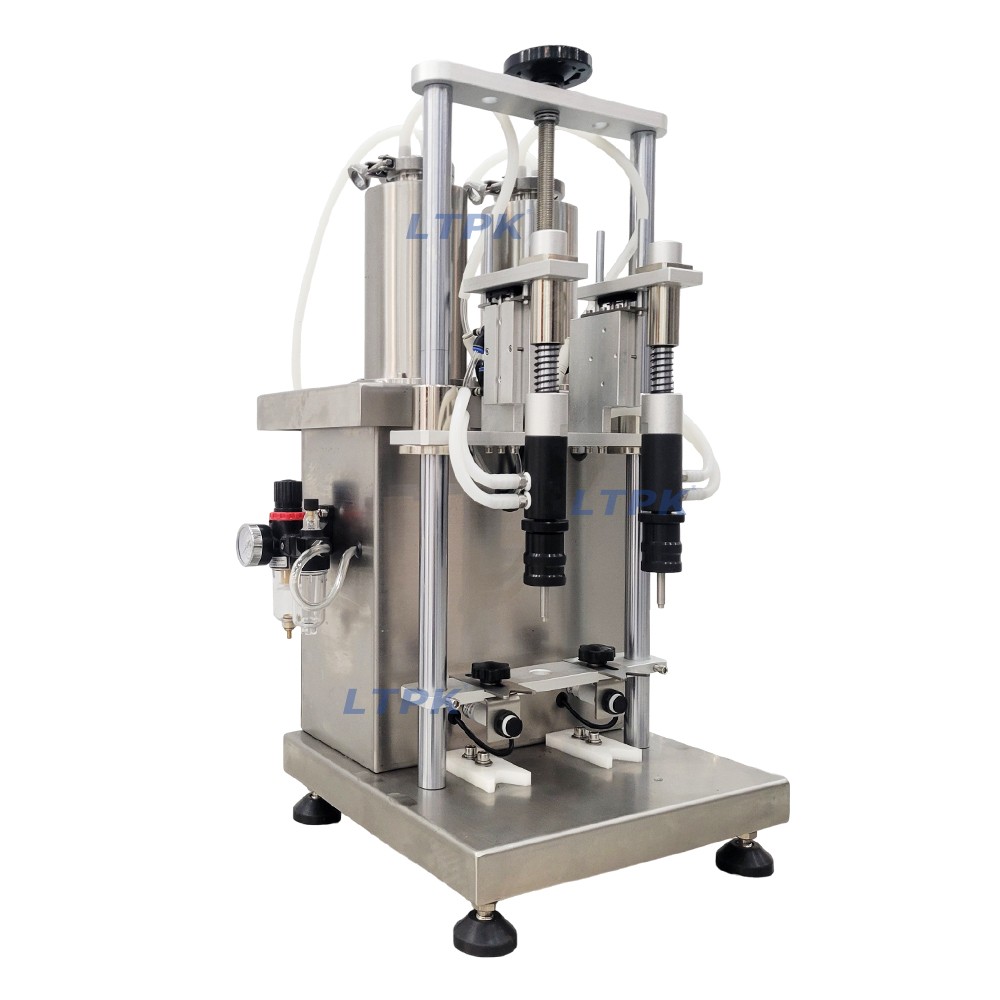

Detail Images
