Description

The machine adopts PLC control, touch screen operation, automatic parameter adjustment, and simple and convenient operation.Tea bag with the thread,it can automatically complete functions such as bag making,measuring, feeding, sealing, cutting, counting, etc.

Technical parameters

Model：LT-YS10

Total power：AC220V/ 50Hz /1.6KW

Measuring scope ：1-10g(0.6-26ml)

Bag length：50-80mm

Bag width：45-80mm

Packing speed：30-60bags/min

Sealing type：Three sides sealing

Size：900*741*1738mm

Weight：350kg

Application

It's suitable for packing of steeping products automatically, such as: broken tea, scented tea, coffee and plant.

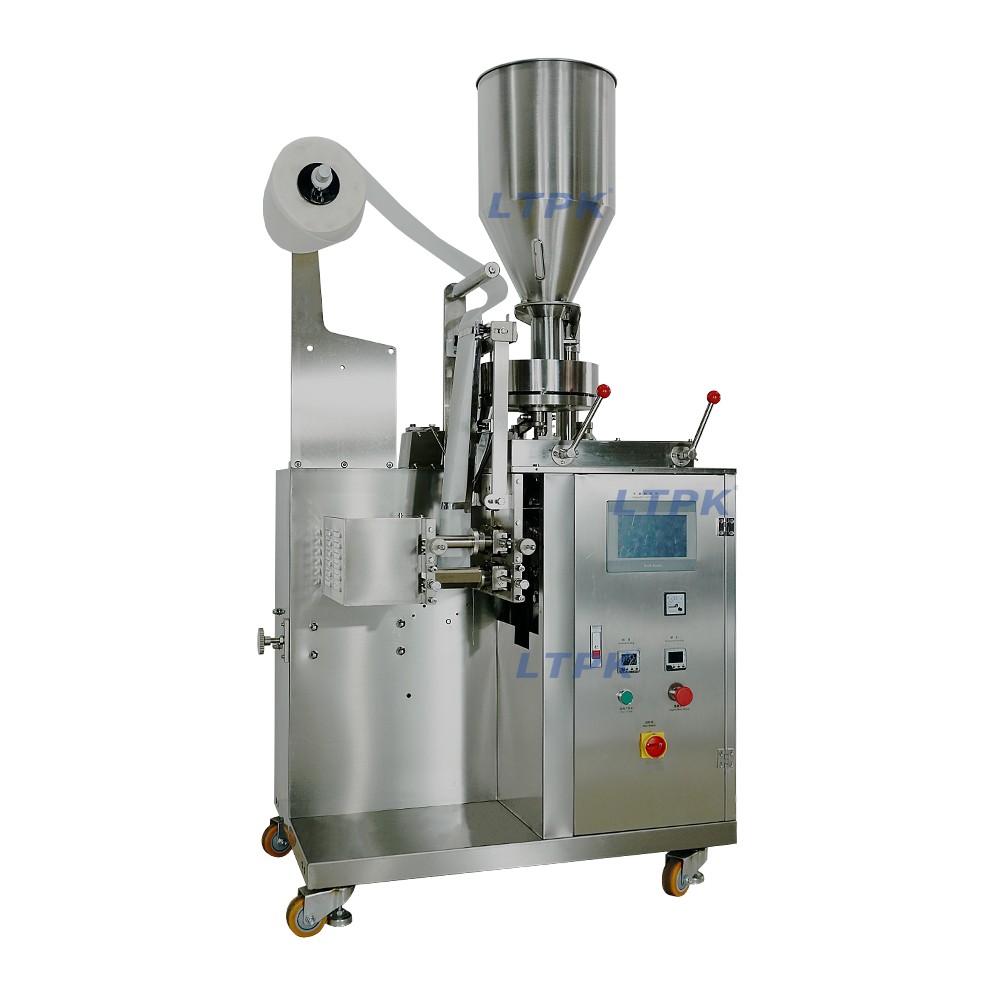

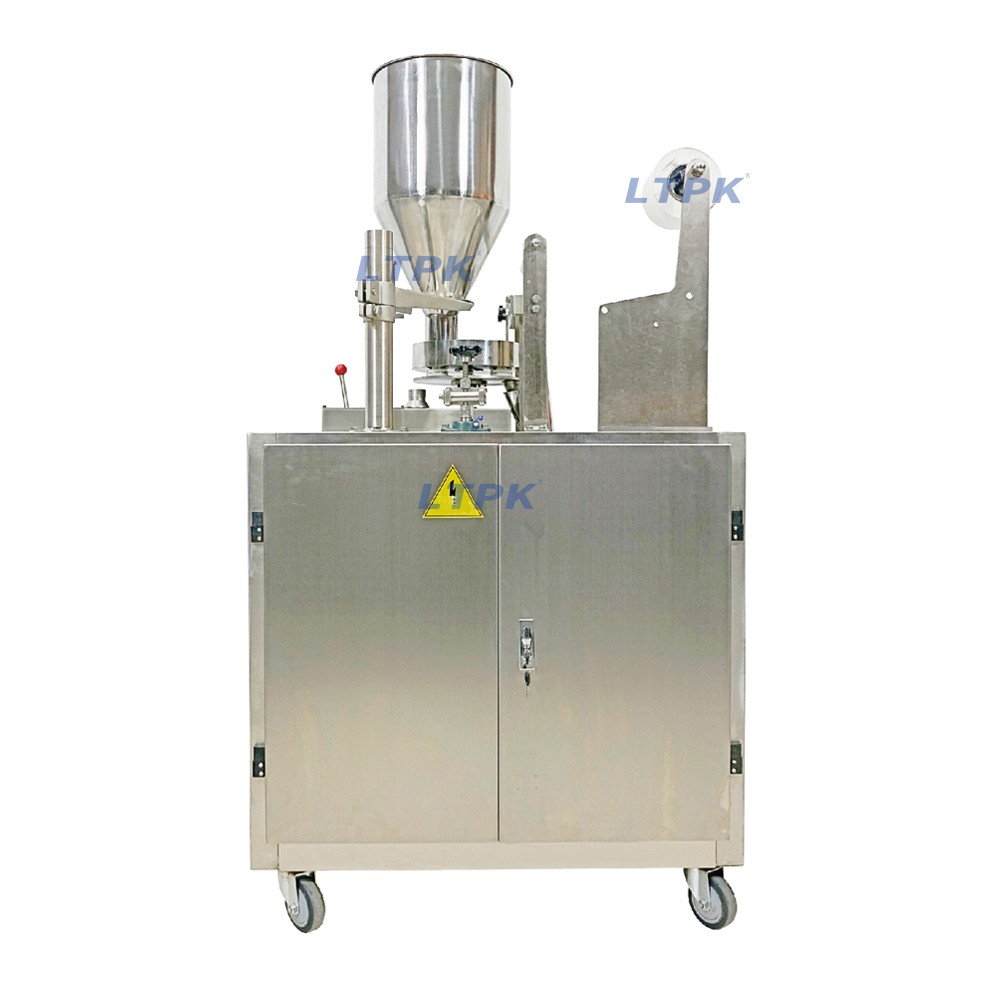

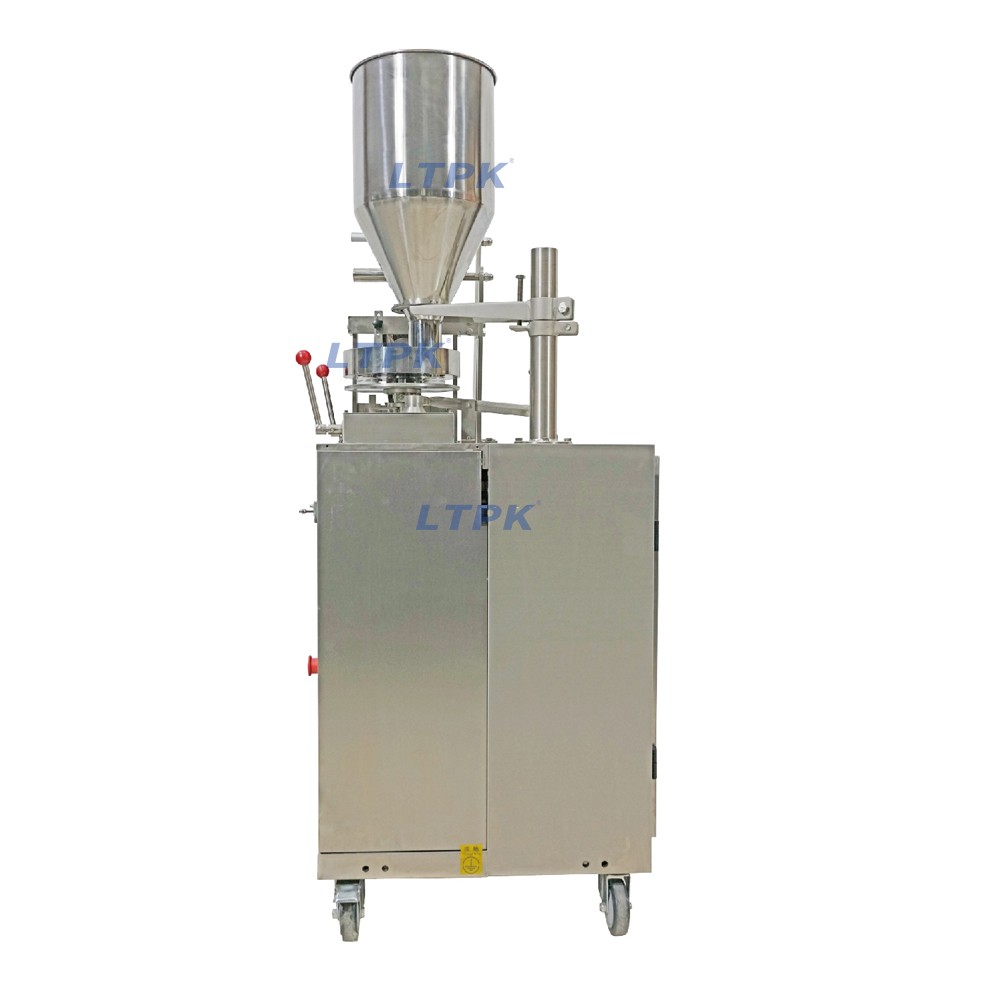

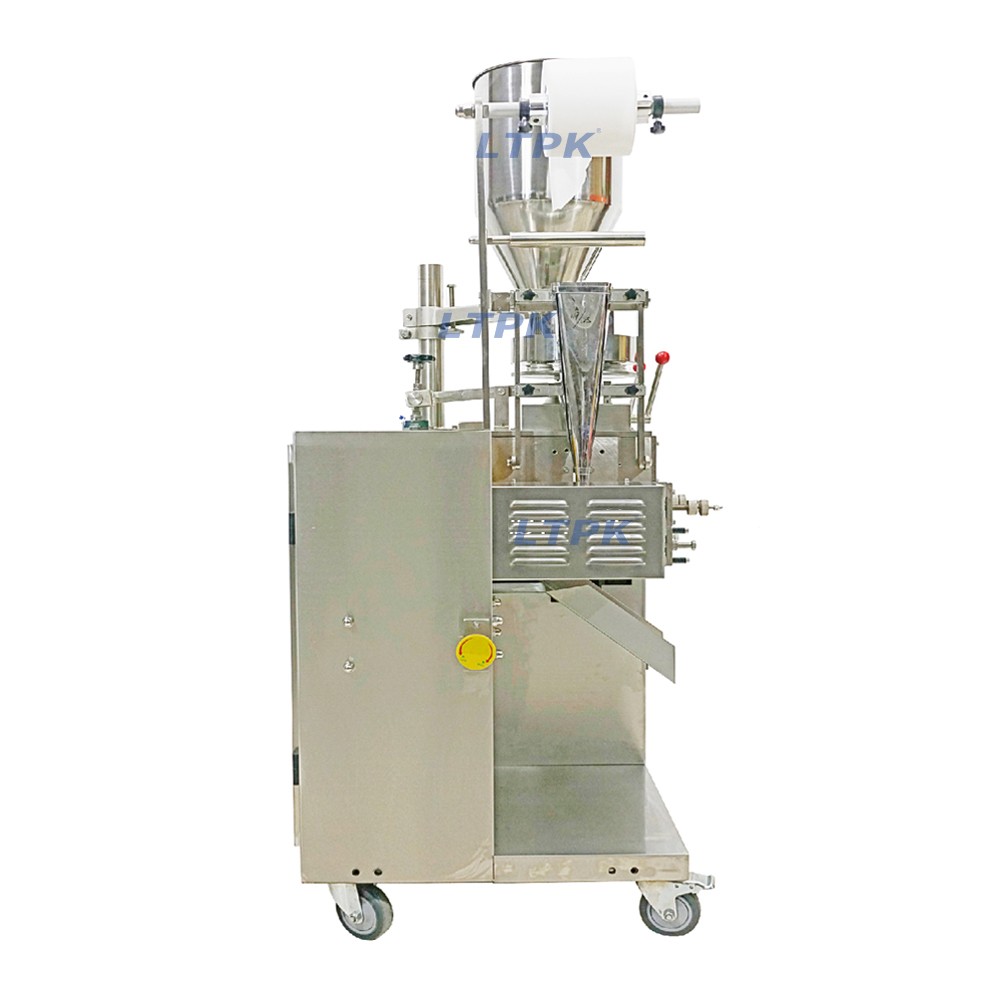

Detail Images
