Description

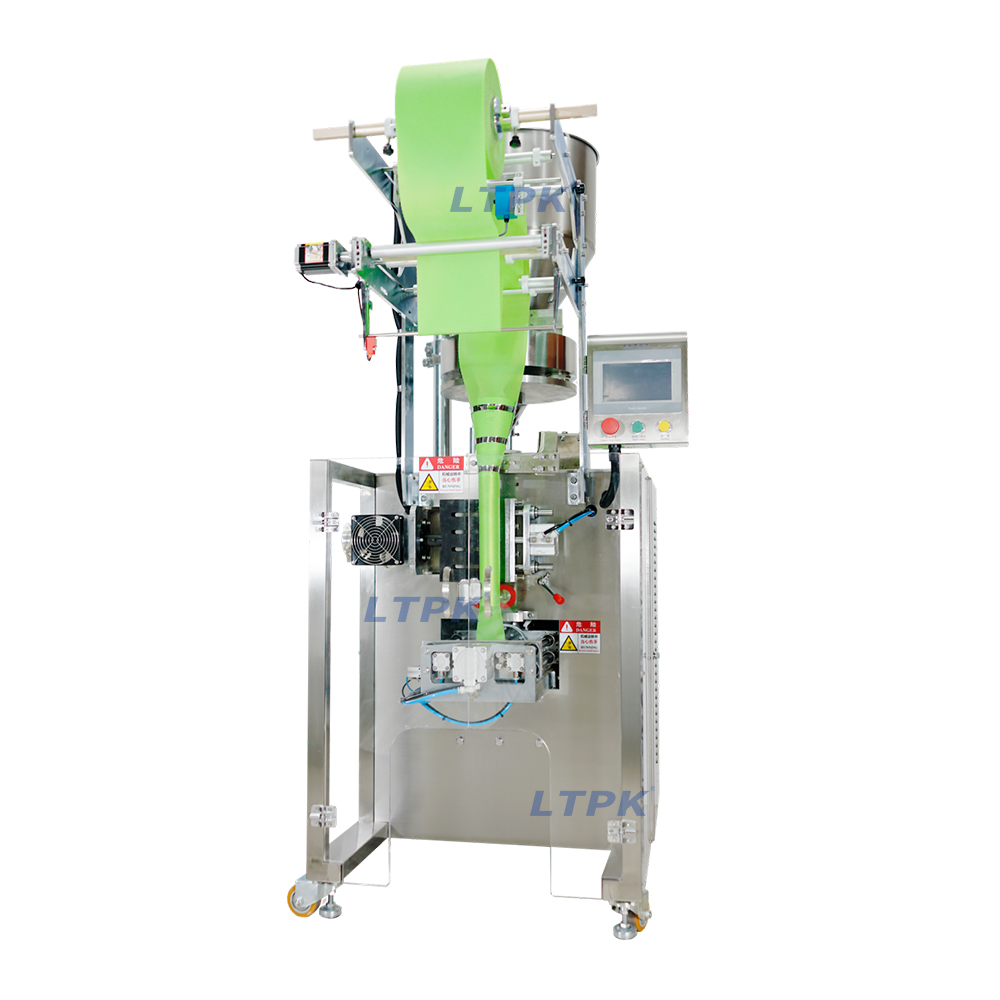

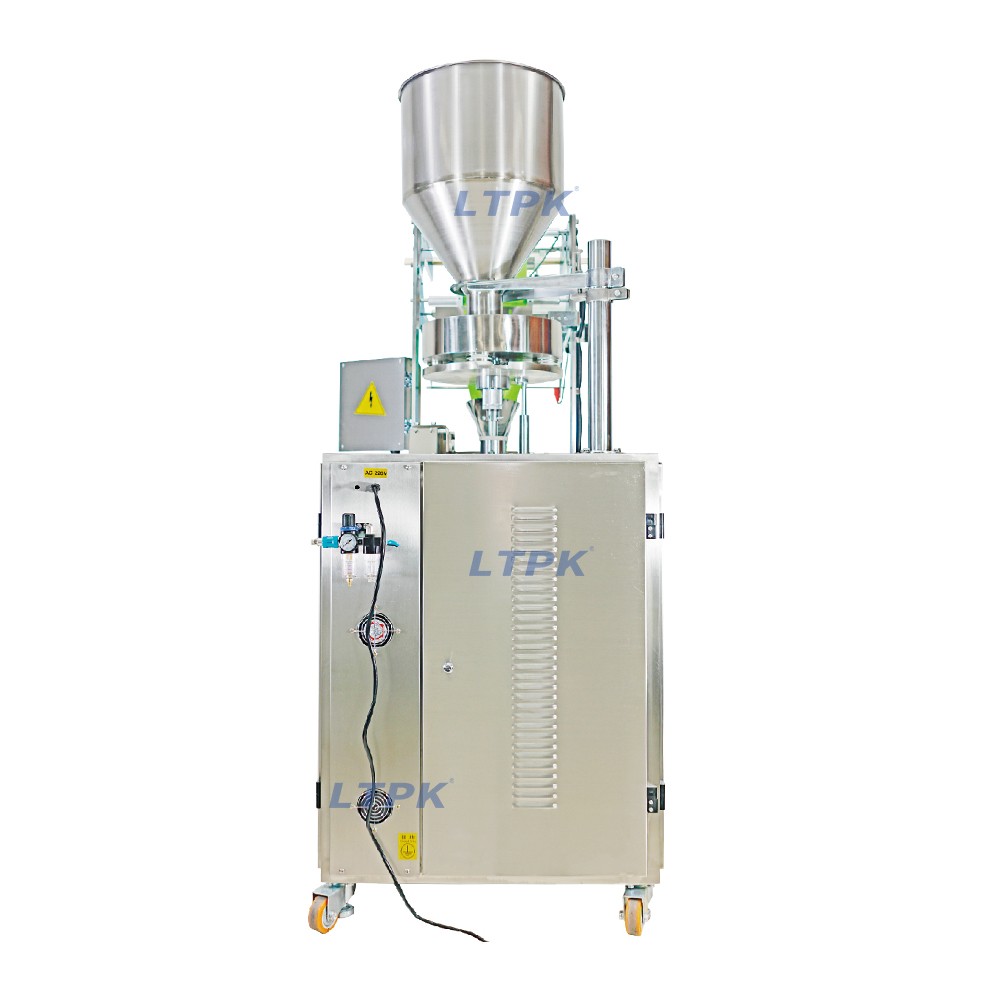

The machine adopts the touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

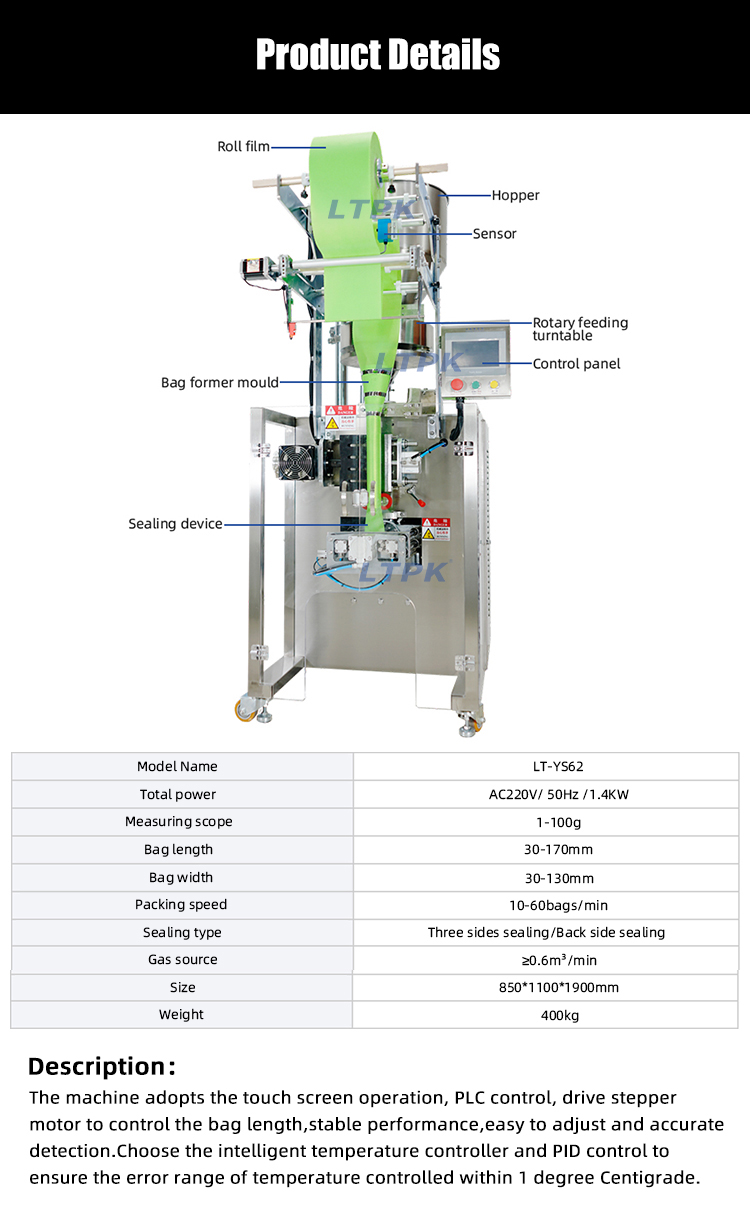

Technical parameters

Model：LT-YS62

Total power：AC220V/ 50Hz /1.4KW

Measuring scope：1-100g

Bag length：30-170mm

Bag width：30-130mm

Packing speed：10-60bags/min

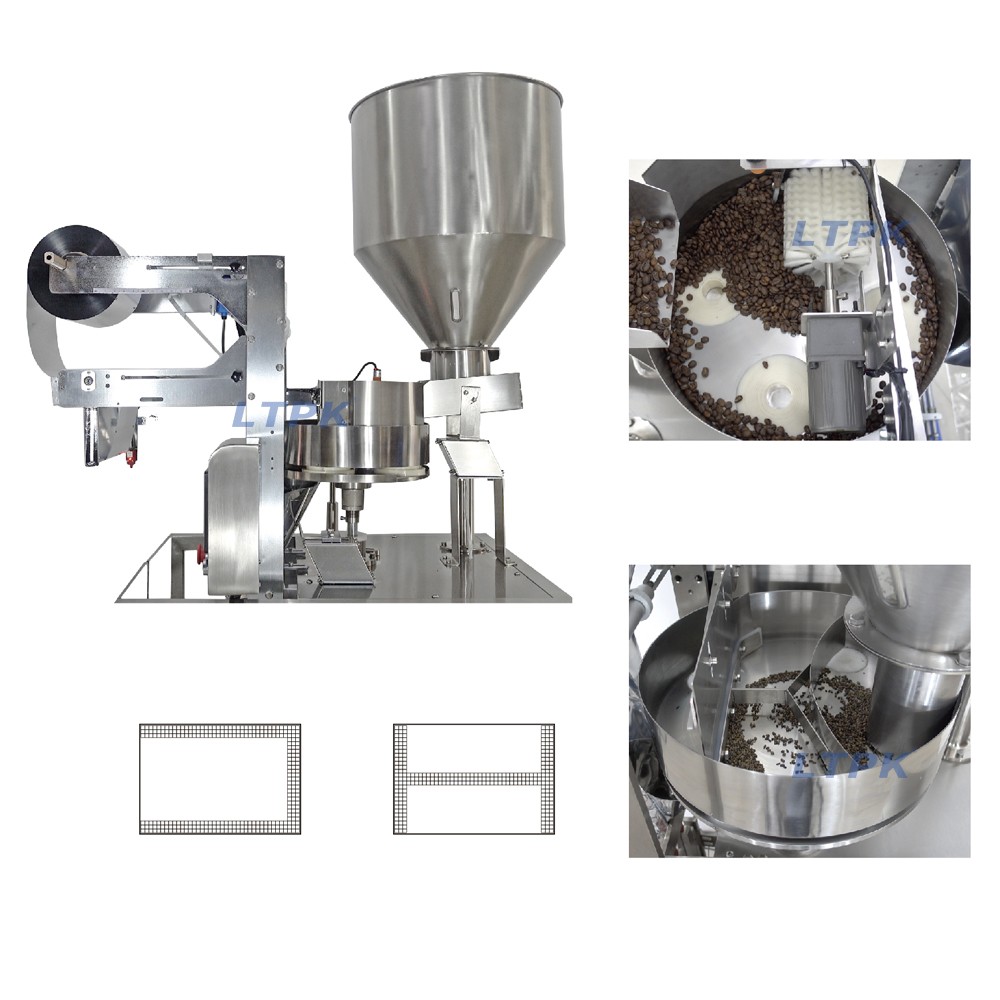

Sealing type：Three sides sealing/Back side sealing

Gas source ：≥0.6m³/min

Size ：850*1100*1900mm

Weight：400kg

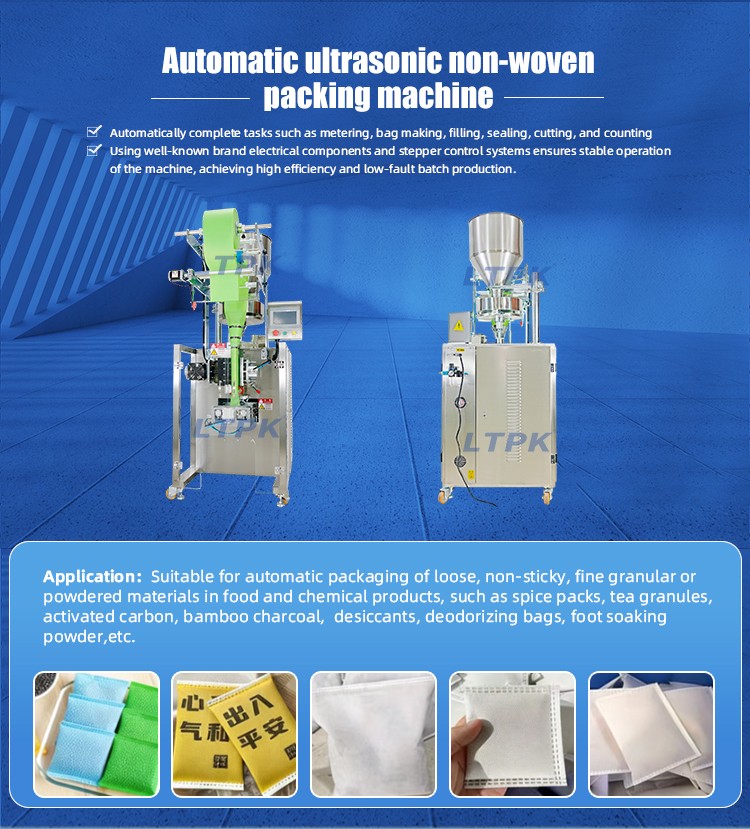

Application

Suitable for automatic packaging of loose, non-sticky, fine granular or powdered materials in food and chemical products, such as spice packs, tea granules, activated carbon, bamboo charcoal,  desiccants, deodorizing bags, foot soaking powder,etc.

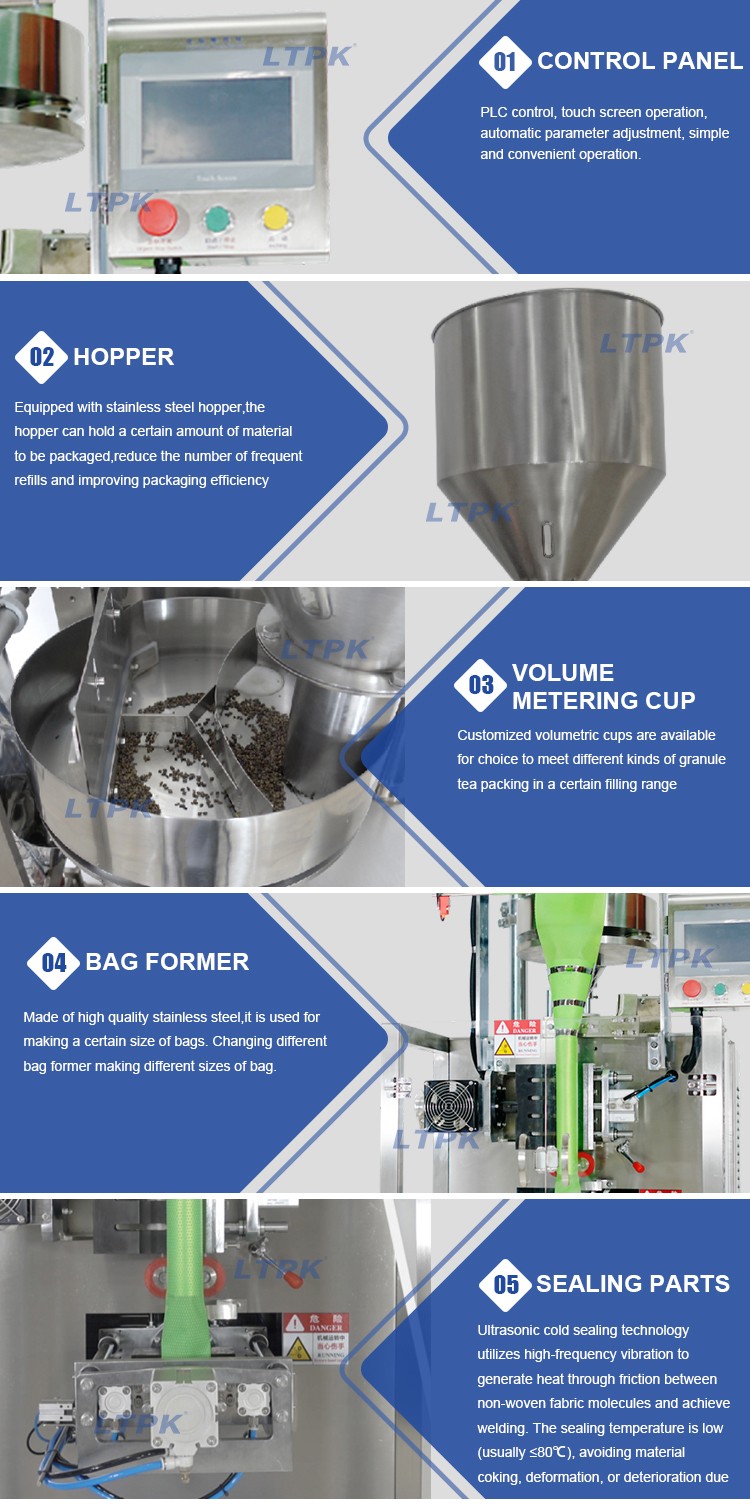

Detail Images
