Description

Made of high-quality 304 stainless steel and food-grade PU belt/buckets, fully compliant with food safety standards. Safe for direct contact with snacks, grains, nuts, and other food materials, easy to clean and meet hygiene requirements.

Technical Parameters

Machine Type: Inclined Bucket Elevator Feeder / Belt-type Granule Conveyor

Construction Material: Food-grade 304 Stainless Steel

Feeding Capacity: 1–3 tons per hour (customizable)

Conveyor Belt: Food-grade PU belt with buckets

Bucket Material: Food-safe PP or stainless steel

Feeding Height: Customizable (standard range: 1.8–3.5 meters)

Hopper Volume: 150 liters

Motor Power: 1.5 kW

Power Supply: 220V/380V, 50/60Hz, 1-phase/3-phase (optional)

Speed Control: Variable frequency adjustable speed

Mobility: Equipped with 4 universal wheels for easy movement

Control System: Standard power switch + data interface for production line integration

Net Weight: 80 kg

Application

Suitable for conveying granules, pellets, small solid materials (e.g., snacks, nuts, grains, candies, food particles)

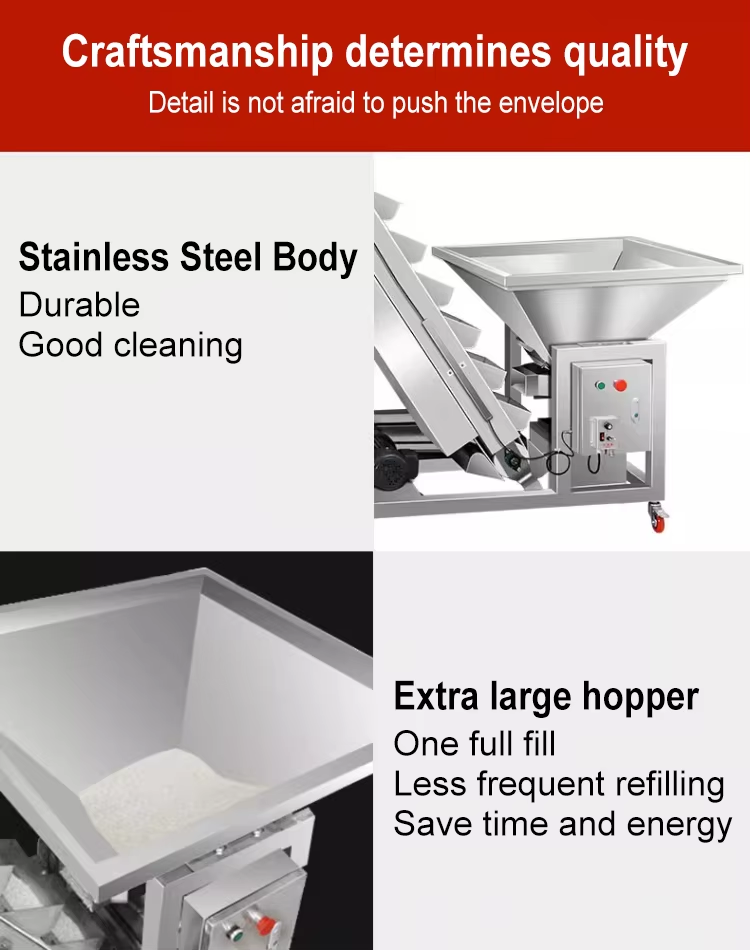

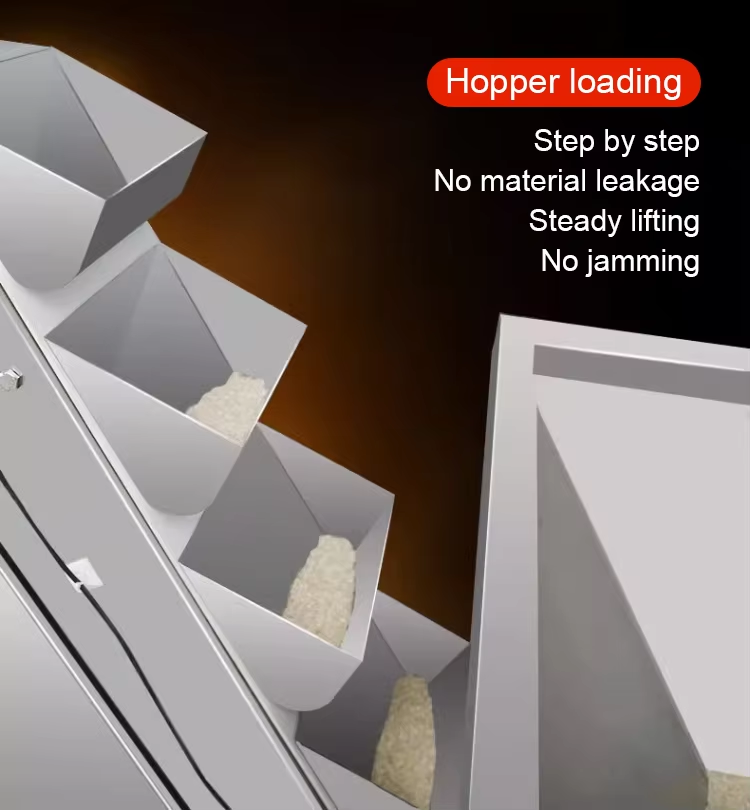

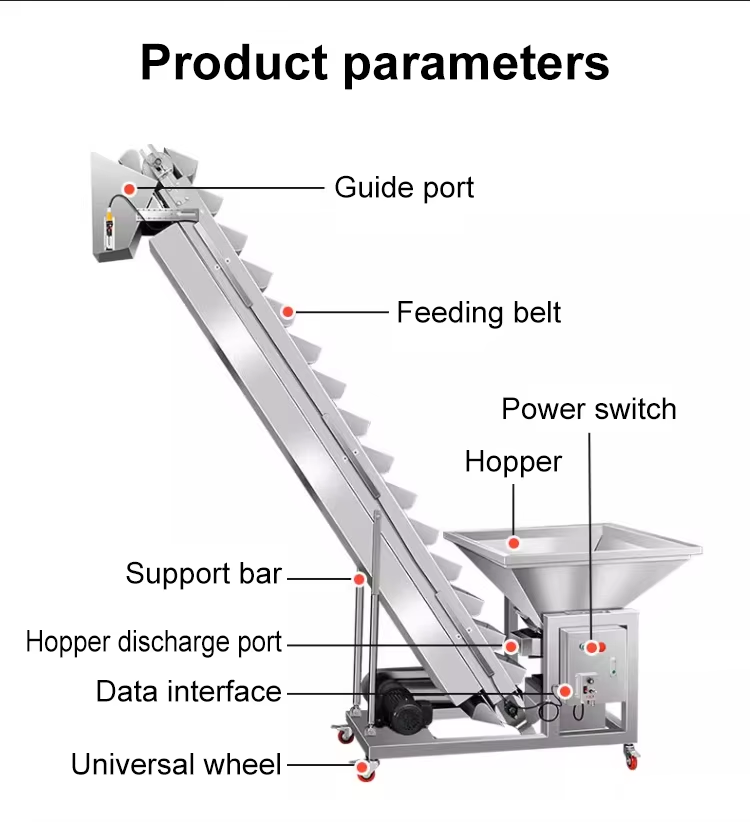

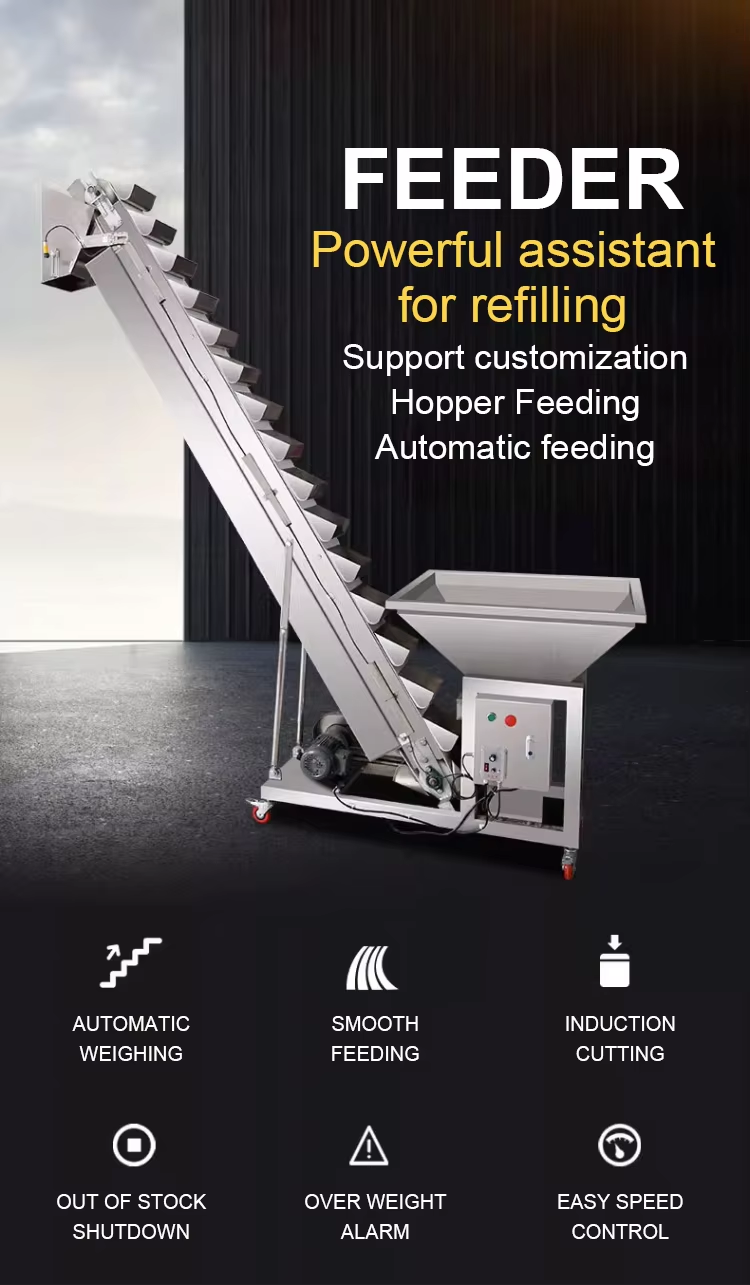

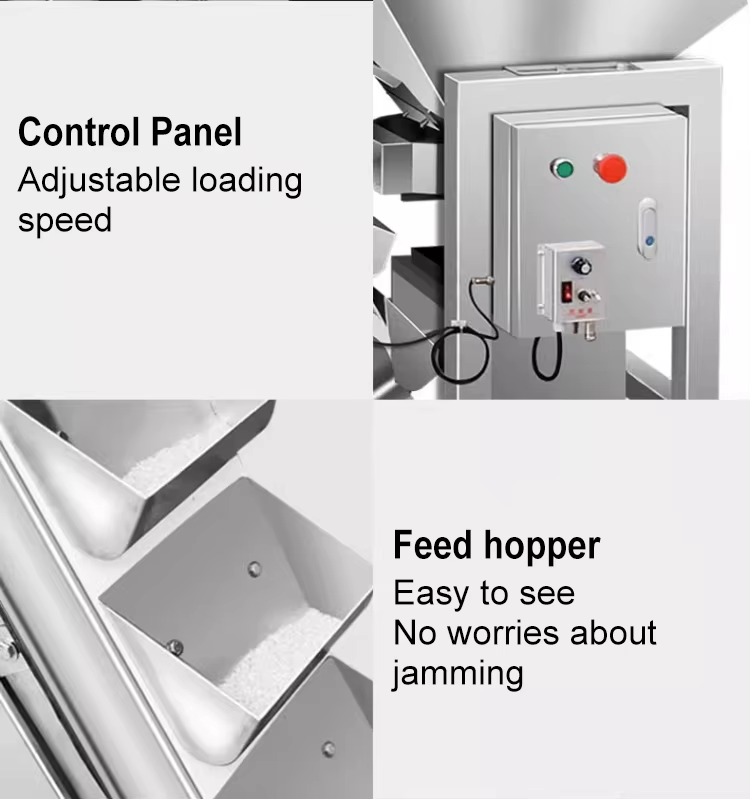

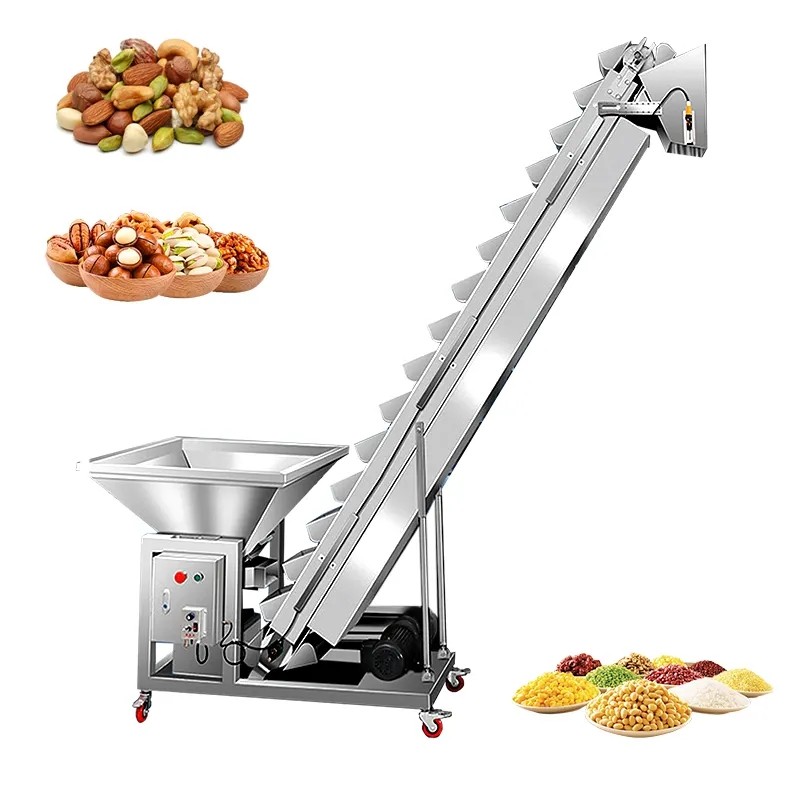

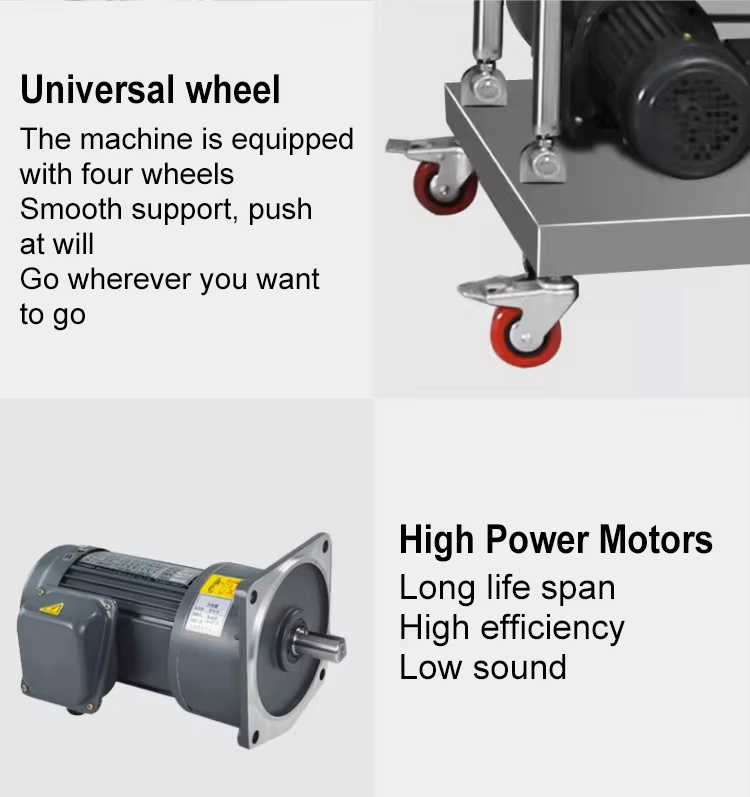

Detail Images
