Description

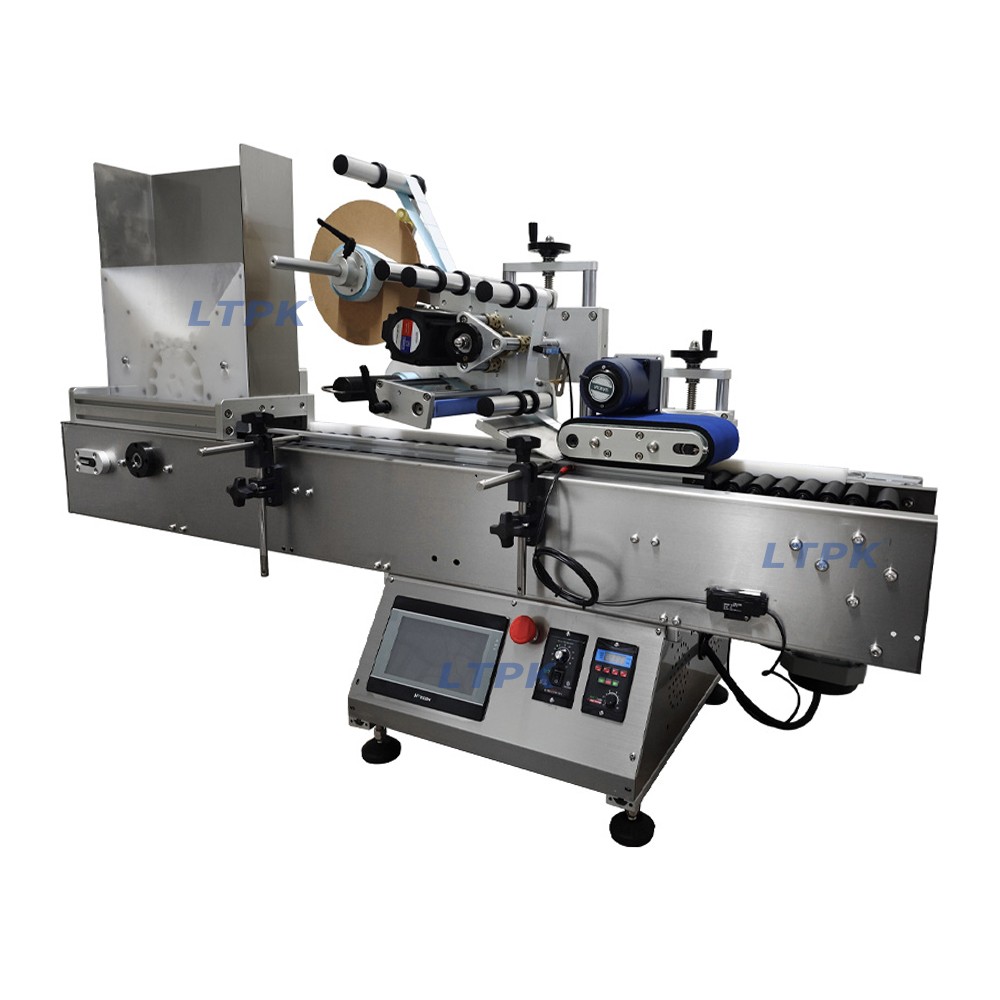

This machine is suitable for labeling sticker on cylinder which are hard to stand up.The horizontal transmission and labeling can help to improve labeling accuracy and working efficiency.The equipment has high stability, good labeling effect, fast speed,no bubbles,no folds.This machine can be equipped with a date coder which can be used to code production date and production number.

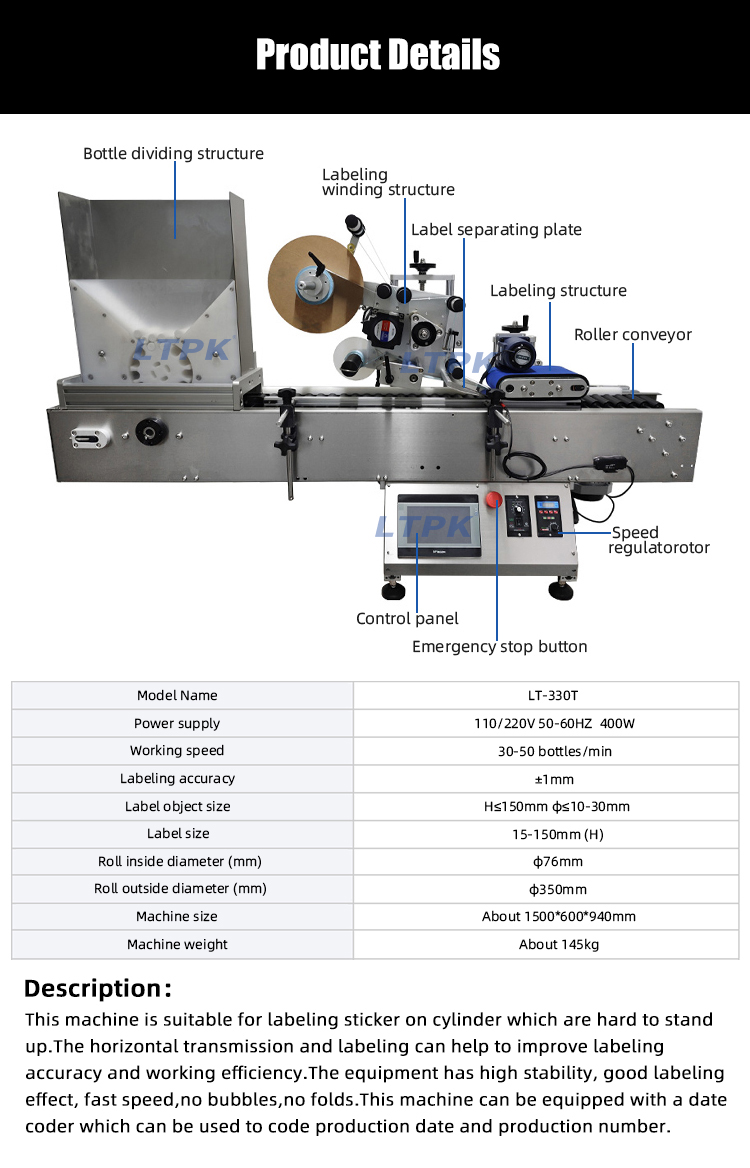

Technical Parameters

Machine model：LT-330T

Power supply：110/220V 50-60HZ  400W

Working speed：30-50 bottles/min

Labeling accuracy：±1mm

Label object size：H≤150mm φ≤10-30mm

Label size：15-150mm (H)

Roll inside diameter (mm)：φ76mm

Roll outside diameter (mm)：φ350mm

Machine size：About 1500*600*940mm

Machine weight：About 145kg

Application

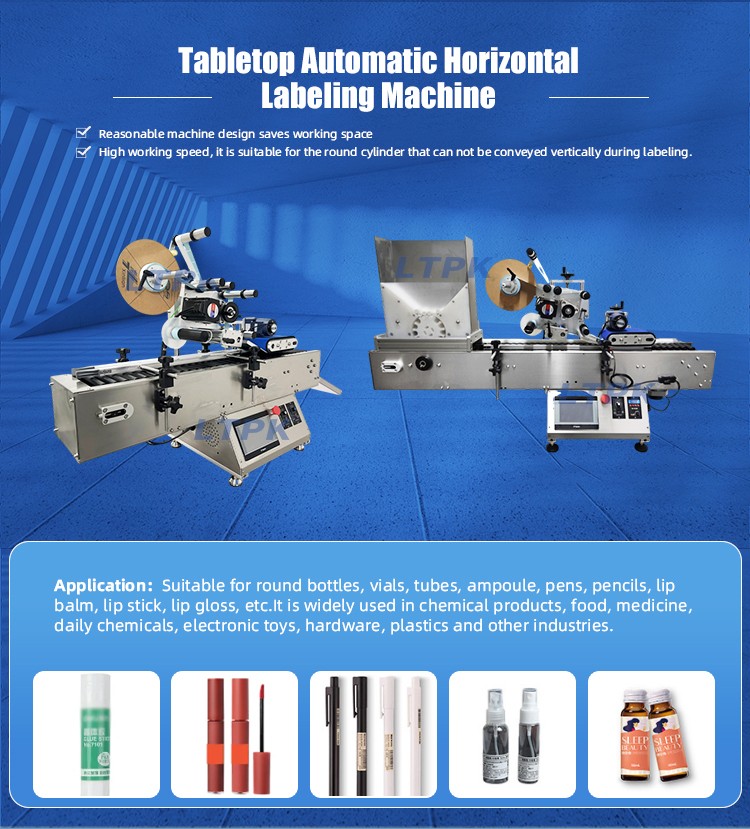

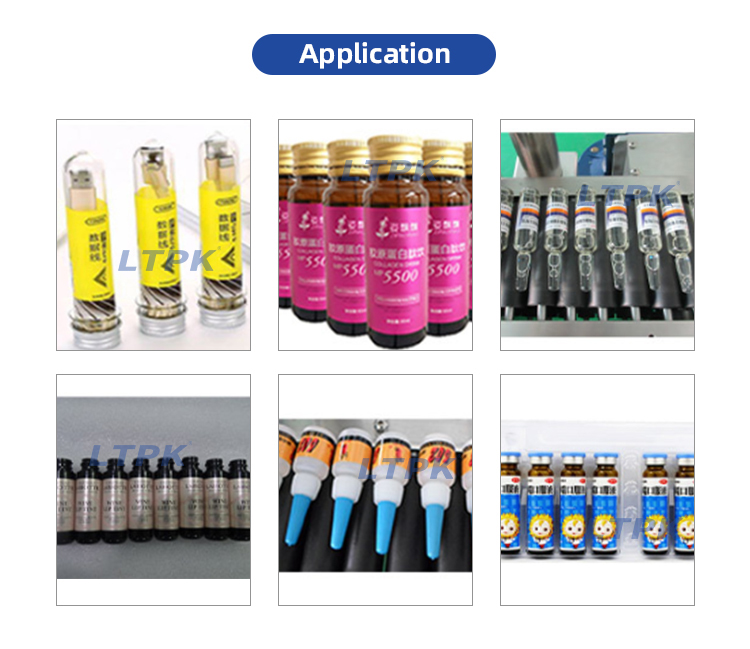

suitable for round bottles, vials, tubes, ampoule, pens, pencils, lip balm, lip stick, lip gloss, etc.It is widely used in chemical products, food, medicine, daily chemicals, electronic toys, hardware, plastics and other industries.

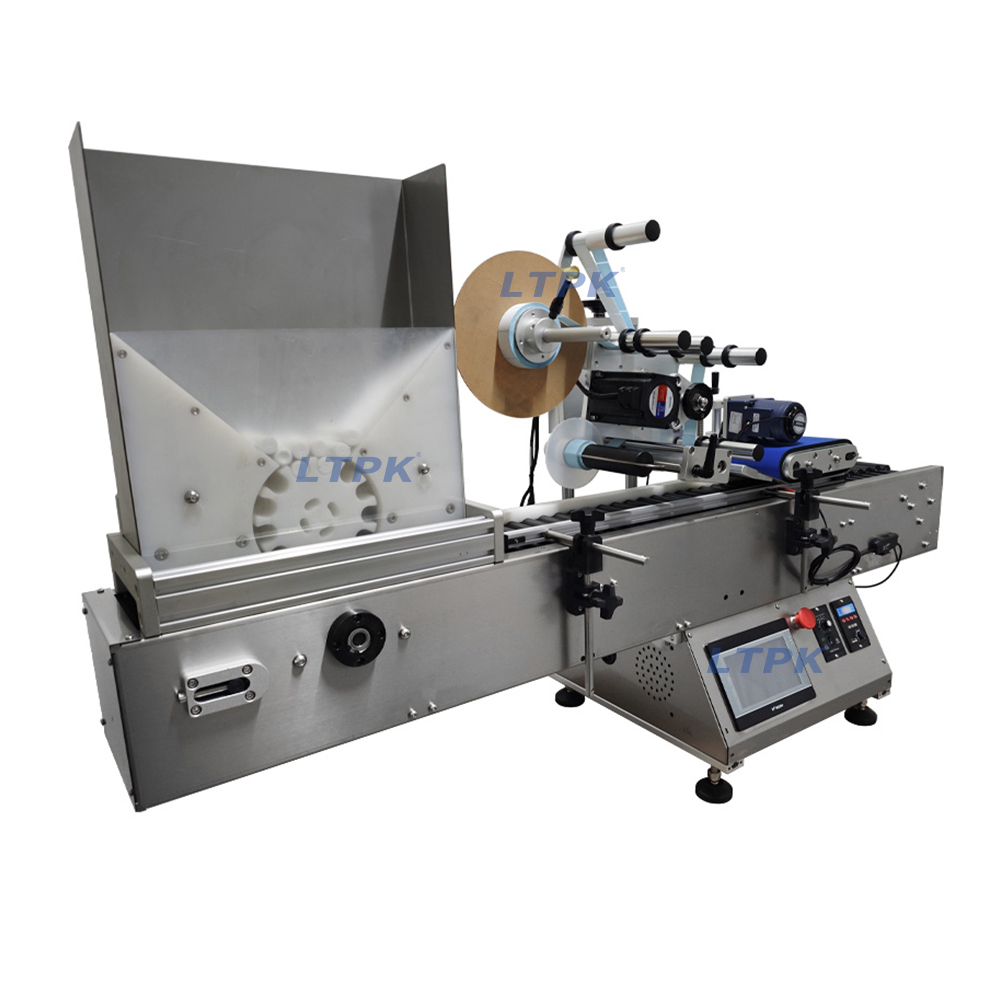

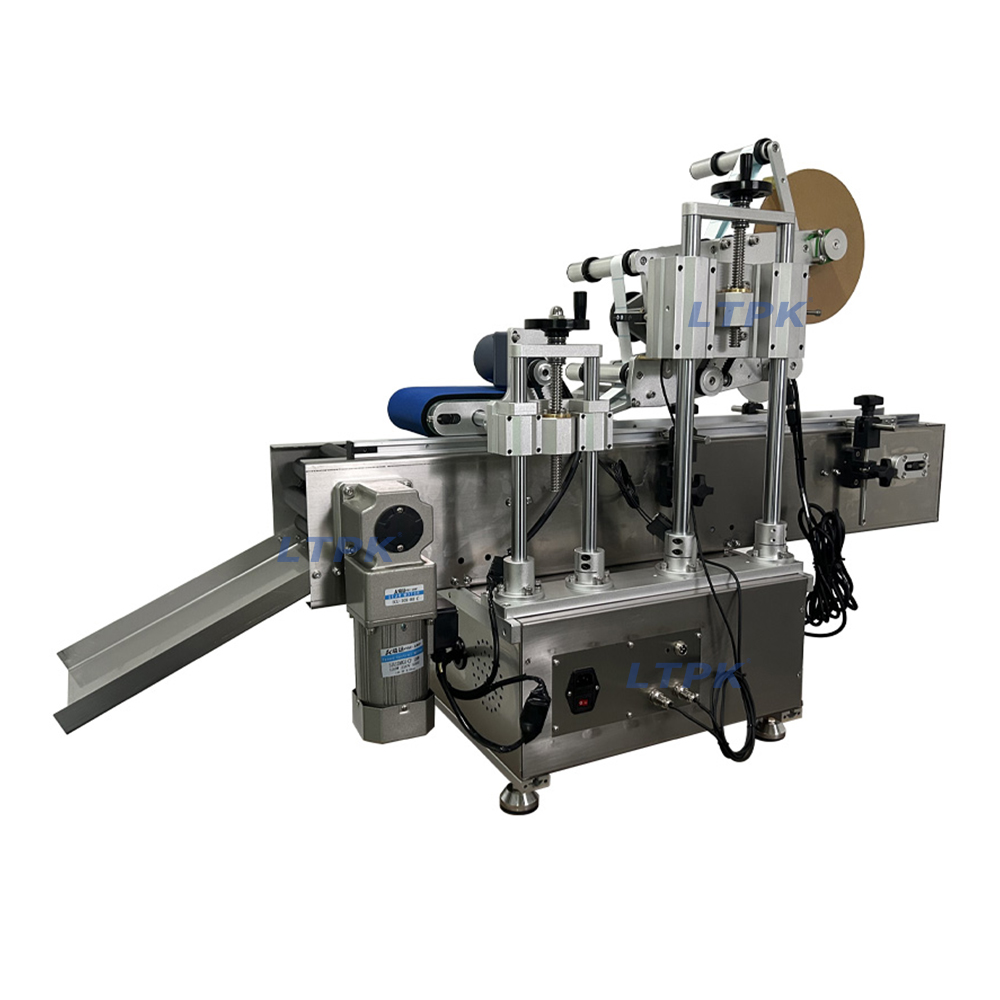

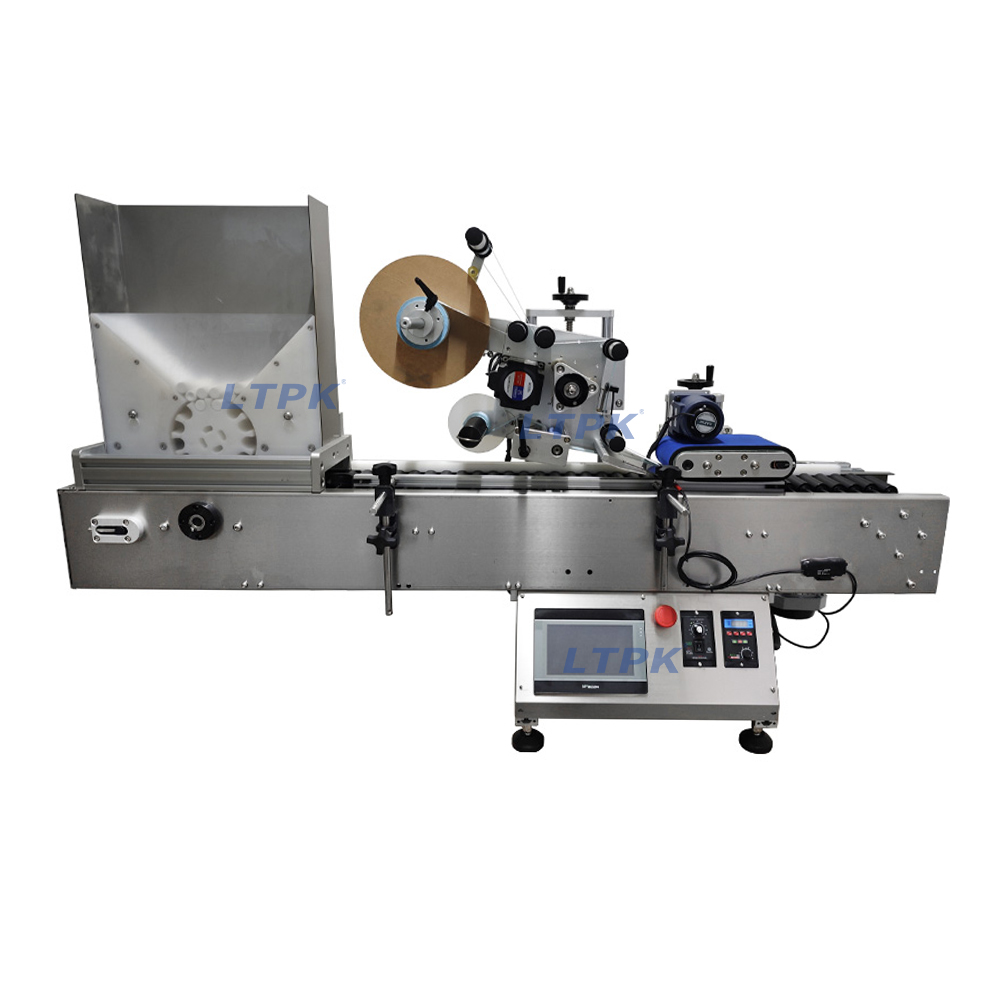

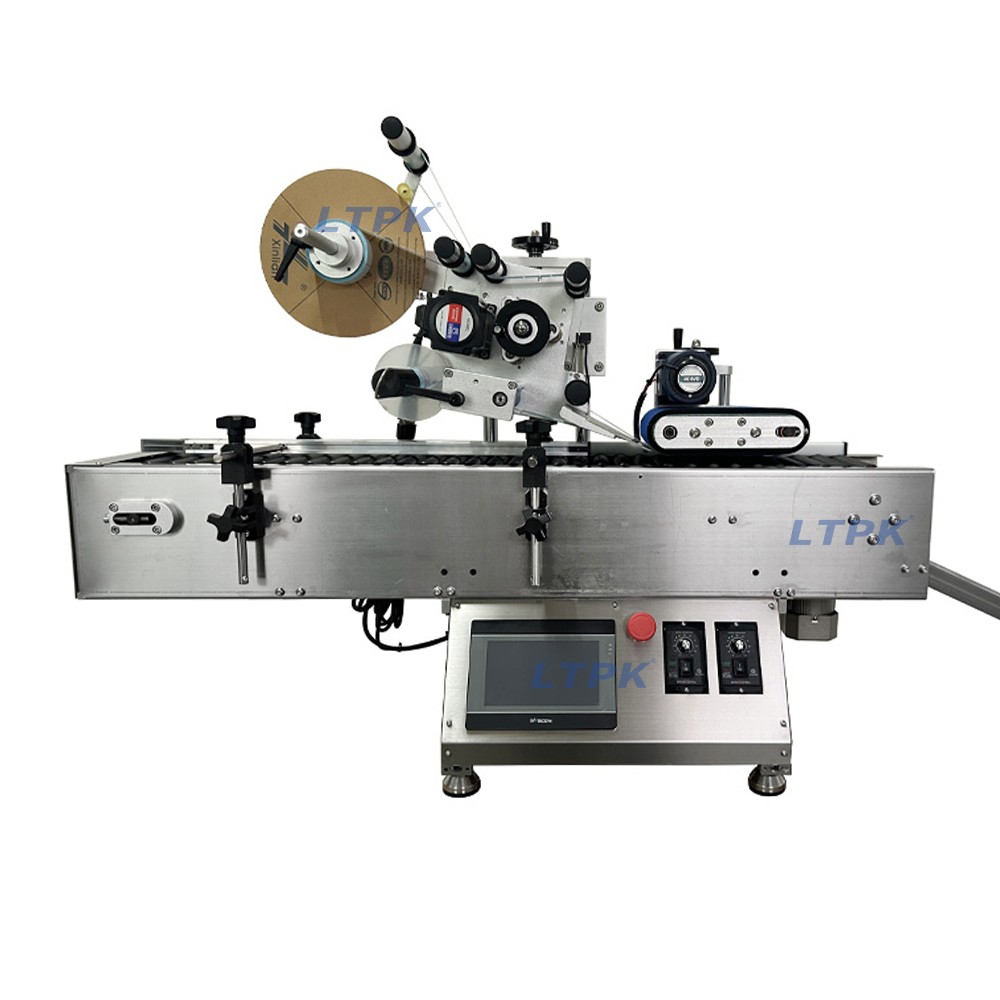

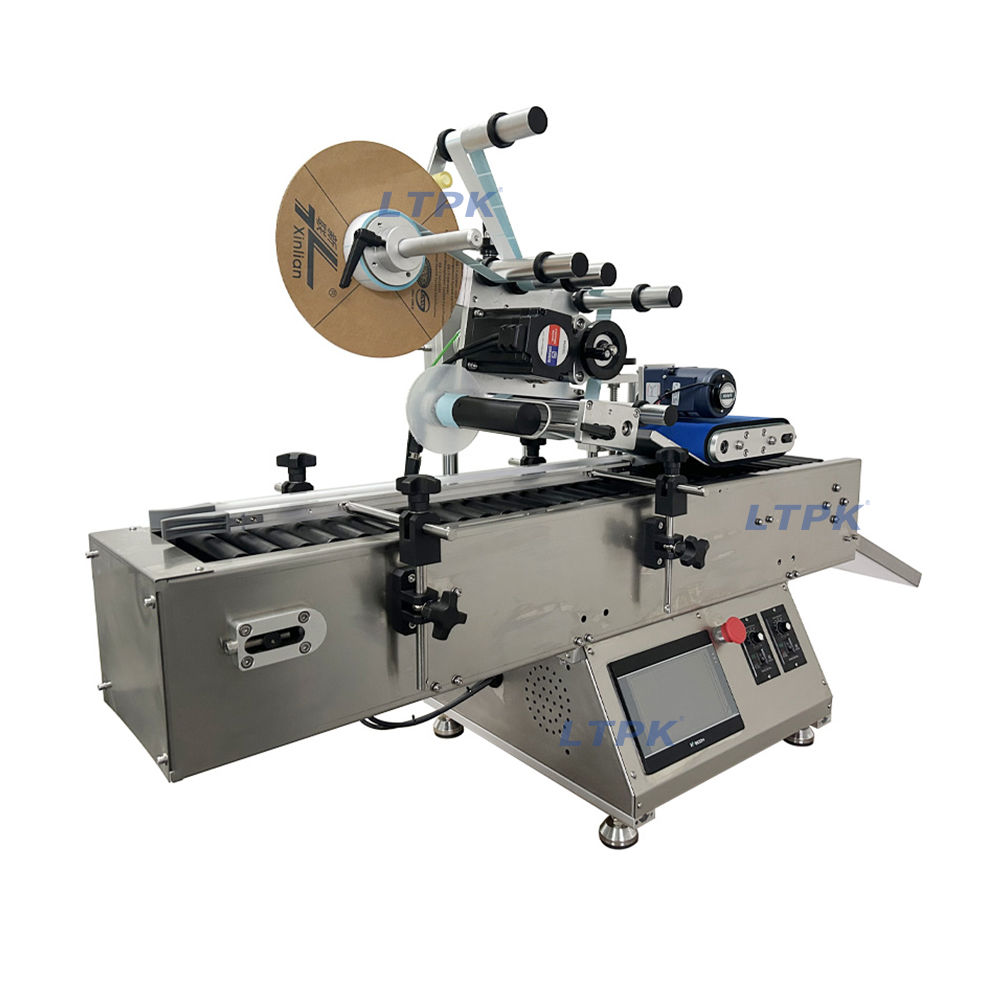

Detail Images
