Description

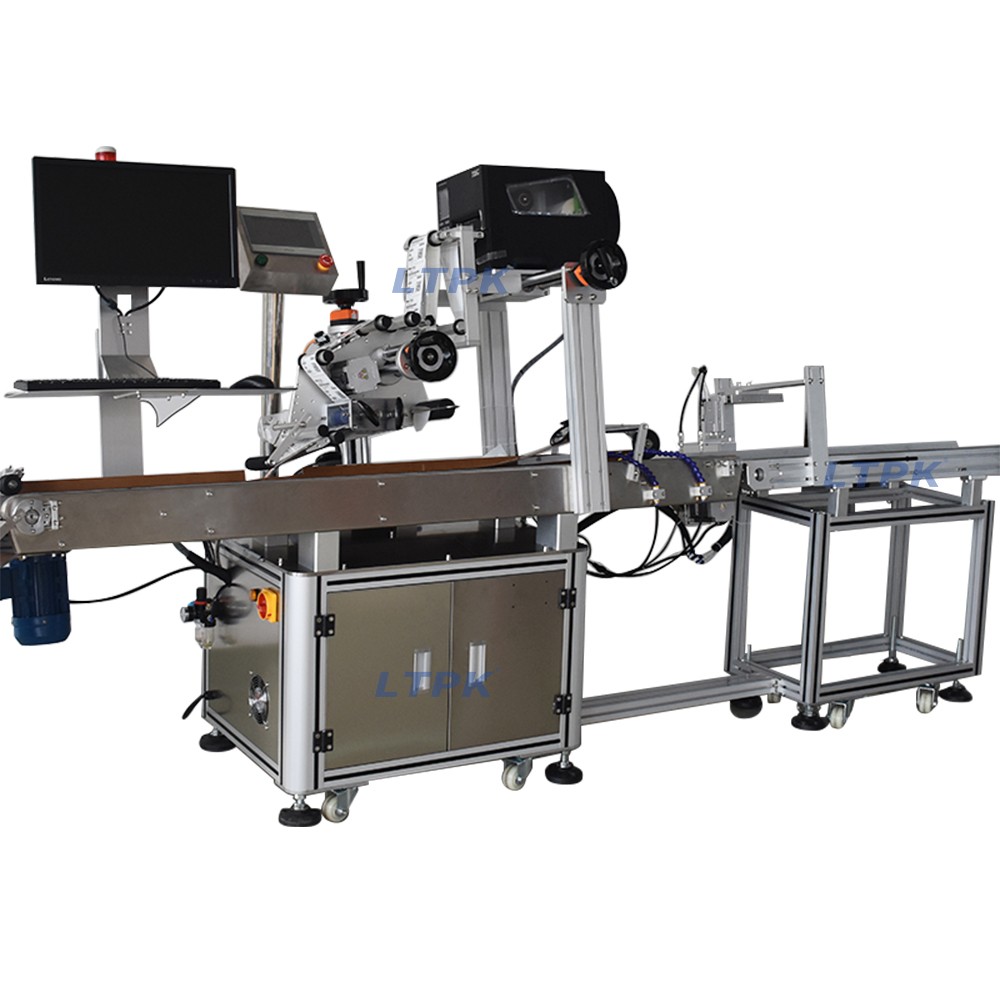

This machine can be labeled on uneven surfaces by replacing the labeling mechanism or loading mechanism,widely used for flat labeling of large products, and for labeling flat objects with a wide range of specifications.With real time printer,supporting real-time printing.

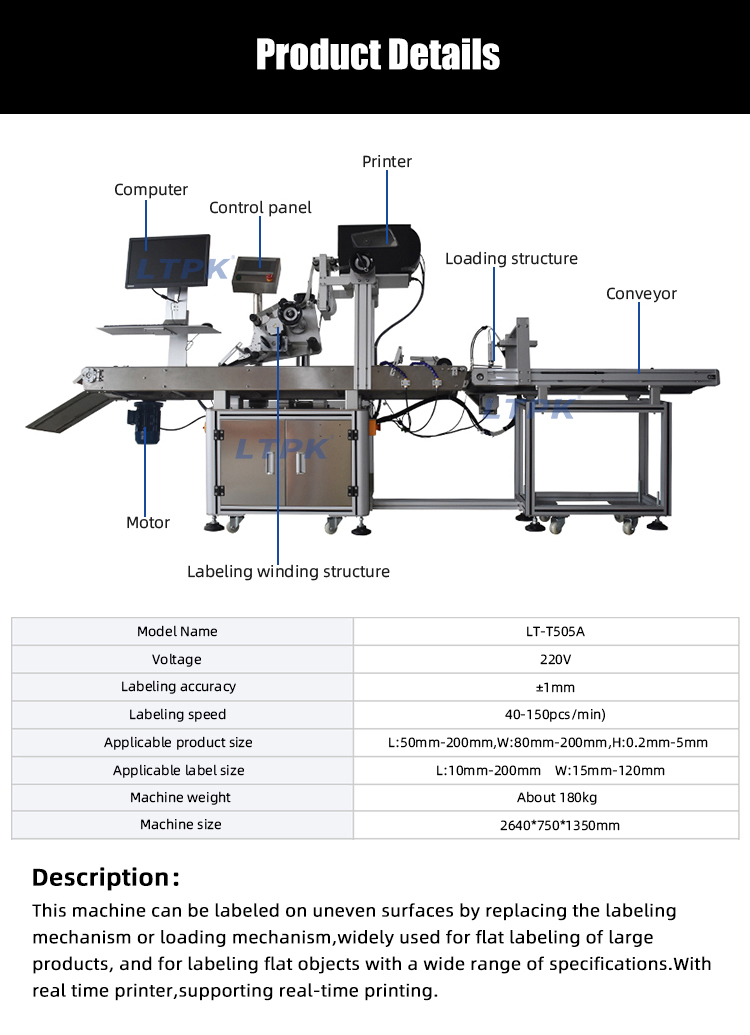

Technical parameters

Model:LT-T505A

Voltage:220V

Labeling accuracy :±1mm

Labeling speed:40-150pcs/min

Applicable product sizevL:50mm-200mm,W:80mm-200mm,H:0.2mm-5mm

Applicable label size:L:10mm-200mm    W:15mm-120mm

Machine weight:About 180kg

Machine size:2640*750*1350mm

Application

This machine is suitable for labeling or non-adhesive film on the surface of various articles, such as books, folders,boxes, cartons, bags, etc.

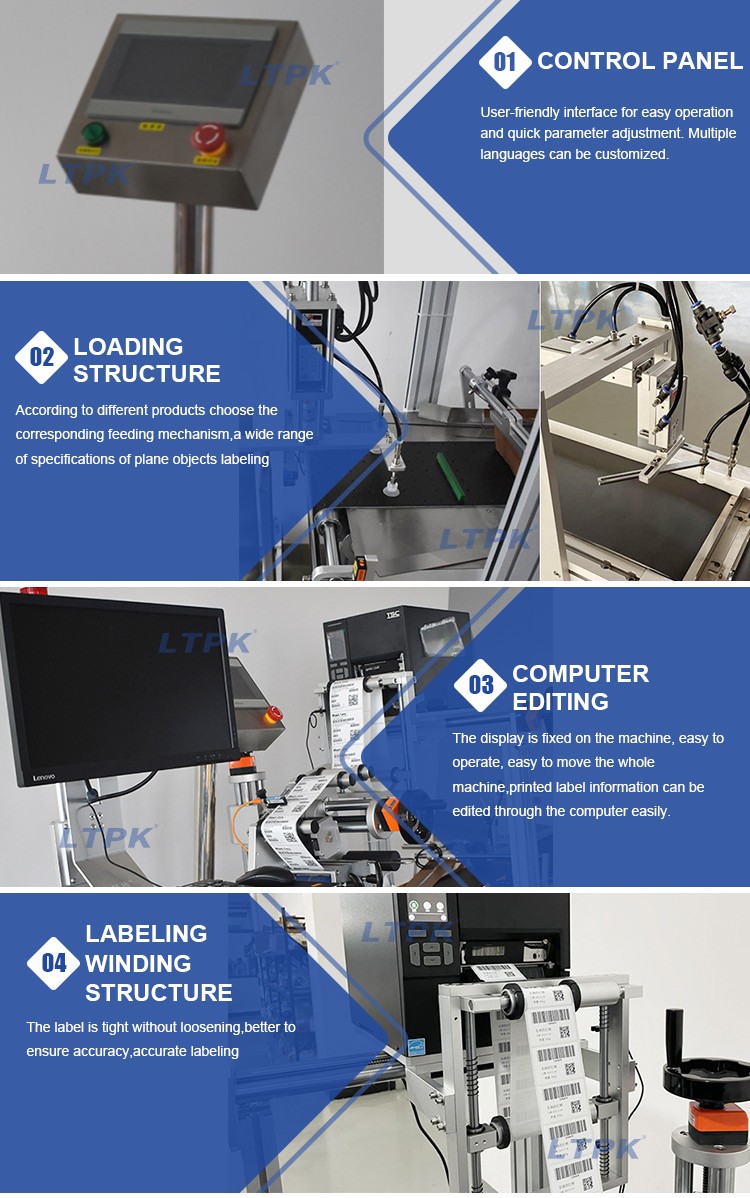

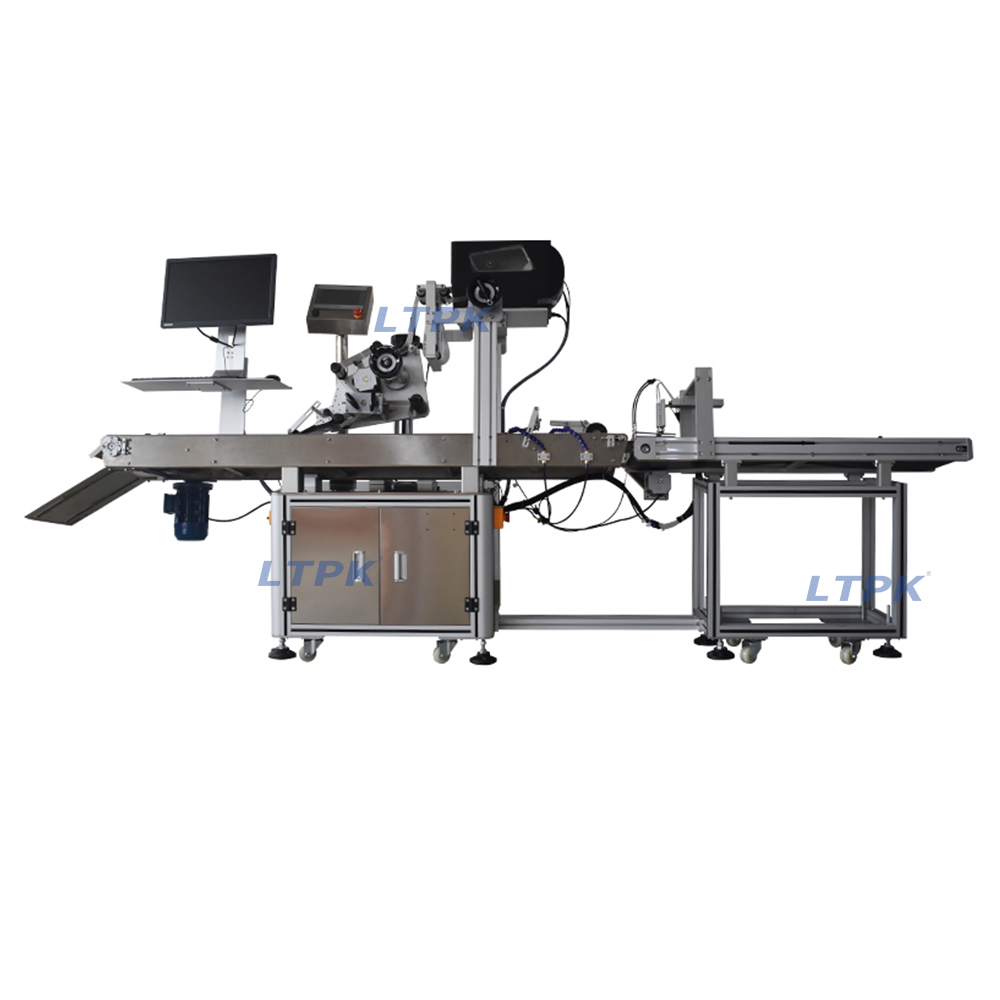

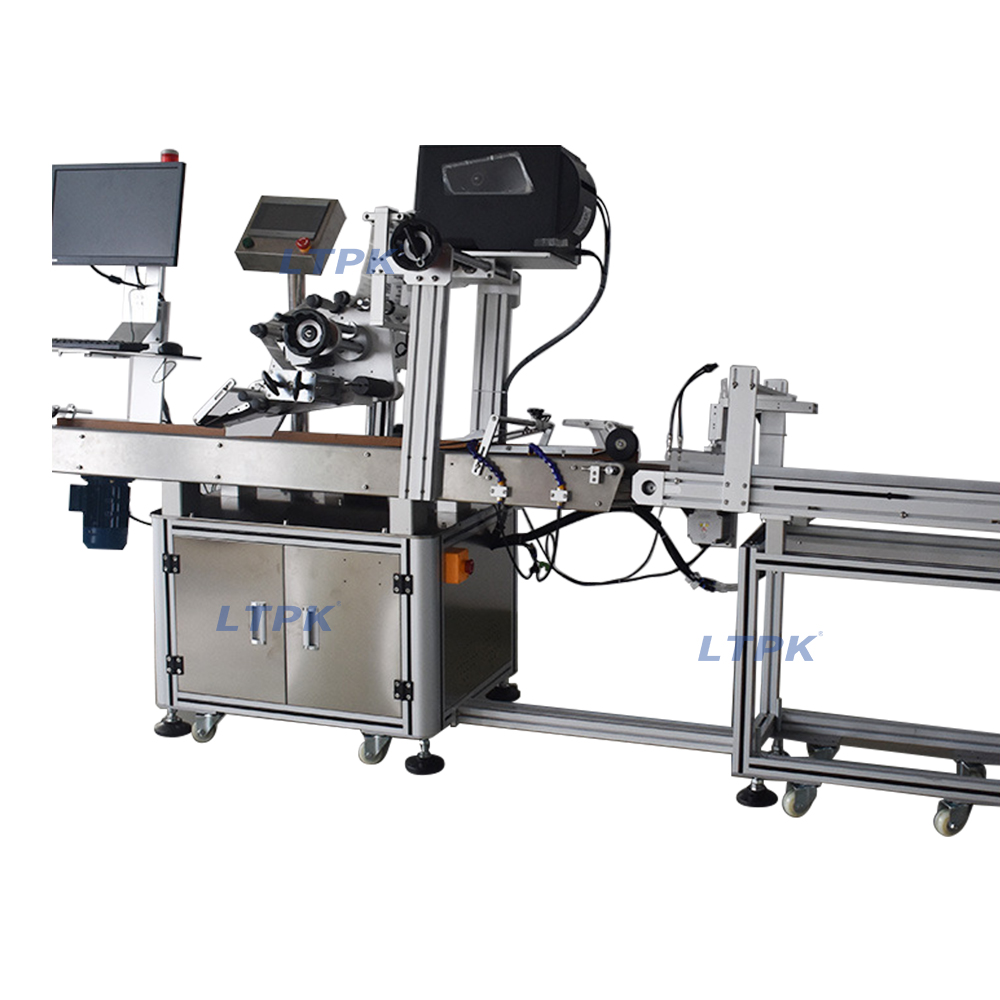

Detail Images
