Description

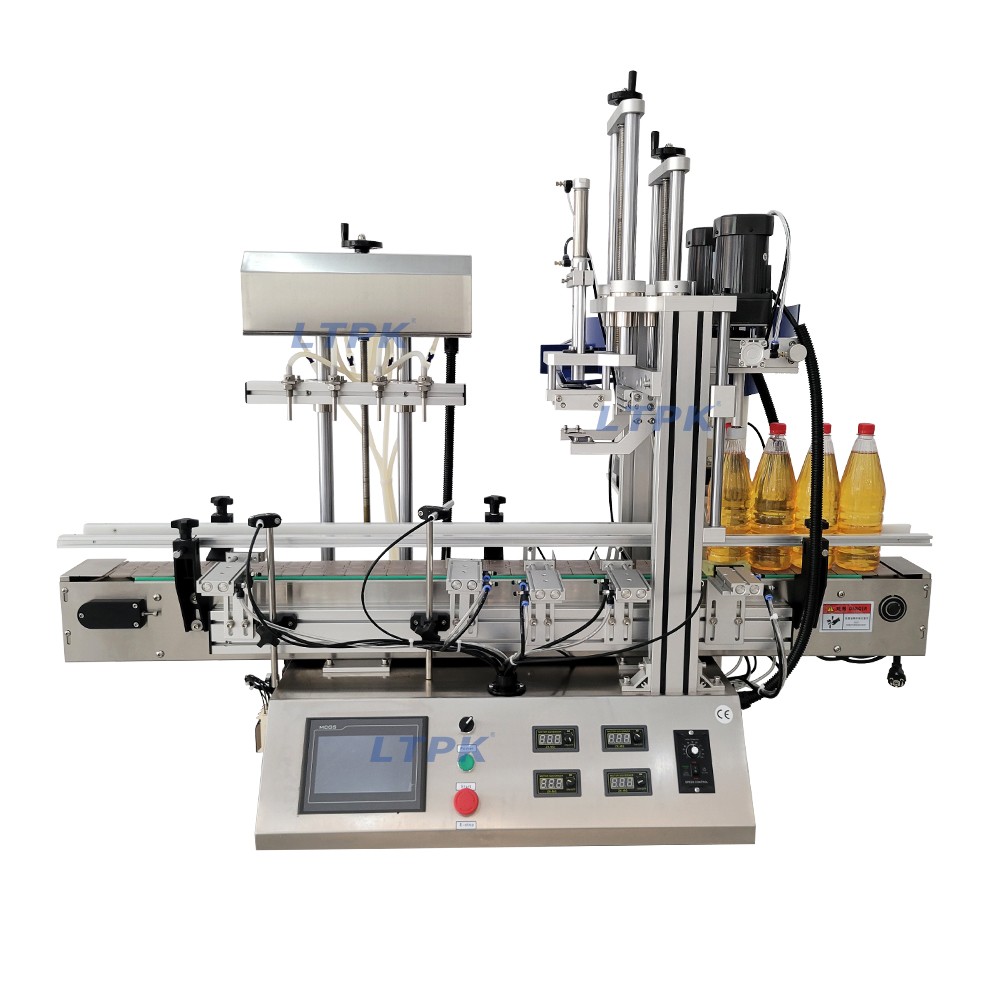

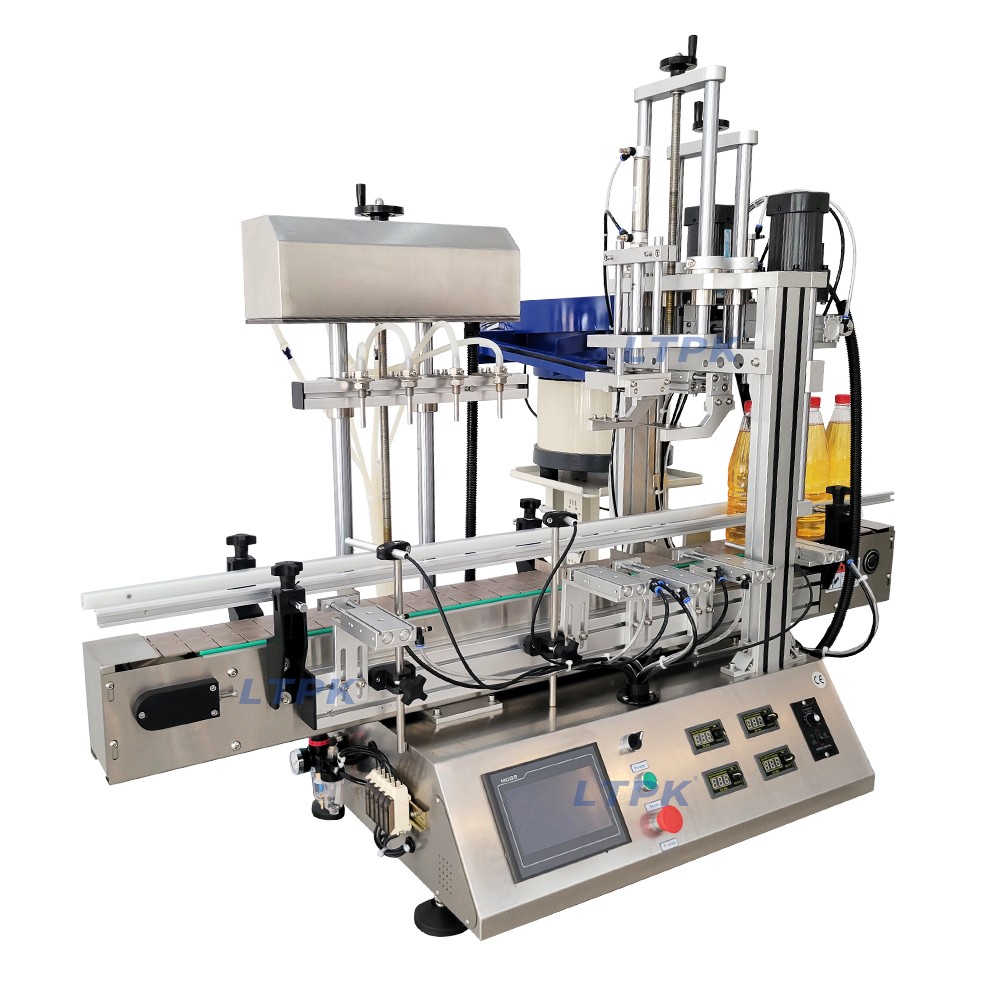

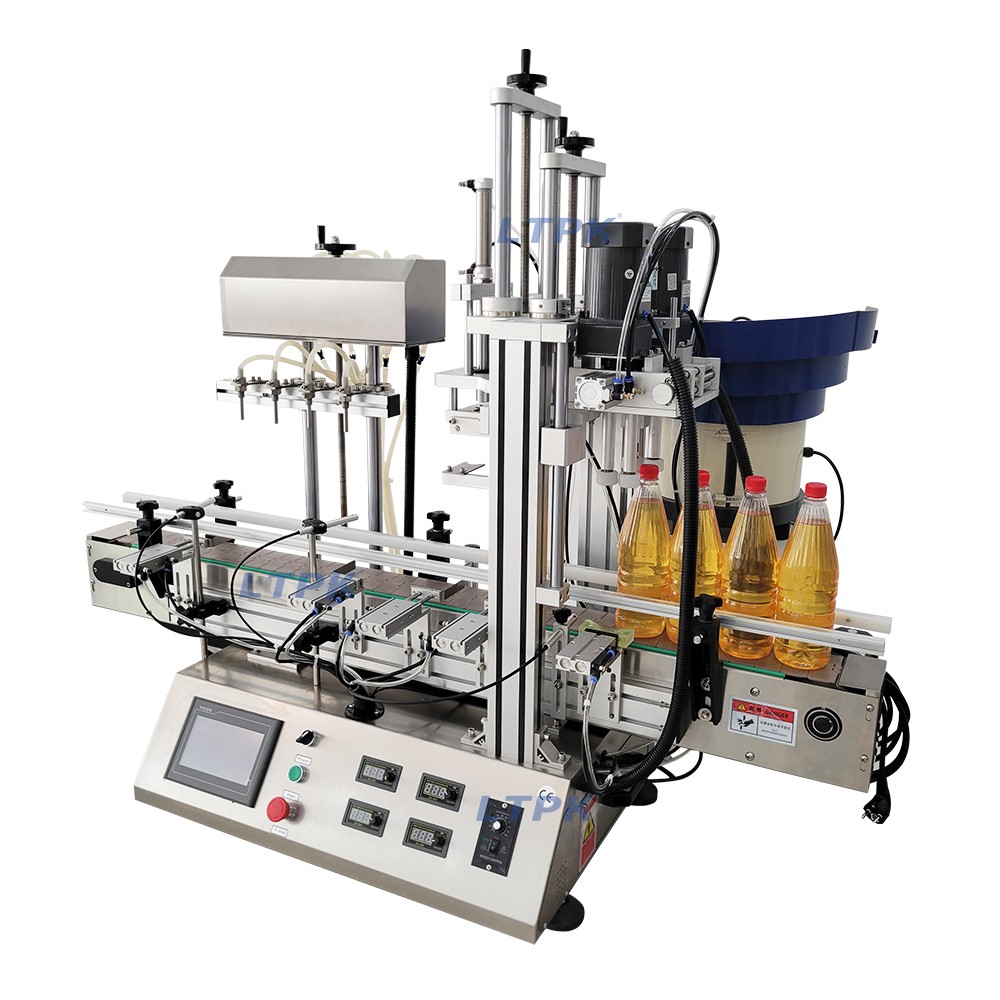

Desktop 4 head integrated machine for filling,automatic cap feeding and four

wheel capping.Bottles are fed by conveyor line and go through magnetic pump

 filling, vibratory bowl cap sorting & feeding, automatic cap dropping and

four wheel screw capping sequentially. It is suitable for small to medium batch

 automatic production of liquids and can be connected with labeling machine

at the rear to form a complete packaging line.

Technical parameters

Model：LT-DFC4-CF

Voltage：220V/110V

Power：1200W

Recommended filling range：5-500ml

Filling Speed：20-30bottles/min(depend on material and bottle size)

Max flow：3.2L/min(Each nozzle and depend on water)

Suitable bottle height：100-200mm

Suitable bottle diameter：30-100mm

Suitable cap size：20-60mm

Diameter of filling nozzle：8mm

Air pressure：0.4-0.6Mpa

Filling accuracy：±0.5%

Size：About 180*136*90cm

Weight：About 250kg

Application

Wide range of application, filling of various liquids. Such as beverage, milk,

 soy sauce, alcohol, wine,oral liquid,essential oil,solution,eye drops,inks,

perfume etc. Suitable for various industries, such as food, chemical,

catering, daily chemical, etc.

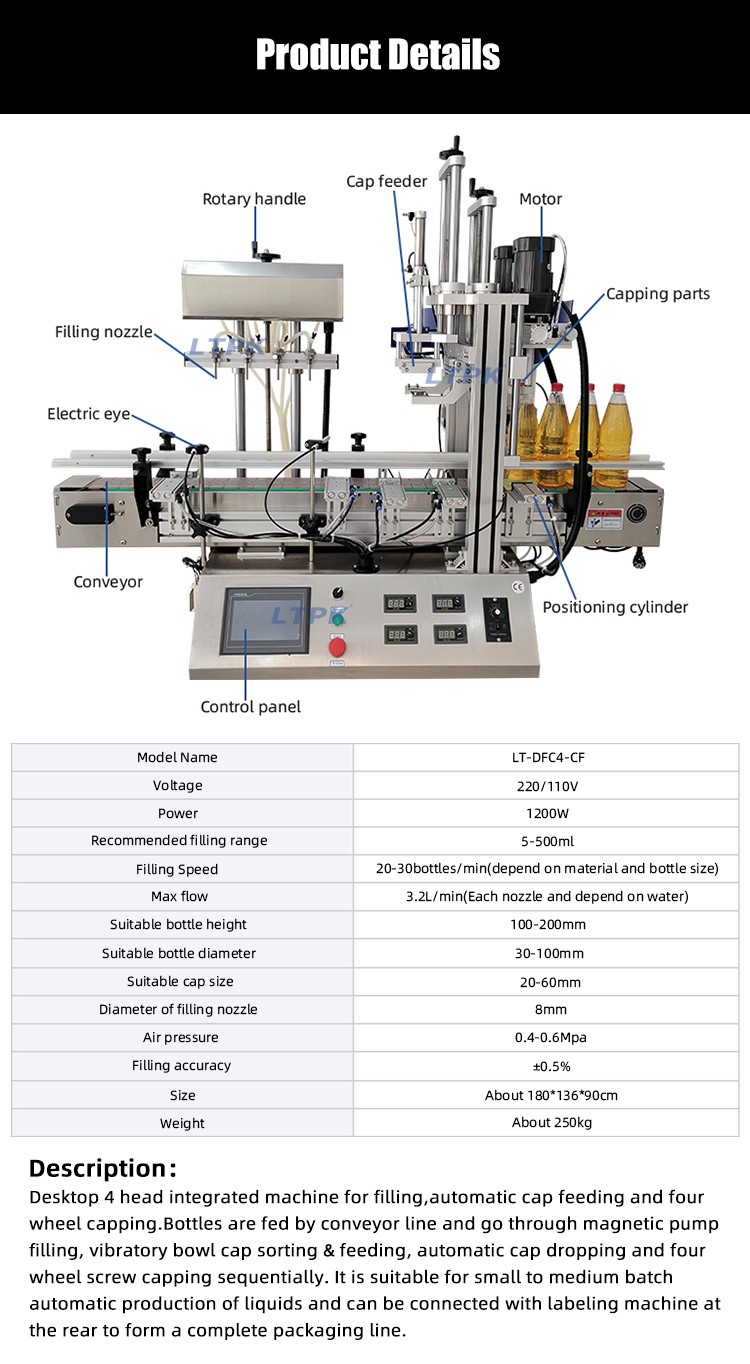

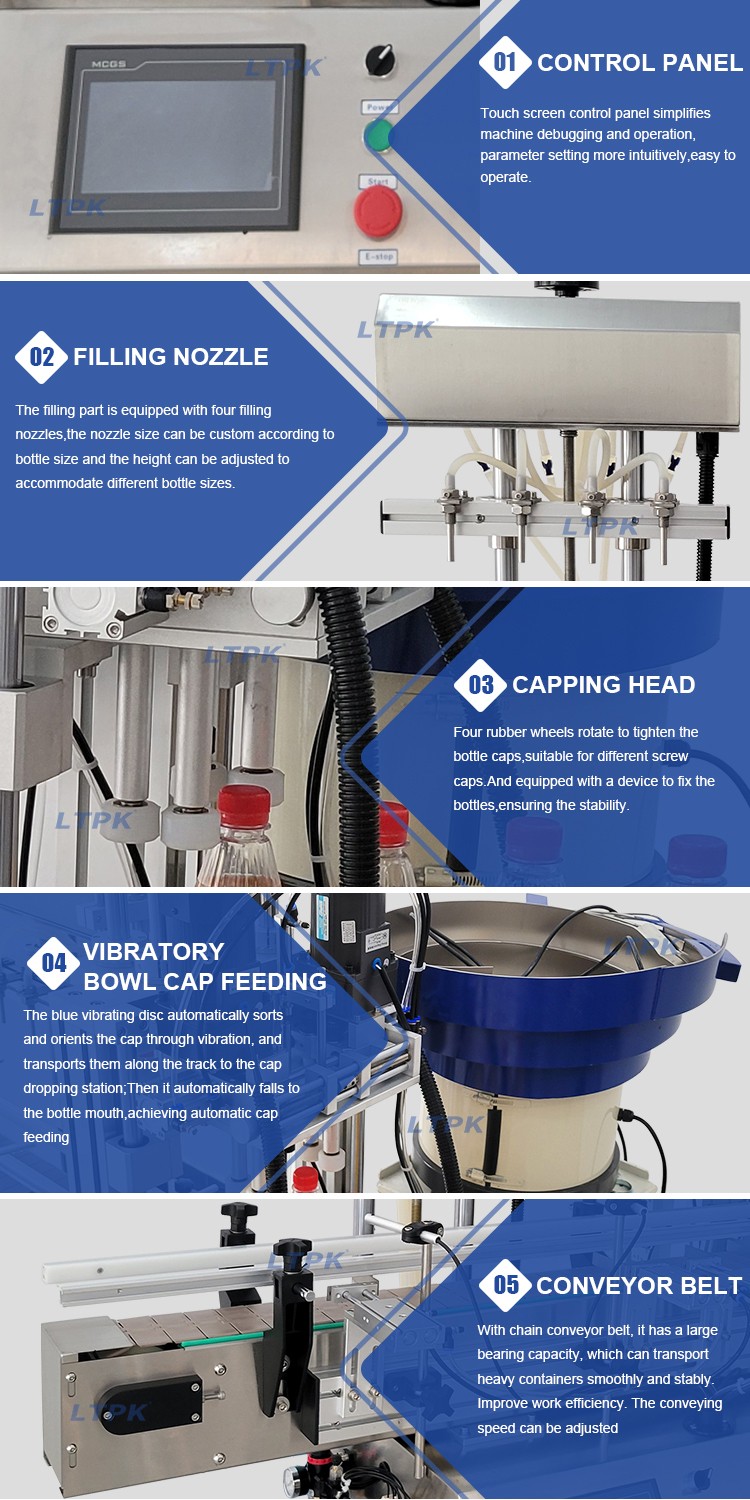

Detail Images
