LT-YS65XK Automatic High Speed Coffee Bean Cat Food Fish Bait Raisin Rock Sugar Peanut Measuring Cup Filling Sealing Packing Machine

LT-YS65XK Automatic High Speed Coffee Bean Cat Food Fish Bait Raisin Rock Sugar Peanut Measuring Cup Filling Sealing Packing Machine

Model:LT-YS65XK
Voltage:220V
Power:2.35KW
Sealing type:Three side sealing/back side sealing
Packing speed:80-130bags/min
Bag length:30-180mm
Bag width:20-75mm(Need to replace the bag former
Filling range:1-100g
Gas source:≥0.6Mpa
Machine weight:245kg
Machine size:790*1050*1950 mm
Optional:Coding machine/after vibration/lower cutter/bag linking device

Description

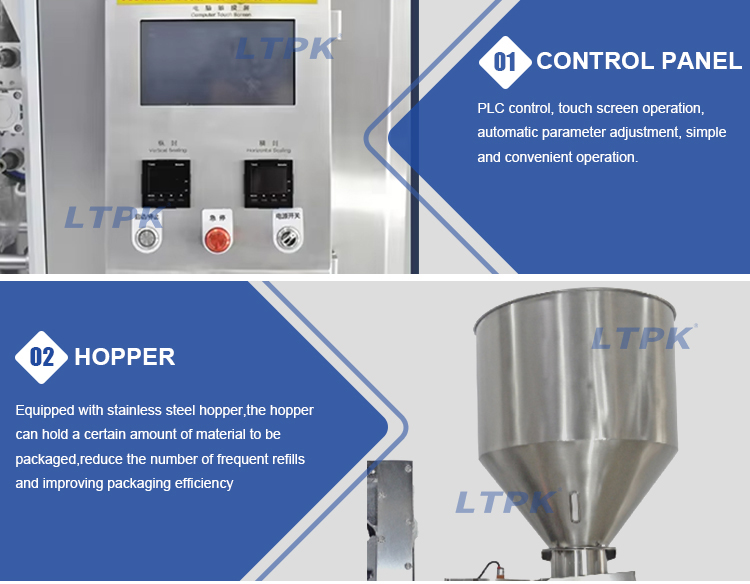

This machine adopts the touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

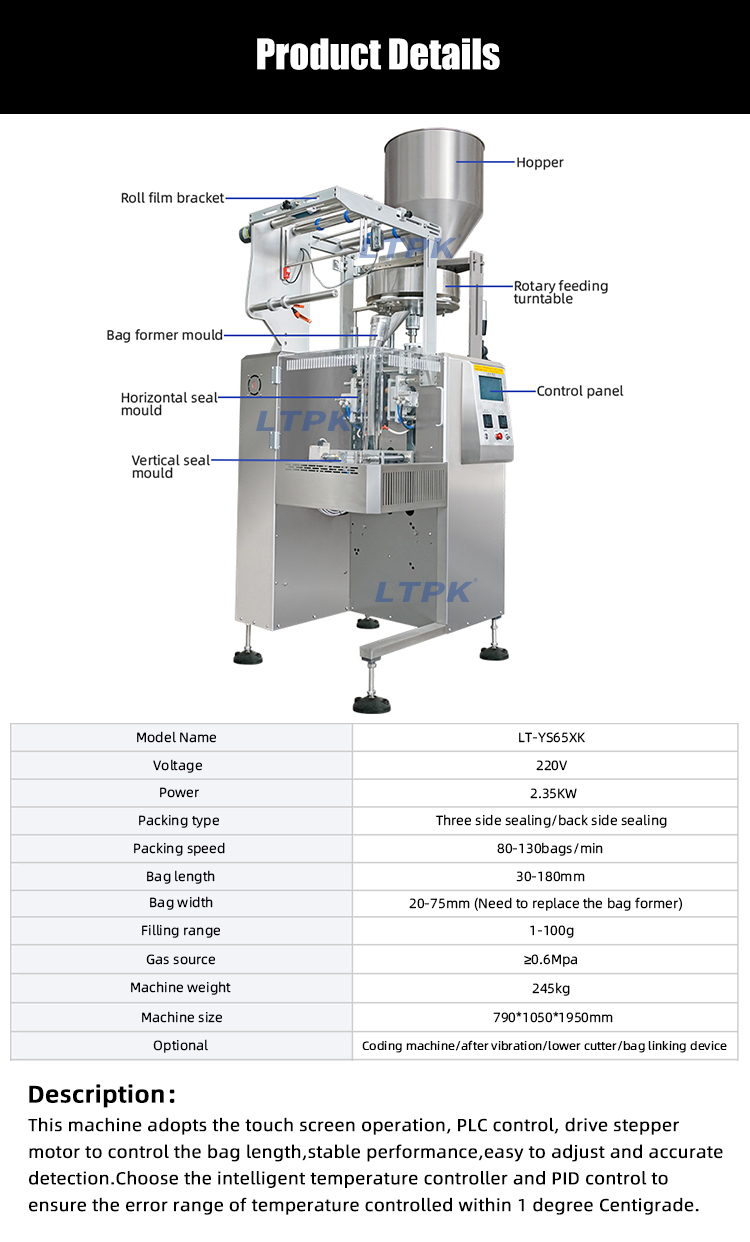

Technical Parameters

Model:LT-YS65XK

Voltage:220V

Power:2.35KW

Sealing type:Three side sealing/back side sealing

Packing speed:80-130bags/min

Bag length:30-180mm

Bag width:20-75mm(Need to replace the bag former

Filling range:1-100g

Gas source:≥0.6Mpa

Machine weight:245kg

Machine size:790*1050*1950 mm

Optional:Coding machine/after vibration/lower cutter/bag linking device

Application

The machine is suitable for the food, chemical industry, cosmetics industry of particles of measurement packing,such as nuts, peanuts, seeds, grains, chinese wolfberry, and red dates,etc.
