Description

This machine adopts the touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

Technical parameters

Model：LT-YP80IIIAKJ

Voltage：220V

Power：1.5KW

Sealing type：Three side sealing

Packing speed：10-25bags/min

Bag length：60-250mm

Bag width：50-450mm(Need to replace the bag former)

Filling range：1-100g(Popcorn reference value:50g white sugar,100g corn,50g oil)

Machine weight：350kg

Machine size：970*1100*1900mm

Application

Measuring cups are used to package various granular materials. Such as seasonings, granules, puffed foods, shrimp strips, peanuts, popcorn, melon seeds, beans, grains, QQ candy, white sugar, caramel, etc.

Liquid quantitative pumps are used for packaging various liquids, sauces, and other materials. Such as butter, honey, jam, jelly, seasoning oil, shampoo and other materials.

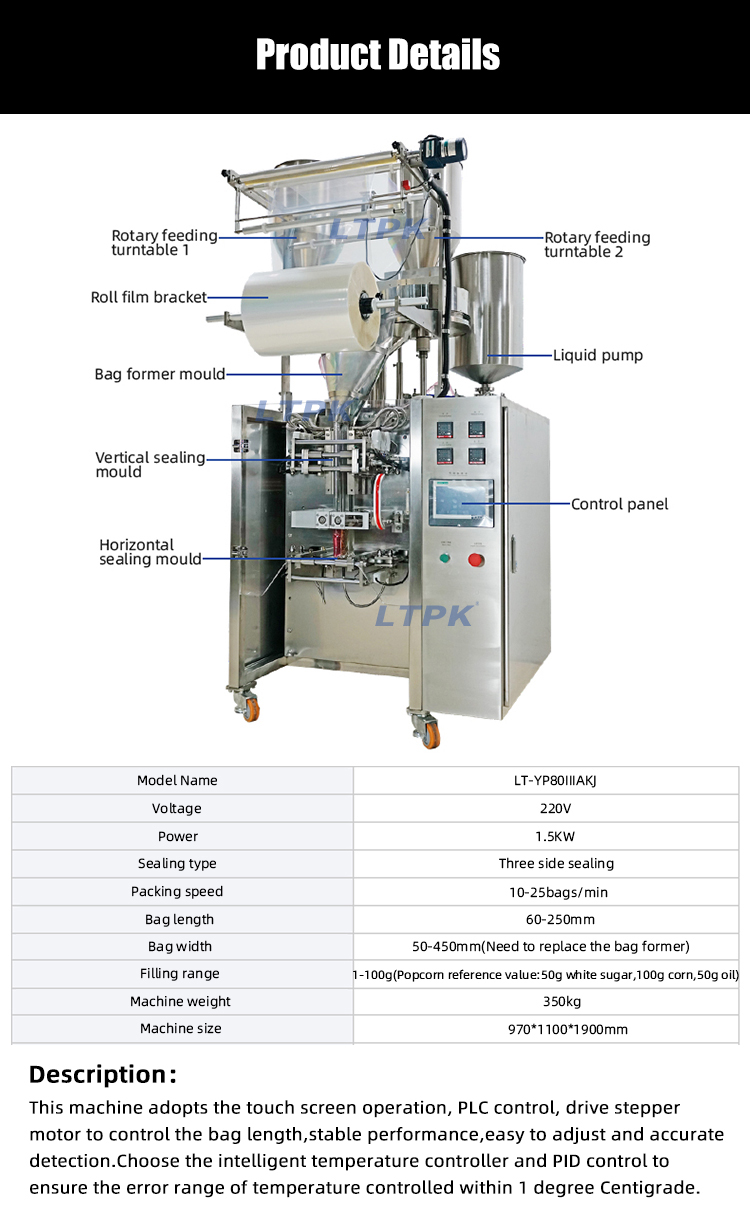

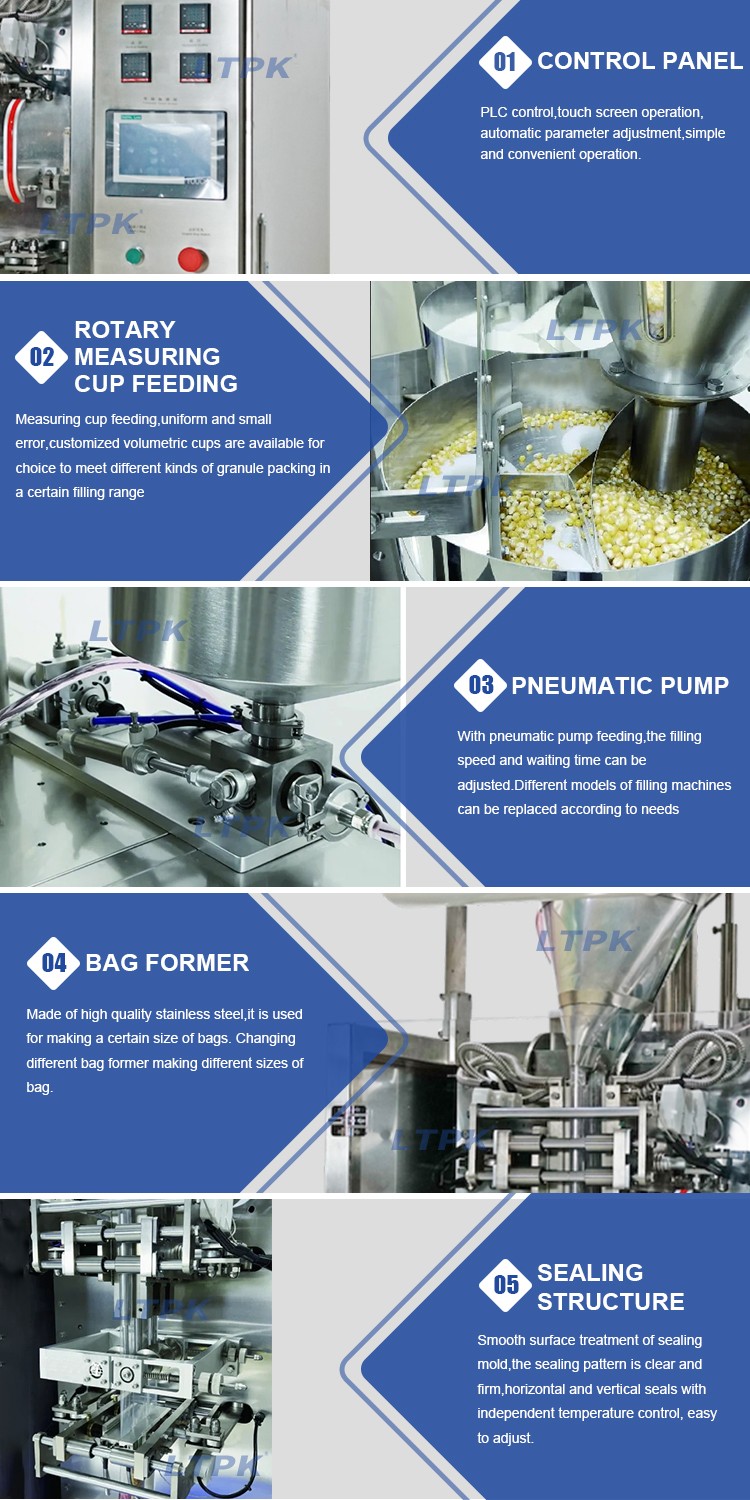

Detail Images
