Description

This machine adopts the touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

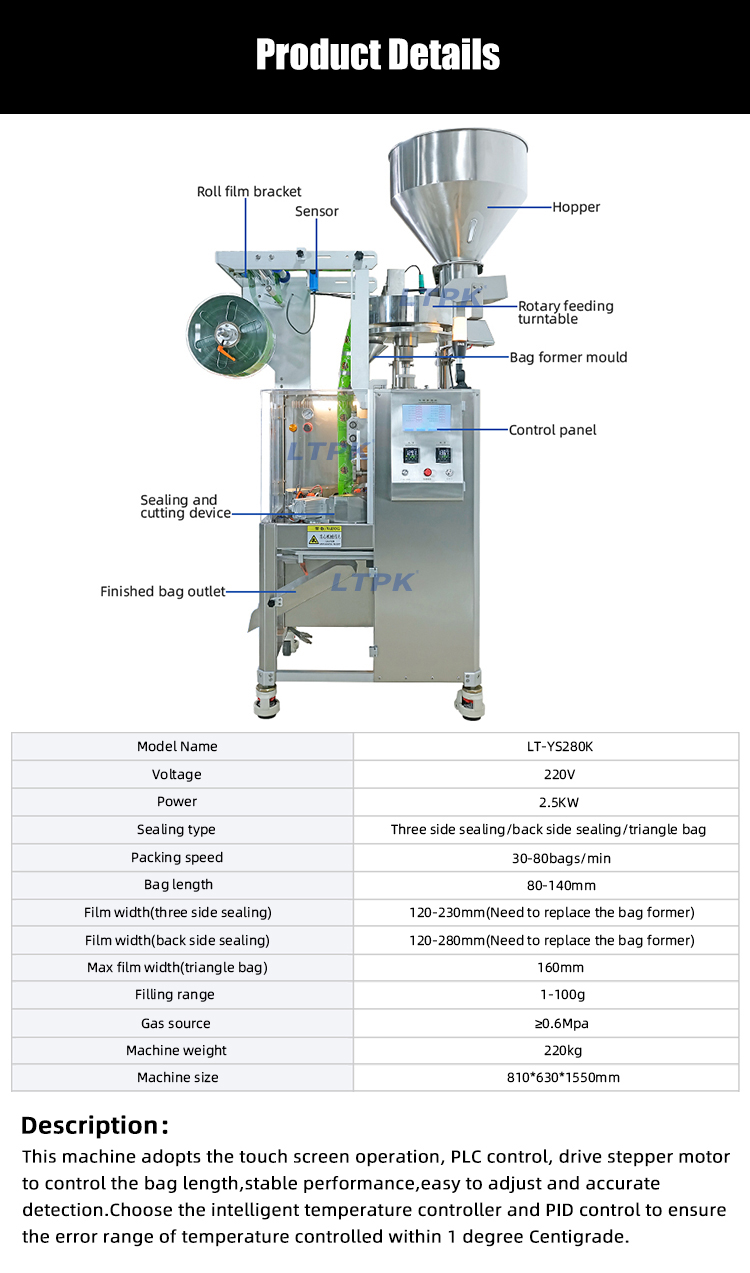

Technical parameters

Model:LT-YS280K

Voltage:220V

Power :2.5KW

Sealing type:Three side sealing/back side sealing/triangle bag

Packing speedv30-80bags/min

Bag length:80-140mm

Film width(three side sealing):120-230mm(Need to replace the bag former)

Film width(back side sealing):120-280mm(Need to replace the bag former)

Max film width(triangle bag):160mm

Filling range:1-100g

Gas source:≥0.6Mpa

Machine weight:220kg

Machine size:810*630*1550mm

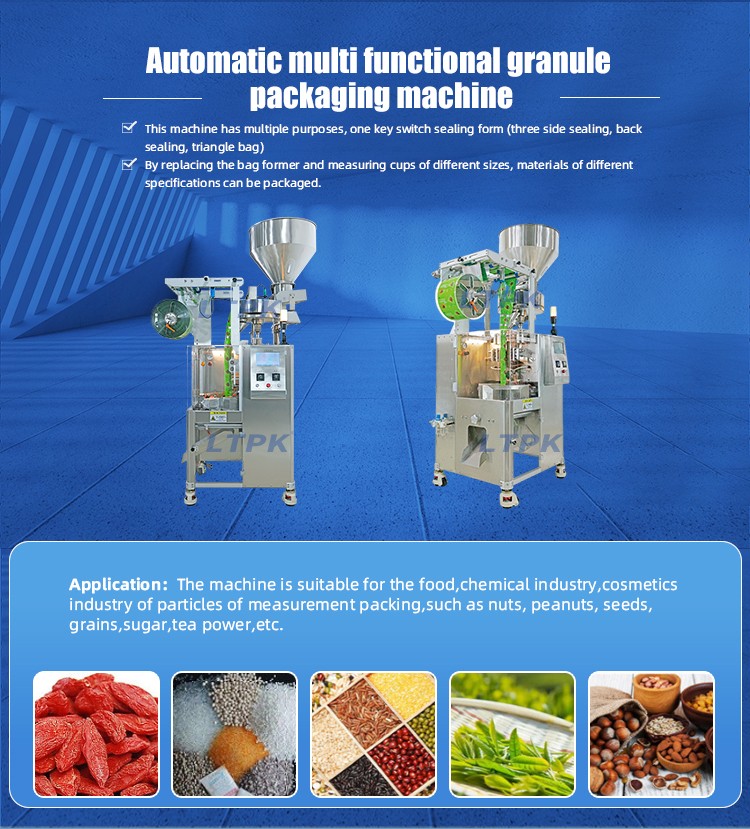

Application

The machine is suitable for the food,chemical industry,cosmetics industry of particles of measurement packing,

such as nuts, peanuts, seeds, grains,sugar,tea power,etc.

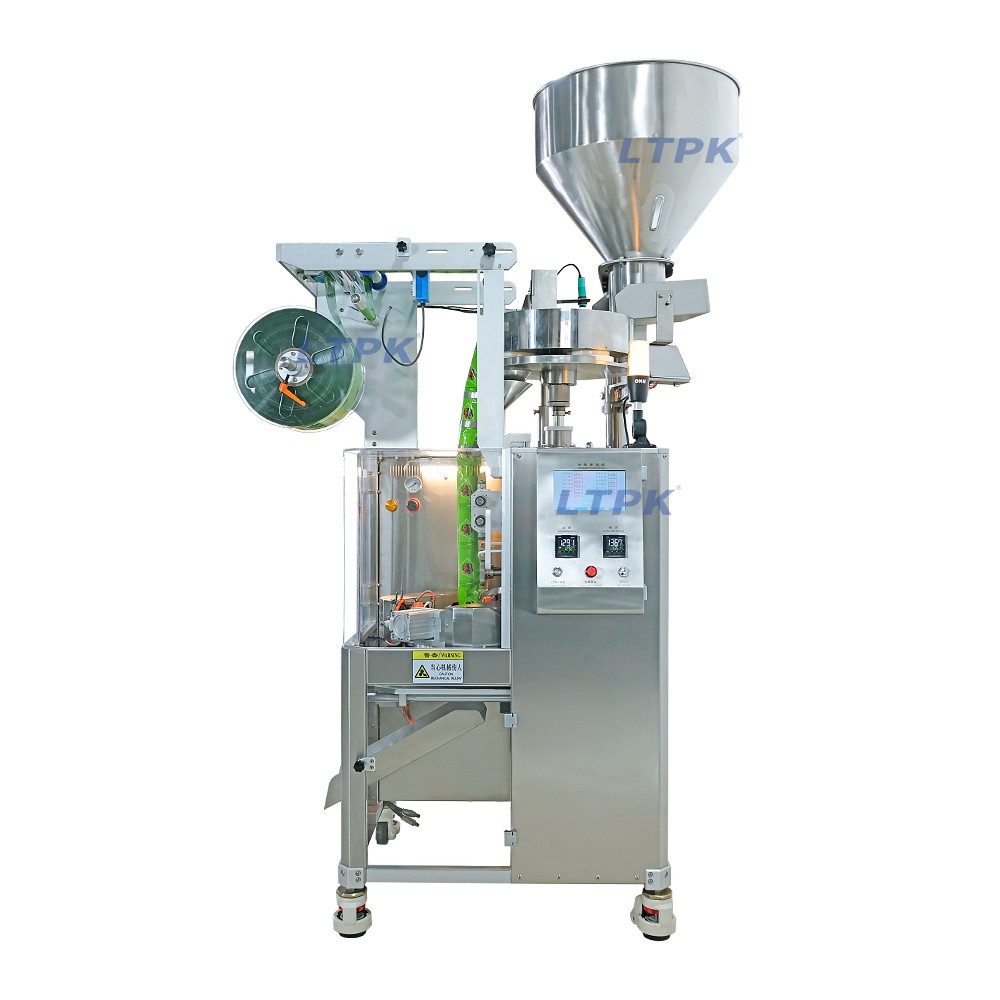

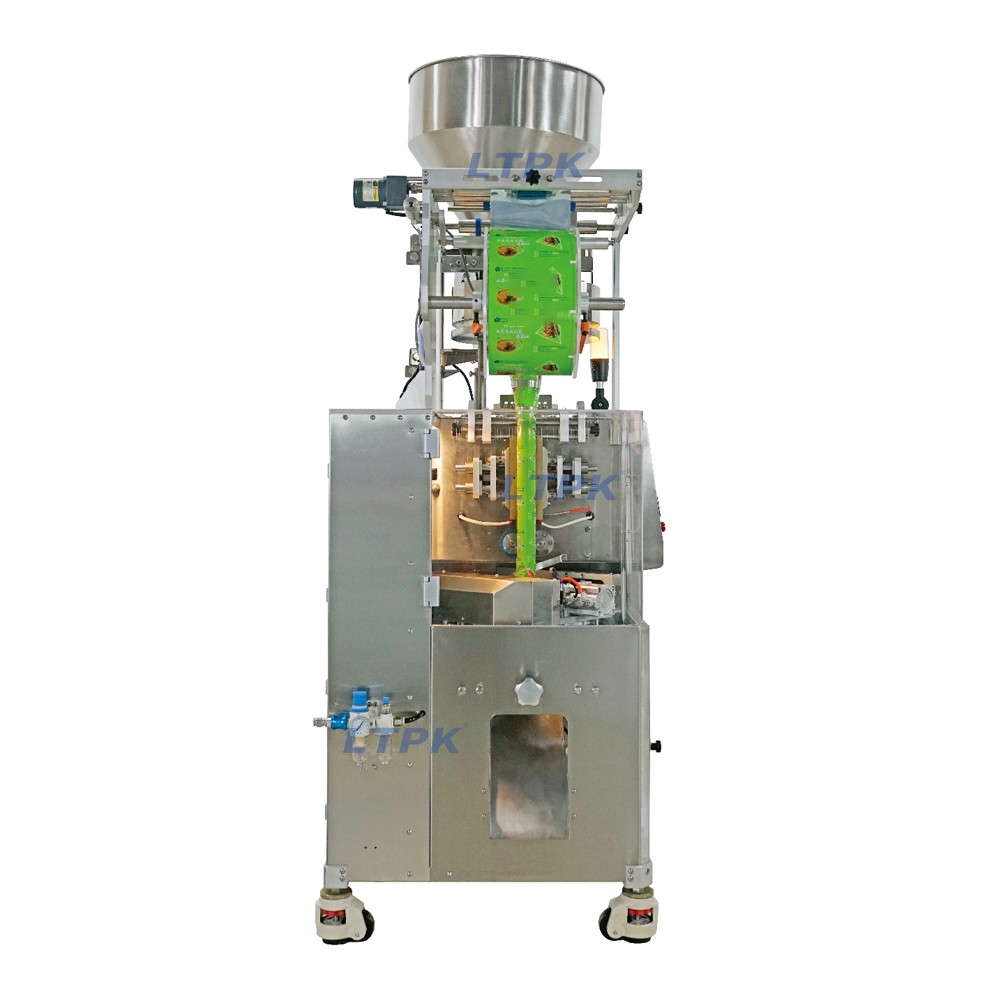

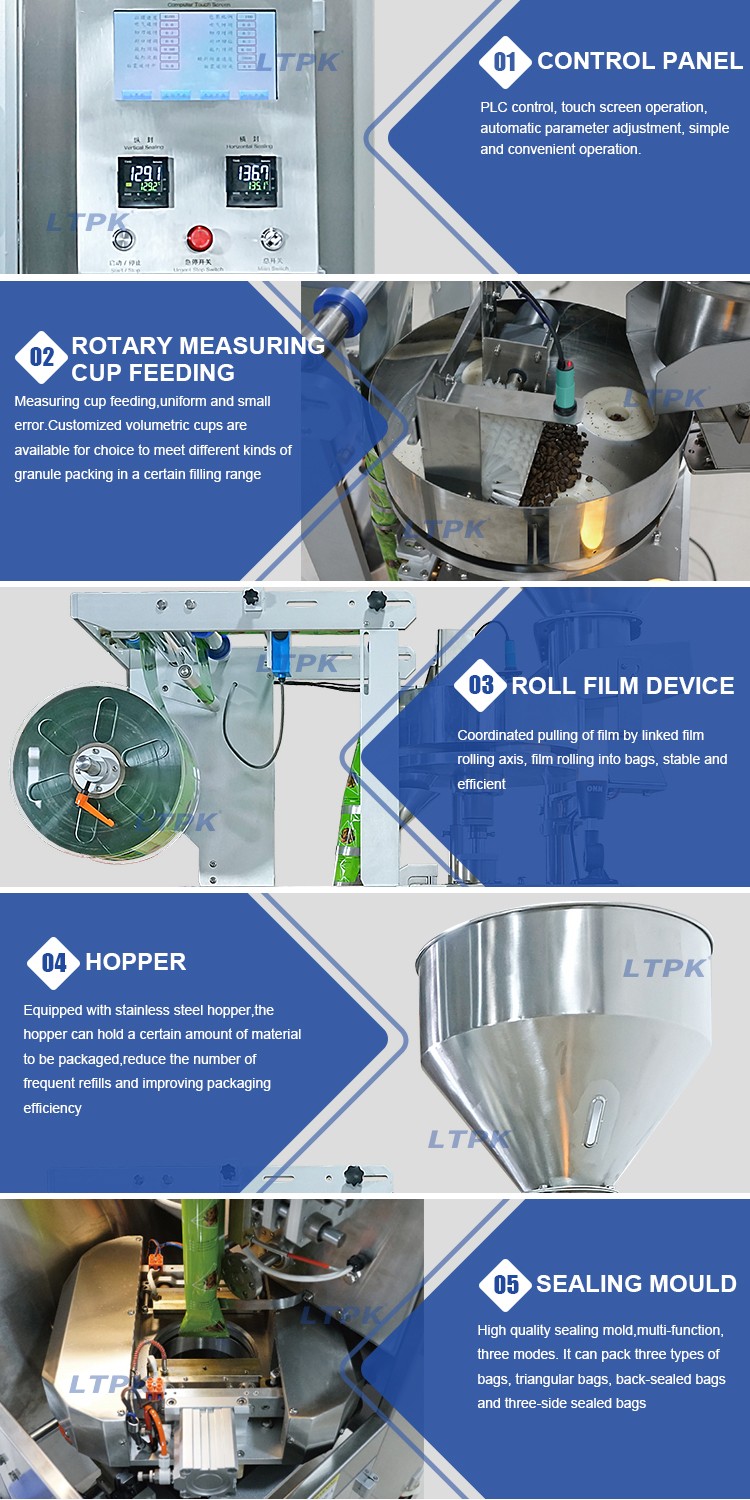

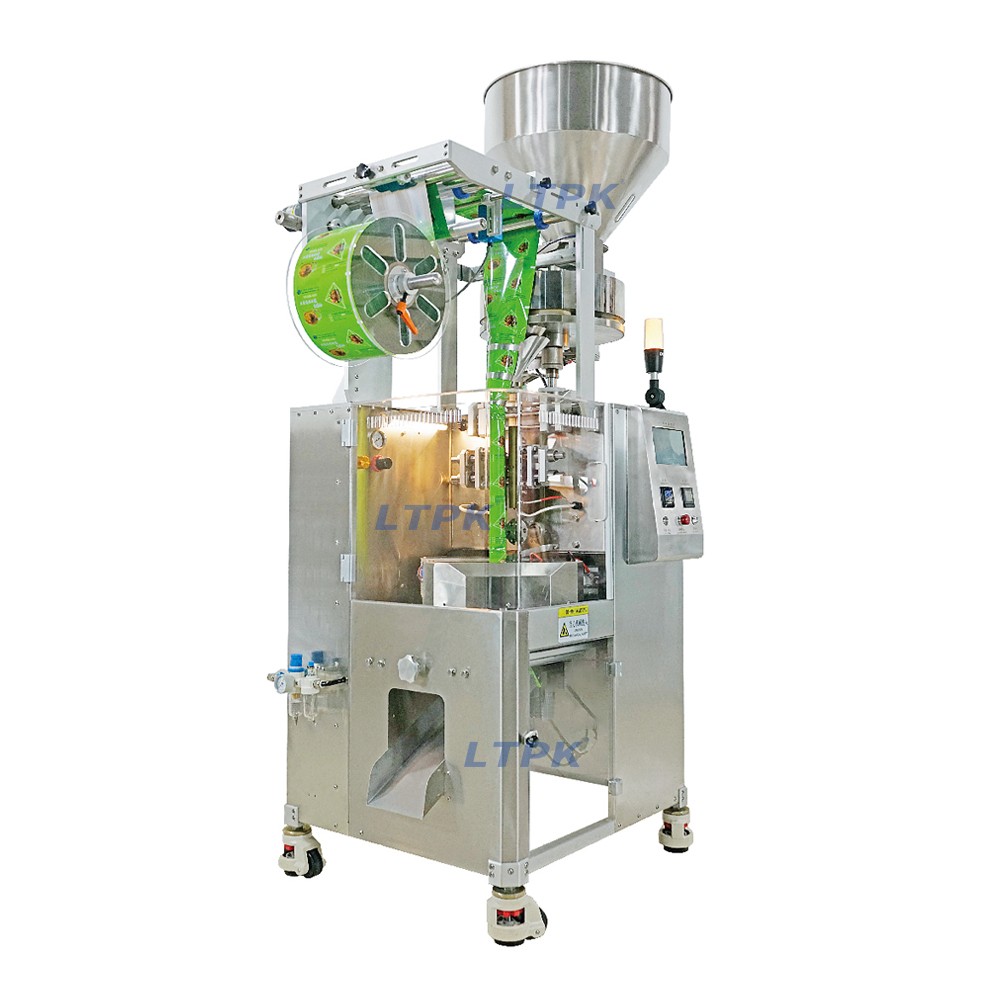

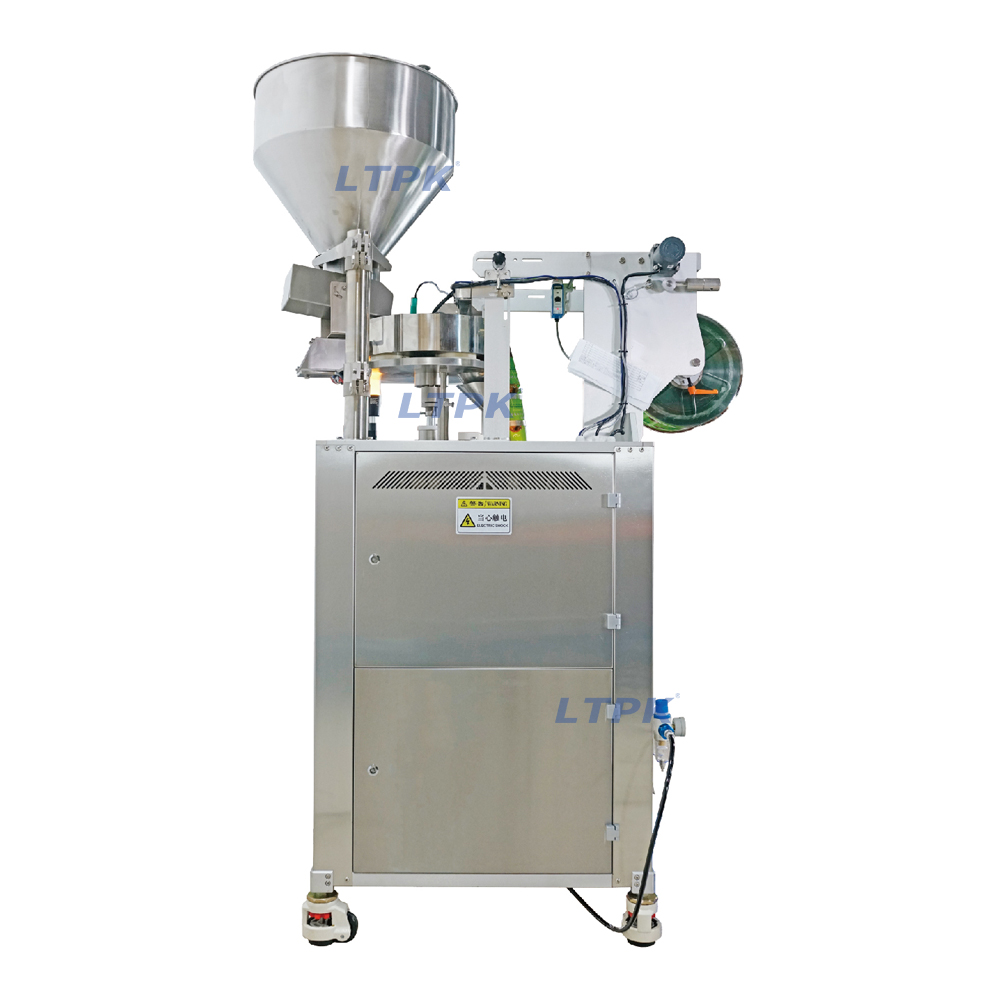

Detail Images
